3UR-FE 5.7L

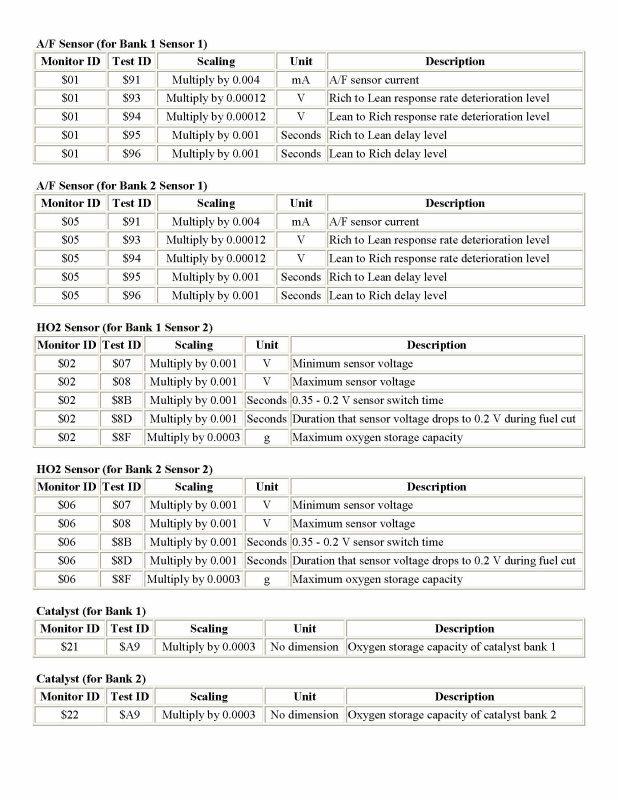

Fig 1: Mode 6 Data For Tundra 5.7L (1 Of 4)
G00526343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

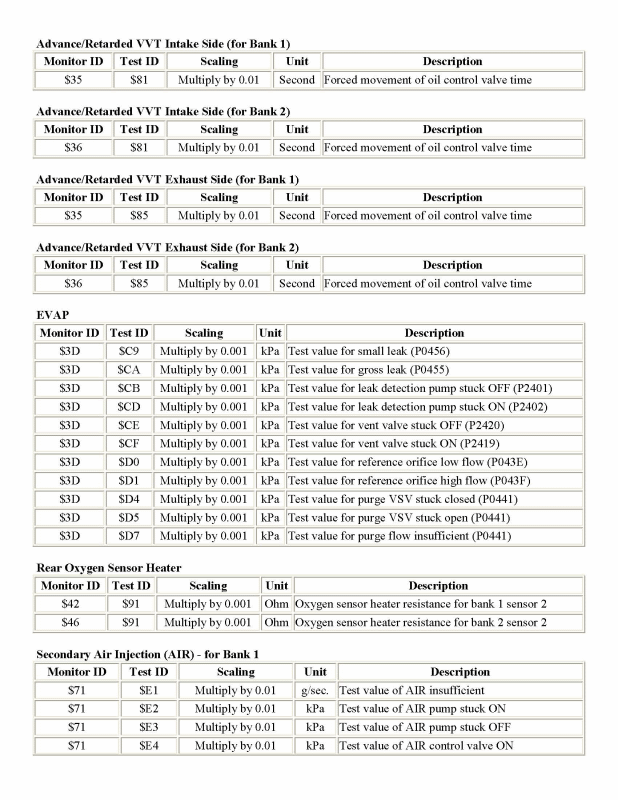

Fig 2: Mode 6 Data For Tundra 5.7L (2 Of 4)
G00526344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

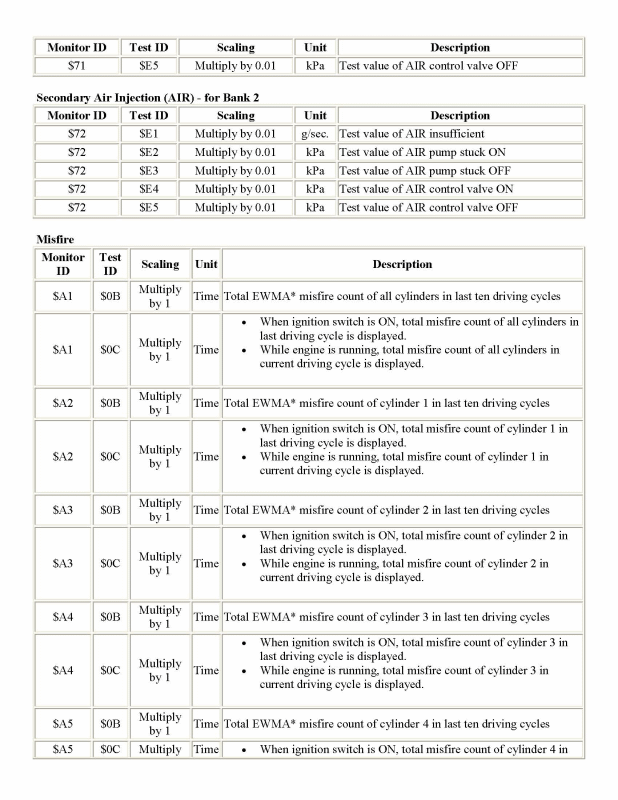

Fig 3: Mode 6 Data For Tundra 5.7L (3 Of 4)
G00526345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

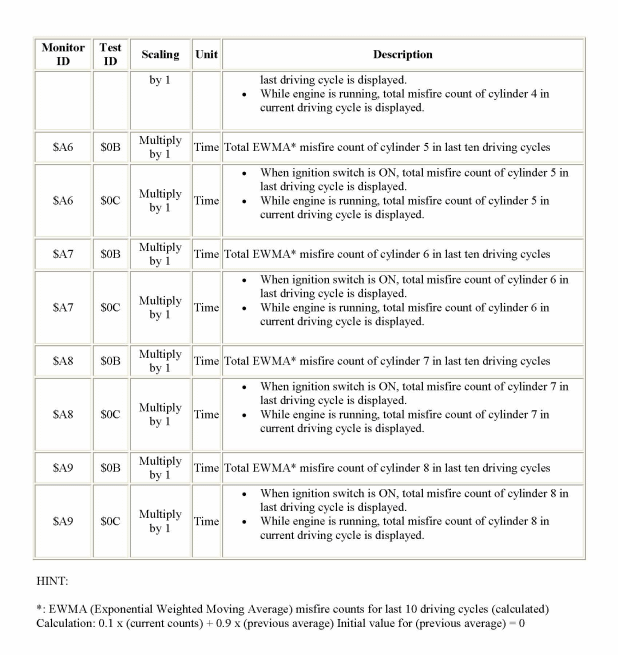

Fig 4: Mode 6 Data For Tundra 5.7L (4 Of 4)
G00526346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
