Parts Location: Illustration

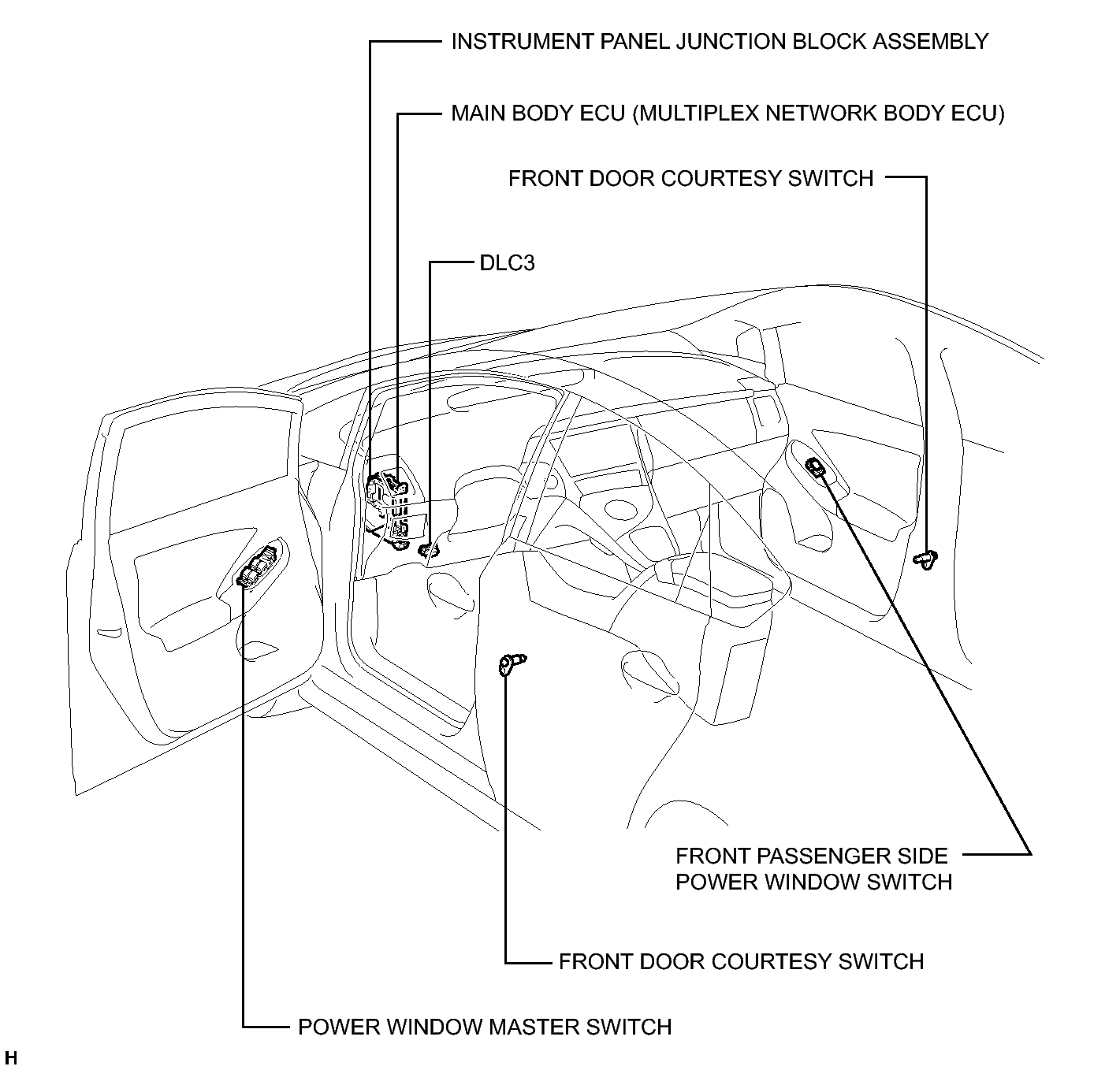

Fig 1: Identifying Power Window Control System Components Locations (1 Of 2)
GTY338377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

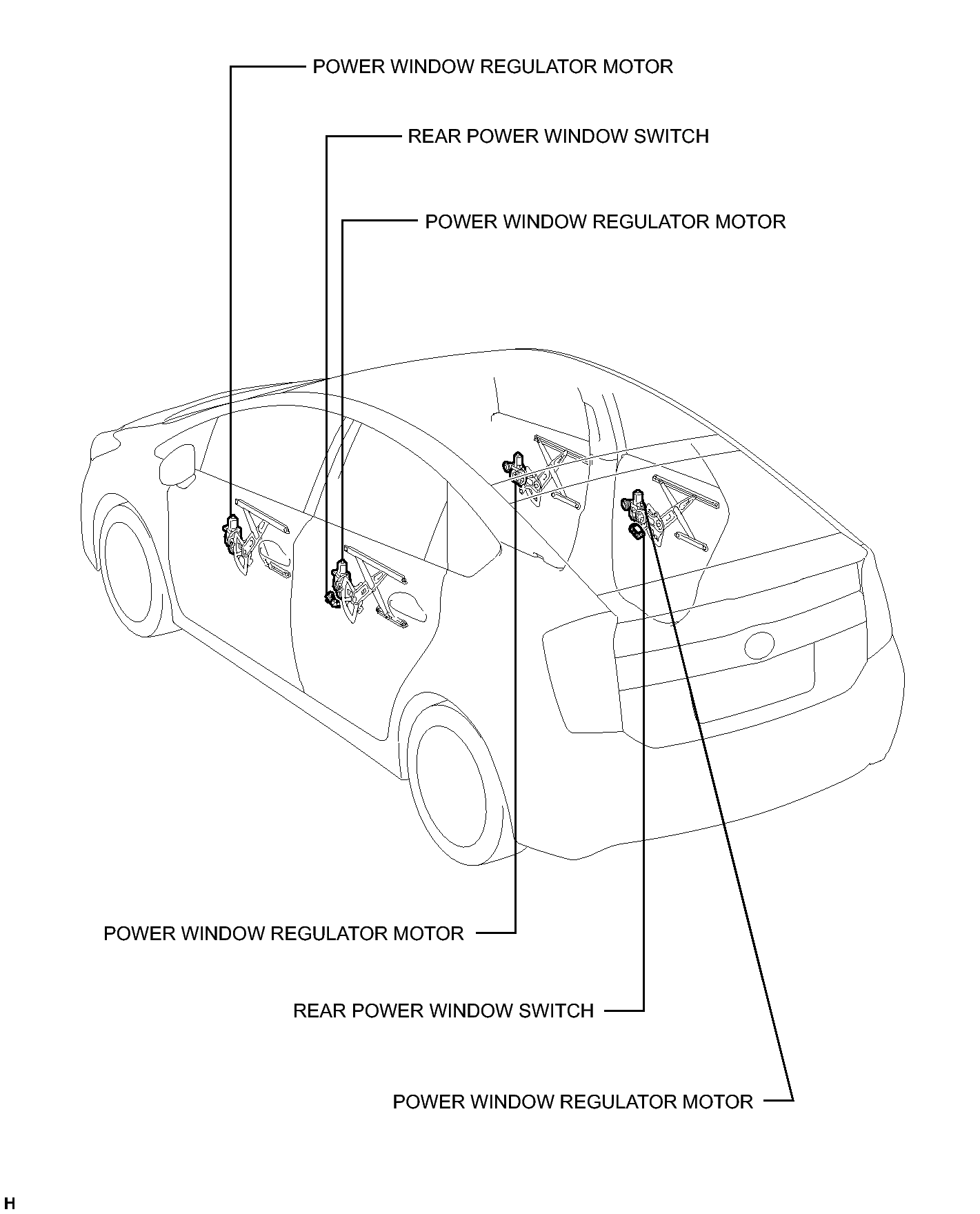

Fig 1: Identifying Power Window Control System Replacement Components (2 Of 2)
GTY333956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
