System Diagram

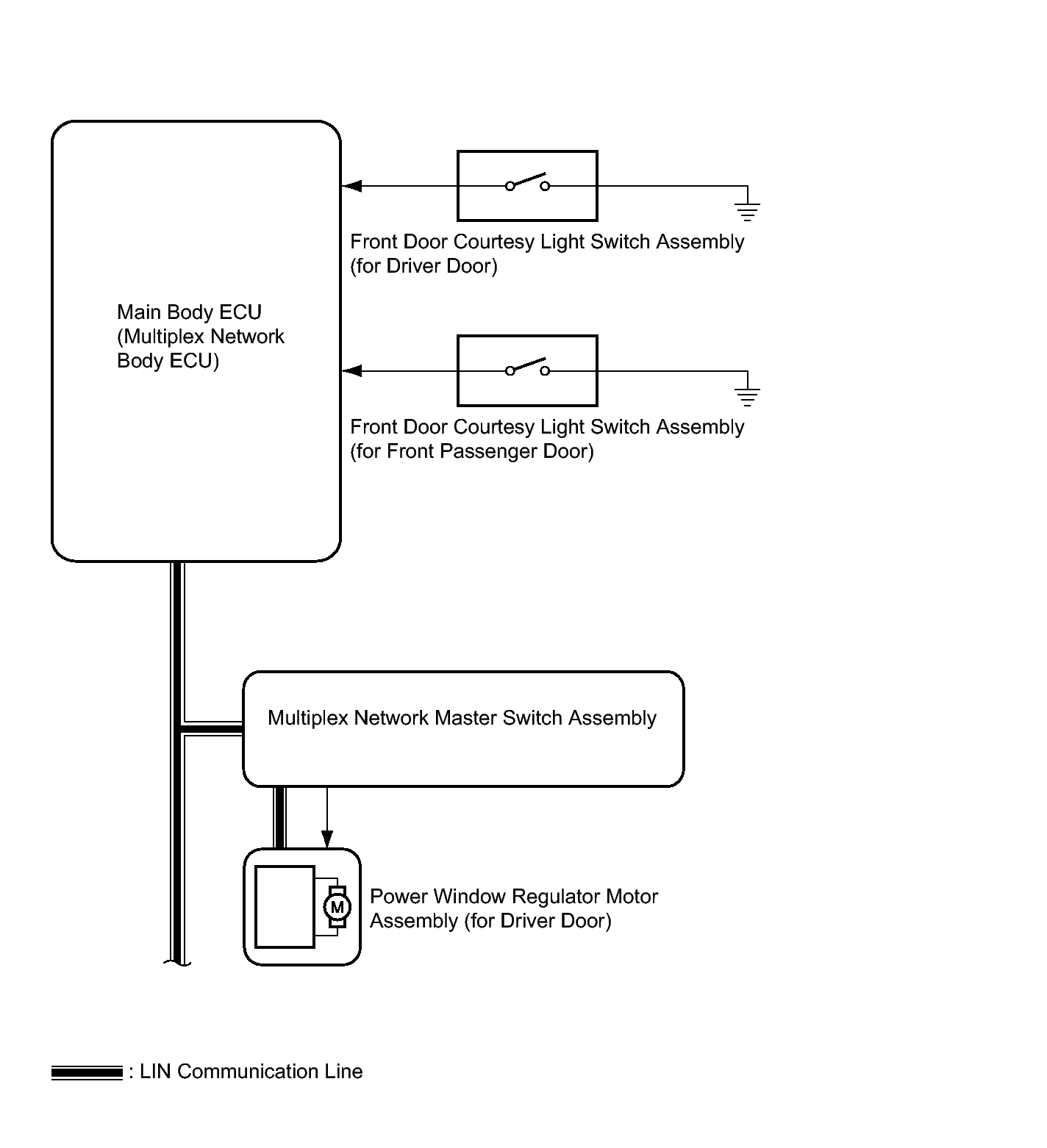

Fig 1: Identifying Power Window Control System Diagram (1 Of 2)
GTY333731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

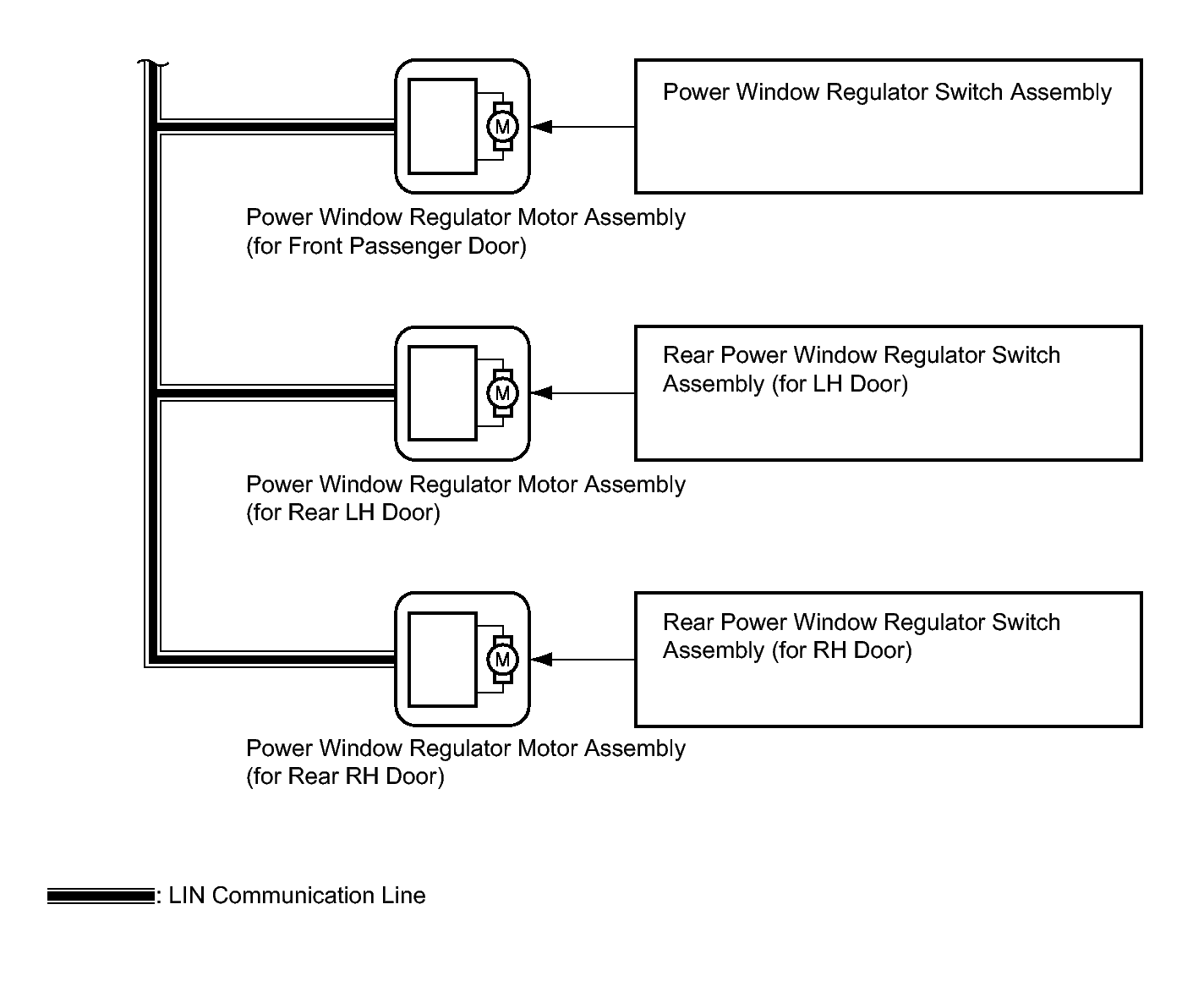

Fig 2: Identifying Power Window Control System Diagram (2 Of 2)
GTY339463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Transmitting ECU Receiving ECU Signal Communication Method
Multiplex network master switch assembly Power window regulator motor assembly (for driver door) Power window auto up and down signal LIN
  • Power window regulator motor assembly (for front passenger door)
  • Power window regulator motor assembly (for rear LH door)
  • Power window regulator motor assembly (for rear RH door)
 Power window remote up and down signal LIN
Main body ECU (multiplex network body ECU)
  • Power window regulator motor assembly (for driver door)
  • Power window regulator motor assembly (for front passenger door)
  • Power window regulator motor assembly (for rear LH door)
  • Power window regulator motor assembly (for rear RH door)
 Power window operation permission signal LIN
