Fuel Tank: Components: Illustration

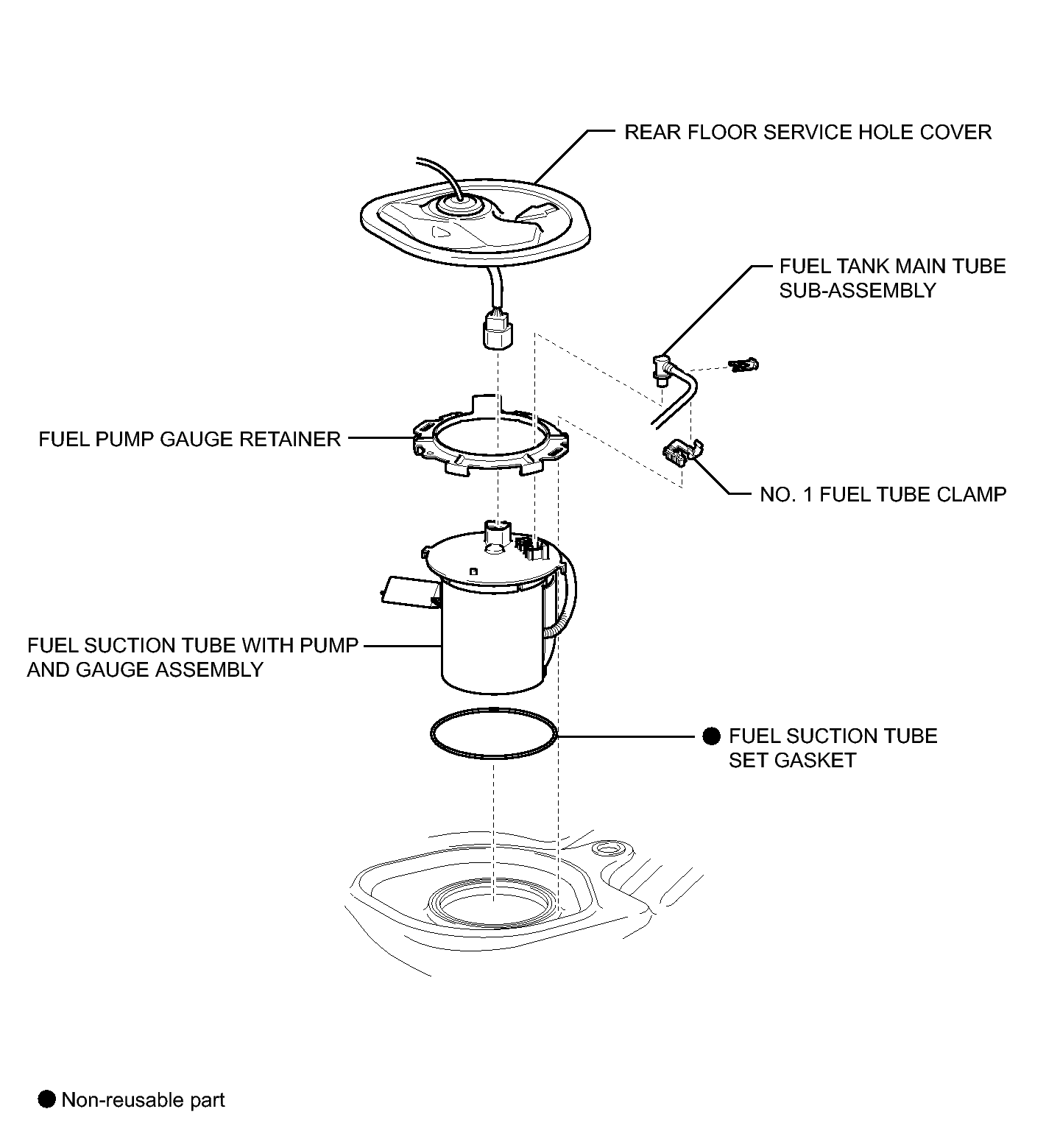

Fig 1: Identifying Fuel Tank Replacement Components (1 Of 4)
GTY323977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (2 Of 4)
GTY342510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

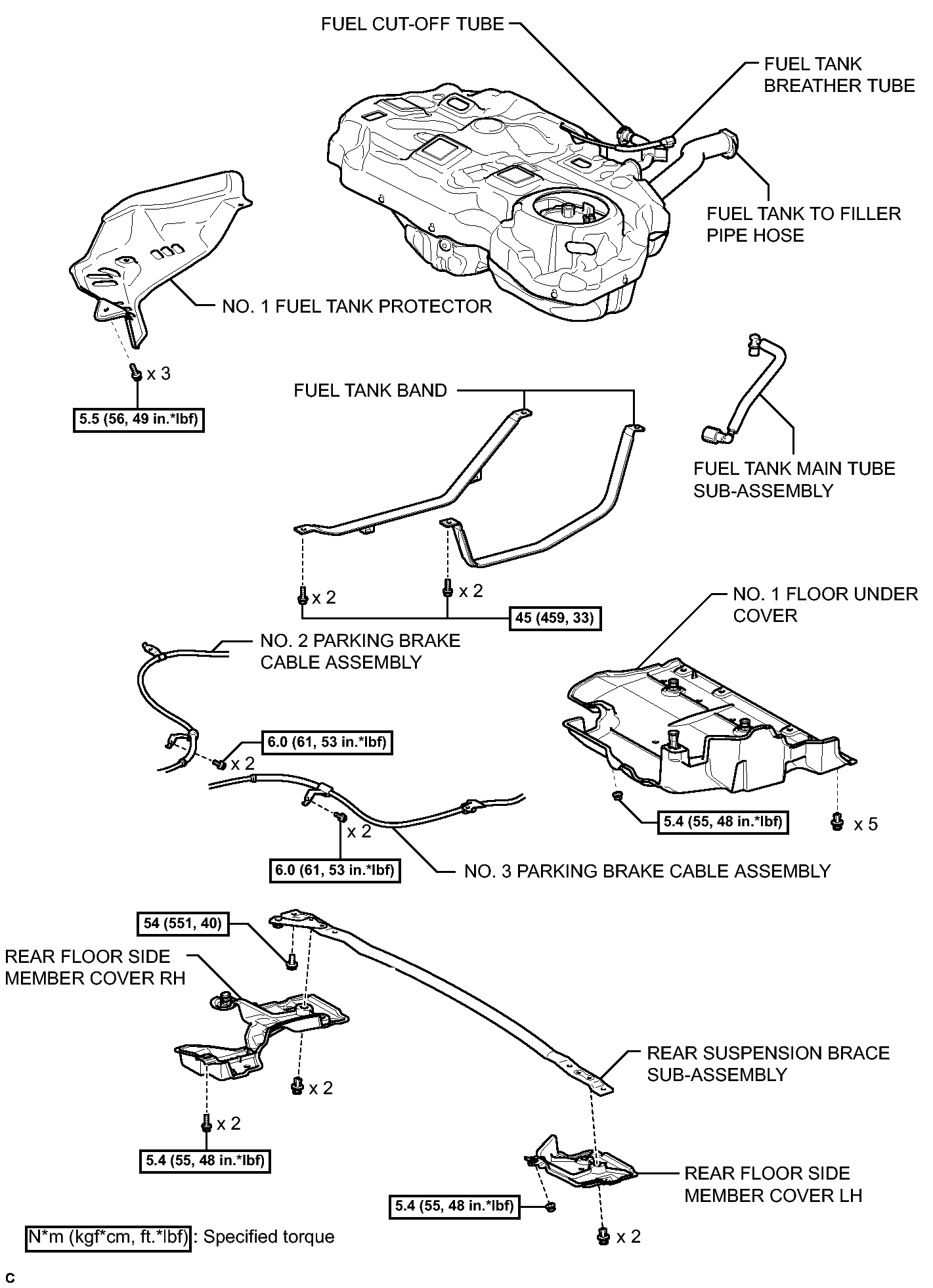

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (3 Of 4)
GTY340026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

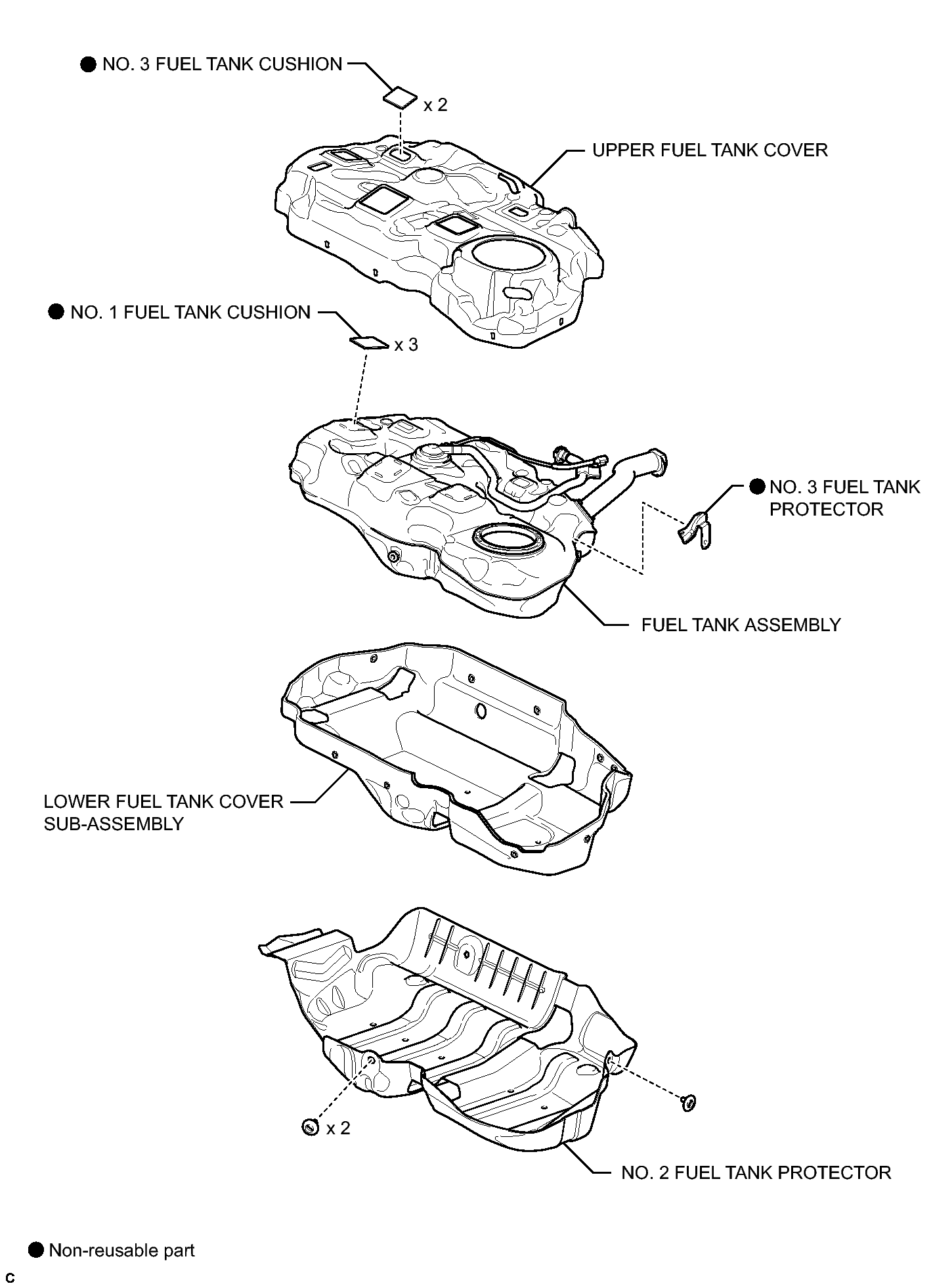

Fig 1: Identifying Fuel Tank Replacement Components (4 Of 4)
GTY336914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
