Parts Location: Illustration

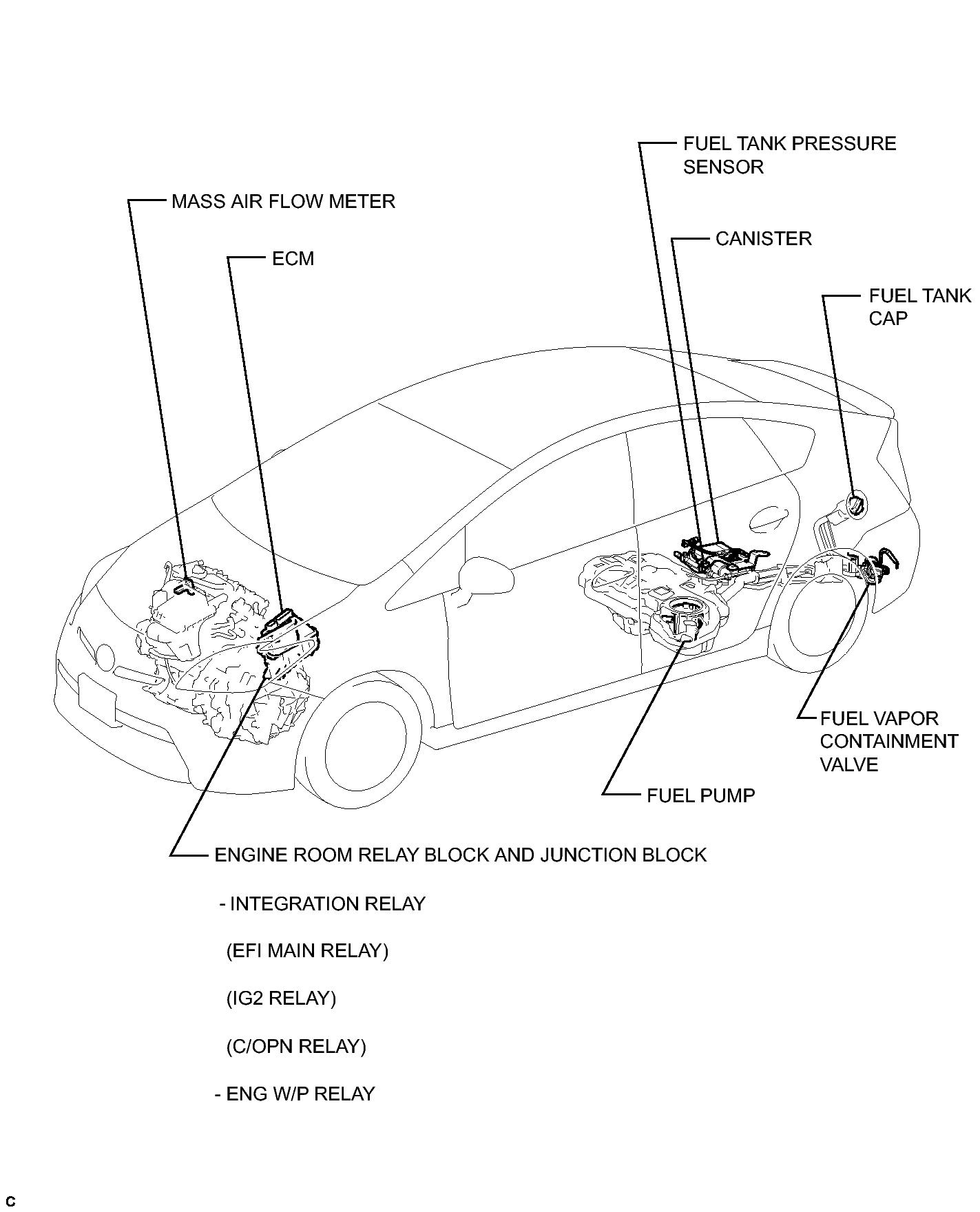

Fig 1: Identifying SFI System Component Location (1 Of 4)
GTY332567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

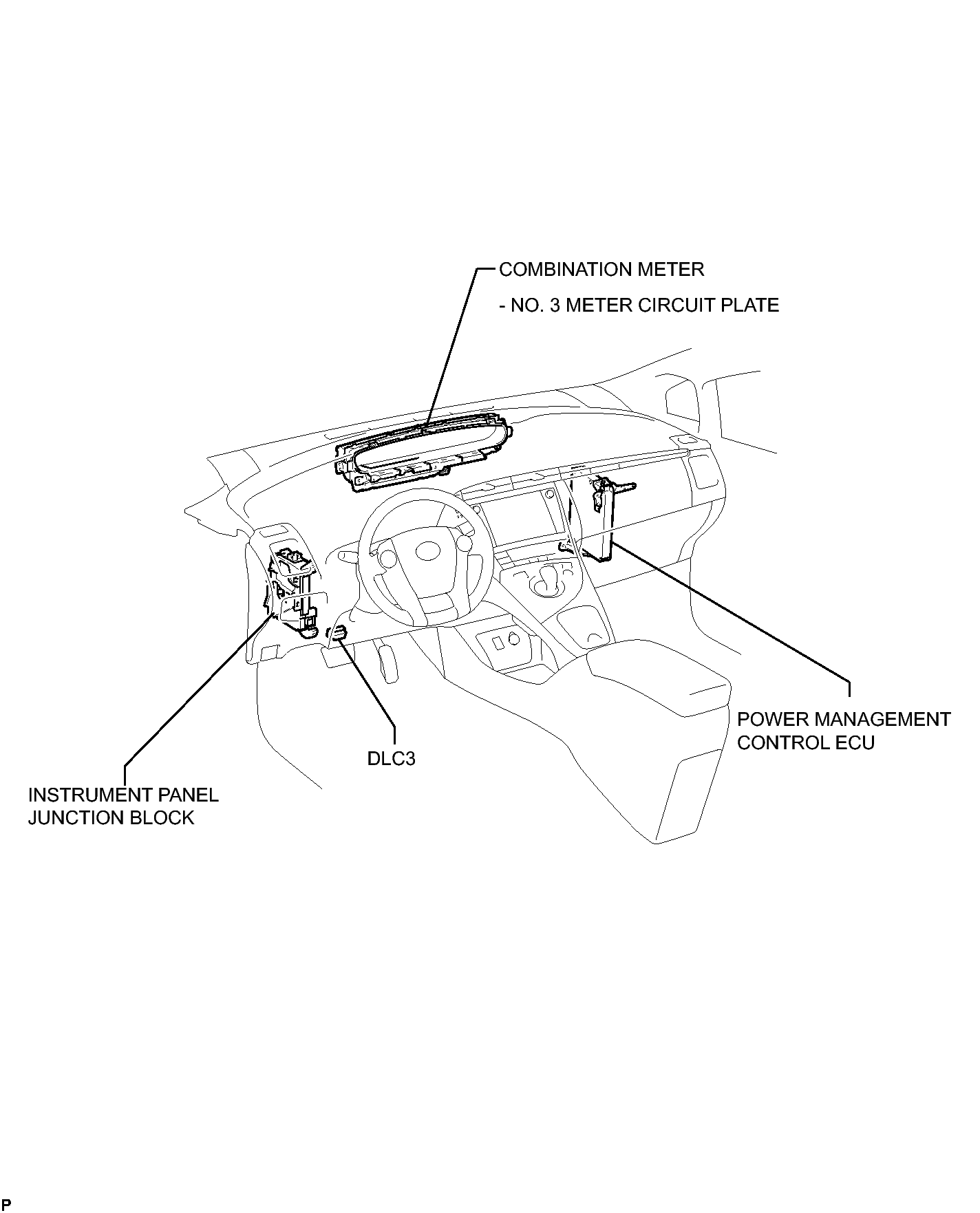

Fig 1: Identifying SFI System Component Location (2 Of 4)
GTY216384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

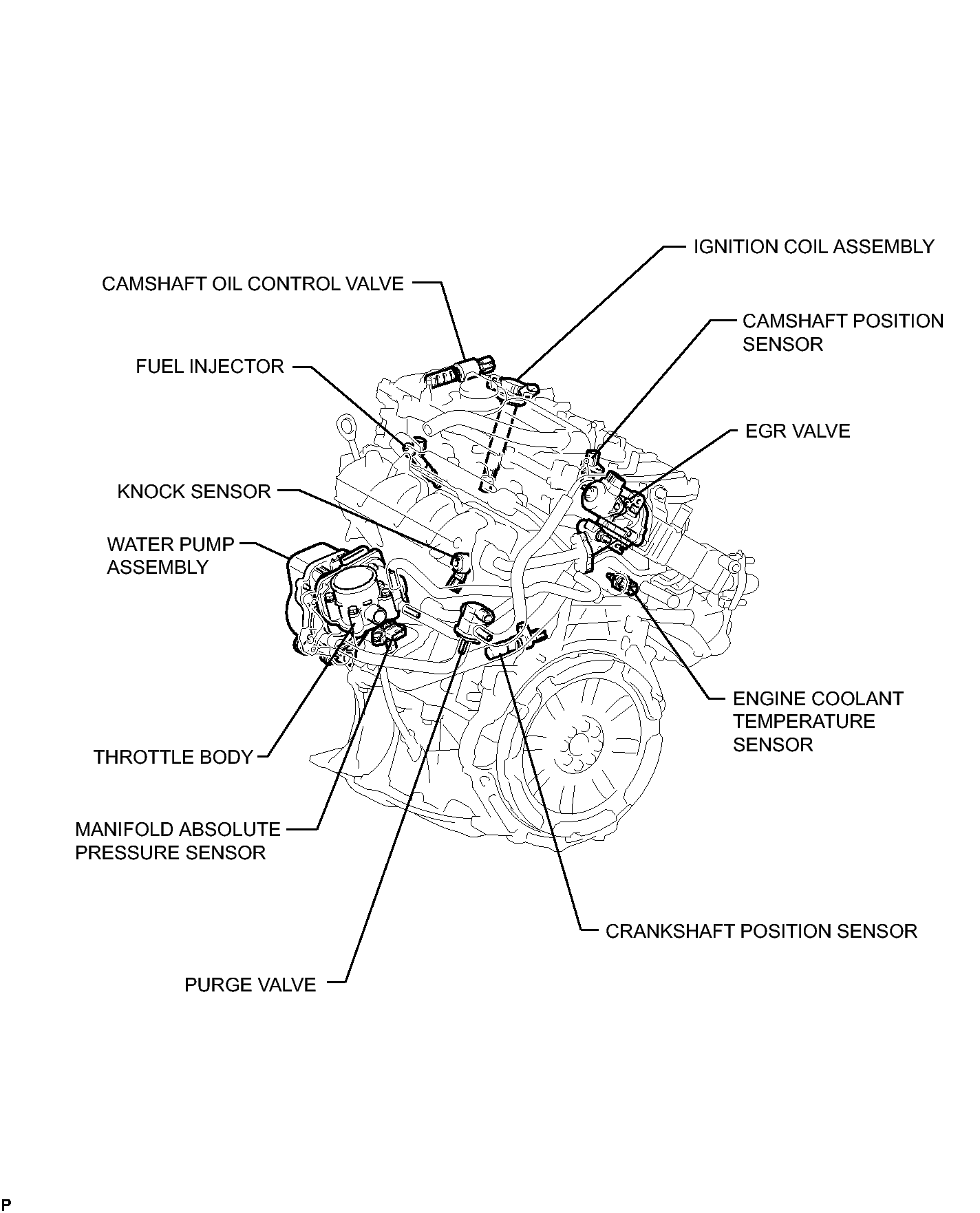

Fig 1: Identifying SFI System Component Location (3 Of 4)
GTY333082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

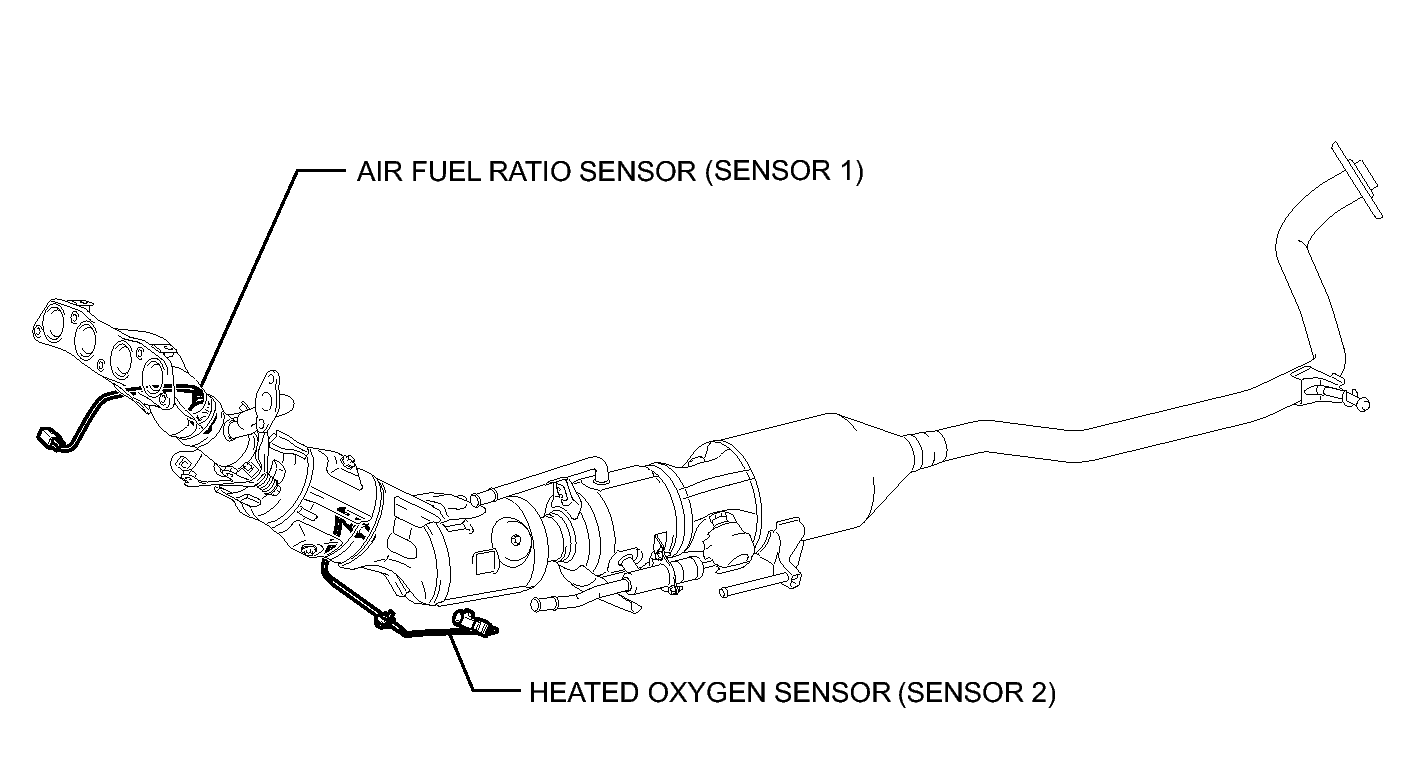

Fig 1: Identifying SFI System Component Location (4 Of 4)
GTY333374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
