Mass Air Flow Meter: Installation: Installation

INSTALL MASS AIR FLOW METER
1. Install the mass air flow meter with the 2 screws.

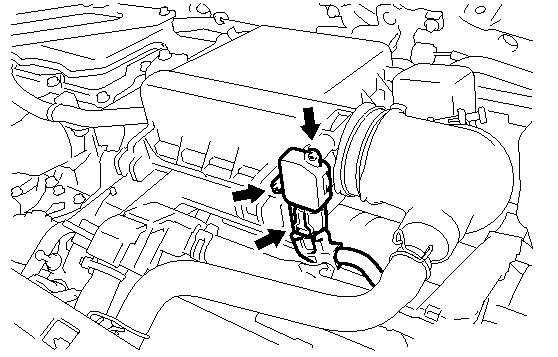

  Fig 1: Identifying Mass Air Flow Meter Connector & Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Make sure that the O-ring is not cracked or does not jump out of position during installation.
2. Connect the mass air flow meter connector.
INSTALL NO. 2 CYLINDER HEAD COVER . Refer to INSTALLATION - Step 99
