Parts Location: Illustration

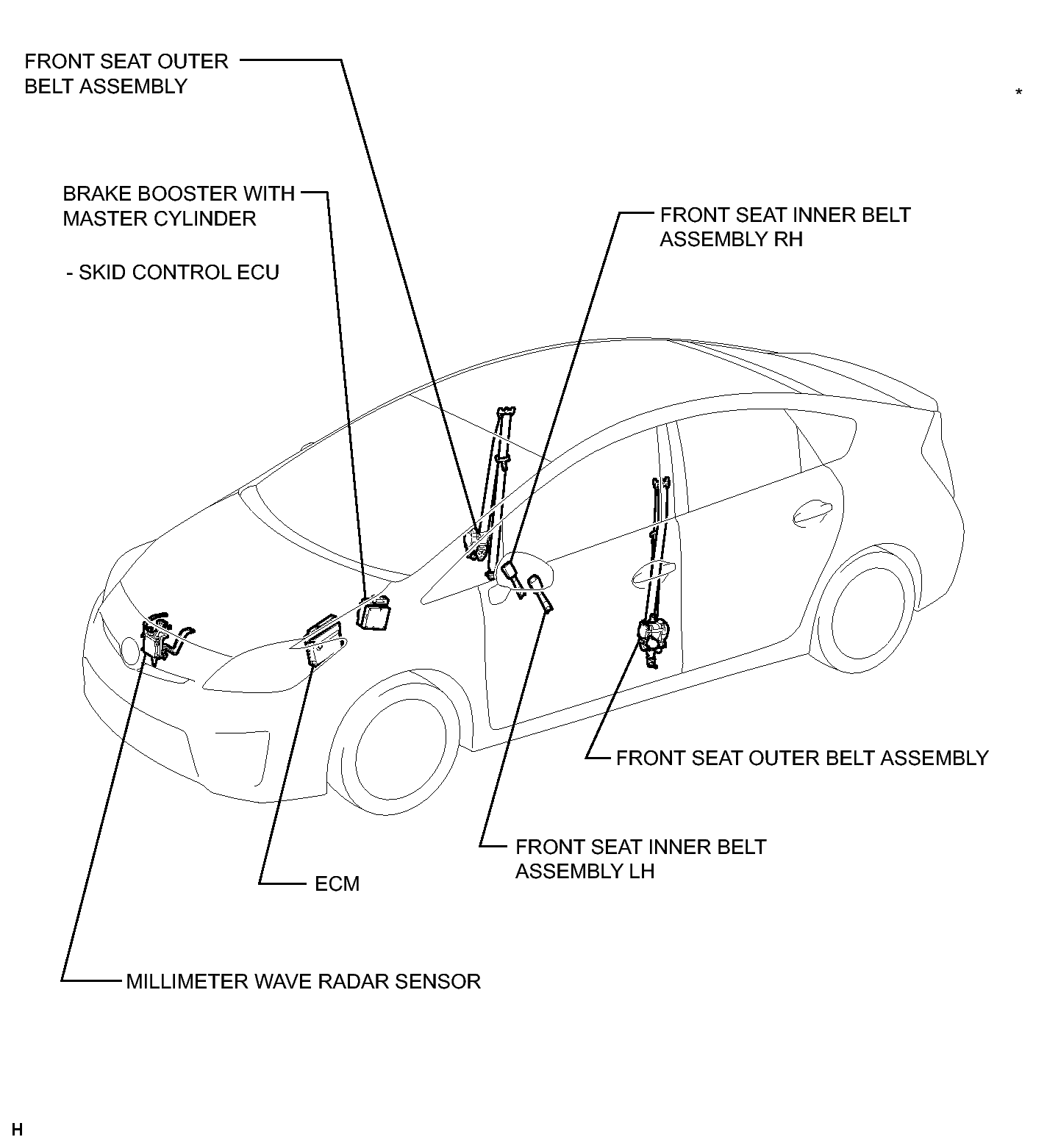

Fig 1: Identifying Pre-Collision System Component Location (1 Of 2)
GTY325347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

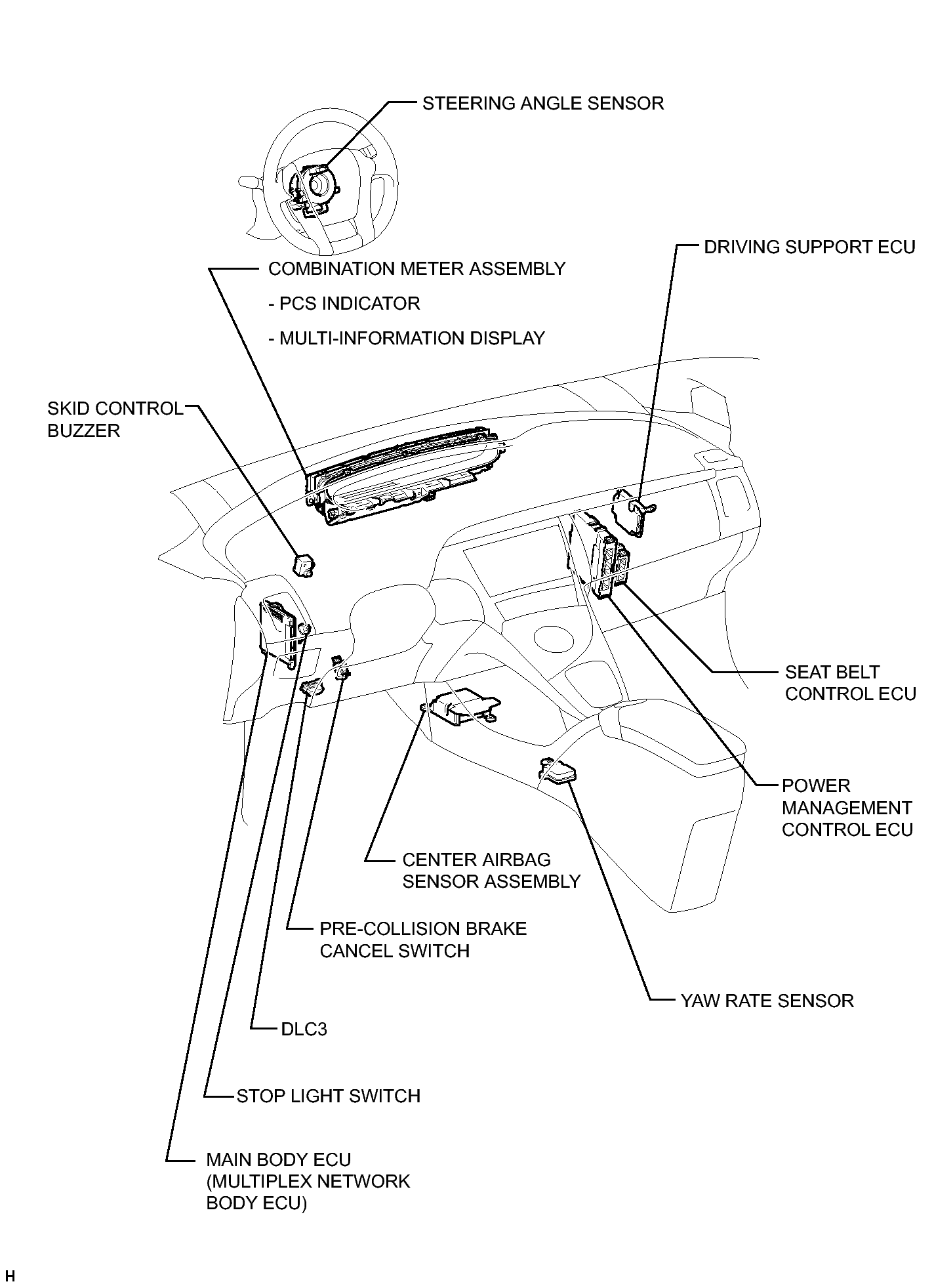

Fig 1: Identifying Pre-Collision System Component Location (2 Of 2)
GTY341251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
