Pre-Collision Brake Cancel Switch: Installation: Installation

  1. INSTALL PRE-COLLISION SYSTEM CANCEL SWITCH ASSEMBLY
    1. Engage the 2 claws to install the pre-collision system cancel switch assembly.

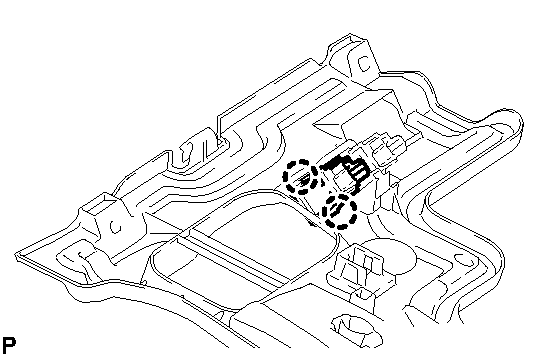

      Fig 1: Identifying Pre-Collision System Cancel Switch Assembly Claws
      GTY212308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  . Refer to INSTALLATION - Step 15
