Knee Airbag Assembly: Components: Illustration

Fig 1: Identifying Knee Airbag Assembly Replacement Components (1 Of 5)
GTY328803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Knee Airbag Assembly Replacement Components (2 Of 5)
GTY337774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Knee Airbag Assembly Replacement Components (3 Of 5)
GTY233647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Knee Airbag Assembly Replacement Components With Torque Specifications (4 Of 5)
GTY324511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

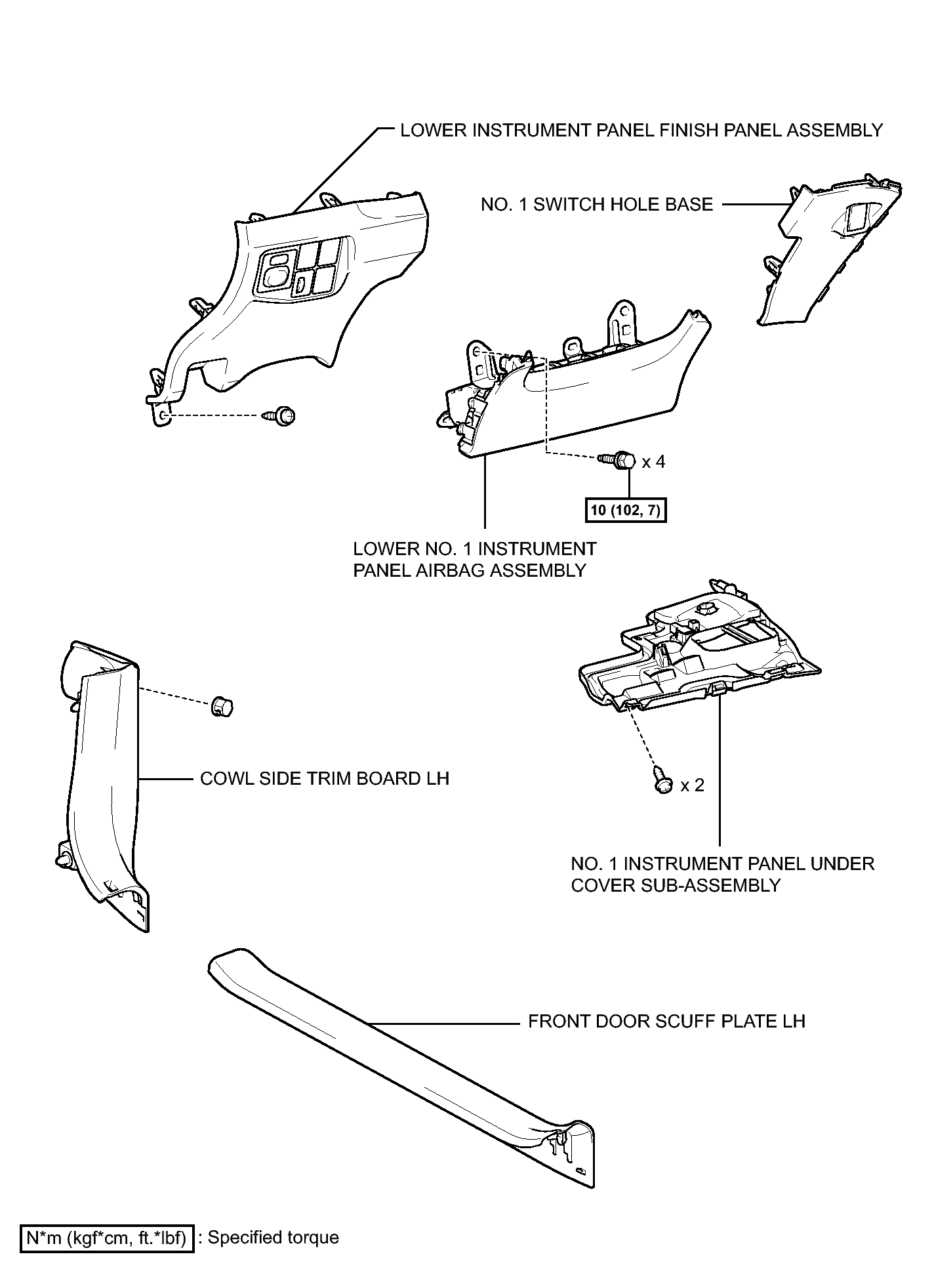

Fig 1: Identifying Knee Airbag Assembly Replacement Components With Torque Specifications (5 Of 5)
GTY338139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
