Fail-Safe Chart

  1. POWER WINDOW OPERATION IN FAIL-SAFE MODE

    HINT:

    If the pulse sensor built into the power window regulator motor malfunctions, the power window control system enters fail-safe mode.

    1. The power window control system prohibits the following power window operations when the pulse sensor for the jam protection function has problems and the window position or the learned value is abnormal.
      MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

      Power Window Operation Condition
      Power switch on (IG) Power switch off
      (Key-off operation permitted)      		 Power switch off
      (Key-off operation prohibited)
      Manual up (Driver side door window) X X -
      Manual down (Driver side door window) ◦ X -
      Auto up (Driver side door window)
      (hold switch at auto up position)      		 ◦* X -
      Auto up (Driver side door window) X X -
      Auto down (Driver side door window) X X -
      Manual up (Remote switch operation) X X -
      Manual down (Remote switch operation) X X -
      Auto up (Remote switch operation)
      (hold switch at auto up position)      		 X X -
      Auto up (Remote switch operation) X X -
      Auto down (Remote switch operation) X X -

      HINT:

      • ◦: Operates
      • X: Operation prohibited
      • *: Operates in manual mode without jam protection
      POWER WINDOW REGULATOR SWITCH ASSEMBLY (FOR FRONT PASSENGER, REAR LH AND REAR RH SIDES)

      Power Window Operation Condition
      Power switch on (IG) Power switch off
      (Key-off operation permitted)      		 Power switch off
      (Key-off operation prohibited)
      Manual up X X -
      Manual down ◦ X -
      Auto up
      (hold switch at auto up position)      		 ◦* X -
      Auto up X X -
      Auto down X X -

      HINT:

      • ◦: Operates
      • X: Operation prohibited
      • *: Operates in manual mode without jam protection
      1. Power window switch LED control

        HINT:

        During normal operation (fail-safe is not operating), or during fail-safe mode when there is a pulse sensor malfunction or the window position or learned value is abnormal, the LED illuminates as shown in the illustration.

        1. For driver side:

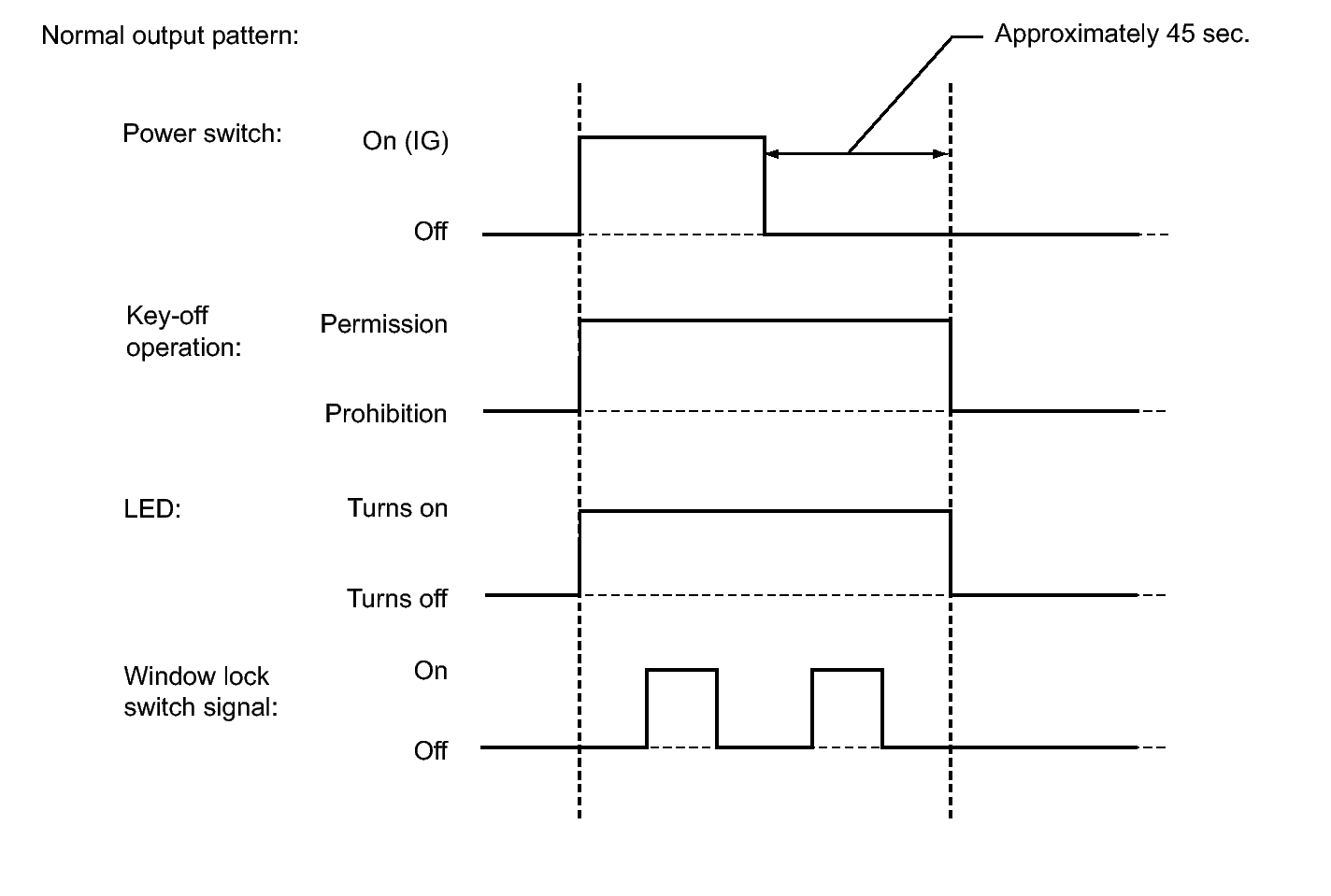

          Fig 1: Identifying Pulse Sensor LED Illumination Normal Output Pattern (Driver Side)
          GTY225657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        2. For front passenger, rear LH and rear RH sides:

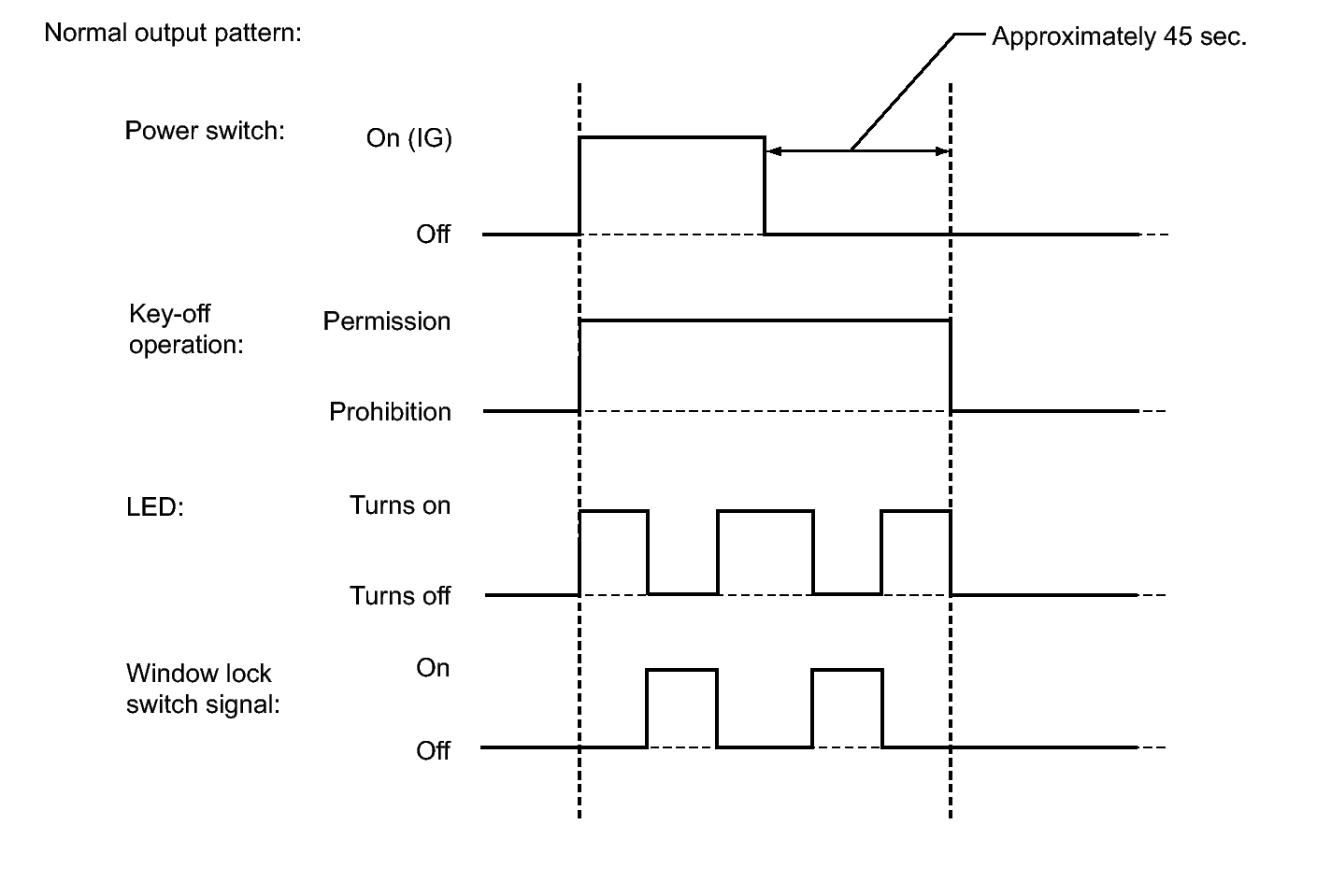

          Fig 2: Identifying Pulse Sensor LED Illumination Normal Output Pattern (Front Passenger, Rear LH/RH)
          GTY211635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Fail-safe deactivation condition
        • When the pulse sensor is normal, to deactivate fail-safe mode, pull up the power window switch to the auto up position and hold it for at least 1 second to fully close the window from the fully open position. As a result, the auto up and down function will return.
    2. Initialization failure

      HINT:

      During initialization of the power window regulator motor ECU, when the window position or initialization complete status cannot be properly read from the EEPROM, the power window control system prohibits the operations as follows:

      MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

      Power Window Operation Condition
      Power switch on (IG) Power switch off
      (Key-off operation permitted)      		 Power switch off
      (Key-off operation prohibited)
      Manual up (Driver side door window) X X -
      Manual down (Driver side door window) ◦ X -
      Auto up (Driver side door window)
      (hold switch at auto up position)      		 ◦* X -
      Auto up (Driver side door window) X X -
      Auto down (Driver side door window) X X -
      Manual up (Remote switch operation) X X -
      Manual down (Remote switch operation) X X -
      Auto up (Remote switch operation)
      (hold switch at auto up position)      		 X X -
      Auto up (Remote switch operation) X X -
      Auto down (Remote switch operation) X X -

      HINT:

      • ◦: Operates
      • X: Operation prohibited
      • *: Operates in manual mode without jam protection
      POWER WINDOW REGULATOR SWITCH ASSEMBLY (FOR FRONT PASSENGER, REAR LH AND REAR RH SIDES)

      Power Window Operation Condition
      Power switch on (IG) Power switch off
      (Key-off operation permitted)      		 Power switch off
      (Key-off operation prohibited)
      Manual up X X -
      Manual down ◦ X -
      Auto up
      (hold switch at auto up position)      		 ◦* X -
      Auto up X X -
      Auto down X X -

      HINT:

      • ◦: Operates
      • X: Operation prohibited
      • *: Operates in manual mode without jam protection
      1. Power window switch LED control

        HINT:

        During initialization of the power window regulator motor ECU, when the window position or initialization complete status cannot be properly read from the EEPROM during fail-safe mode, the LED illuminates as shown in the illustration.

        1. For driver side:

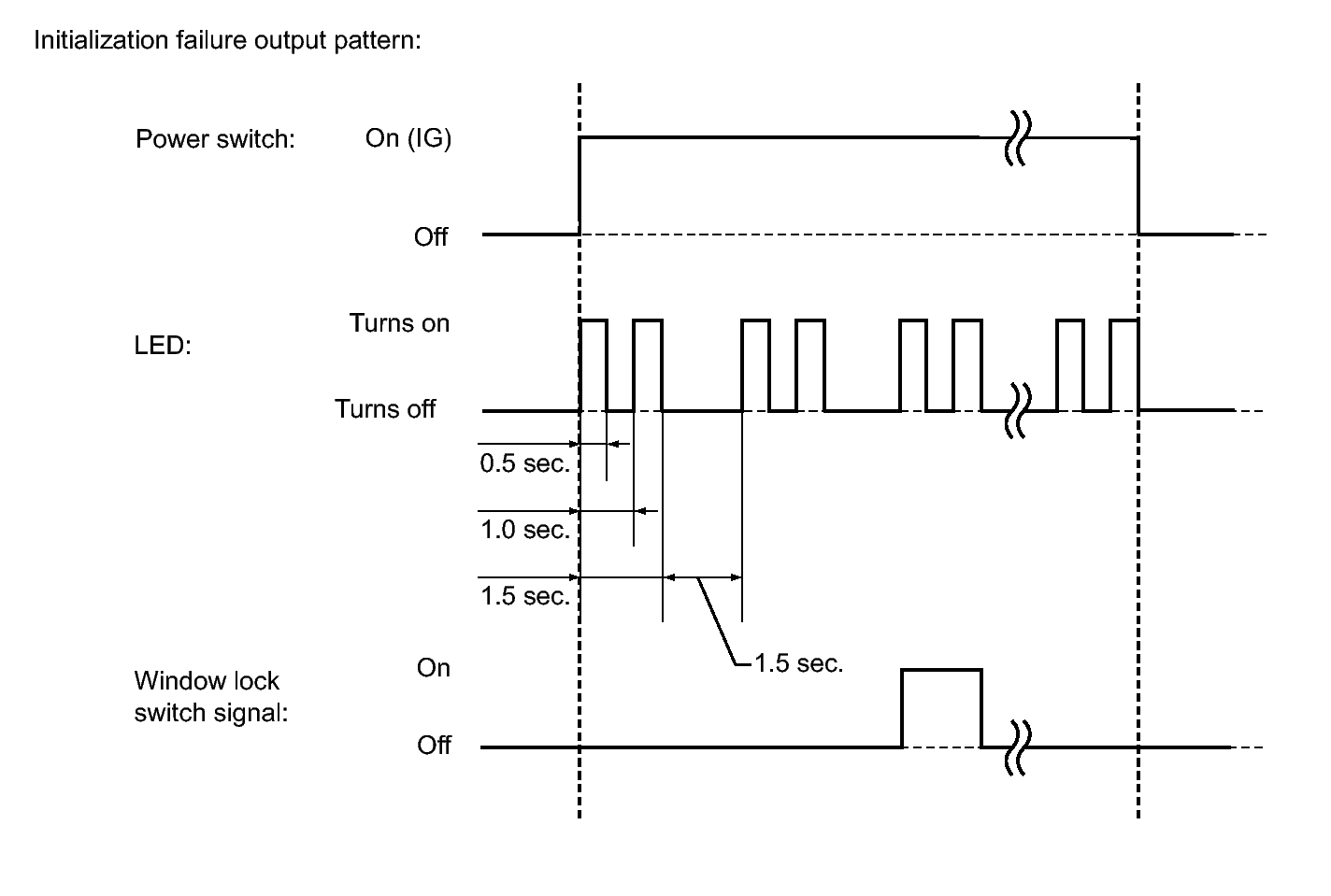

          Fig 3: Identifying Pulse Sensor LED Illumination Initialization Failure Output Pattern (Driver Side)
          GTY228695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        2. For front passenger, rear LH and rear RH sides:

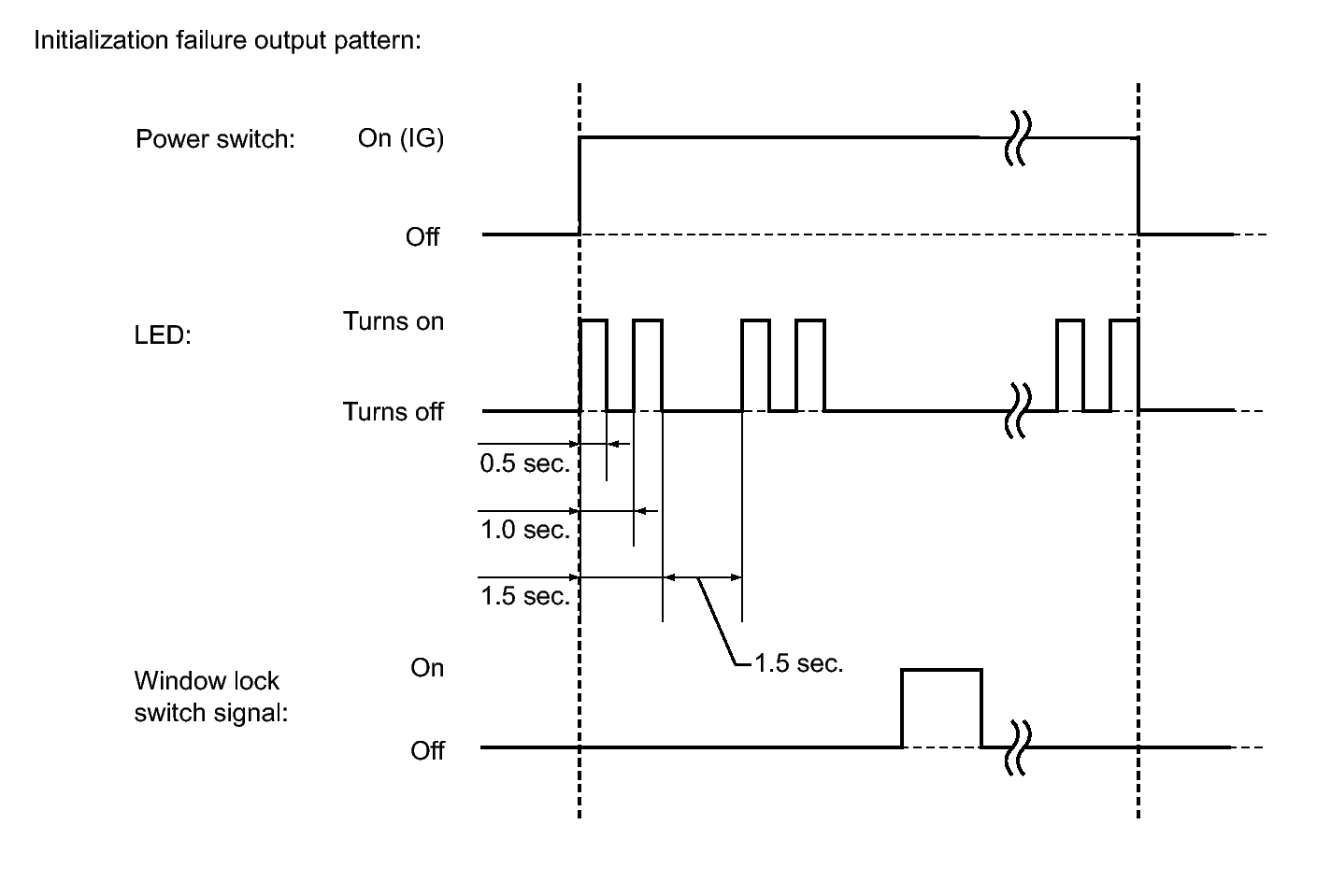

          Fig 4: Identifying Pulse Sensor LED Illumination Initialization Failure Output Pattern (Front Passenger, Rear LH/RH)
          GTY217149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. LIN communication failure

      HINT:

      If the LIN communication line malfunctions (communication stop), the power window control system prohibits the operations as follows:

      MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

      Power Window Operation Condition
      Power switch on (IG)
      Manual up ◦*
      Manual down ◦
      Auto up (hold switch at auto up position) X
      Auto up X
      Auto down X

      HINT:

      • ◦: Operates
      • X: Operation prohibited
      • *: Jam protection can operate.
      • Remote up and down function does not operate.
      POWER WINDOW REGULATOR SWITCH ASSEMBLY (FOR FRONT PASSENGER, REAR LH AND REAR RH SIDES)

      Power Window Operation Condition
      Power switch on (IG)
      Manual up ◦*
      Manual down ◦
      Auto up (hold switch at auto up position) ◦*
      Auto up ◦*
      Auto down ◦

      HINT:

      • ◦: Operates
      • X: Operation prohibited
      • *: Jam protection can operate.
    4. LIN communication failure and pulse sensor failure

      HINT:

      If the LIN communication line malfunctions (communication stop) and the pulse sensor for the jam protection function has problems, the power window control system prohibits the operations as follows:

      MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

      Power Window Operation Condition
      Always
      Manual up X
      Manual down X
      Auto up (hold switch at auto up position) X
      Auto up X
      Auto down X

      HINT:

      • ◦: Operates
      • X: Operation prohibited
      • Driver door window: When the jam protection function does not operate due to a LIN communication failure, the manual up and auto up functions will not operate.
      • Remote switch operation: Not operative during a LIN communication failure
      POWER WINDOW REGULATOR SWITCH ASSEMBLY (FOR FRONT PASSENGER, REAR LH AND REAR RH SIDES)

      Power Window Operation Condition
      Always
      Manual up X
      Manual down X
      Auto up (hold switch at auto up position) X
      Auto up X
      Auto down X

      HINT:

      • ◦: Operates
      • X: Operation prohibited
    5. LIN communication failure and abnormal window position learned value or initialization failure

      HINT:

      If the LIN communication line malfunctions (communication stop) and the window position or the learned value is abnormal, the power window control system prohibits the operations as follows:

      MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

      Power Window Operation Condition
      Always
      Manual up ◦*
      Manual down ◦
      Auto up (hold switch at auto up position) -
      Auto up -
      Auto down -

      HINT:

      • ◦: Operates
      • *: Jam protection can operate and window reverses upon reaching the fully closed position.
      • Remote switch operation: Operation is not possible during a LIN communication failure.
      POWER WINDOW REGULATOR SWITCH ASSEMBLY (FOR FRONT PASSENGER, REAR LH AND REAR RH SIDES)

      Power Window Operation Condition
      Always
      Manual up ◦*
      Manual down ◦
      Auto up (hold switch at auto up position) ◦*
      Auto up X
      Auto down X

      HINT:

      • ◦: Operates
      • X: Operation prohibited
      • *: Jam protection can operate and window reverses upon reaching the fully closed position.
