Parts Location: Illustration

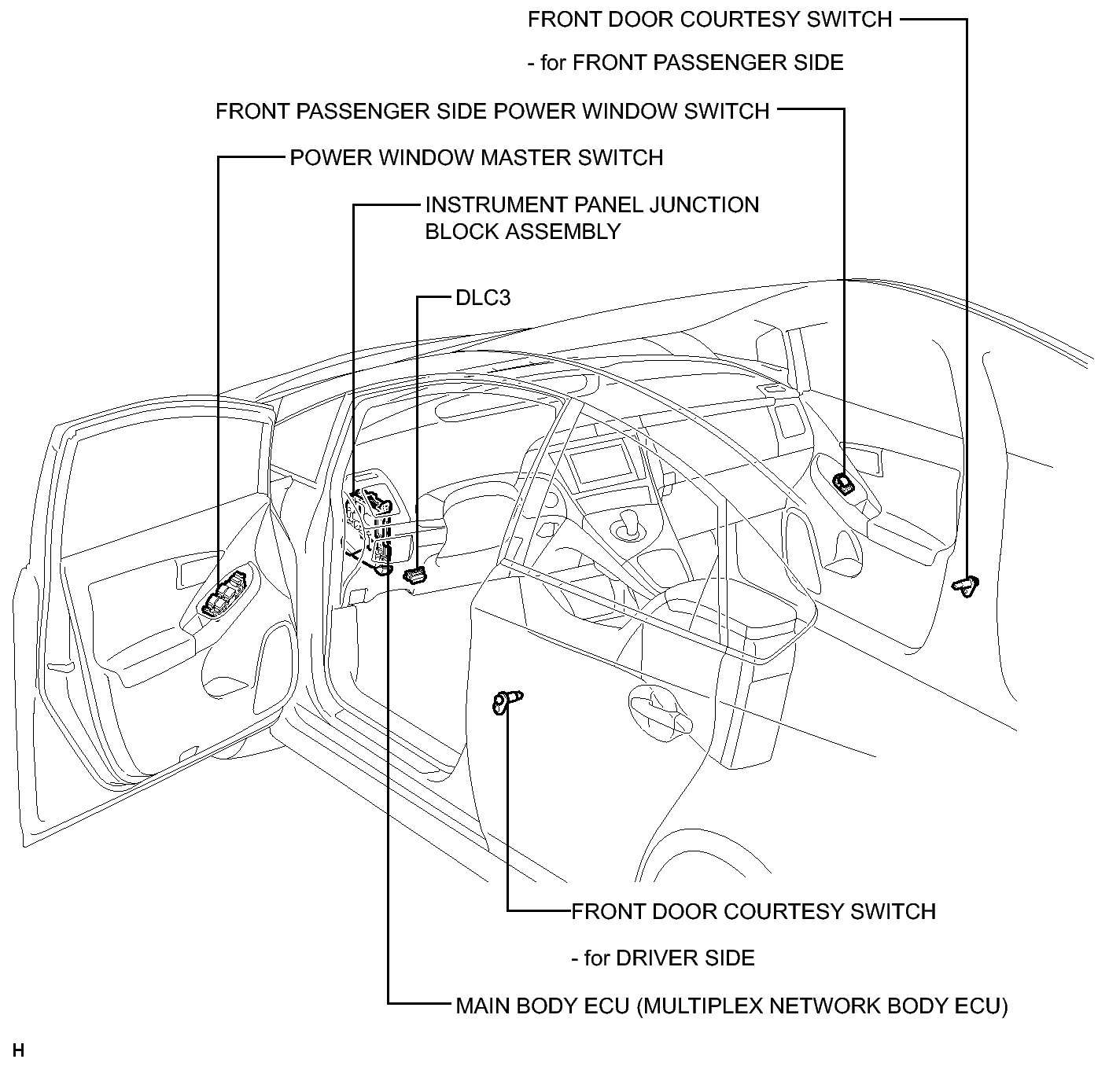

Fig 1: Identifying Power Window Control System Components Location (1 Of 2)
GTY218326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

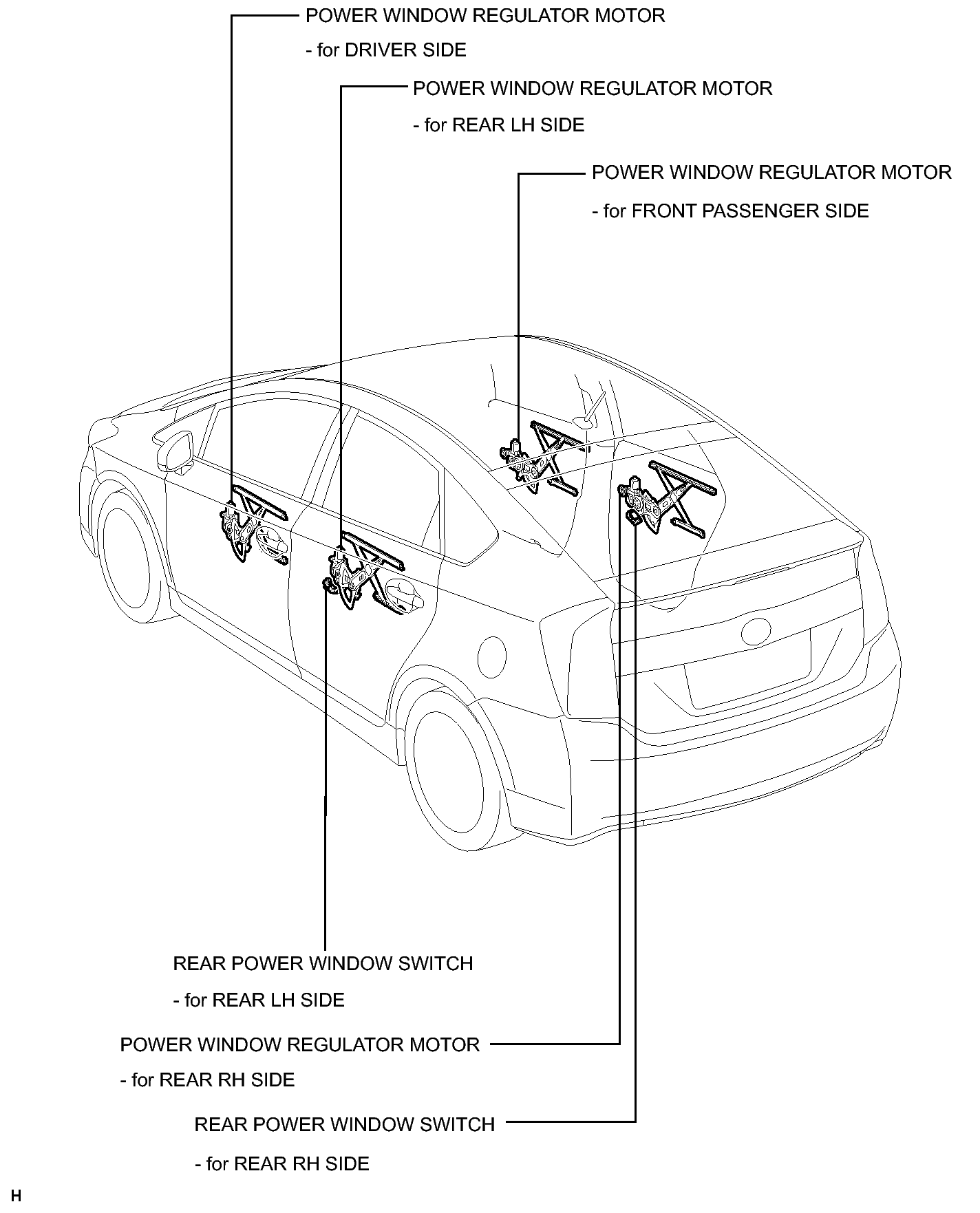

Fig 2: Identifying Power Window Control System Components Location (2 Of 2)
GTY227205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
