Fuel Injector: Components: Illustration

Fig 1: Identifying Fuel Injector Replacement Components (1 Of 3)
GTY231161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Fuel Injector Replacement Components With Torque Specifications (2 Of 3)
GTY291458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

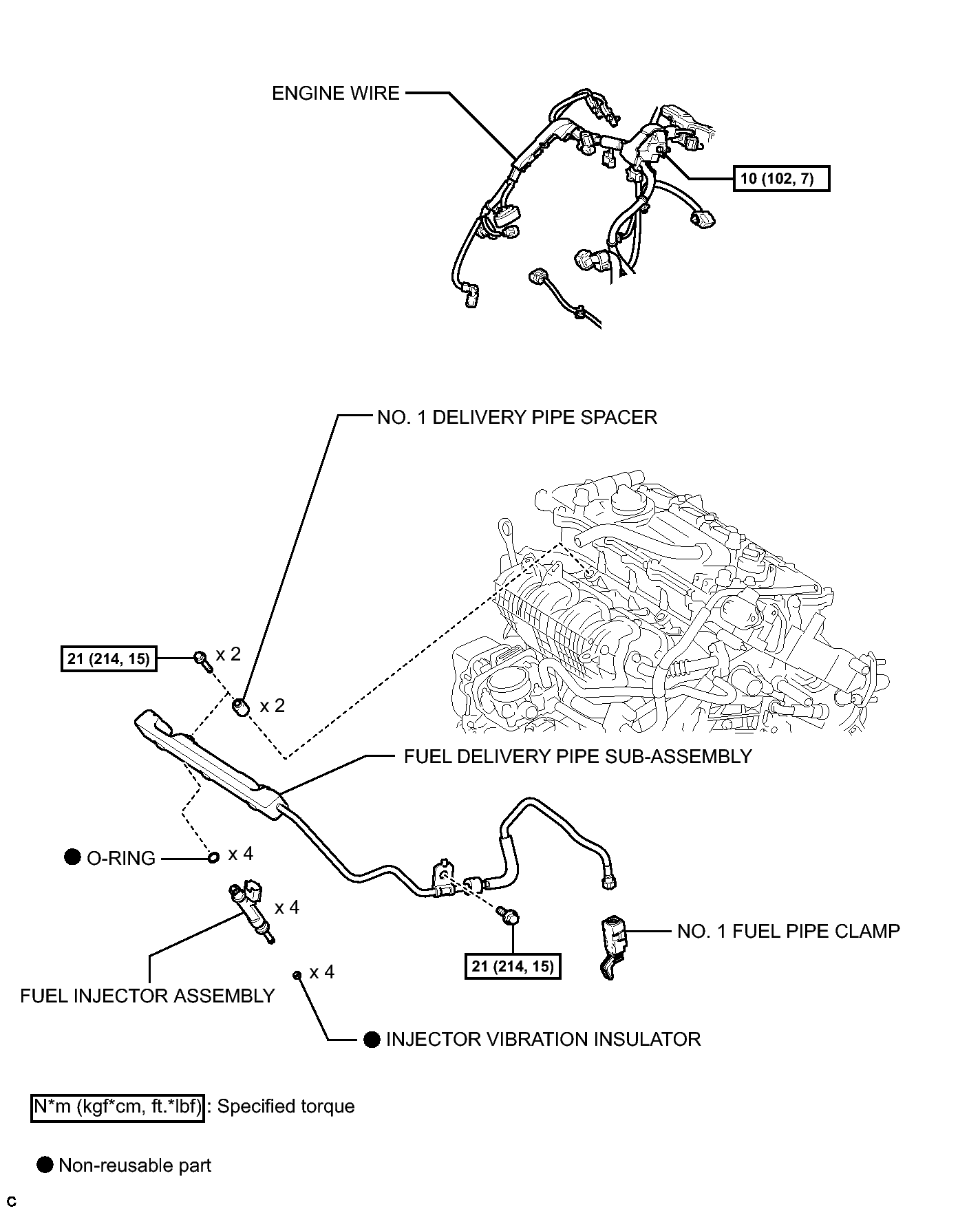

Fig 3: Identifying Fuel Injector Replacement Components With Torque Specifications (3 Of 3)
GTY236599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
