Brake Pedal Stroke Sensor: Components: Illustration

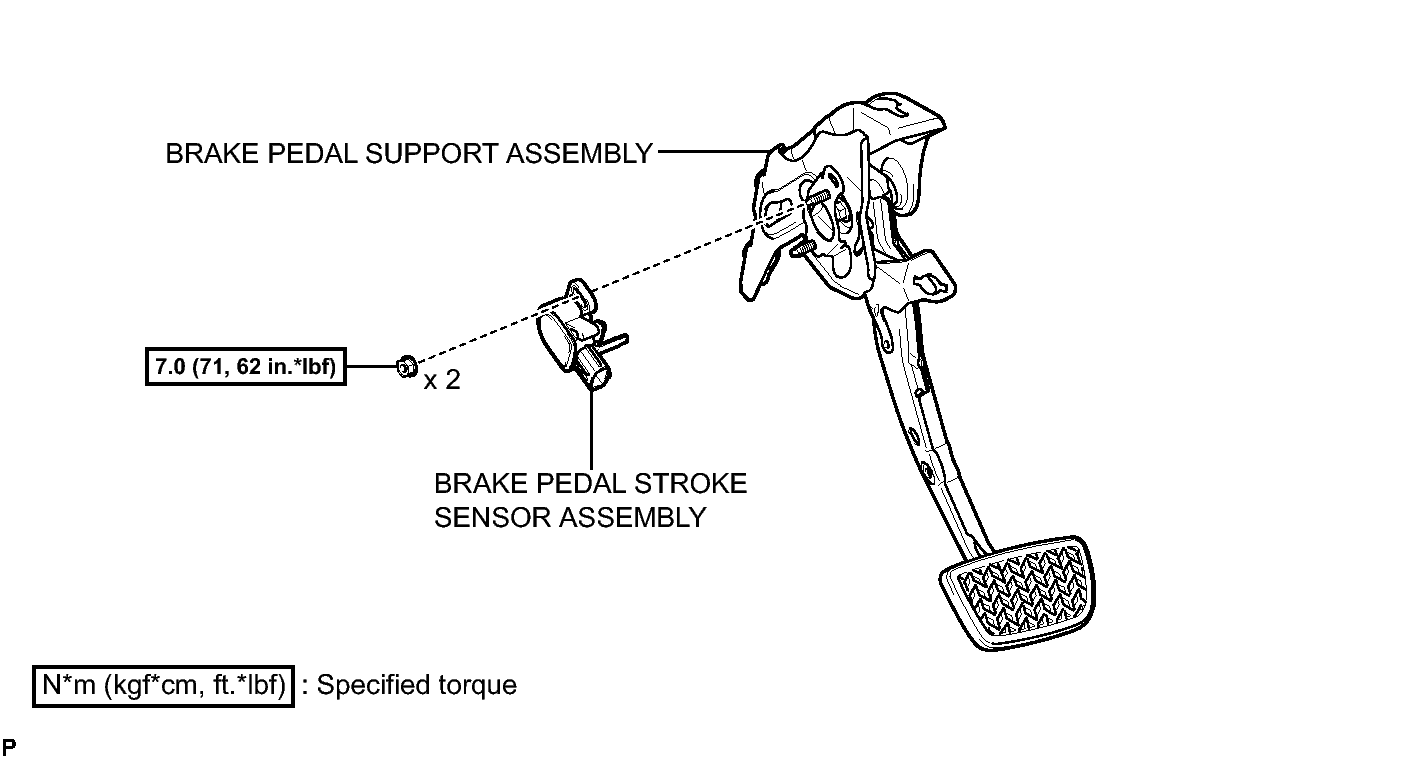

Fig 1: Identifying Brake Pedal Stroke Sensor Replacement Components With Torque Specifications
GTY337994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
