Rear Speed Sensor: Installation: Installation

HINT:

• If the sensor rotor needs to be replaced, replace it together with the rear axle hub and bearing assembly.
• The rear speed sensor is a component of the rear axle hub and bearing assembly. If the sensor malfunctions, replace the rear axle hub and bearing assembly.

1. INSTALL REAR AXLE HUB AND BEARING ASSEMBLY
   1. Install the rear axle hub and bearing assembly. Refer to INSTALLATION - Step 1 .

      HINT:

      The rear speed sensor is a component of the rear axle hub and bearing assembly. If the sensor malfunctions, replace the rear axle hub and bearing assembly.

2. INSPECT REAR AXLE HUB BEARING LOOSENESS  . Refer to ON-VEHICLE INSPECTION - Step 13
3. INSPECT REAR AXLE HUB RUNOUT  . Refer to ON-VEHICLE INSPECTION - Step 14
4. INSTALL REAR DISC  . Refer to INSTALLATION - Step 1
5. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY  . Refer to REPLACEMENT - Step 16
6. CONNECT NO. 3 PARKING BRAKE CABLE ASSEMBLY  . Refer to INSTALLATION - Step 10
7. CONNECT REAR SPEED SENSOR WIRE
   1. Connect the rear speed sensor wire connector to the rear speed sensor.

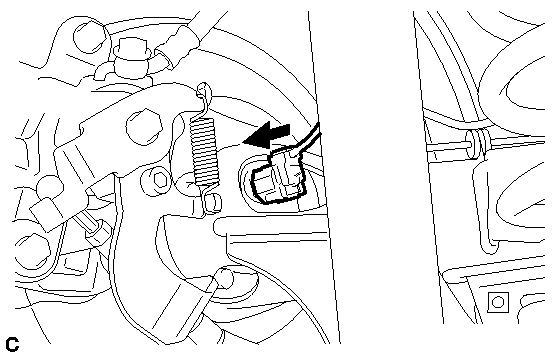

      Fig 1: Identifying Rear Speed Sensor Wire & Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. ADJUST PARKING BRAKE PEDAL TRAVEL  . Refer to ADJUSTMENT - Step 2
9. INSPECT REAR DISC BRAKE CYLINDER OPERATION LEVER AND STOPPER CLEARANCE  . Refer to ADJUSTMENT - Step 3
10. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY  . Refer to INSTALLATION - Step 22
11. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH  . Refer to INSTALLATION - Step 45
12. INSTALL FRONT DOOR SCUFF PLATE LH  . Refer to INSTALLATION - Step 46
13. INSTALL REAR WHEEL

    Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)

14. CONNECT CABLE TO AUXILIARY BATTERY NEGATIVE TERMINAL
    1. Connect the cable to the auxiliary battery negative (-) terminal.
    2. Connect the reservoir level switch connector.
    3. Clear the DTCs. Refer to DTC CHECK / CLEAR .
15. INSTALL REAR NO. 3 FLOOR BOARD  . Refer to INSTALLATION - Step 58
16. INSTALL REAR DECK FLOOR BOX  . Refer to INSTALLATION - Step 59
17. INSTALL REAR NO. 2 FLOOR BOARD (for Separate Type)  . Refer to INSTALLATION - Step 60
18. CHECK FOR SPEED SENSOR SIGNAL

    Refer to TEST MODE PROCEDURE
