Air Conditioning: Notes

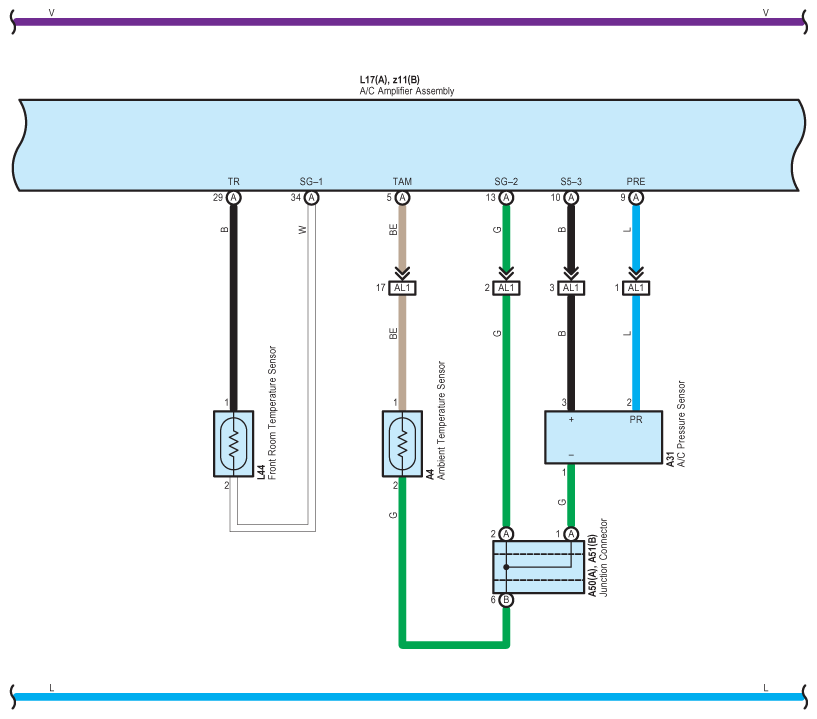

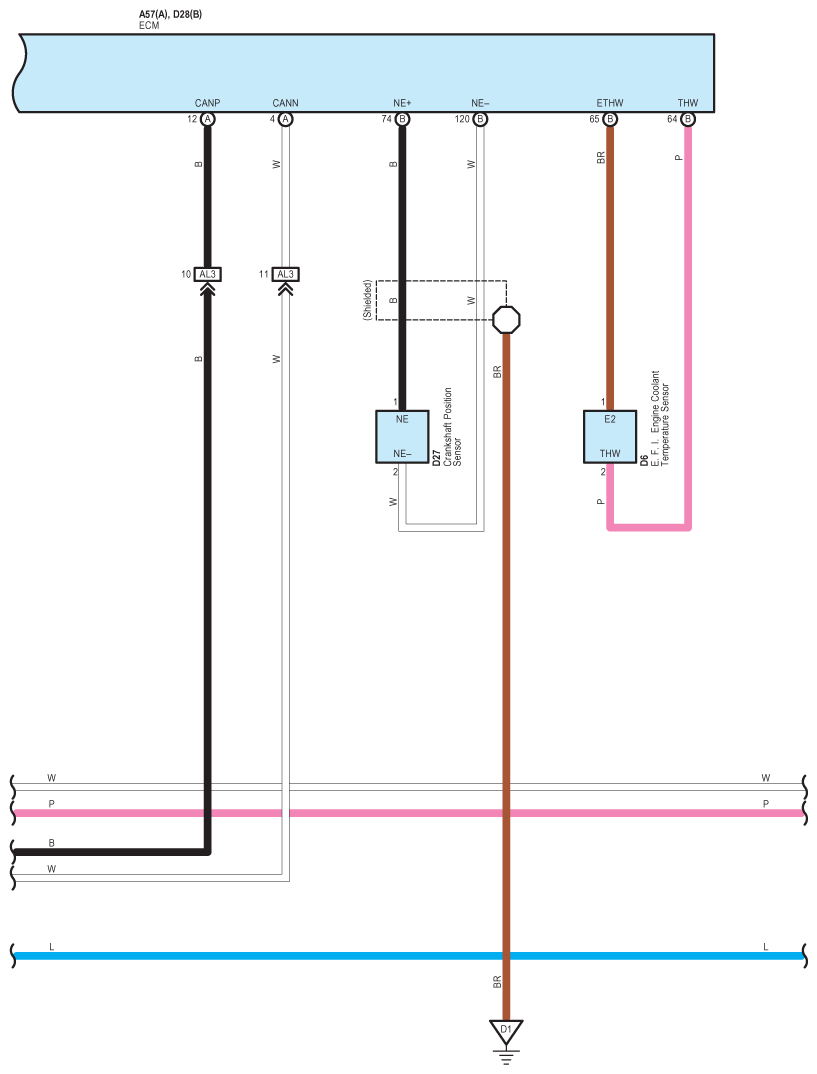

Fig 1: Air Conditioning System Wiring Diagram (1 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

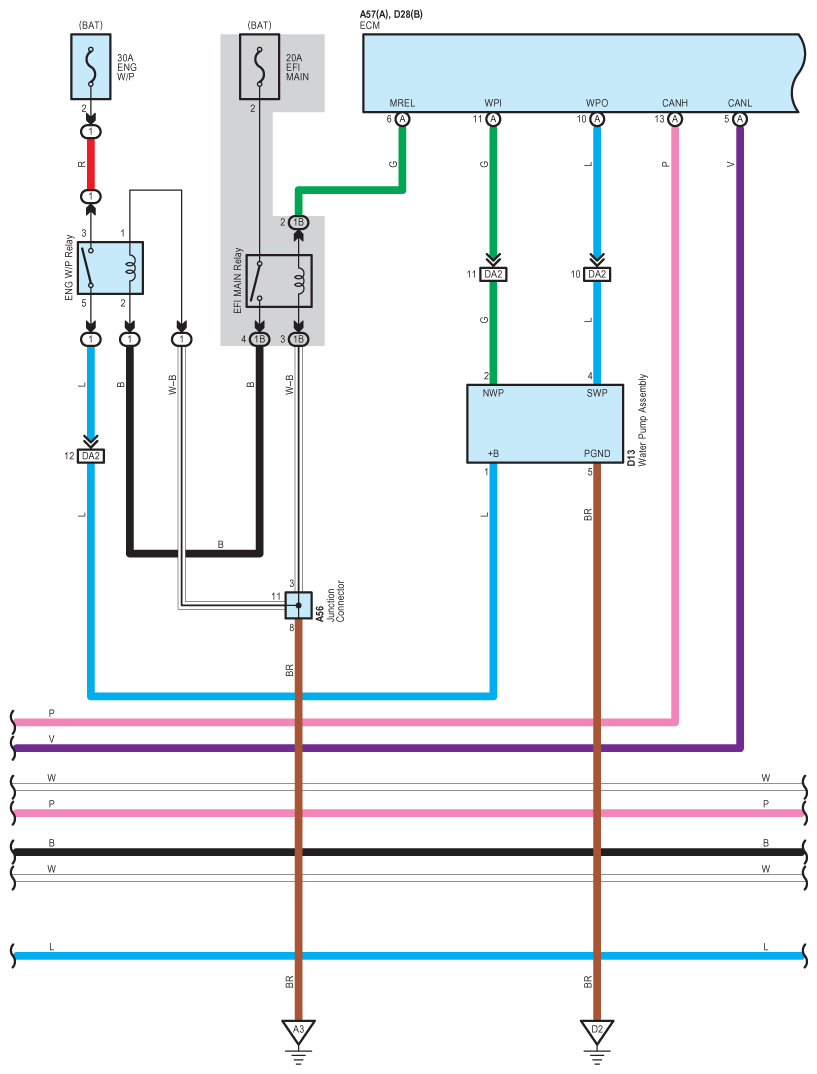

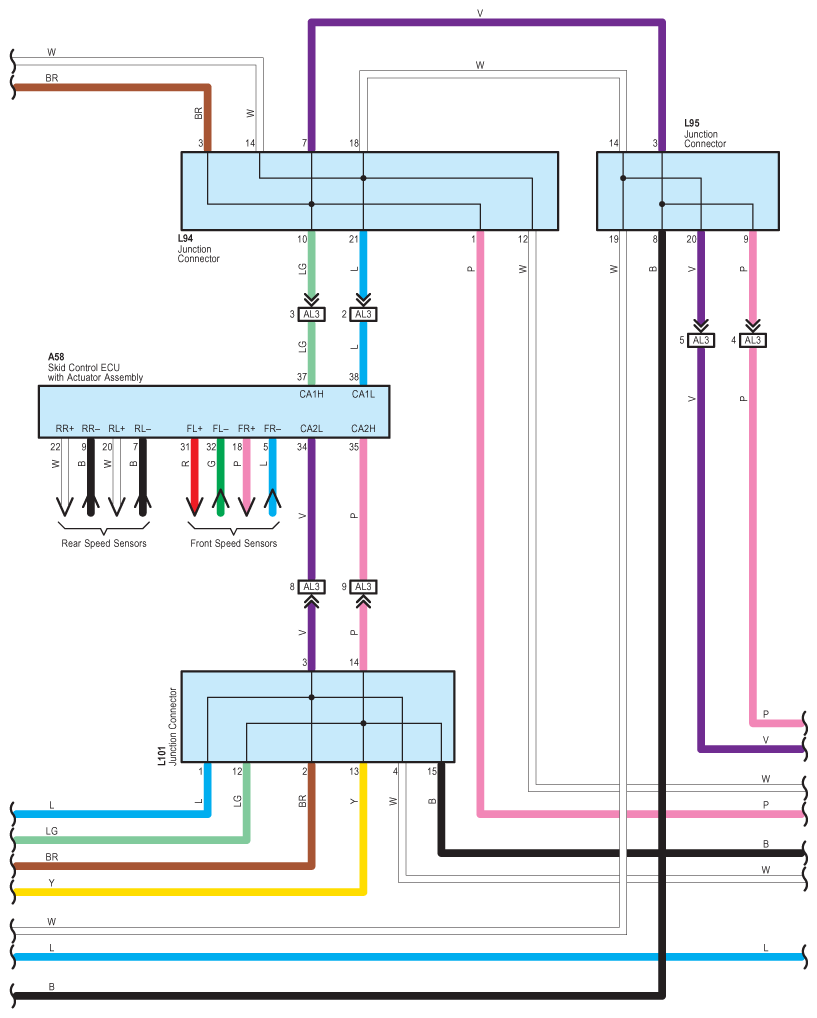

Fig 2: Air Conditioning System Wiring Diagram (2 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

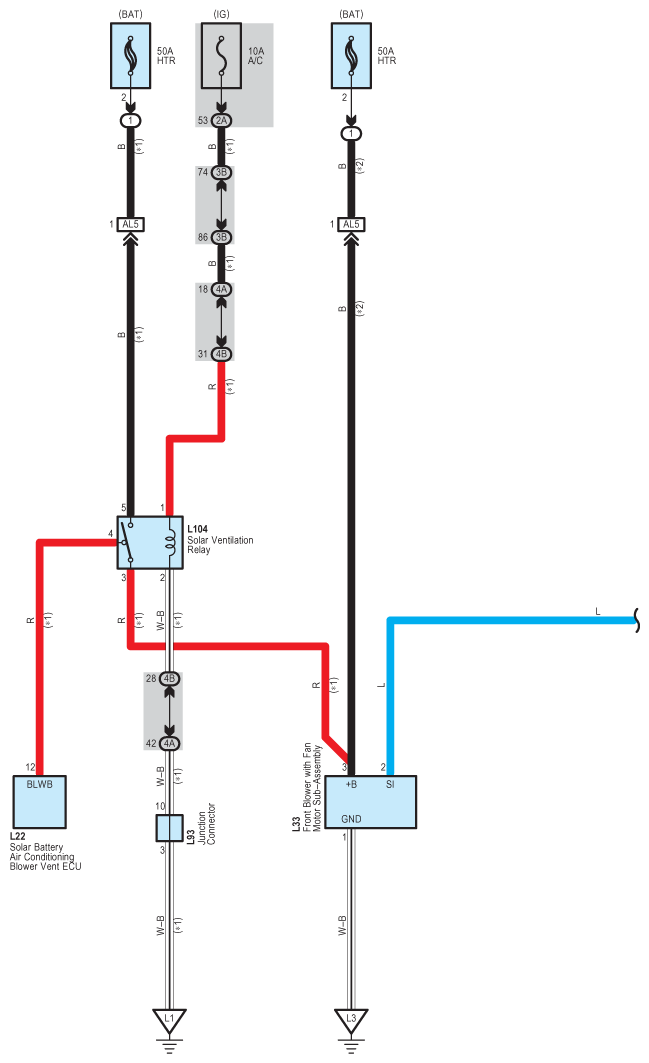

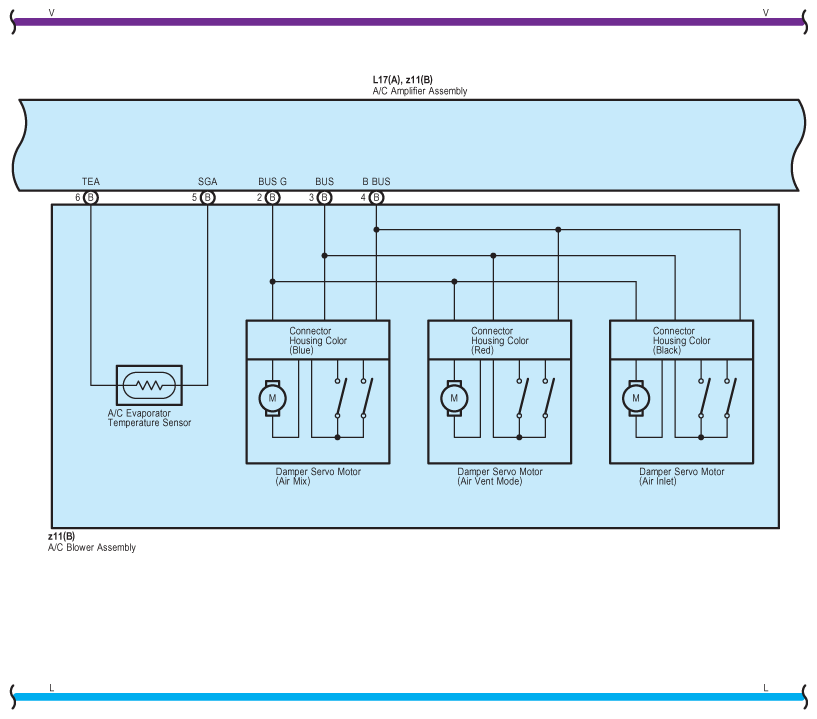

Fig 3: Air Conditioning System Wiring Diagram (3 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

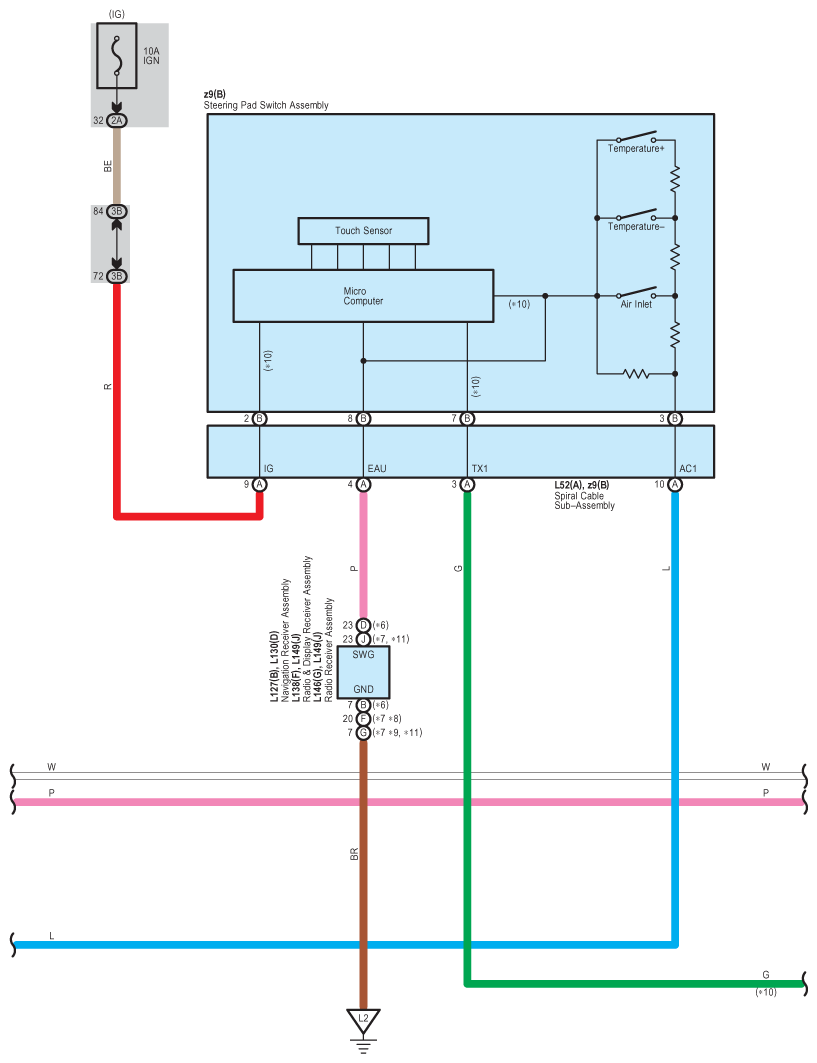

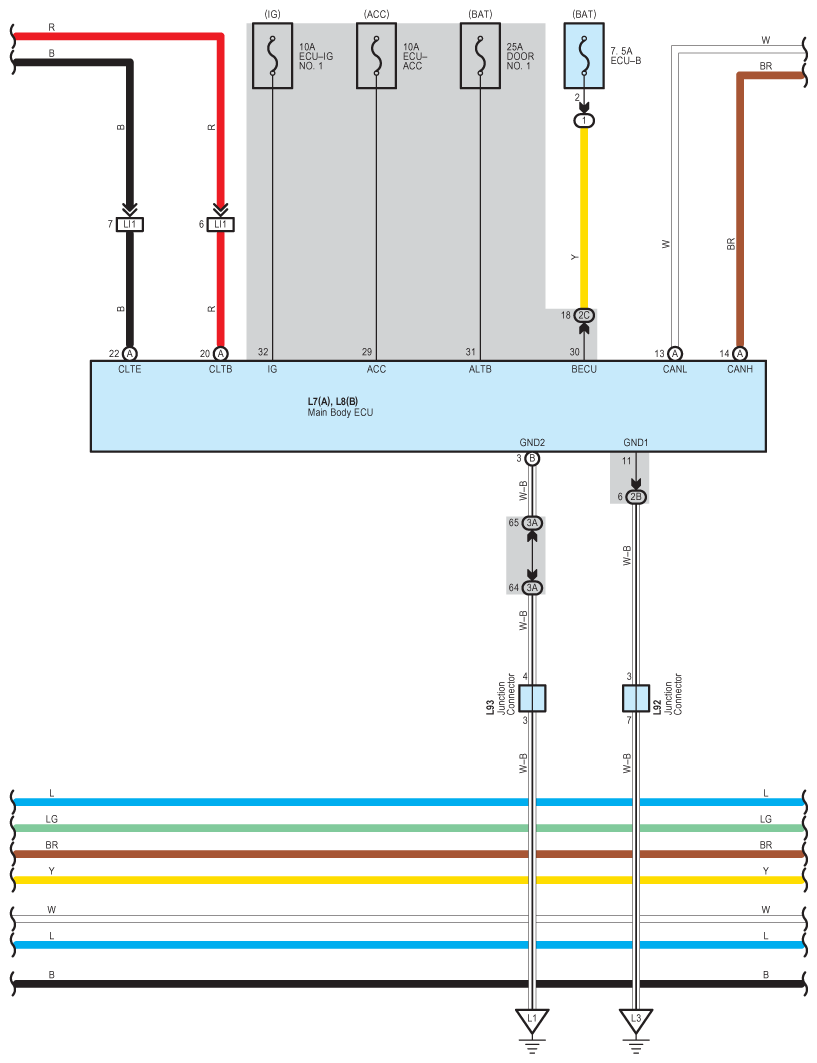

Fig 4: Air Conditioning System Wiring Diagram (4 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

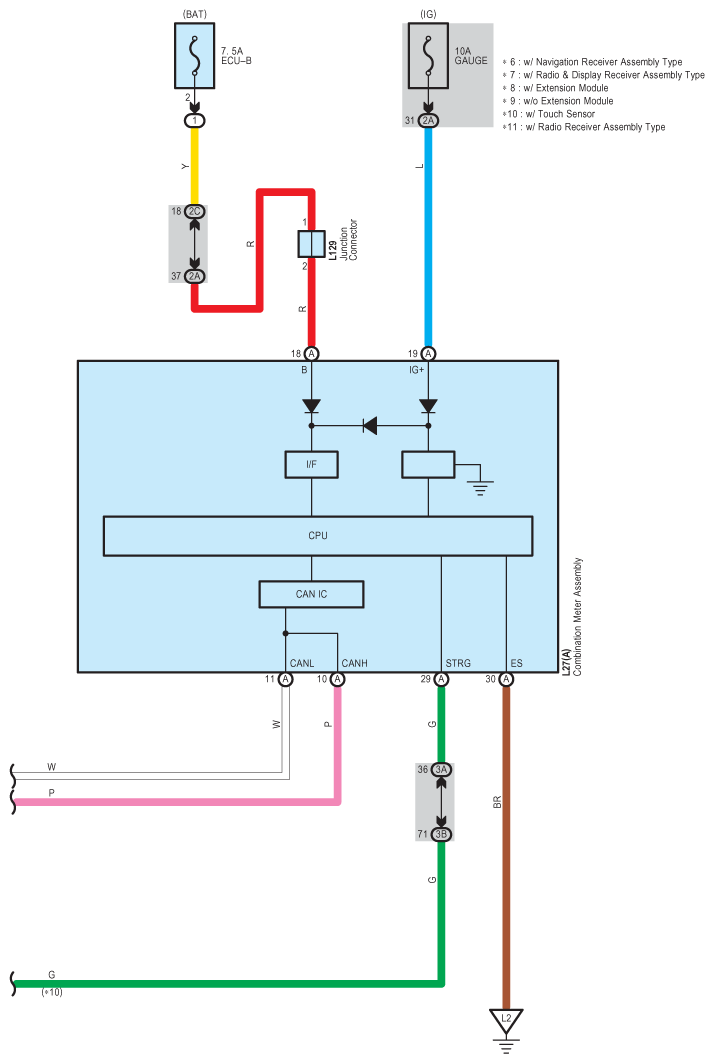

Fig 5: Air Conditioning System Wiring Diagram (5 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

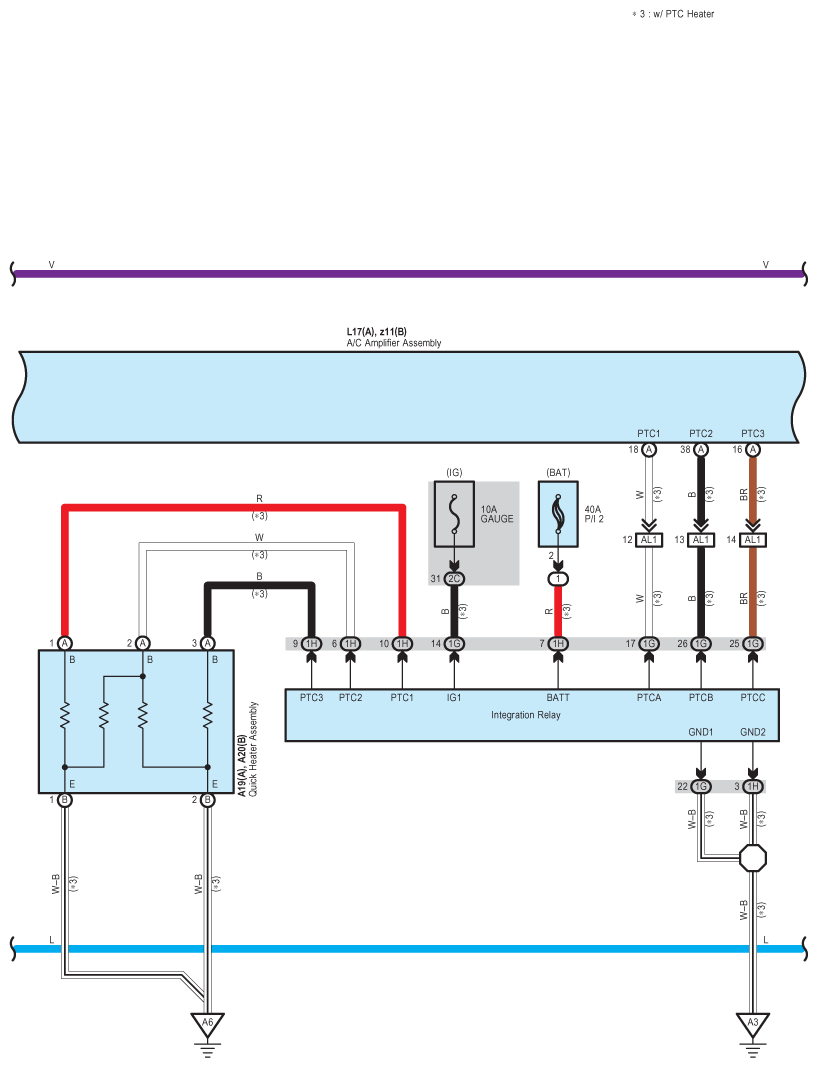

Fig 6: Air Conditioning System Wiring Diagram (6 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

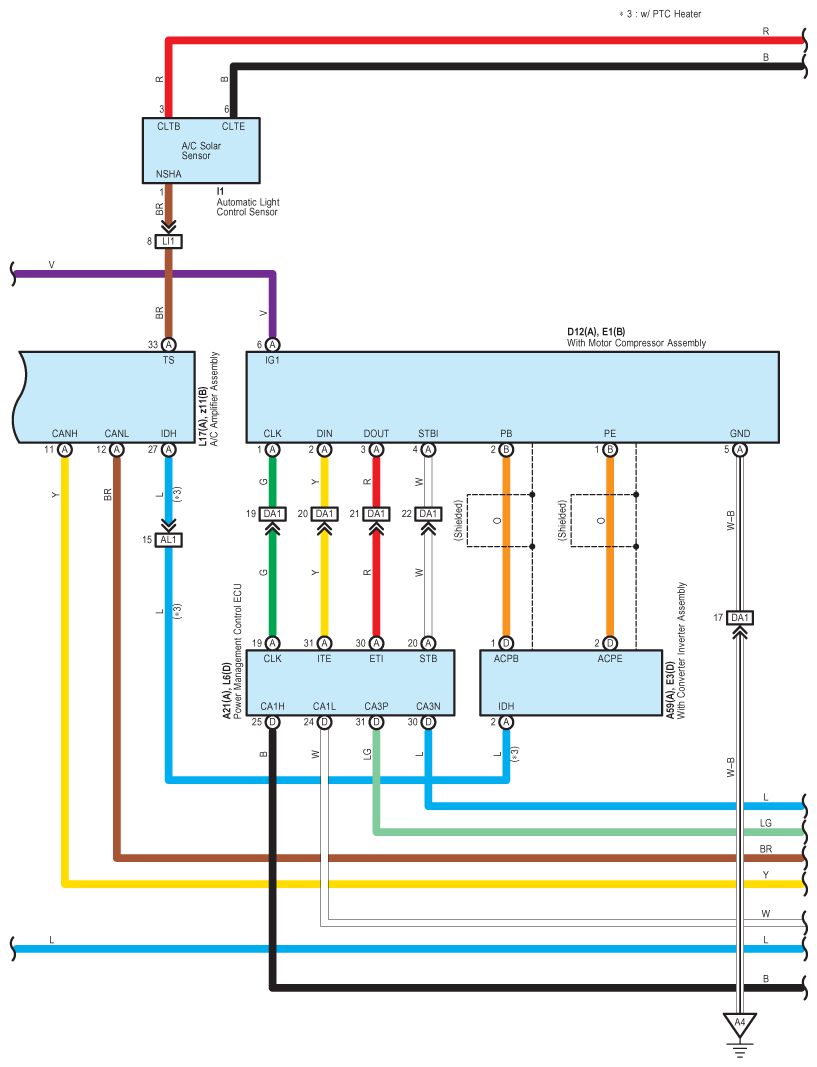

Fig 7: Air Conditioning System Wiring Diagram (7 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

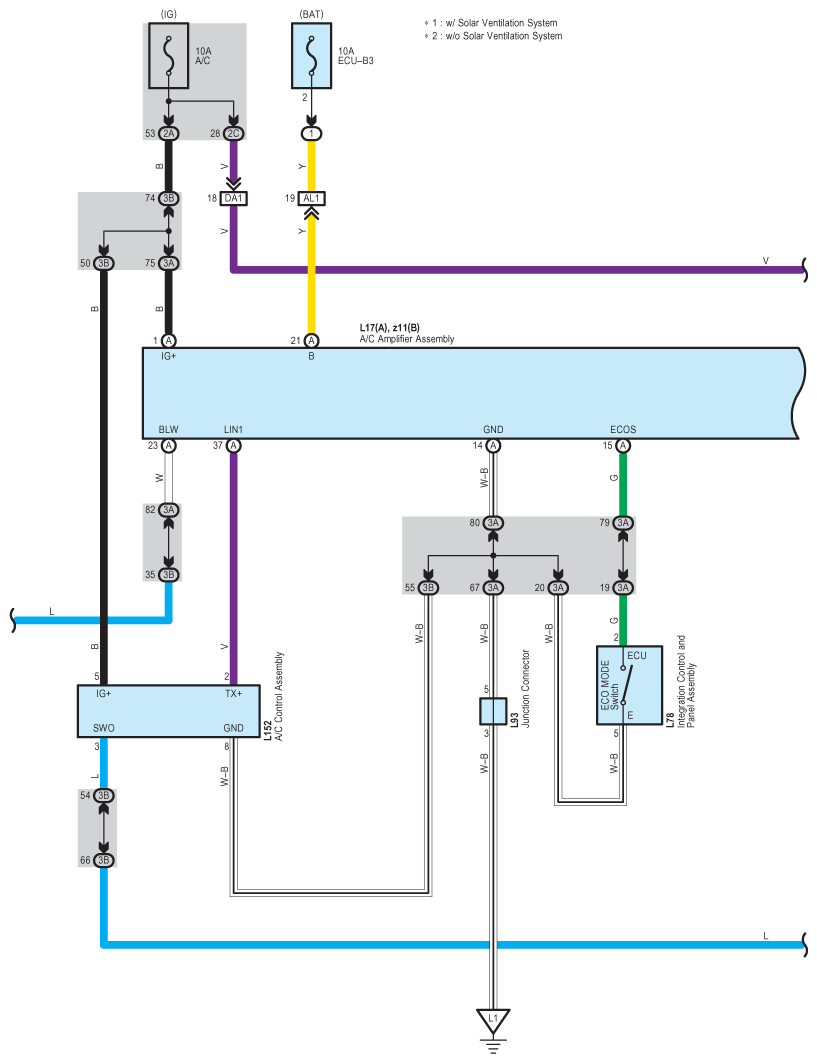

Fig 8: Air Conditioning System Wiring Diagram (8 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Air Conditioning System Wiring Diagram (9 Of 12)

Fig 10: Air Conditioning System Wiring Diagram (10 Of 12)

Fig 11: Air Conditioning System Wiring Diagram (11 Of 12)

Fig 12: Air Conditioning System Wiring Diagram (12 Of 12)
