Cruise Control, Dynamic Radar Cruise Control and Engine Control: Notes

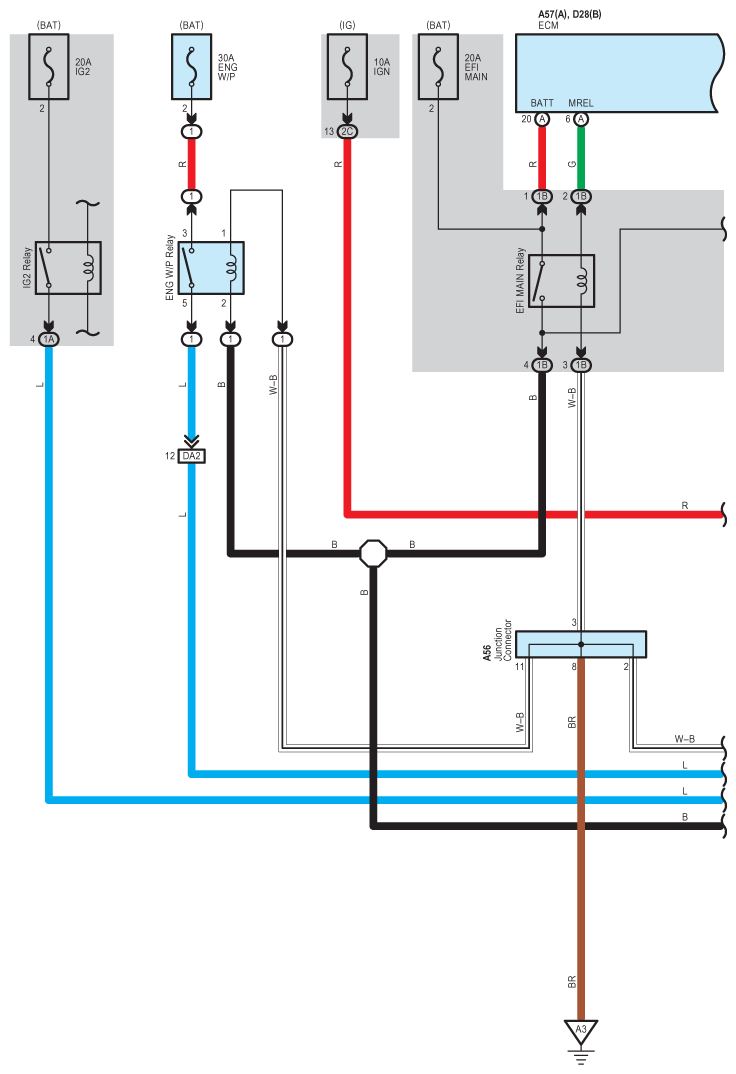

Fig 1: Cruise, Dynamic Radar Cruise And Engine Control System Wiring Diagram (1 Of 32)

G08849999

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

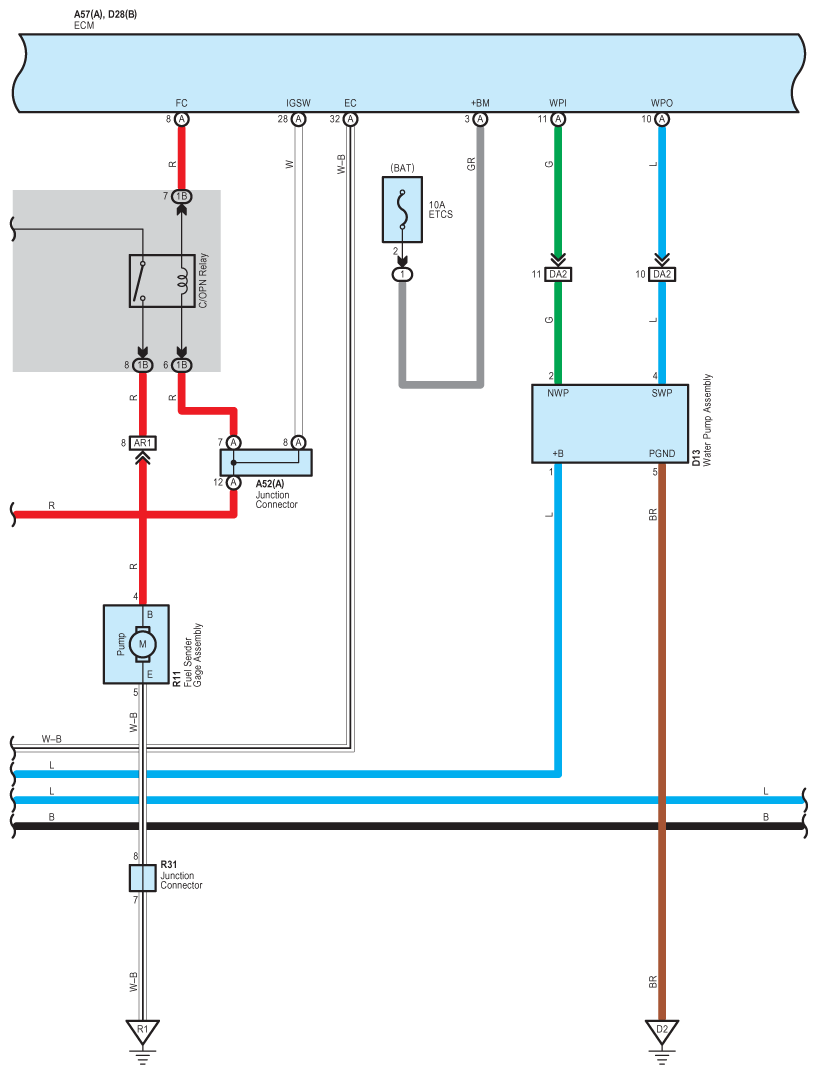

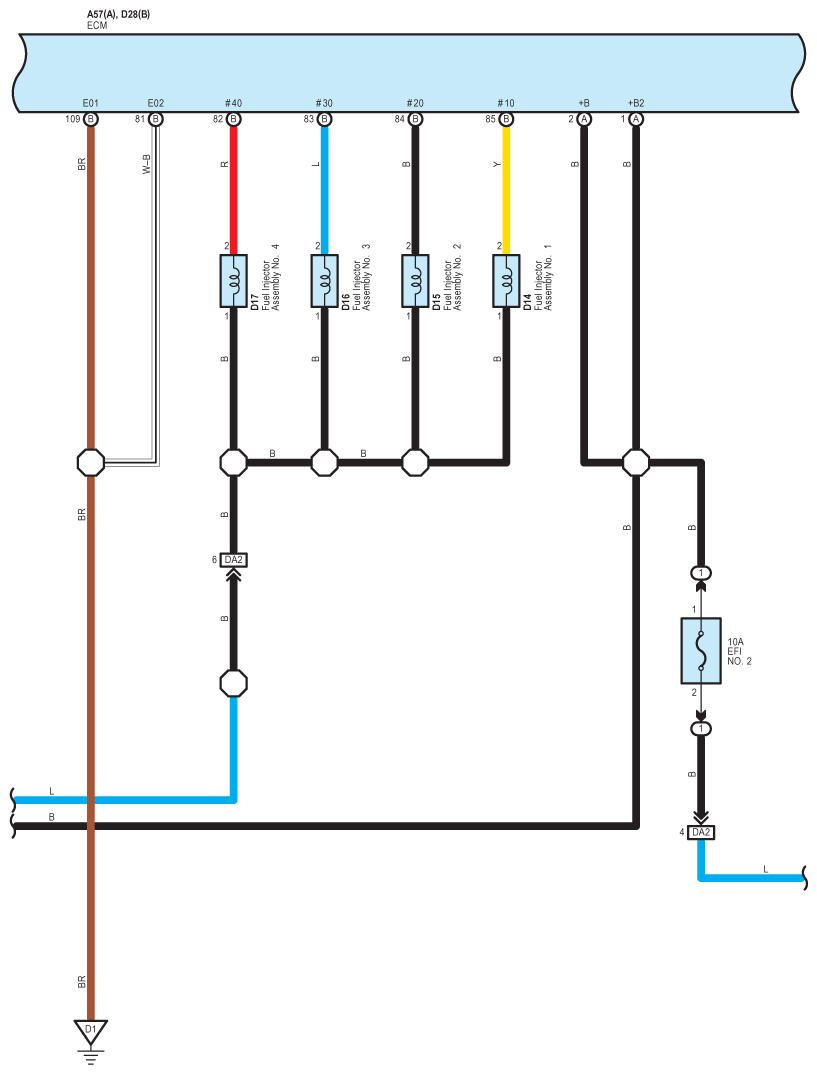

Fig 2: Cruise, Dynamic Radar Cruise And Engine Control System Wiring Diagram (2 Of 32)

G08850000

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

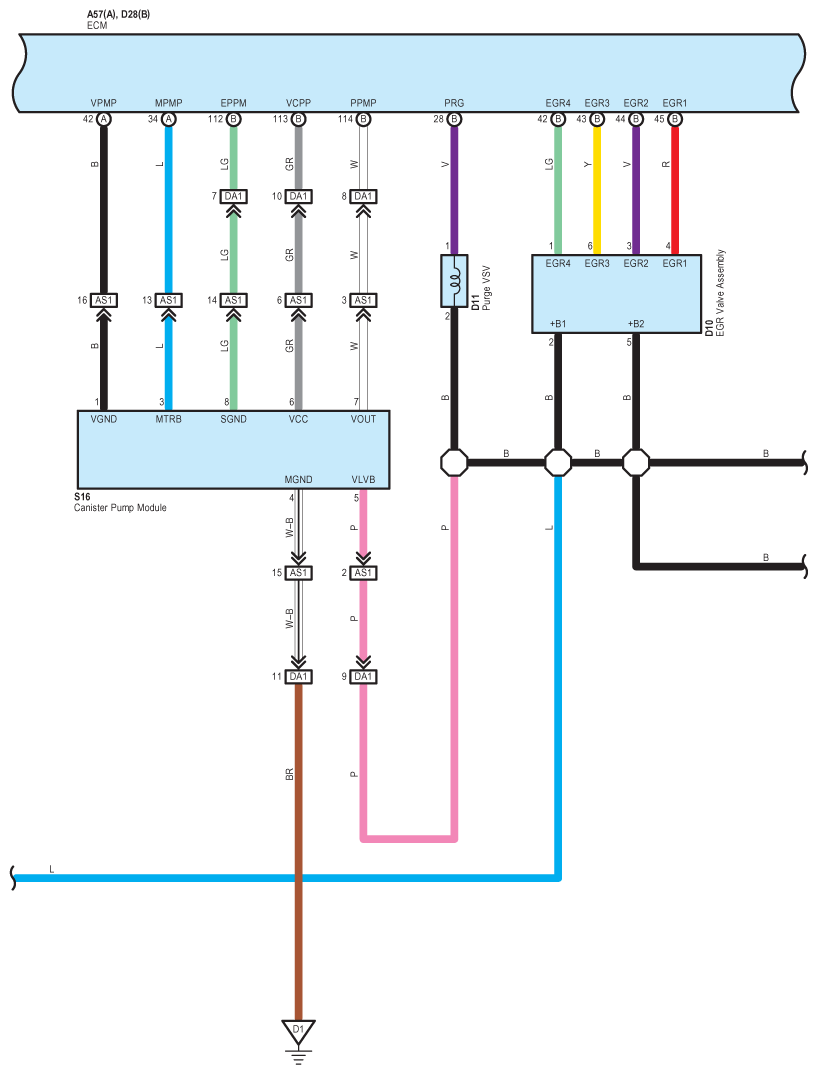

Fig 3: Cruise, Dynamic Radar Cruise And Engine Control System Wiring Diagram (3 Of 32)

G08850001

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

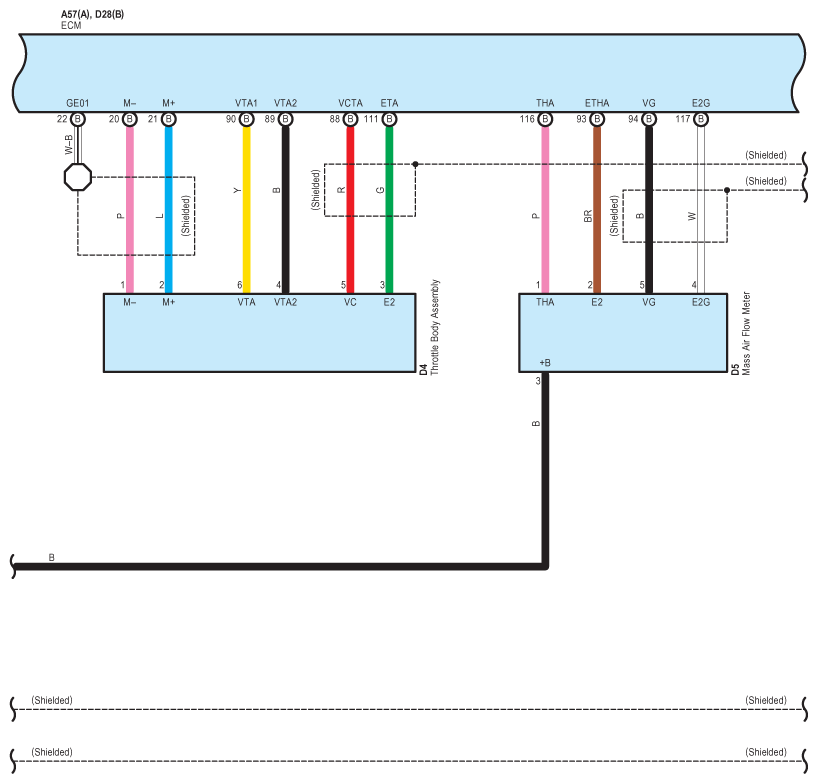

Fig 4: Cruise, Dynamic Radar Cruise And Engine Control System Wiring Diagram (4 Of 32)

G08850002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

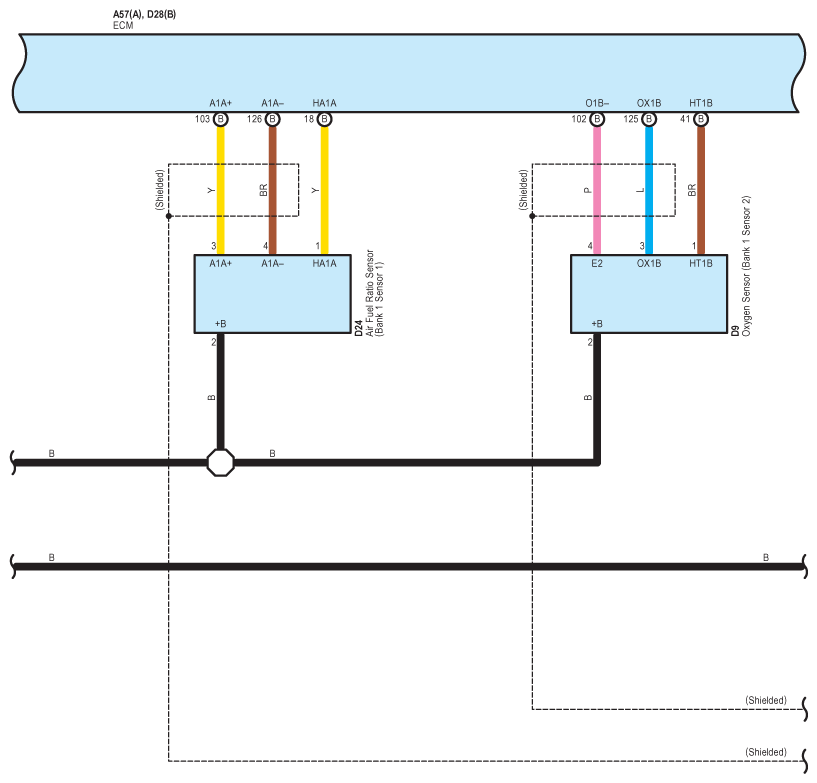

Fig 5: Cruise, Dynamic Radar Cruise And Engine Control System Wiring Diagram (5 Of 32)

G08850003

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

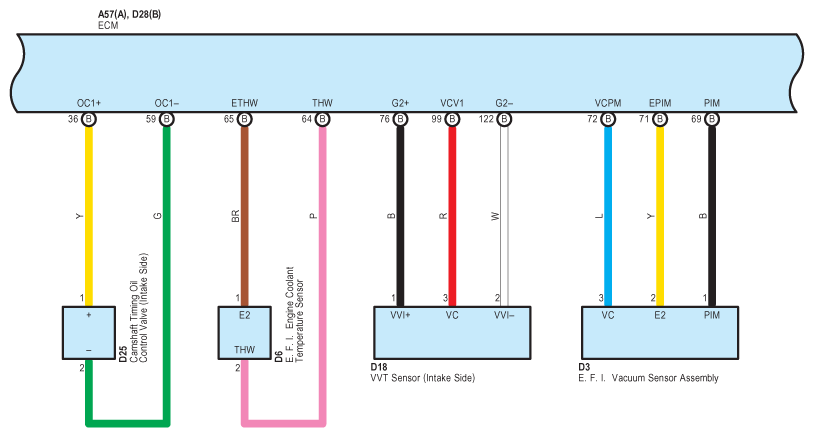

Fig 6: Cruise, Dynamic Radar Cruise And Engine Control System Wiring Diagram (6 Of 32)

G08850004

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

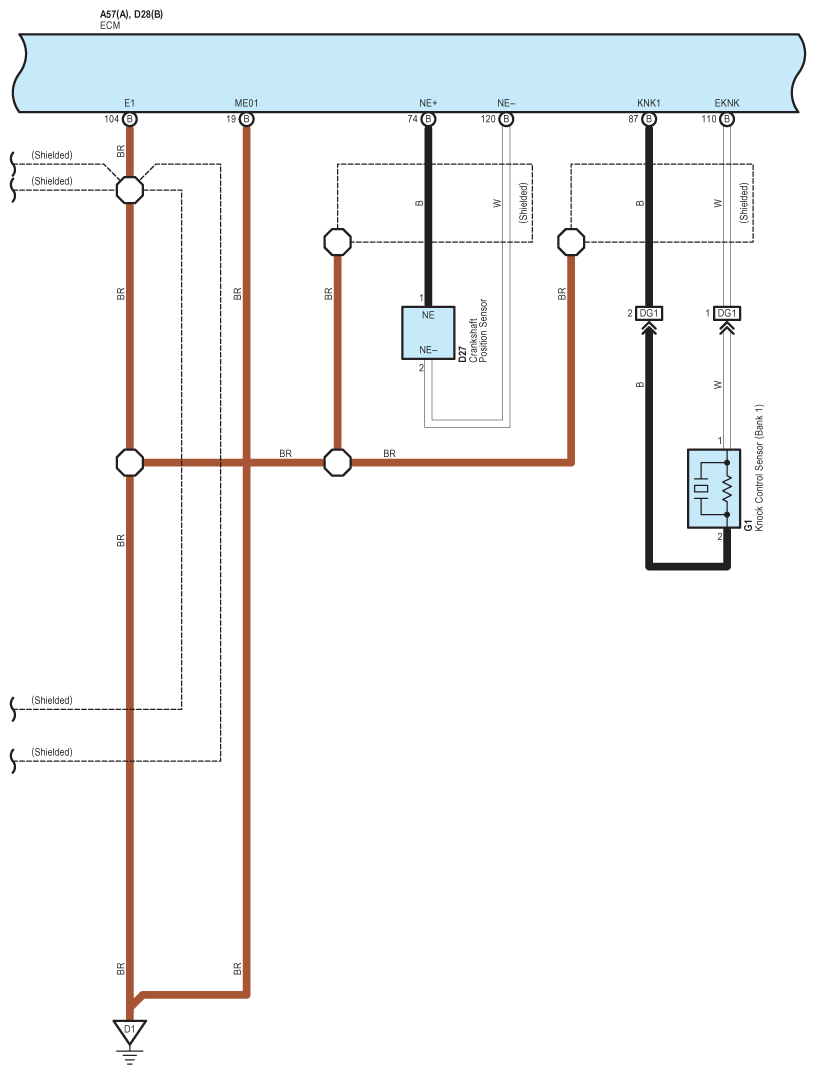

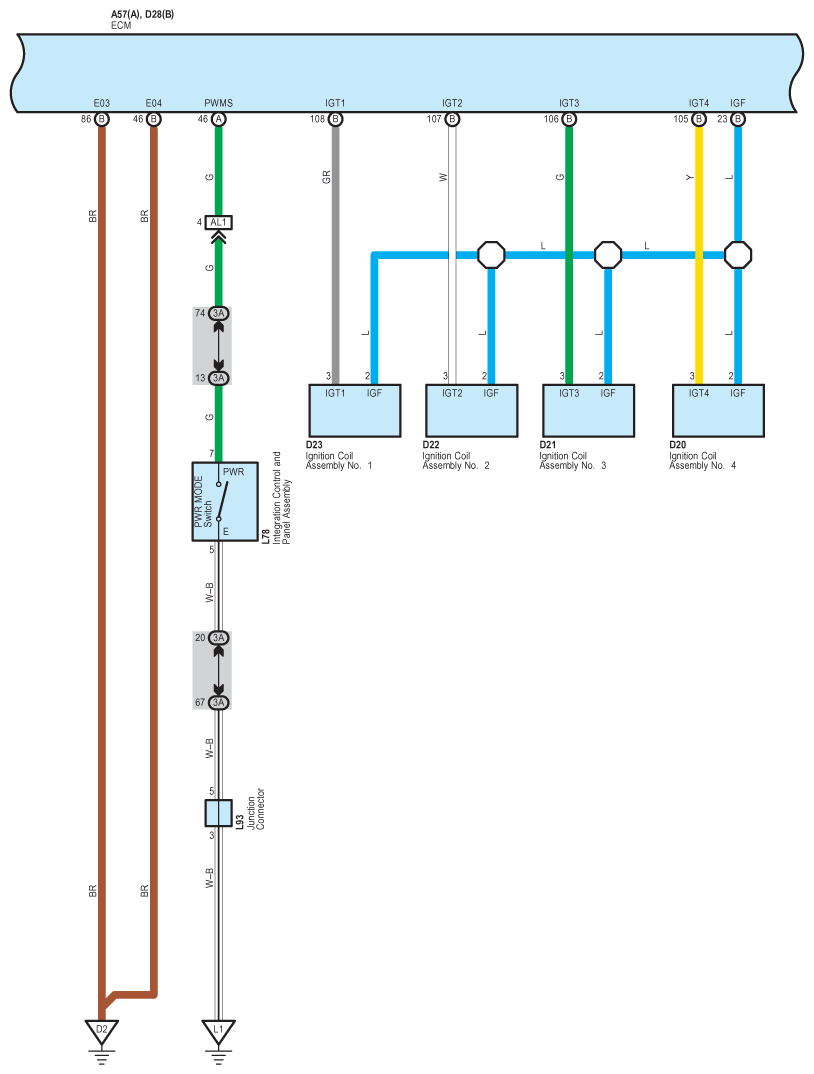

Fig 7: Cruise, Dynamic Radar Cruise And Engine Control System Wiring Diagram (7 Of 32)

G08850005

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

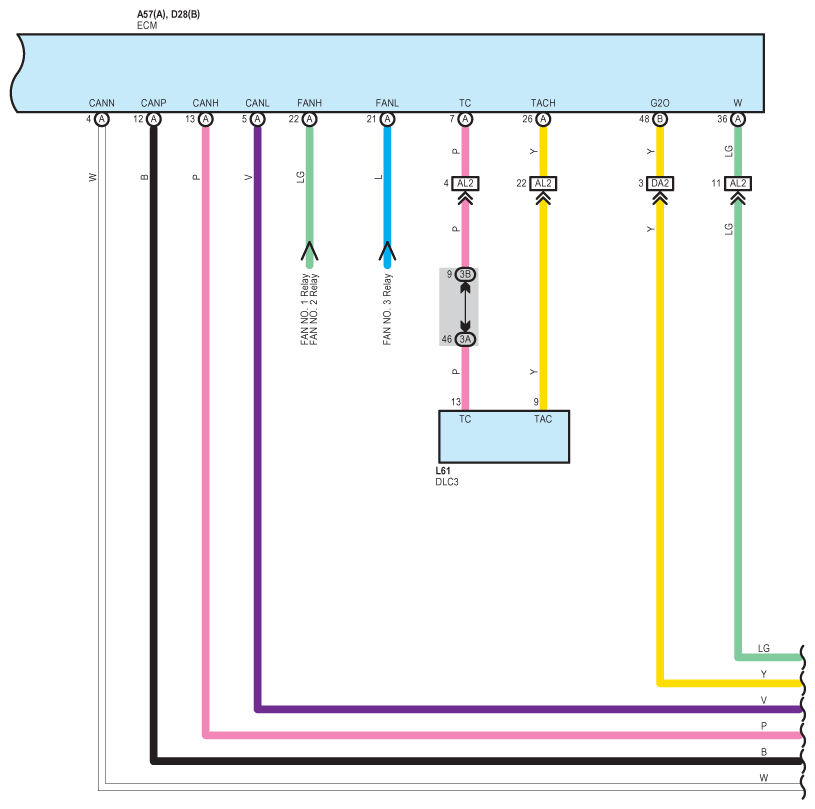

Fig 8: Cruise, Dynamic Radar Cruise And Engine Control System Wiring Diagram (8 Of 32)

G08850006

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Cruise, Dynamic Radar Cruise And Engine Control System Wiring Diagram (9 Of 32)

G08850007

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

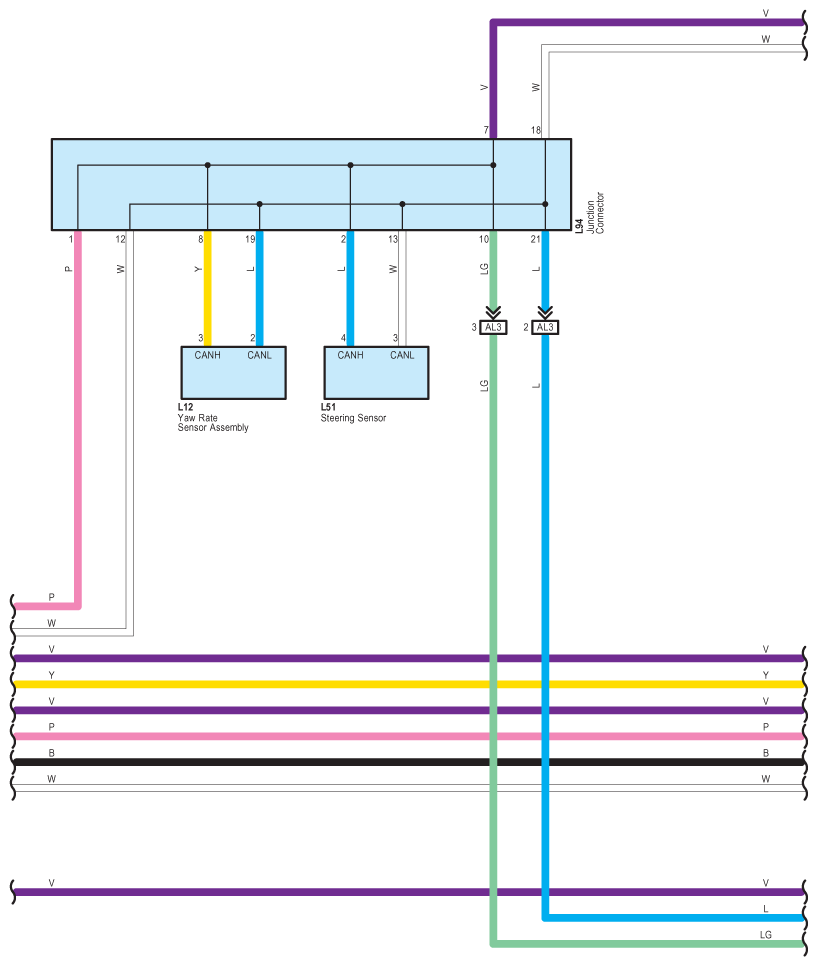

Fig 10: Cruise, Dynamic Radar Cruise And Engine Control System Wiring Diagram (10 Of 32)

G08850008

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

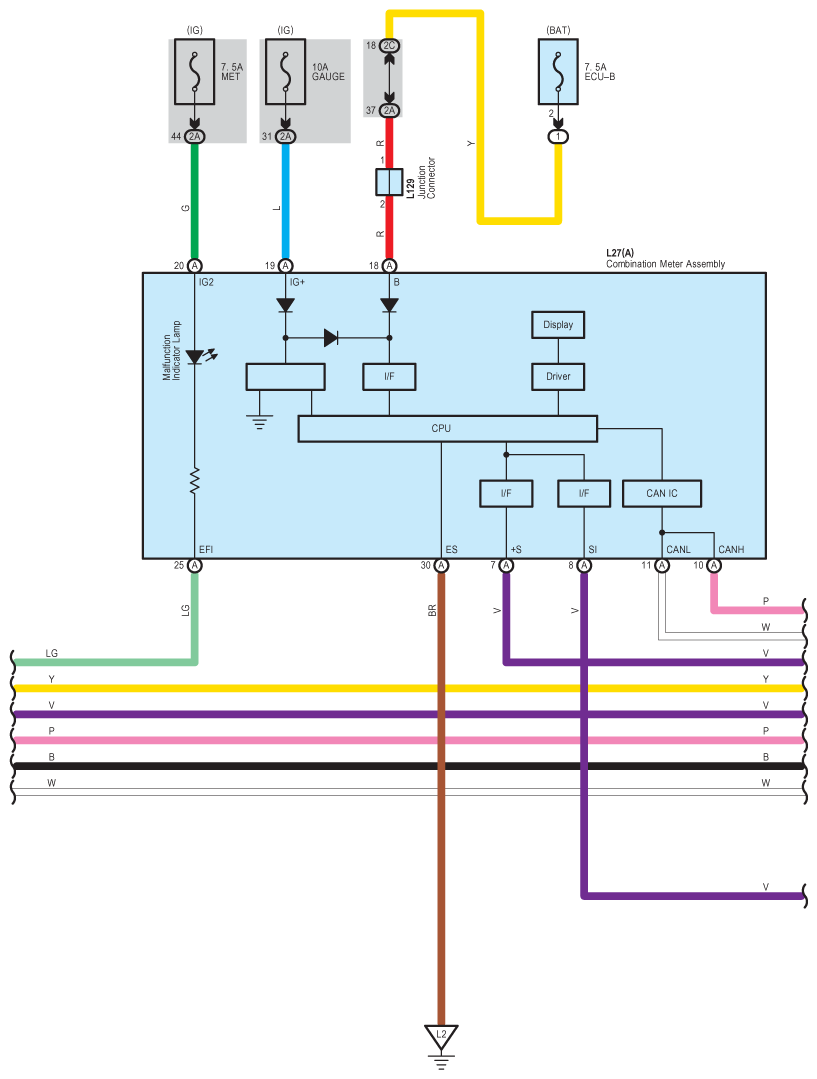

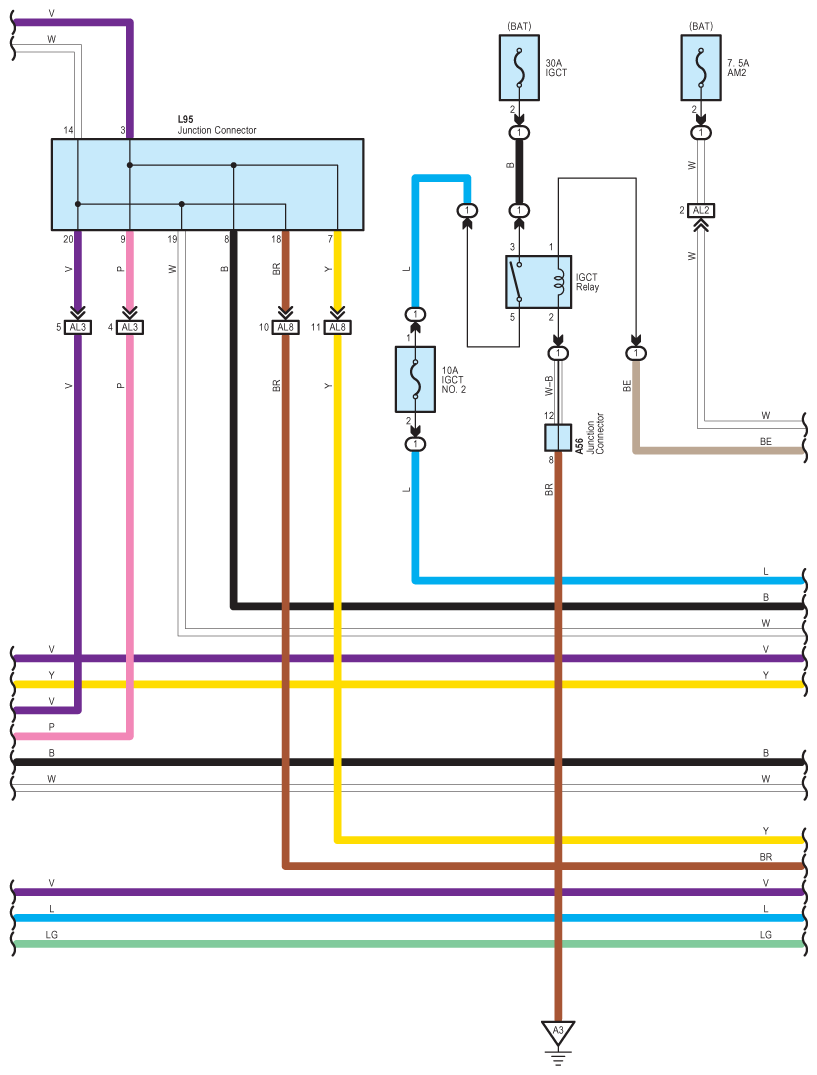

Fig 11: Cruise, Dynamic Radar Cruise And Engine Control System Wiring Diagram (11 Of 32)

G08850009

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Cruise, Dynamic Radar Cruise And Engine Control System Wiring Diagram (12 Of 32)

G08850010

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

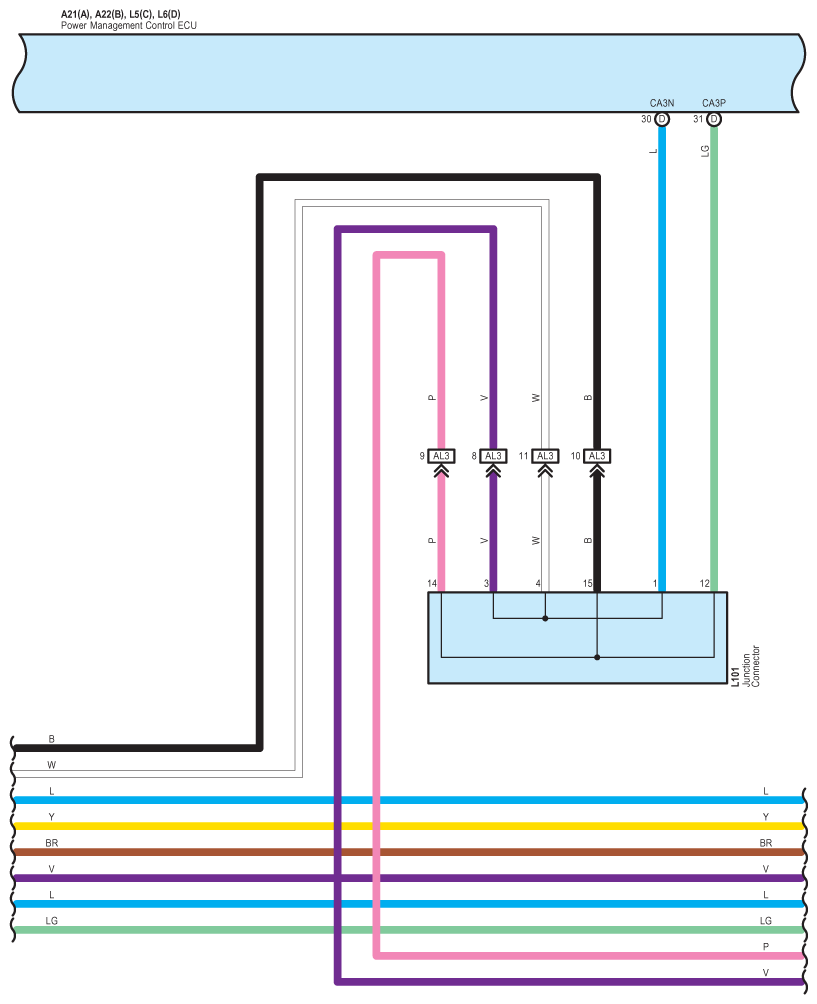

Fig 13: Cruise, Dynamic Radar Cruise And Engine Control System Wiring Diagram (13 Of 32)

G08850011

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

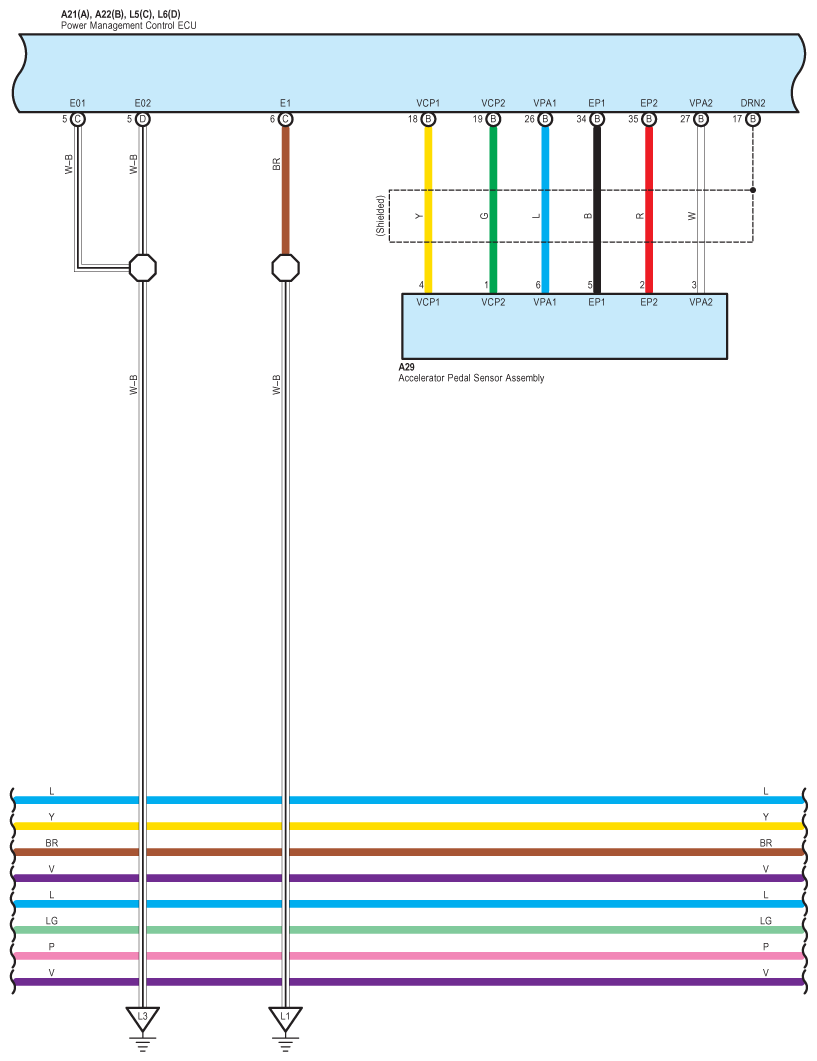

Fig 14: Cruise, Dynamic Radar Cruise And Engine Control System Wiring Diagram (14 Of 32)

G08850012

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

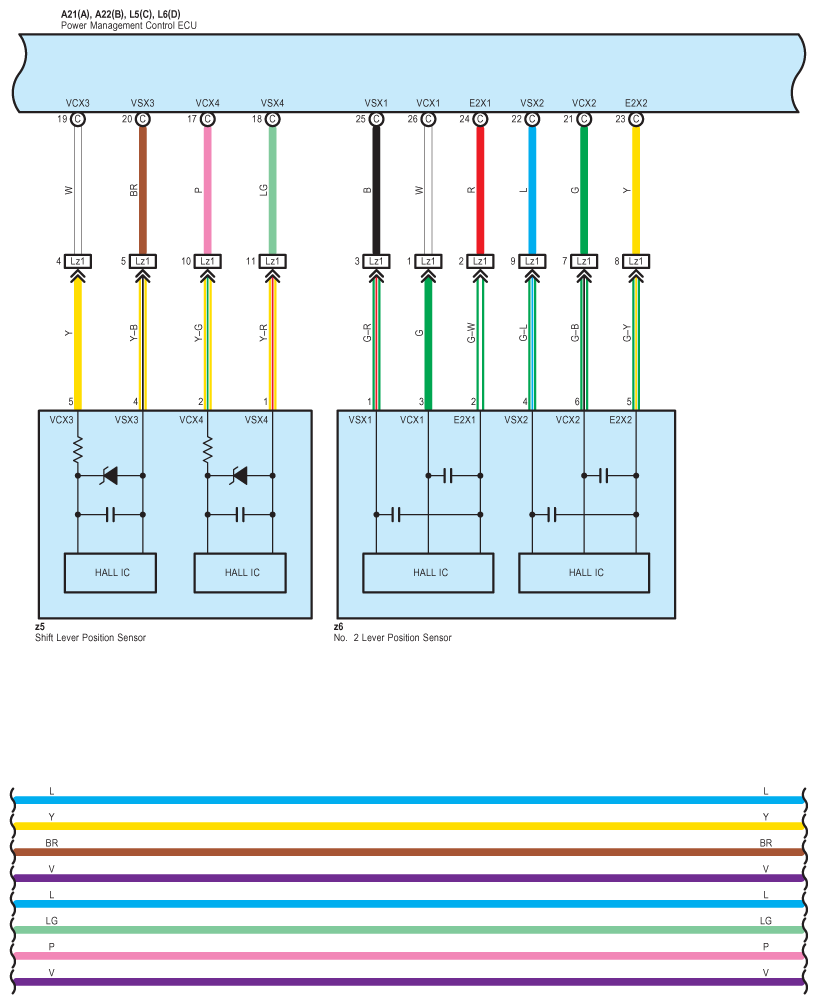

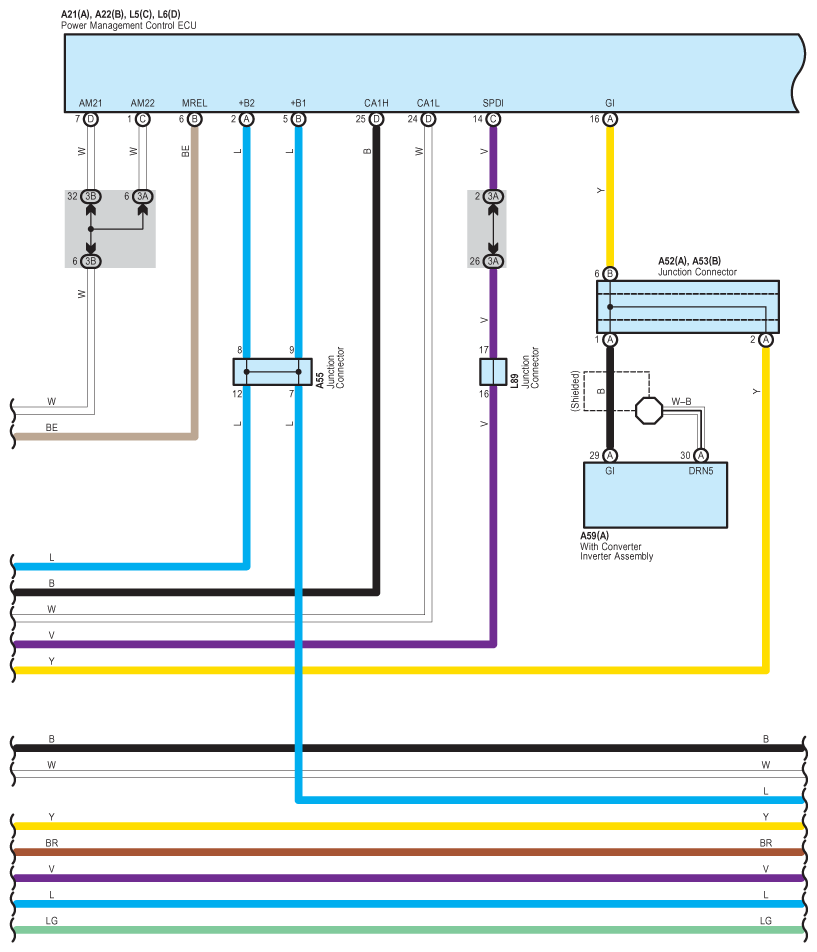

Fig 15: Cruise, Dynamic Radar Cruise And Engine Control System Wiring Diagram (15 Of 32)

G08850013

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Cruise, Dynamic Radar Cruise And Engine Control System Wiring Diagram (16 Of 32)

G08850014

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Cruise, Dynamic Radar Cruise And Engine Control System Wiring Diagram (17 Of 32)

G08850015

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

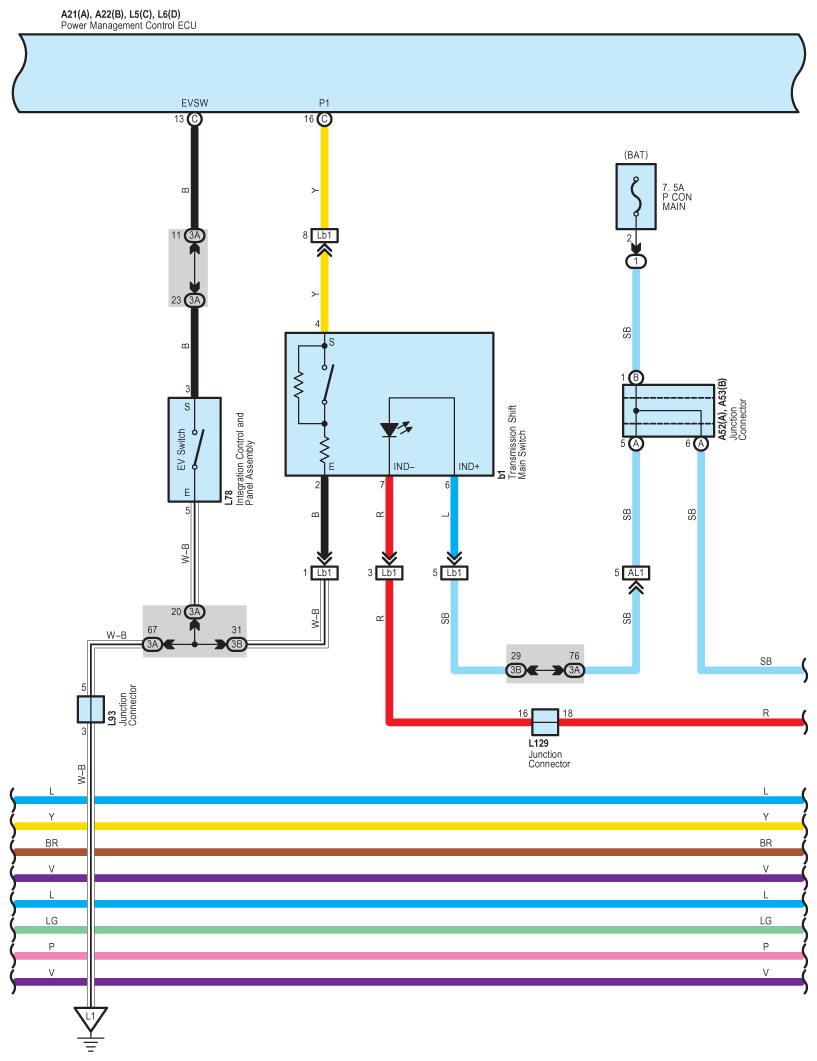

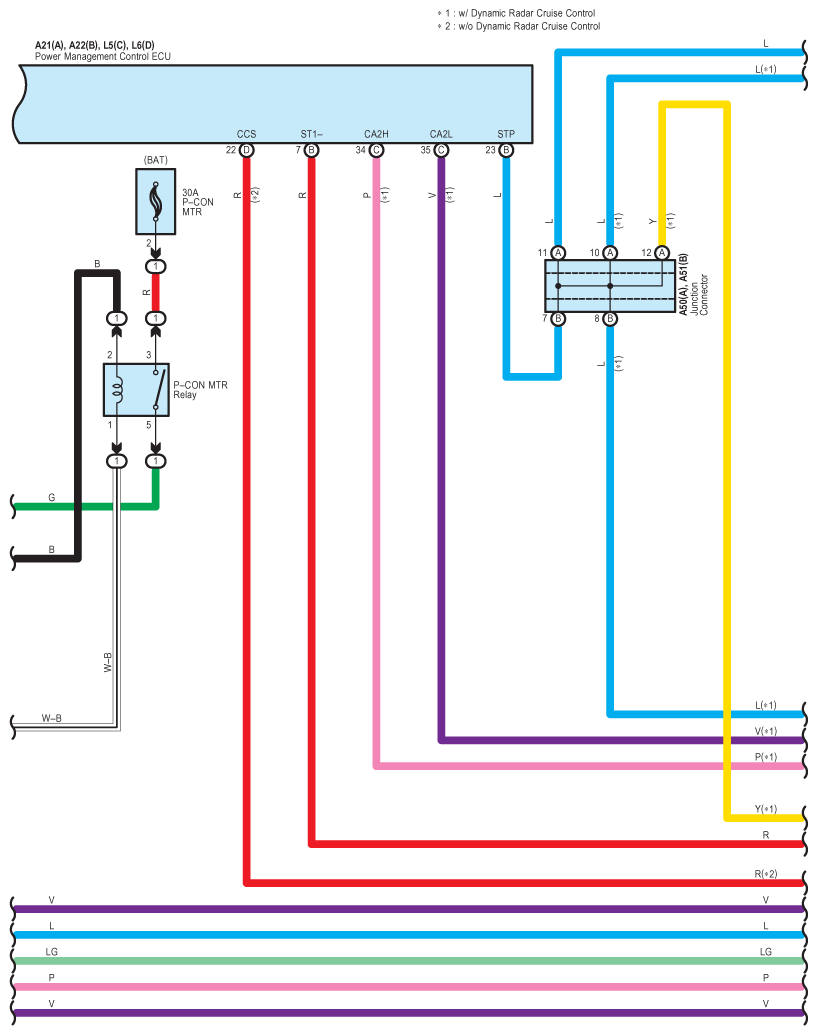

Fig 18: Cruise, Dynamic Radar Cruise And Engine Control System Wiring Diagram (18 Of 32)

G08850016

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

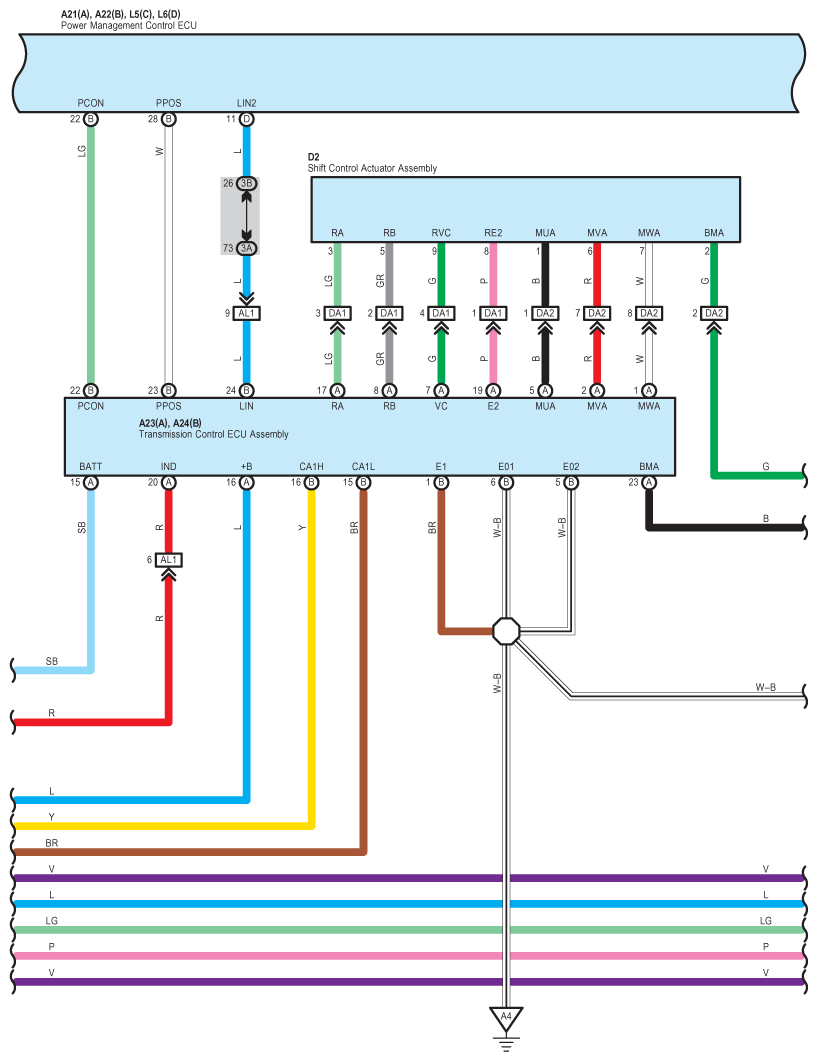

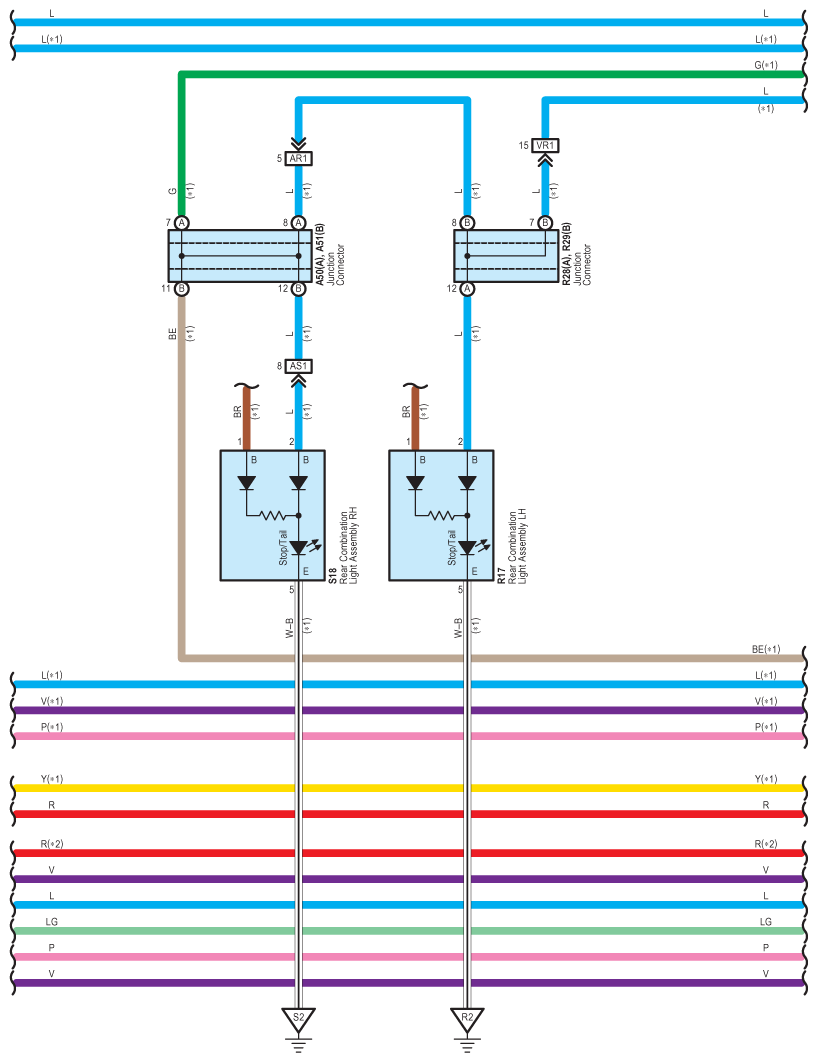

Fig 19: Cruise, Dynamic Radar Cruise And Engine Control System Wiring Diagram (19 Of 32)

G08850017

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

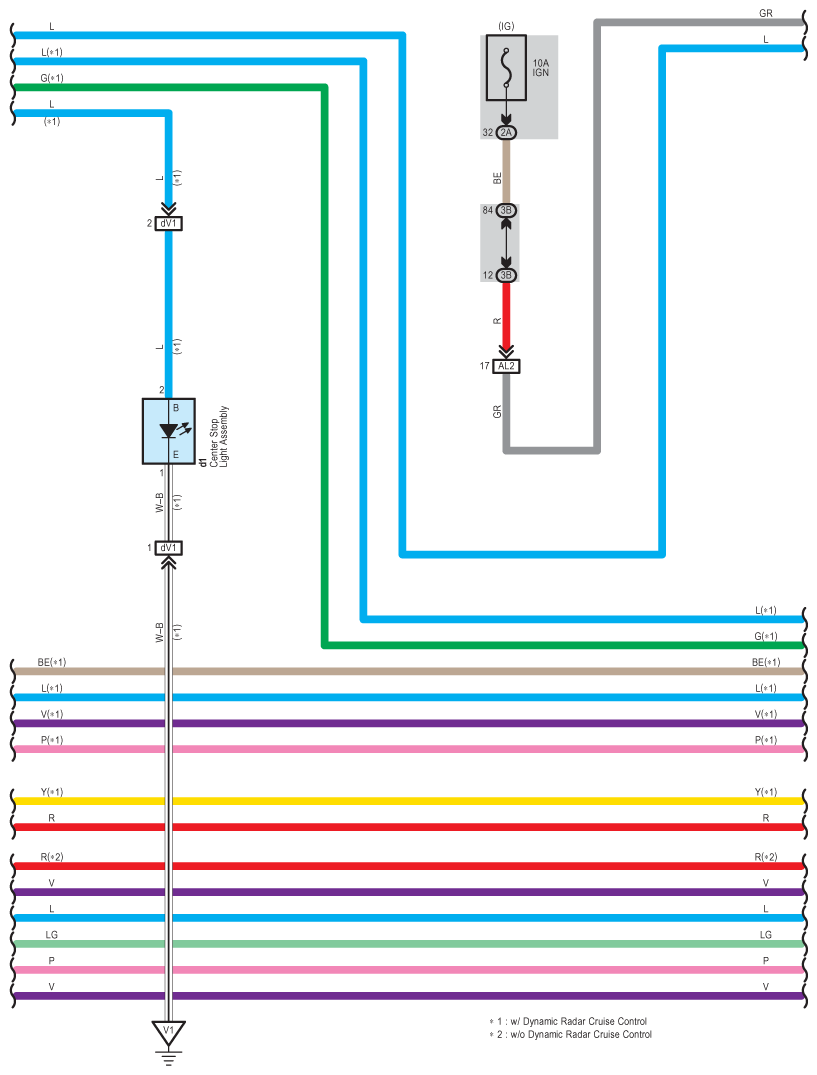

Fig 20: Cruise, Dynamic Radar Cruise And Engine Control System Wiring Diagram (20 Of 32)

G08850018

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 21: Cruise, Dynamic Radar Cruise And Engine Control System Wiring Diagram (21 Of 32)

G08850019

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

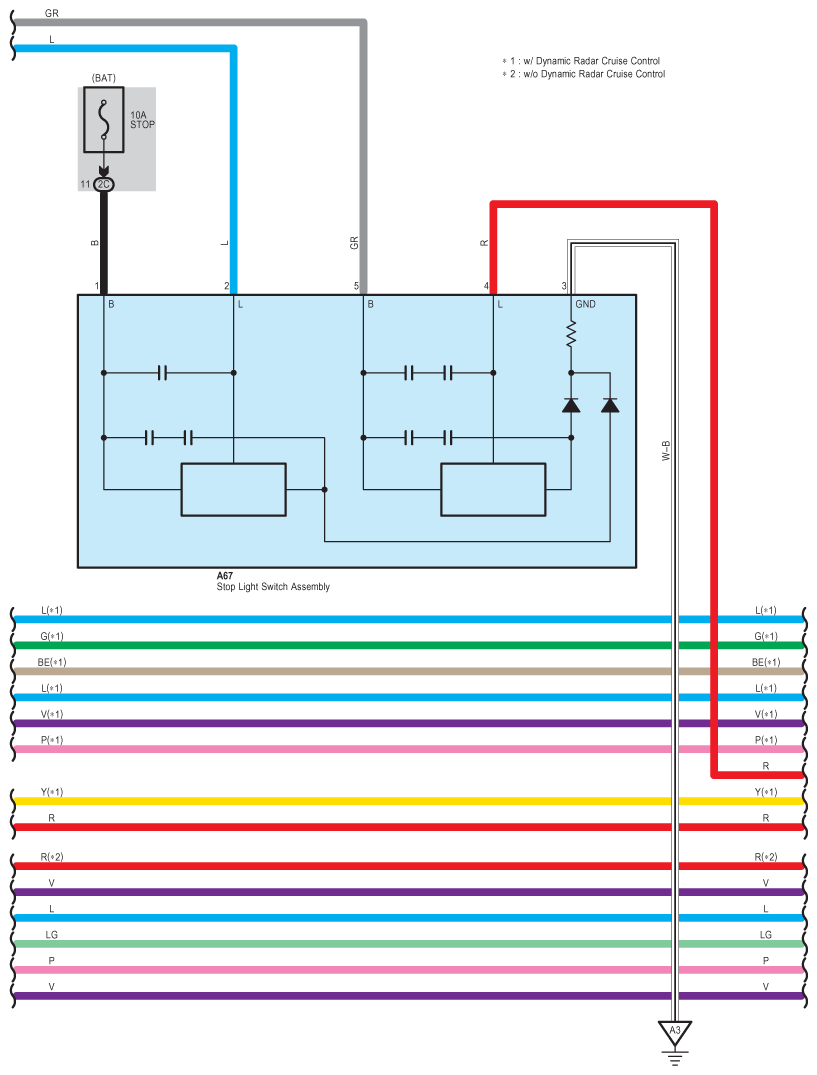

Fig 22: Cruise, Dynamic Radar Cruise And Engine Control System Wiring Diagram (22 Of 32)

G08850020

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

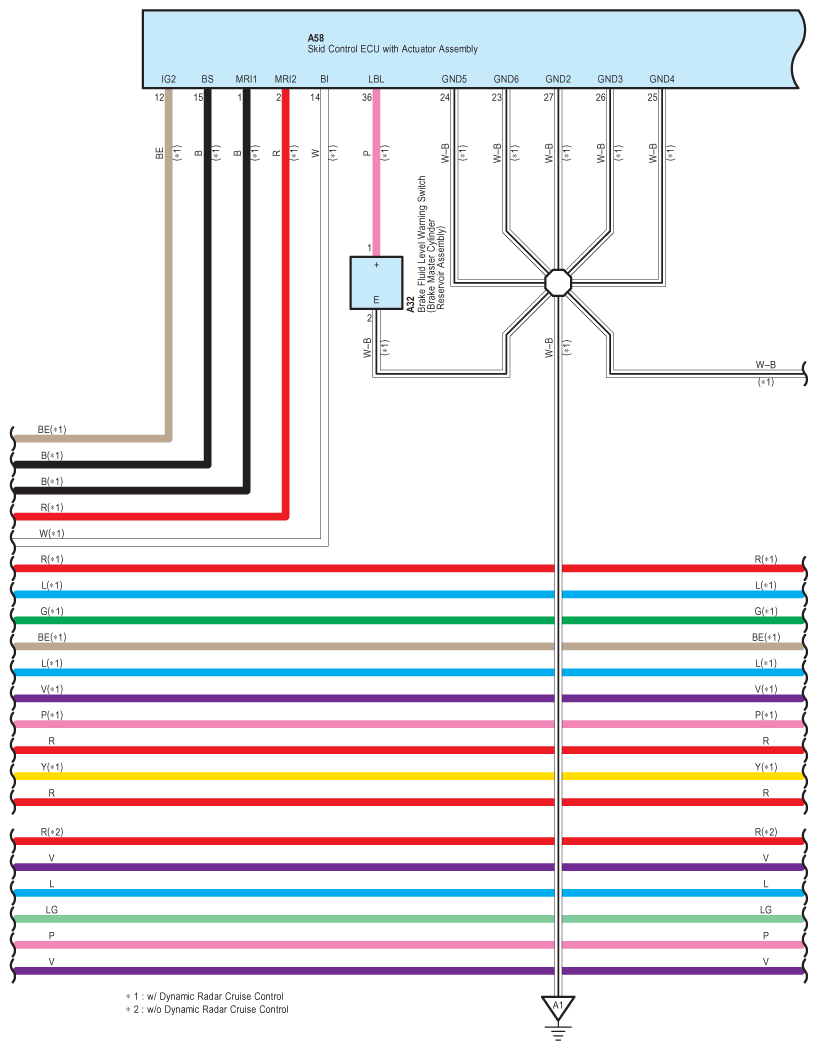

Fig 23: Cruise, Dynamic Radar Cruise And Engine Control System Wiring Diagram (23 Of 32)

G08850021

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

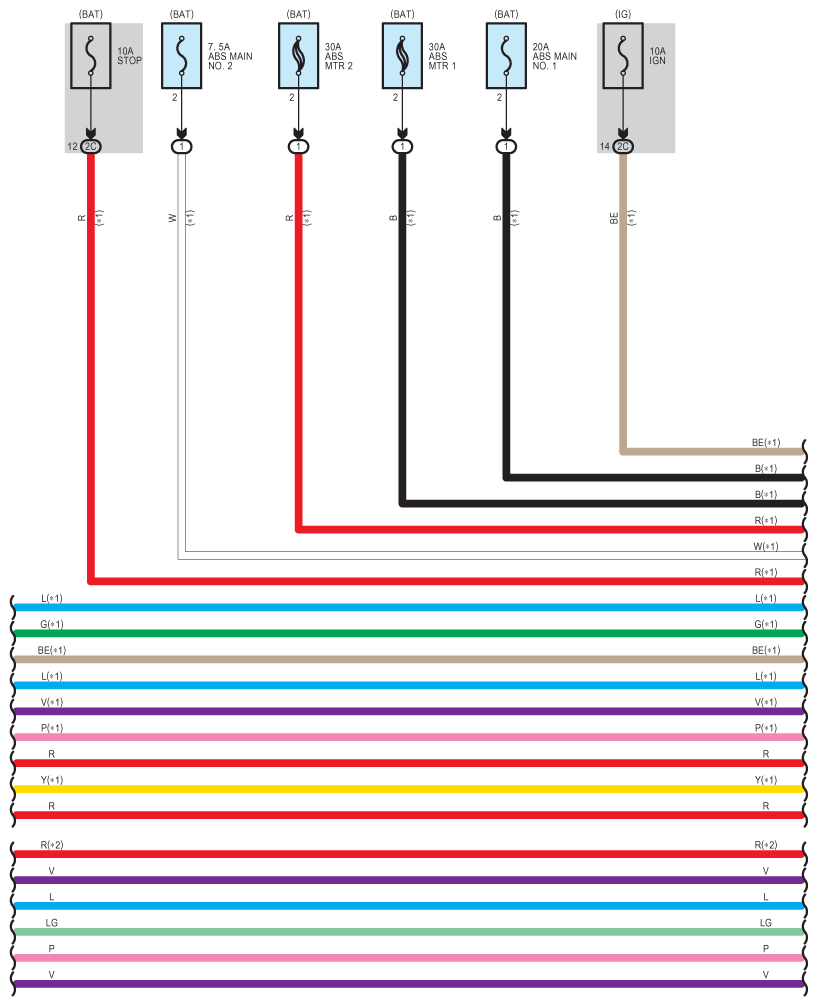

Fig 24: Cruise, Dynamic Radar Cruise And Engine Control System Wiring Diagram (24 Of 32)

G08850022

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

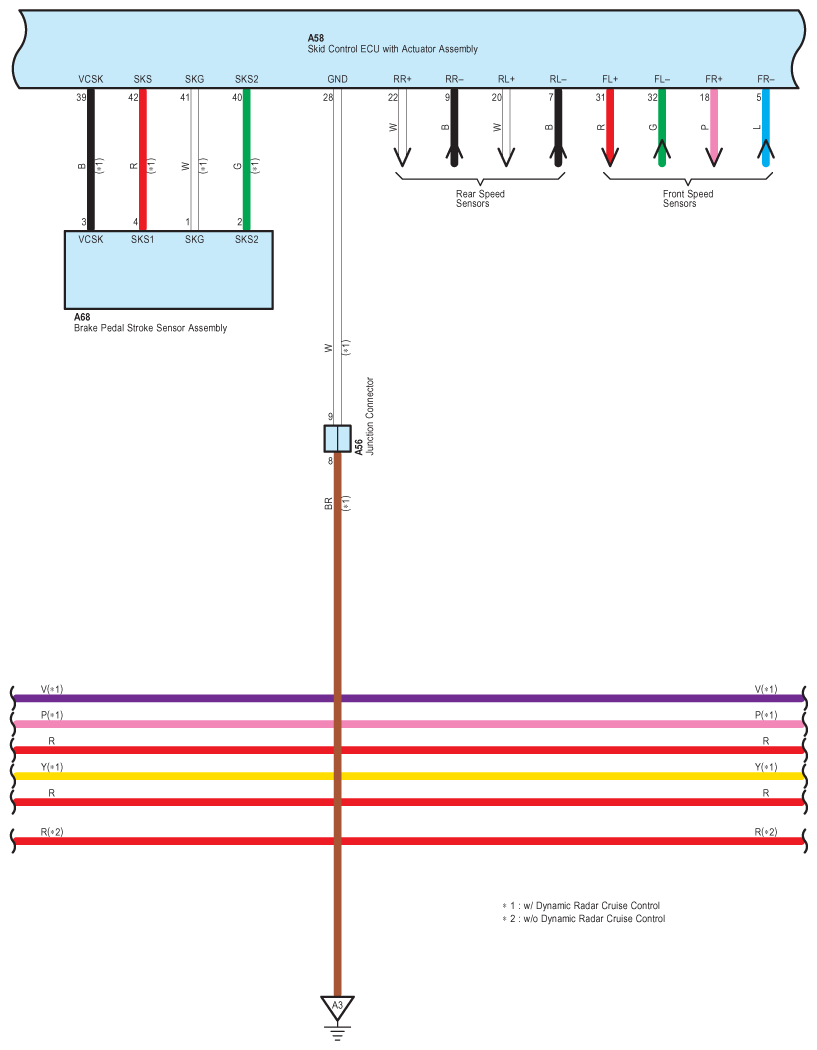

Fig 25: Cruise, Dynamic Radar Cruise And Engine Control System Wiring Diagram (25 Of 32)

G08850023

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

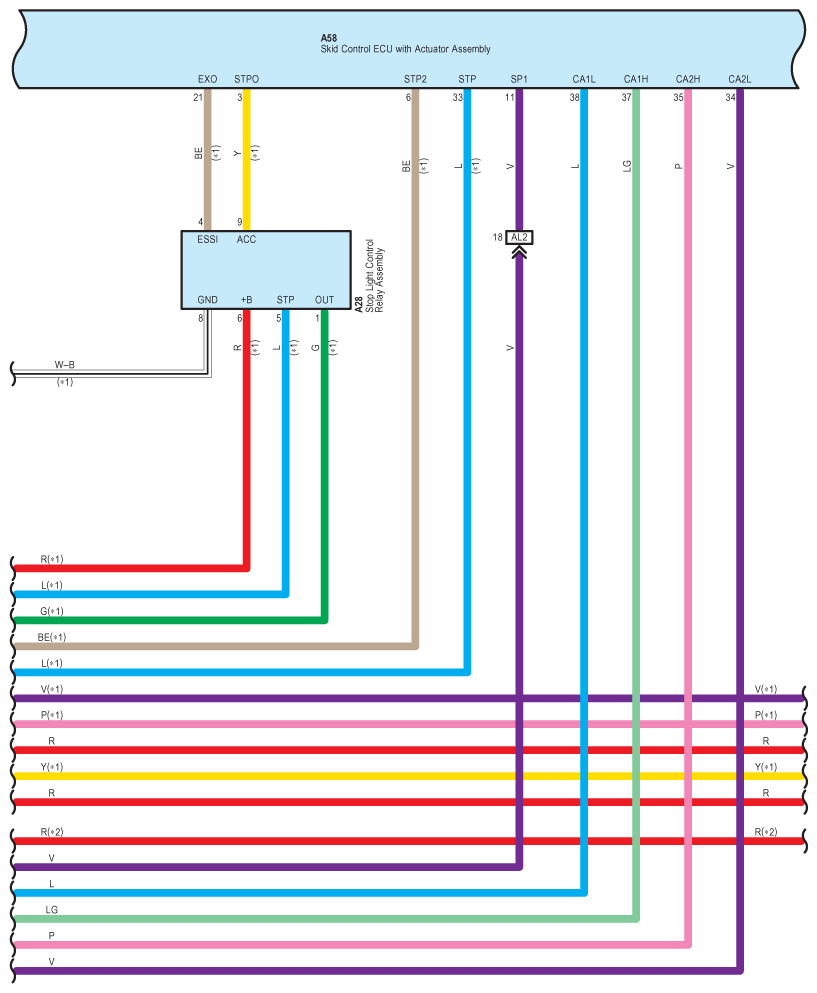

Fig 26: Cruise, Dynamic Radar Cruise And Engine Control System Wiring Diagram (26 Of 32)

G08850024

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

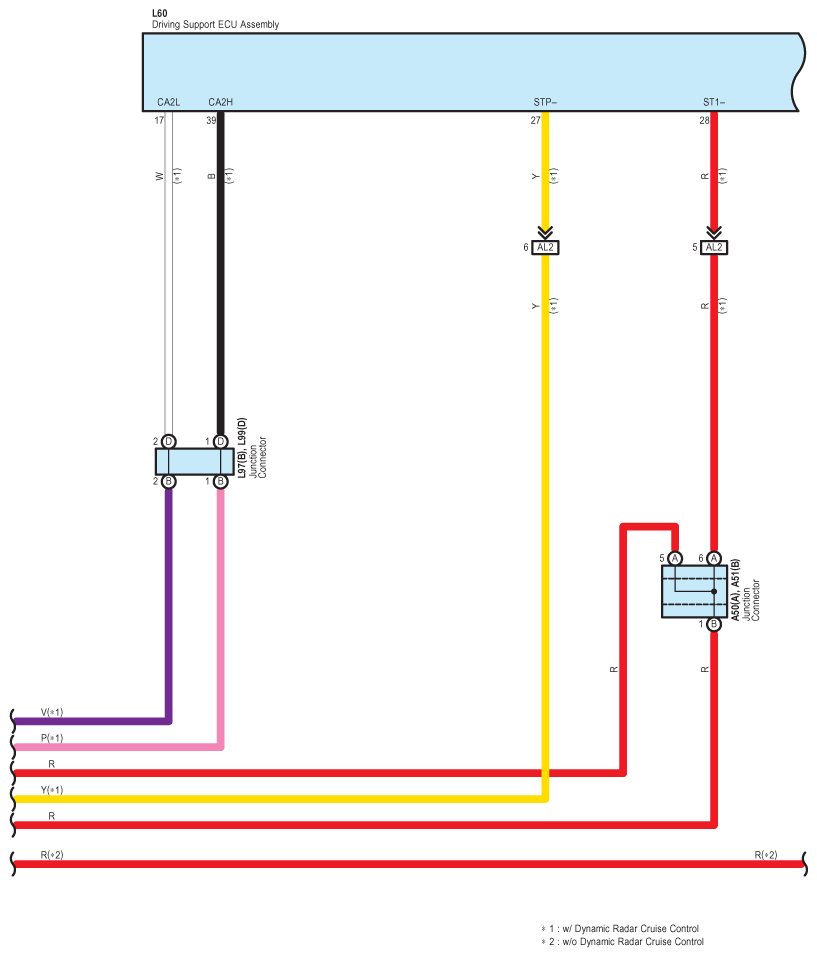

Fig 27: Cruise, Dynamic Radar Cruise And Engine Control System Wiring Diagram (27 Of 32)

G08850025

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

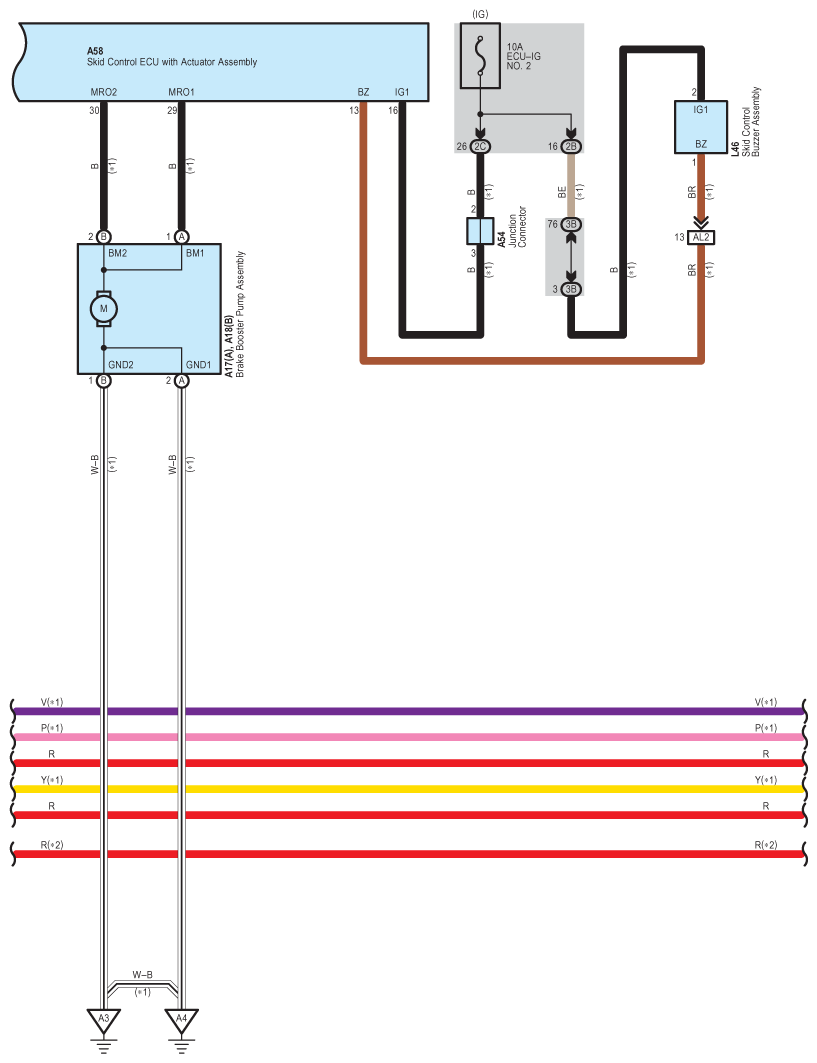

Fig 28: Cruise, Dynamic Radar Cruise And Engine Control System Wiring Diagram (28 Of 32)

G08850026

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 29: Cruise, Dynamic Radar Cruise And Engine Control System Wiring Diagram (29 Of 32)

G08850027

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 30: Cruise, Dynamic Radar Cruise And Engine Control System Wiring Diagram (30 Of 32)

G08850028

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

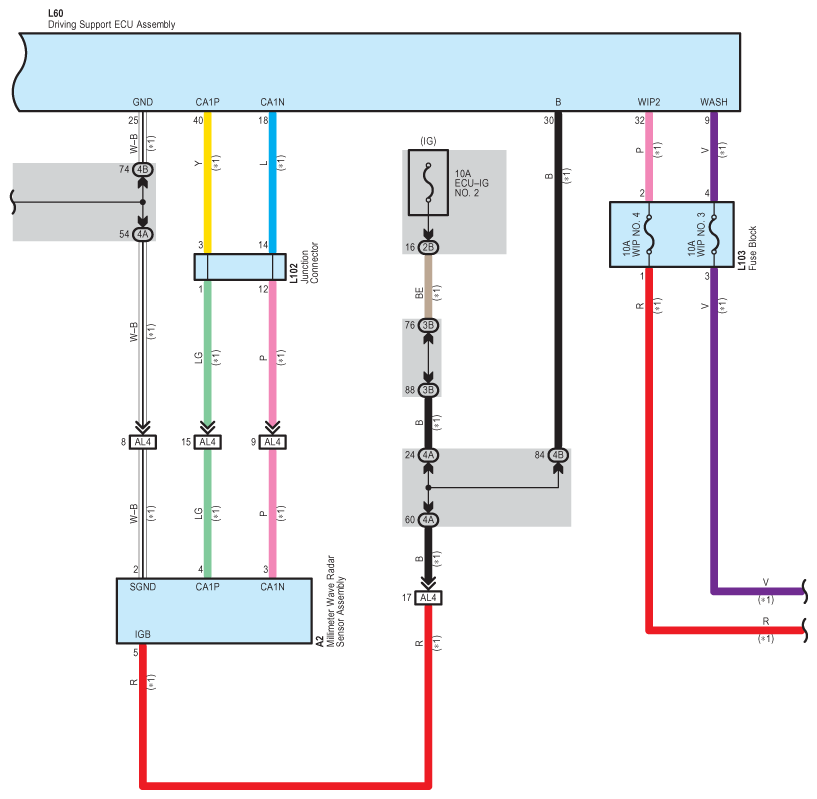

Fig 31: Cruise, Dynamic Radar Cruise And Engine Control System Wiring Diagram (31 Of 32)

G08850029

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

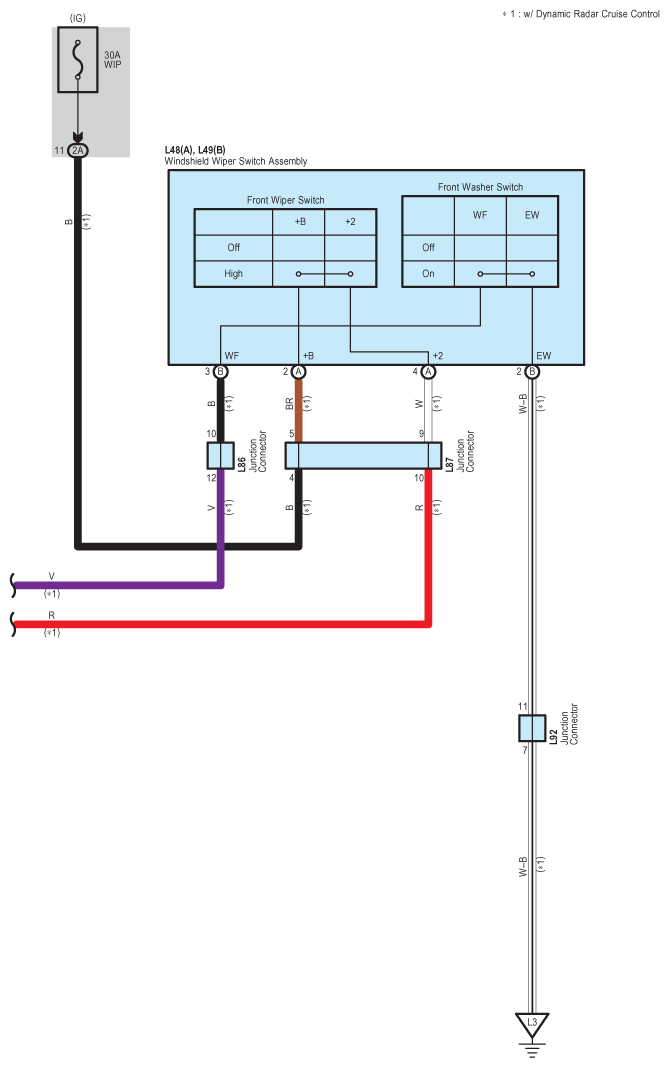

Fig 32: Cruise, Dynamic Radar Cruise And Engine Control System Wiring Diagram (32 Of 32)

G08850030

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
