Headlight Cleaner: Notes

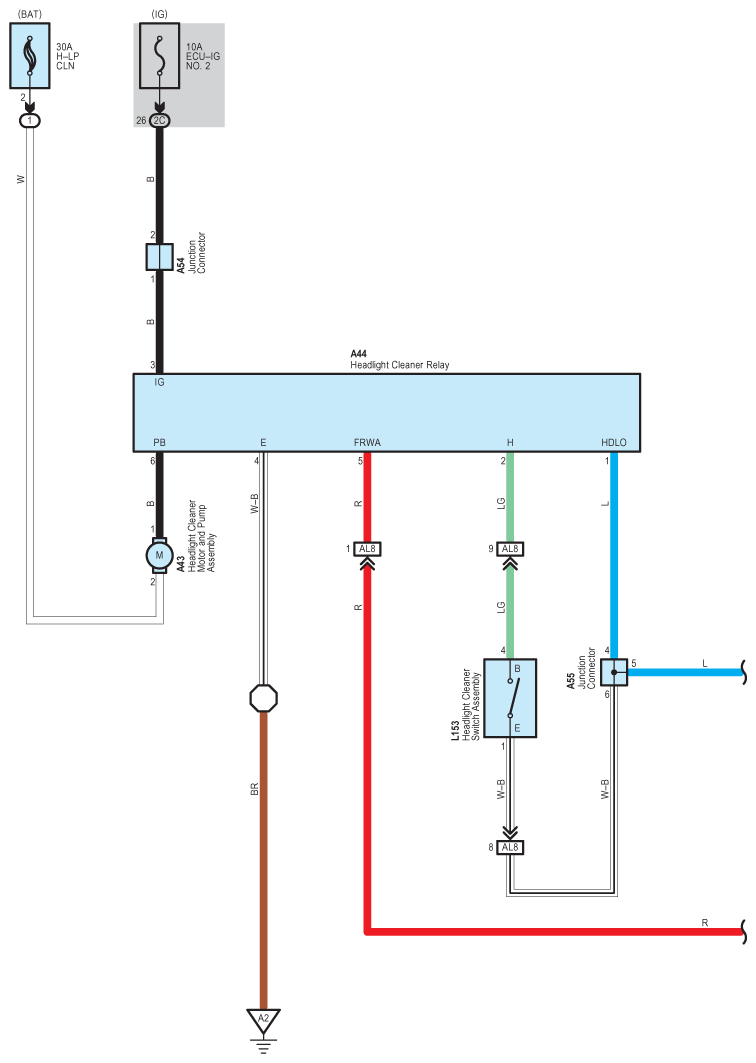

Fig 1: Headlight Cleaner System Wiring Diagram (1 Of 4)
G08850077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

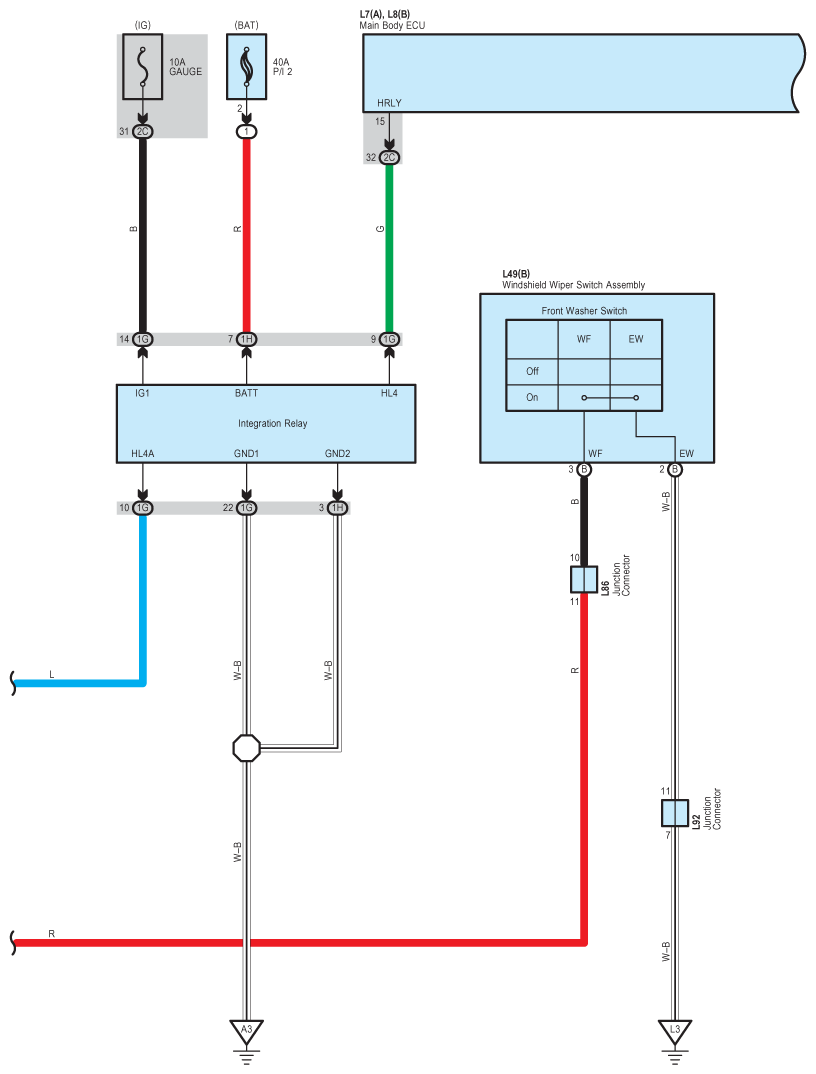

Fig 2: Headlight Cleaner System Wiring Diagram (2 Of 4)
G08850078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

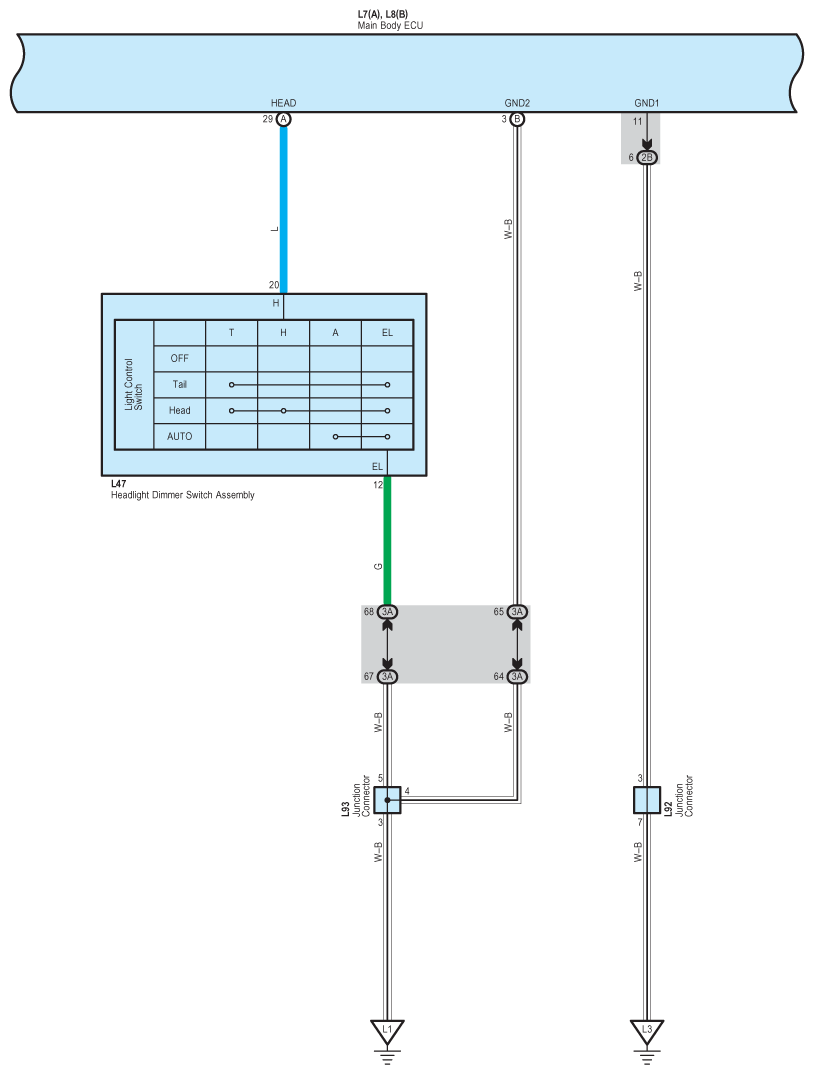

Fig 3: Headlight Cleaner System Wiring Diagram (3 Of 4)
G08850079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

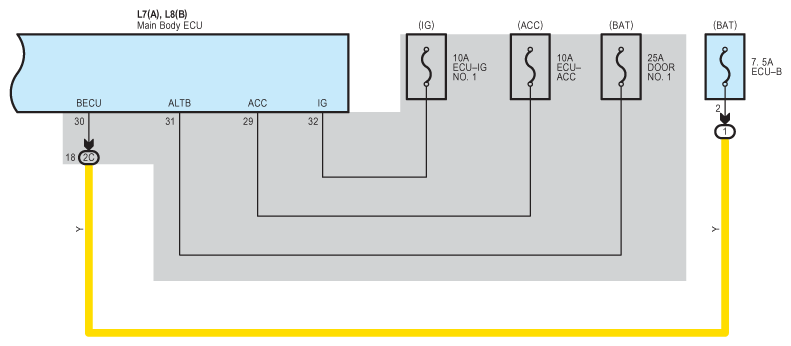

Fig 4: Headlight Cleaner System Wiring Diagram (4 Of 4)
G08850080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
