Multiplex Communication System (AVC-LAN): Notes

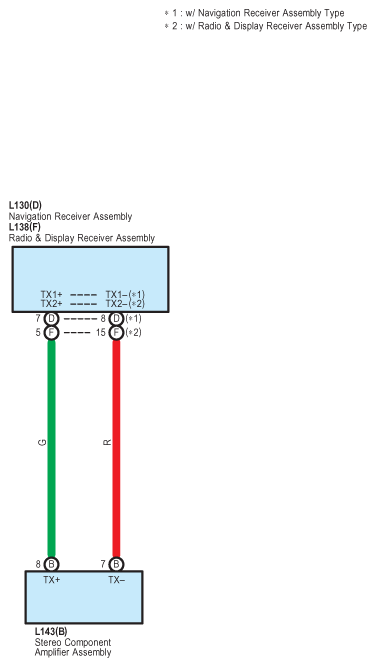

Fig 1: Multiplex Communication (AVC-LAN) System Wiring Diagram
G08850035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
