Power Seat: Notes

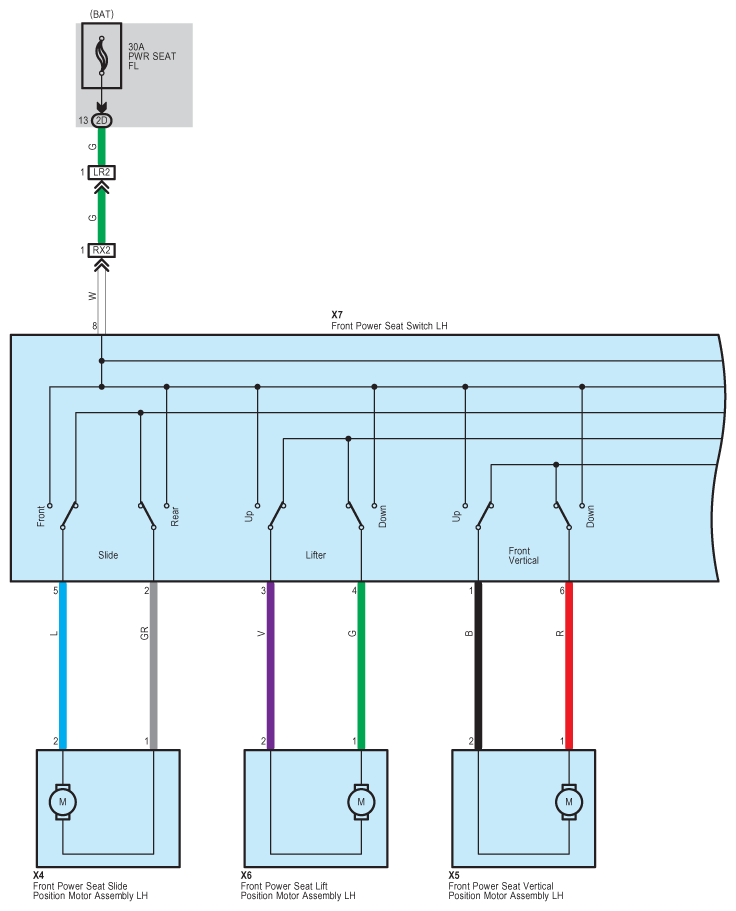

Fig 1: Power Seat System Wiring Diagram (1 Of 2)
G08850142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

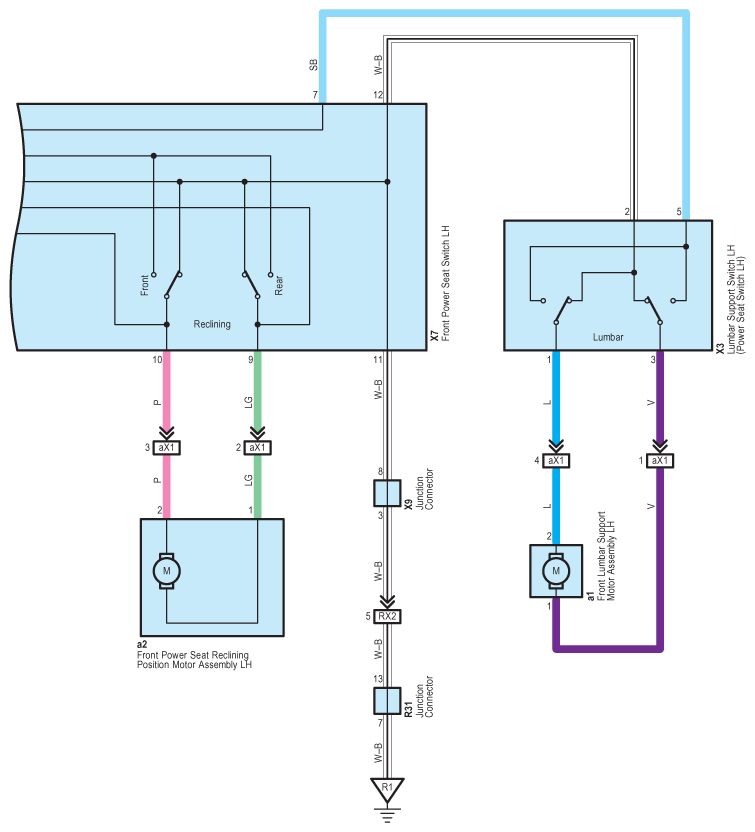

Fig 2: Power Seat System Wiring Diagram (2 Of 2)
G08850143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
