Pre-Collision System: Notes

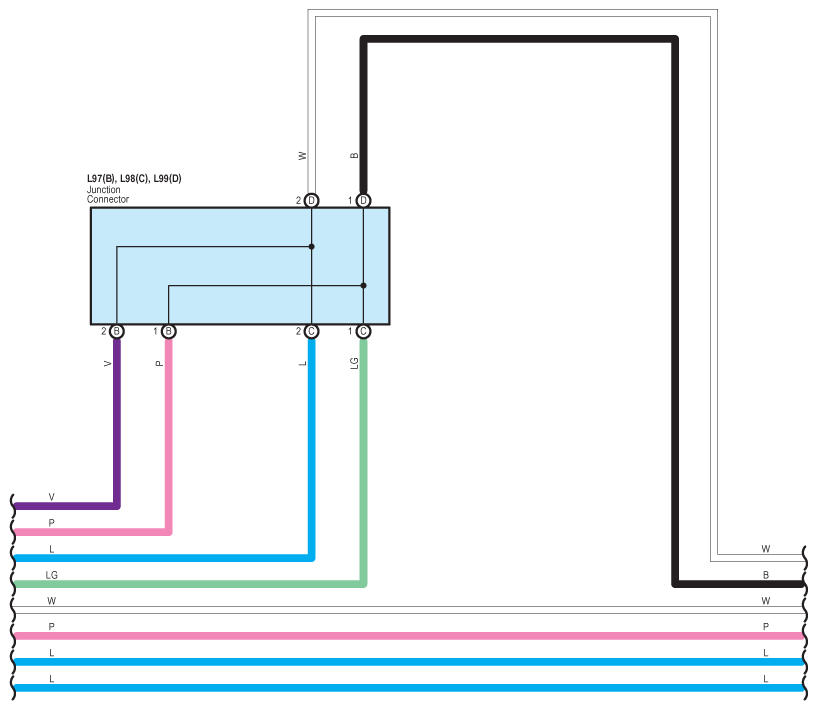

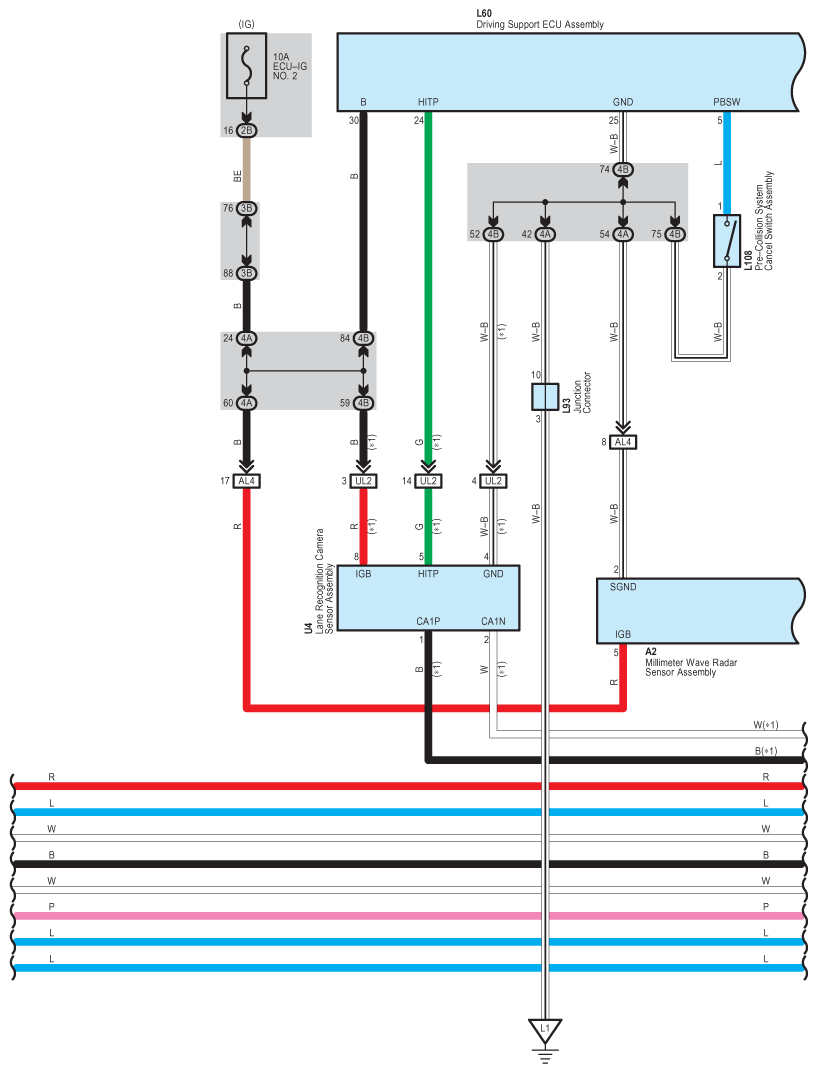

Fig 1: Pre-Collision System Wiring Diagram (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

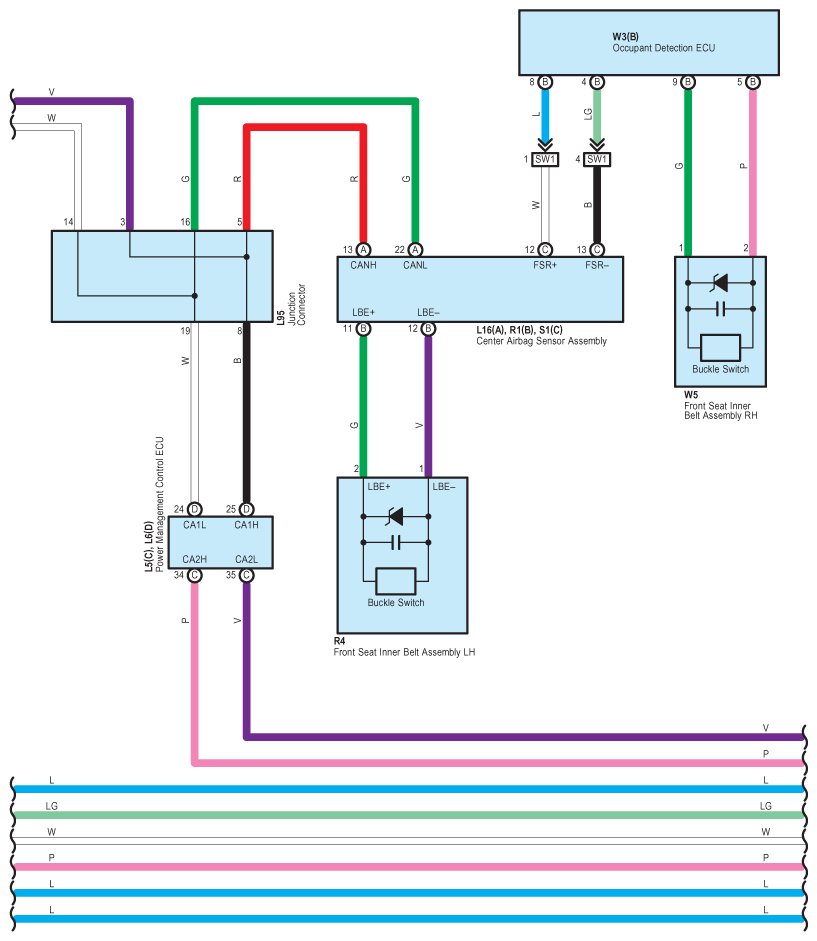

Fig 2: Pre-Collision System Wiring Diagram (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

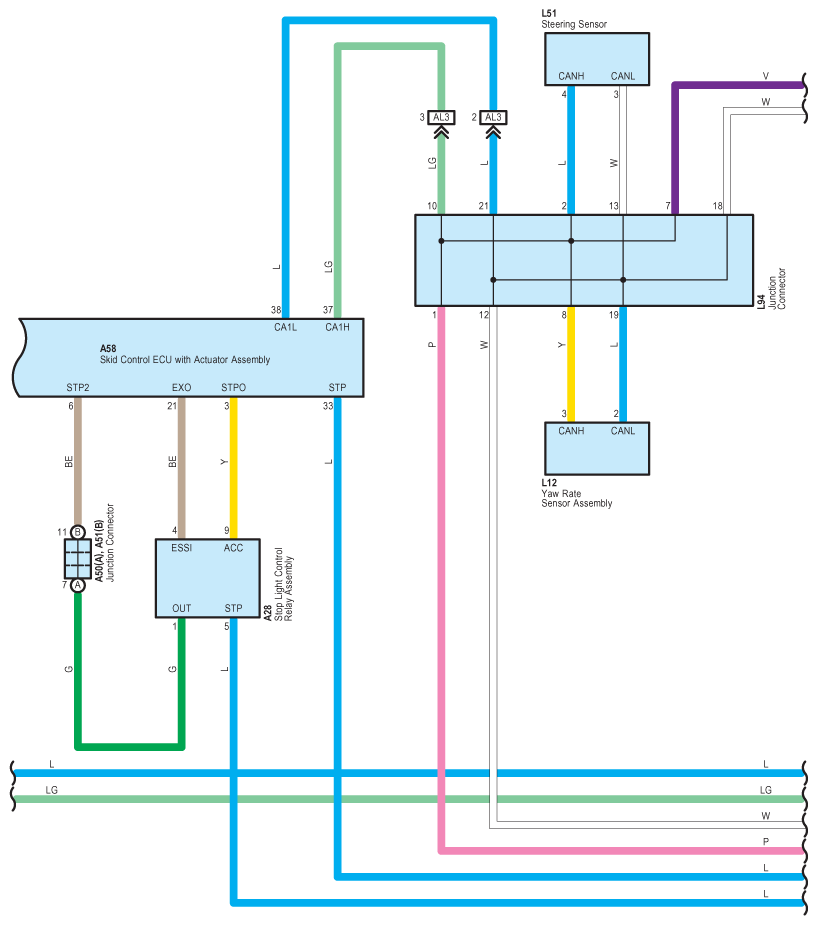

Fig 3: Pre-Collision System Wiring Diagram (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

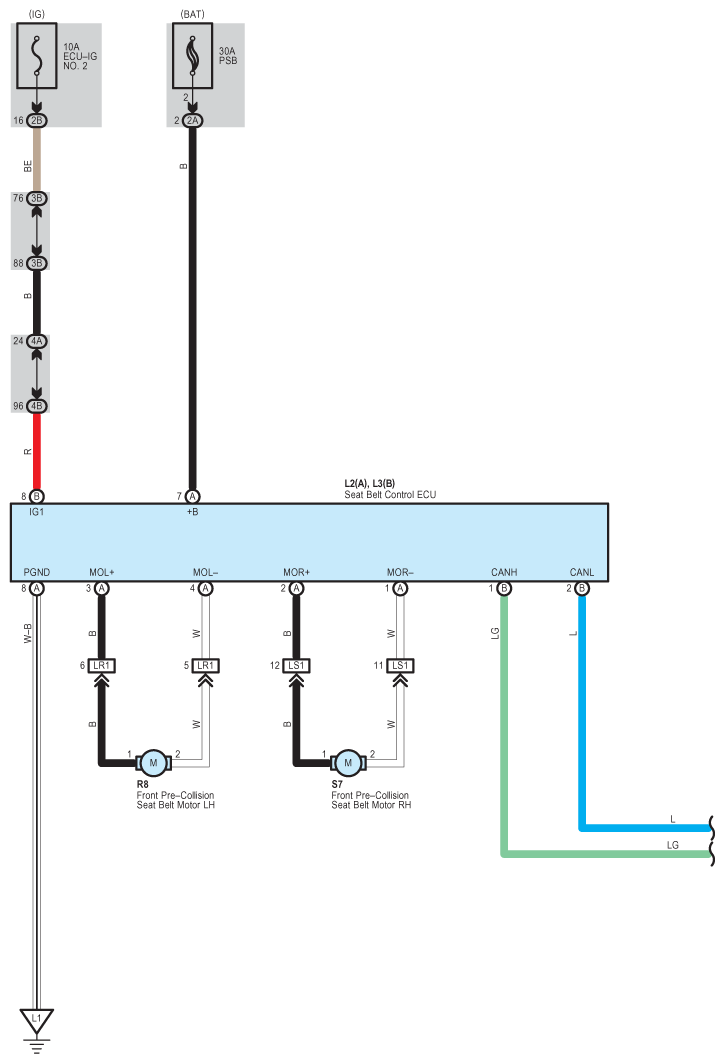

Fig 4: Pre-Collision System Wiring Diagram (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

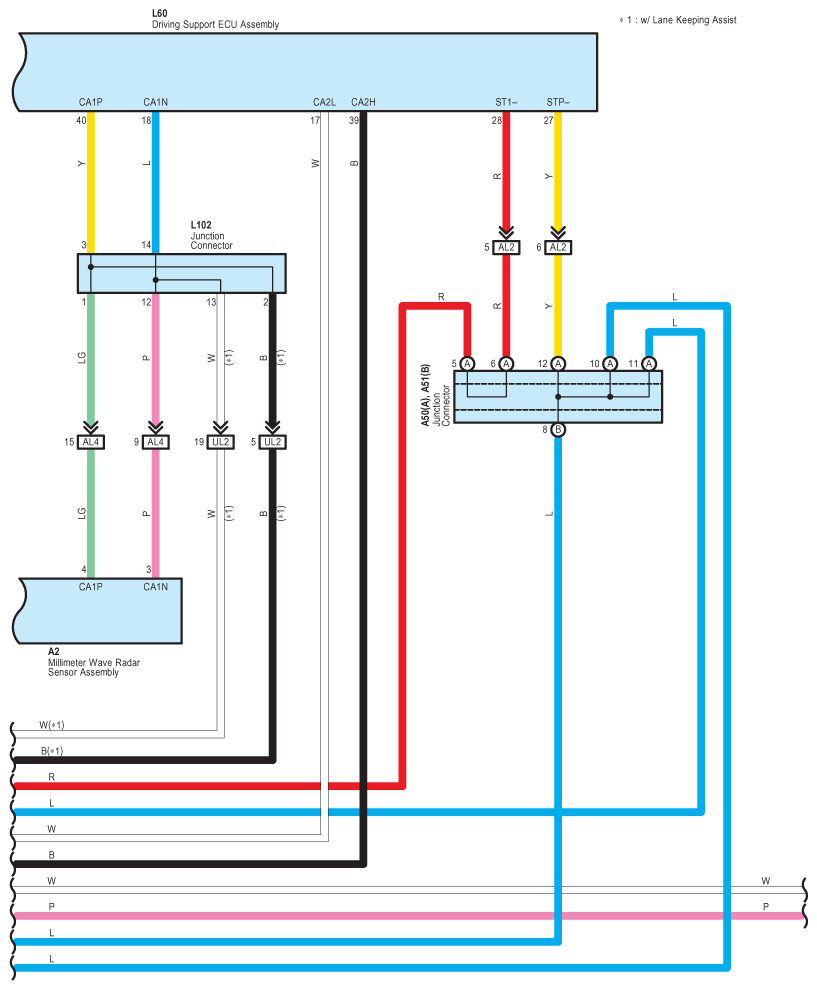

Fig 5: Pre-Collision System Wiring Diagram (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

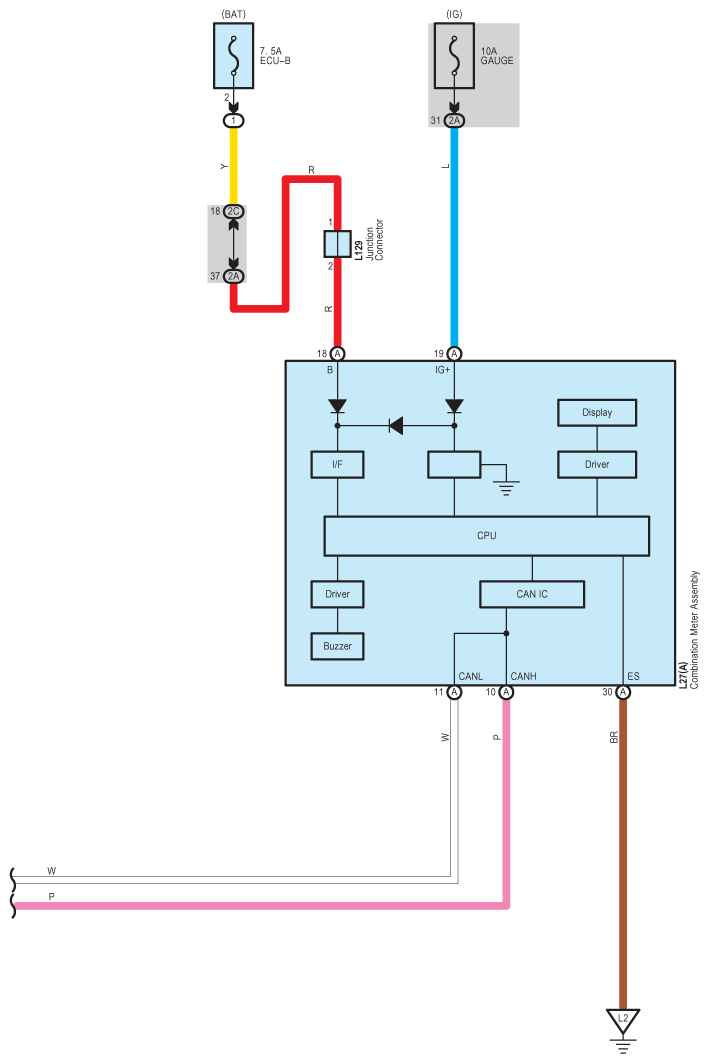

Fig 6: Pre-Collision System Wiring Diagram (6 Of 9)

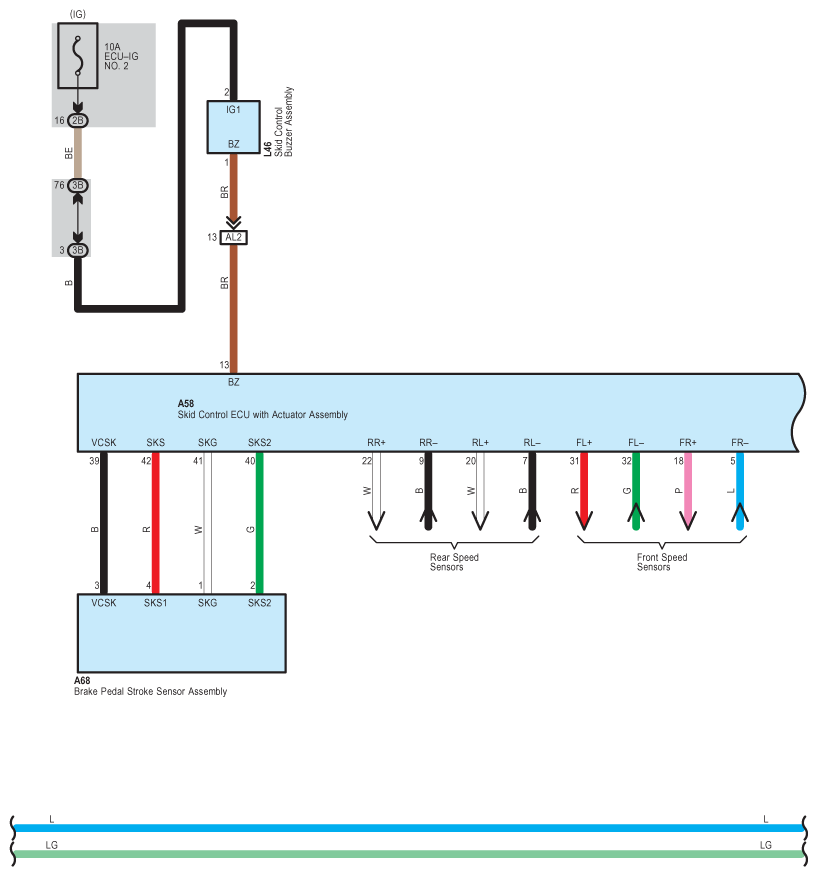

Fig 7: Pre-Collision System Wiring Diagram (7 Of 9)

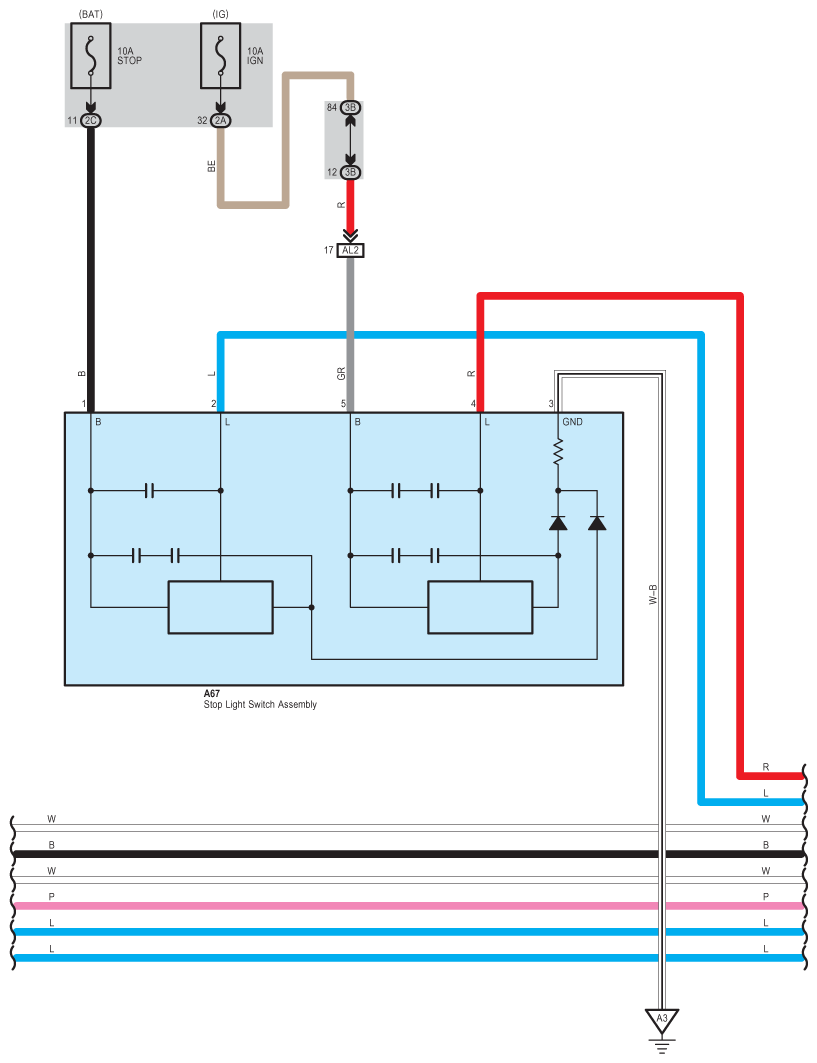

Fig 8: Pre-Collision System Wiring Diagram (8 Of 9)

Fig 9: Pre-Collision System Wiring Diagram (9 Of 9)
