Power Management Control Ecu: Components: Illustration

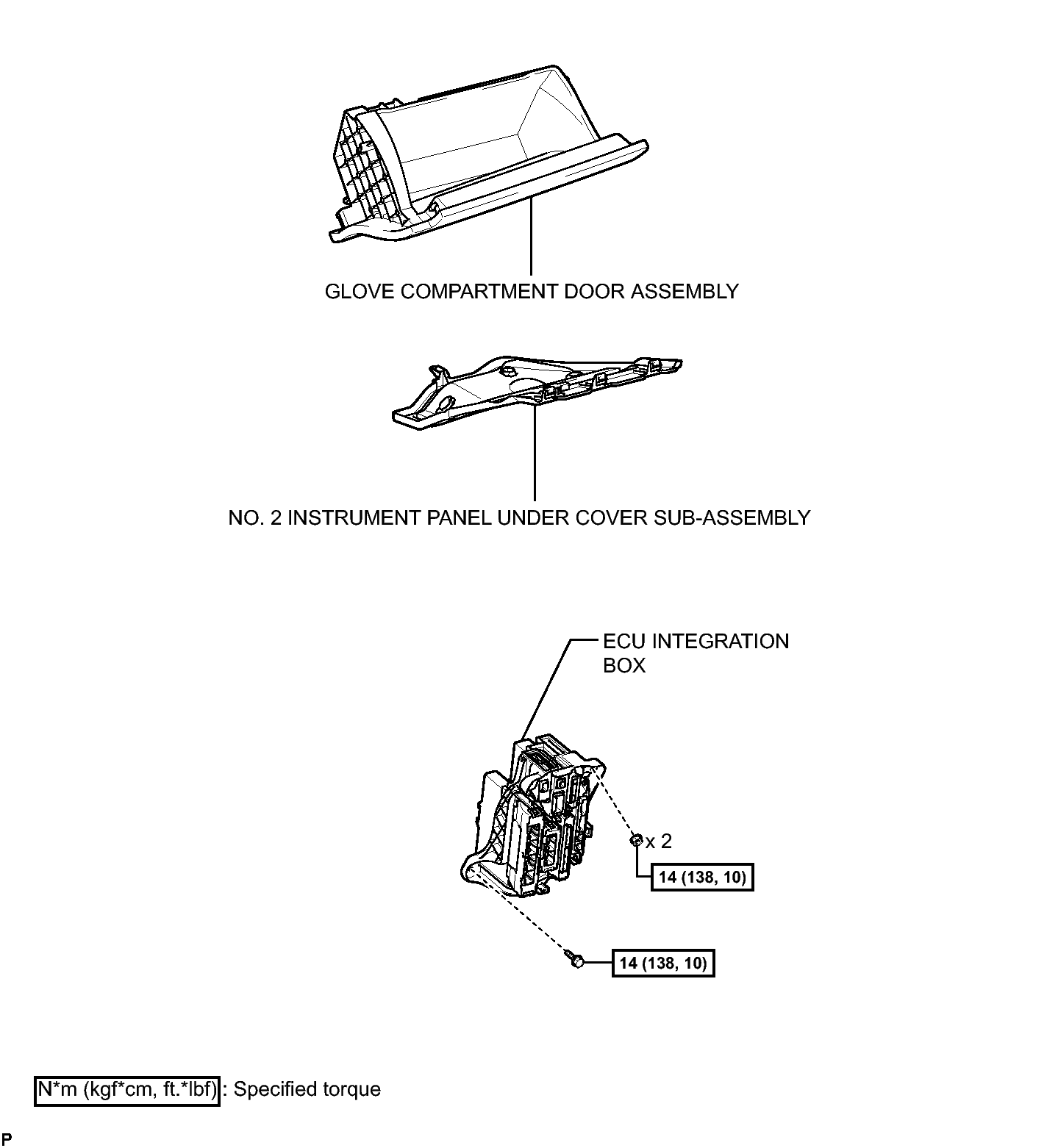

Fig 1: Identifying Power Management Control ECU Replacement Components With Torque Specifications (1 Of 2)
GTY220233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

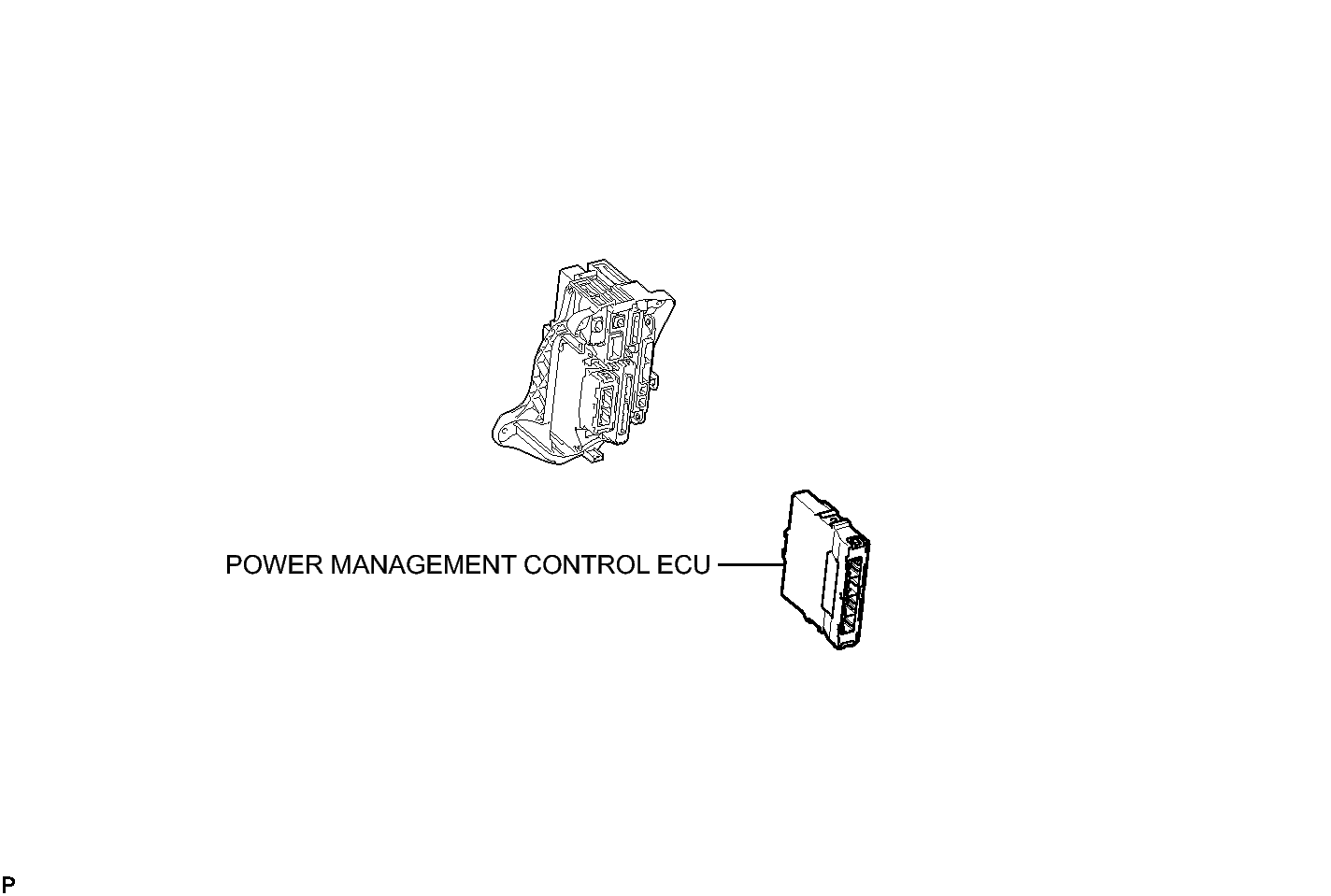

Fig 2: Identifying Power Management Control ECU Replacement Components (2 Of 2)
GTY219217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
