Terminals Of ECM

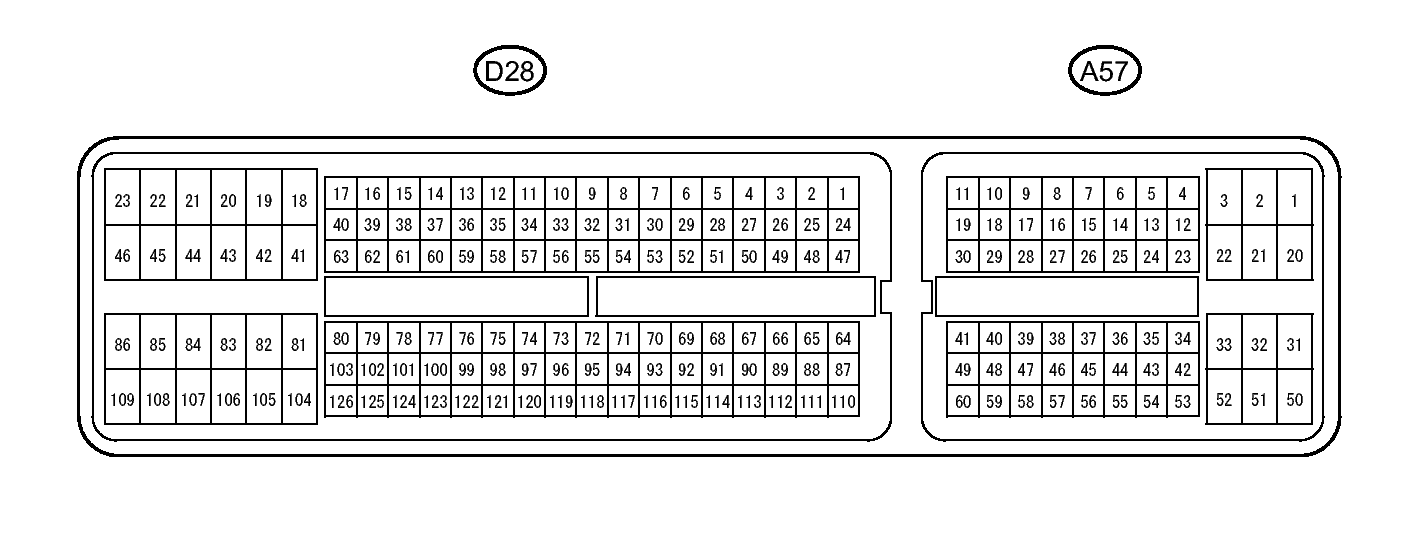

Fig 1: ECM Connector Terminal Identification - SFI

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The standard normal voltage between each pair of the ECM terminals is shown in the table below. The appropriate conditions for checking each pair of the terminals are also indicated. The result of checks should be compared with the standard normal voltage for that pair of the terminals, and displayed in the "Specified Condition" column. The illustration above can be used as a reference to identify the ECM terminal locations.

HINT:

^* 1: The ECM terminal voltage is constant regardless of the output voltage from the sensor.

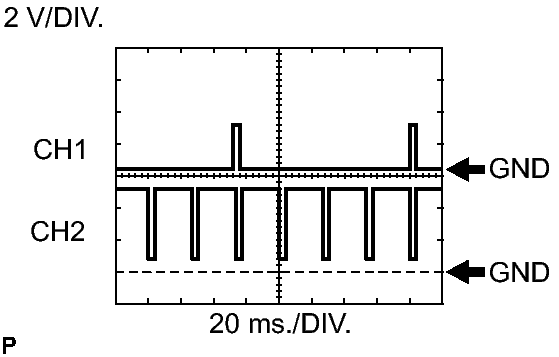

1. WAVEFORM 1
   Fig 2: Identifying Waveform 1

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   IGNITER IGT SIGNAL (FROM ECM TO IGNITER) AND IGNITER IGF SIGNAL (FROM IGNITER TO ECM)



   ECM Terminal Name	CH1: Between IGT (1 to 4) and E1 CH2: Between IGF and E1
   Tester Range	2 V/DIV., 20 ms./DIV.
   Condition	Idling

   HINT:

   The wavelength becomes shorter as the engine speed increases.

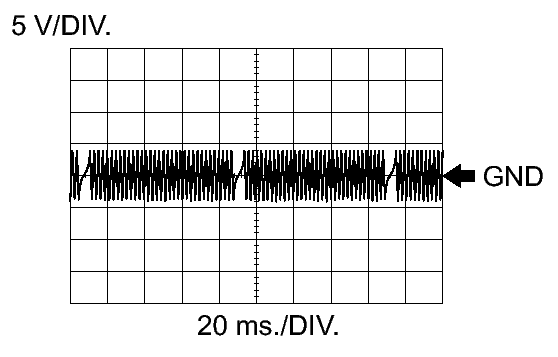

2. WAVEFORM 2

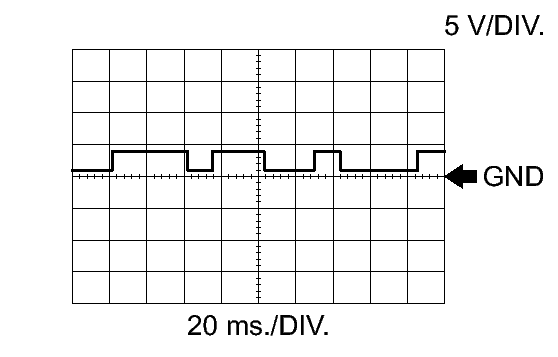

   Fig 3: Identifying Waveform 2

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   CRANKSHAFT POSITION SENSOR SIGNAL



   ECM Terminal Name	Between NE+ and NE-
   Tester Range	5 V/DIV., 20 ms./DIV.
   Condition	Idling with warm engine

   HINT:

   The wavelength becomes shorter as the engine speed increases.

3. WAVEFORM 3
   Fig 4: Identifying Waveform 3

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   CAMSHAFT POSITION SENSOR SIGNAL



   ECM Terminal Name	Between G2+ and G2-
   Tester Range	5 V/DIV., 20 ms./DIV.
   Condition	Idling with warm engine

   HINT:

   The wavelength becomes shorter as the engine speed increases.

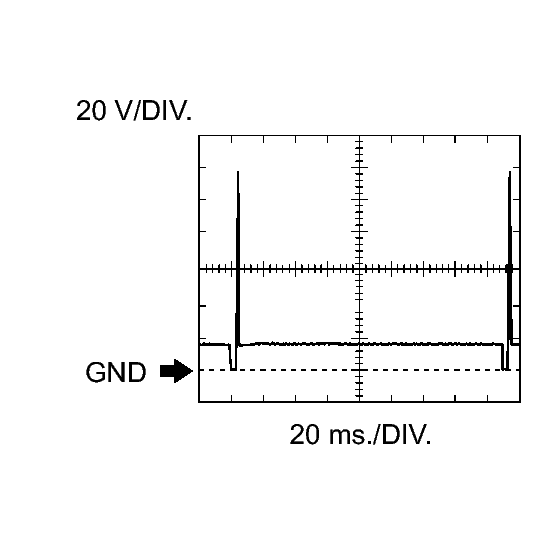

4. WAVEFORM 4
   Fig 5: Identifying Waveform 4

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NO. 1 (TO NO. 4) FUEL INJECTOR ASSEMBLY SIGNAL



   ECM Terminal Name	Between #10 (to #40) and E01
   Tester Range	20 V/DIV., 20 ms./DIV.
   Condition	Idling

   HINT:

   The wavelength becomes shorter as the engine speed increases.

5. WAVEFORM 5

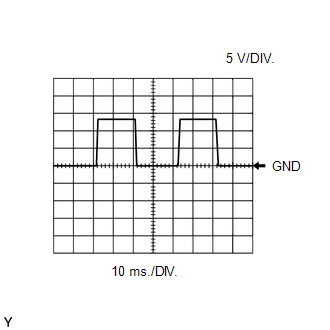

   Fig 6: Identifying Waveform 5

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   AIR FUEL RATIO SENSOR (SENSOR 1) HEATER SIGNAL



   ECM Terminal Name	Between HA1A and E04
   Tester Range	5 V/DIV., 10 ms./DIV.
   Condition	Idling

   HINT:

   The wavelength varies in accordance with the engine operating condition.

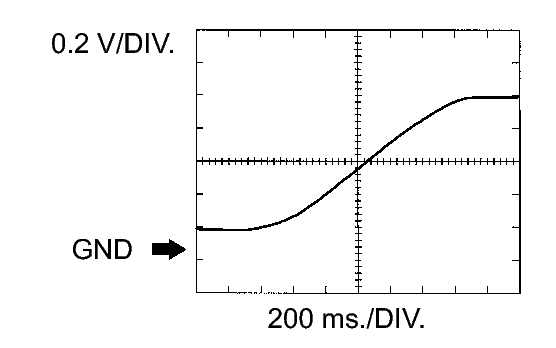

6. WAVEFORM 6
   Fig 7: Identifying Waveform 6

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   HEATED OXYGEN SENSOR (SENSOR 2) SIGNAL



   ECM Terminal Name	Between OX1B and O1B-
   Tester Range	0.2 V/DIV. 200 ms./DIV.
   Condition	Engine speed maintained at 2500 RPM for 2 minutes after warming up engine

   HINT:

   In the Data List, the items O2S B1S2 show the values input to the ECM from the heated oxygen sensor.

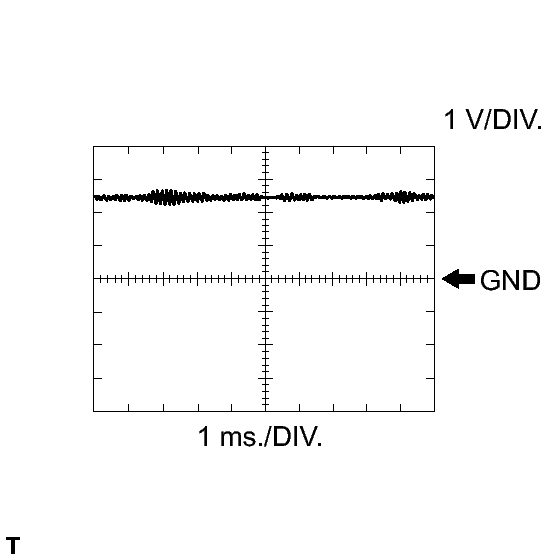

7. WAVEFORM 7
   Fig 8: Identifying Waveform 7

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   KNOCK CONTROL SENSOR SIGNAL



   ECM Terminal Name	Between KNK1 and EKNK
   Tester Range	1 V/DIV., 1 ms./DIV.
   Condition	Engine speed maintained at 2500 RPM after warming up engine

   HINT:

   • The wavelength becomes shorter as the engine speed increases.
   • The waveforms and amplitudes displayed differ slightly depending on the vehicle condition.

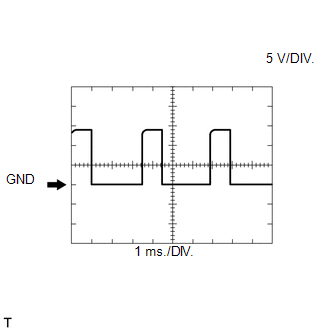

8. WAVEFORM 8

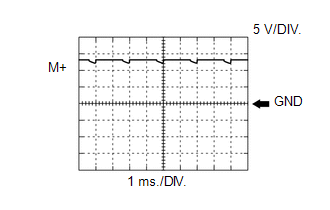

   Fig 9: Identifying Waveform 8

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   THROTTLE ACTUATOR POSITIVE TERMINAL SIGNAL



   ECM Terminal Name	Between M+ and ME01
   Tester Range	5 V/DIV., 1 ms./DIV.
   Condition	Idling with warm engine

   HINT:

   The duty ratio varies depending on the throttle actuator operation.

9. WAVEFORM 9

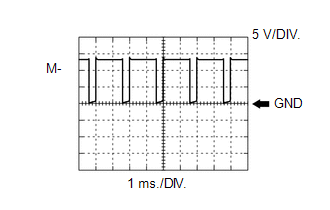

   Fig 10: Identifying Waveform 9

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   THROTTLE ACTUATOR NEGATIVE TERMINAL SIGNAL



   ECM Terminal Name	Between M- and ME01
   Tester Range	5 V/DIV., 1 ms./DIV.
   Condition	Idling with warm engine

   HINT:

   The duty ratio varies depending on the throttle actuator operation.

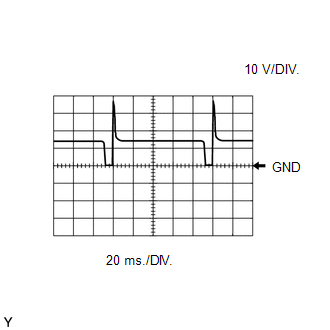

10. WAVEFORM 10
    Fig 11: Identifying Waveform 10

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    PURGE VSV



    ECM Terminal Name	Between PRG and E1
    Tester Range	10 V/DIV., 20 ms./DIV.
    Condition	Idling, under purge control

    HINT:

    If the waveform is not similar to the illustration, check the waveform again after idling for 10 minutes or more.

11. WAVEFORM 11
    Fig 12: Identifying Waveform 11

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY SIGNAL



    ECM Terminal Name	Between OC1+ and OC1-
    Tester Range	5 V/DIV., 1 ms./DIV.
    Condition	Idling

12. WAVEFORM 12

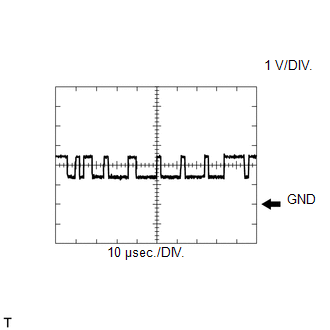

    Fig 13: Identifying Waveform 12

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CAN COMMUNICATION SIGNAL (REFERENCE)



    ECM Terminal Name	Between CANH and E1, CANP and E1
    Tester Range	1 V/DIV., 10 μsec./DIV.
    Condition	Engine stopped and power switch on (IG)

    HINT:

    The waveform varies depending on the CAN communication signal.

13. WAVEFORM 13

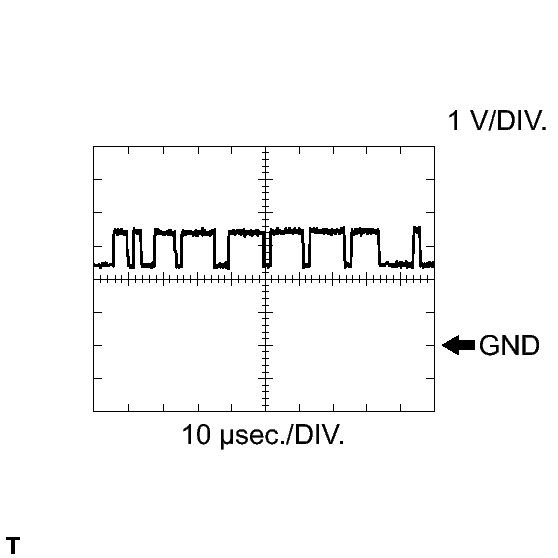

    Fig 14: Identifying Waveform 13

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CAN COMMUNICATION SIGNAL (REFERENCE)



    ECM Terminal Name	Between CANL and E1, CANN and E1
    Tester Range	1 V/DIV., 10 μsec./DIV.
    Condition	Engine stopped and power switch on (IG)

    HINT:

    The waveform varies depending on the CAN communication signal.

14. WAVEFORM 14

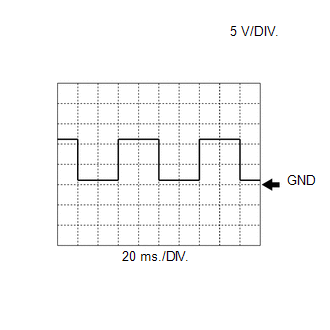

    Fig 15: Identifying Waveform 14

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    ENGINE WATER PUMP ASSEMBLY SIGNAL (FROM ECM TO ENGINE WATER PUMP ASSEMBLY)



    ECM Terminal Name	Between WPO and E1
    Tester Range	5 V/DIV., 20 ms./DIV.
    Condition	Idling with warm engine

    HINT:

    The wavelength becomes shorter as the engine water pump speed increases.

15. WAVEFORM 15
    Fig 16: Identifying Waveform 15

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    ENGINE WATER PUMP ASSEMBLY SIGNAL (FROM ENGINE WATER PUMP ASSEMBLY TO ECM)



    ECM Terminal Name	Between WPI and E1
    Tester Range	5 V/DIV., 20 ms./DIV.
    Condition	Idling with warm engine

    HINT:

    The wavelength becomes shorter as the engine water pump speed increases.

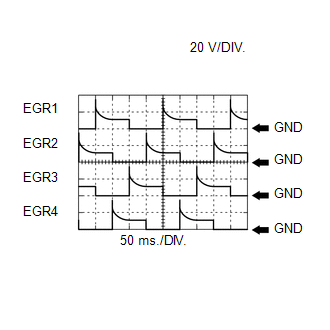

16. WAVEFORM 16
    Fig 17: Identifying Waveform 16

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    EGR VALVE ASSEMBLY SIGNAL



    ECM Terminal Name	Between EGR1 and E1, EGR2 and E1, EGR3 and E1, EGR4 and E1
    Tester Range	20 V/DIV., 50 ms./DIV.
    Condition	EGR valve operating

17. WAVEFORM 17
    Fig 18: Identifying Waveform 17

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CAMSHAFT REVOLUTION SIGNAL FROM ECM TO POWER MANAGEMENT CONTROL ECU AND INVERTER WITH CONVERTER ASSEMBLY (MG ECU)



    ECM Terminal Name	Between G2O and E1
    Tester Range	5 V/DIV., 20 ms./DIV.
    Condition	Idling

    HINT:

    The wavelength becomes shorter as the engine speed increases.
