Camshaft Oil Control Valve: Inspection: Inspection

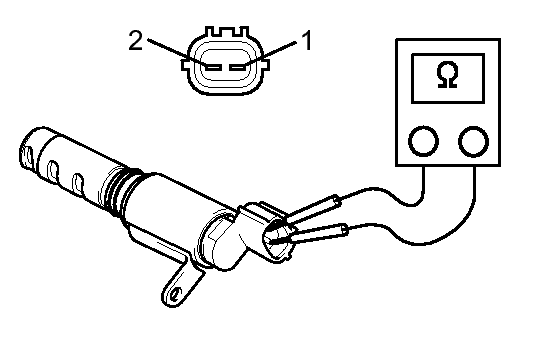

Fig 1: Inspecting Camshaft Timing Oil Control Valve Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Resistance

If the result is not as specified, replace the oil control valve assembly.

1. Connect a positive (+) battery lead to terminal 1 and a negative (-) lead to terminal 2, and check the movement of the valve.

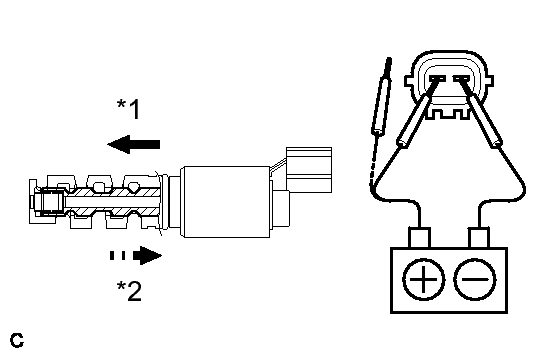

   Fig 2: Identifying Movement Of Valve When Applied & When Not Applied

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *1	When Applied
   *2	When Cut Off

   NOTE:

   Confirm that the valve moves freely and does not stick in any position.

   If necessary, replace the camshaft timing oil control valve assembly.

   HINT:

   Accumulation of foreign matter can cause minor pressure leaks. Minor pressure leaks will cause the camshaft to advance or retard, and this will cause a DTC to be set.
