Knock Sensor: Removal: Removal

  1. REMOVE INTAKE MANIFOLD
    1. Remove the intake manifold. Refer to REMOVAL .
  2. REMOVE KNOCK SENSOR
    1. Disconnect the knock sensor connector.
    2. Remove the bolt and remove the knock sensor.

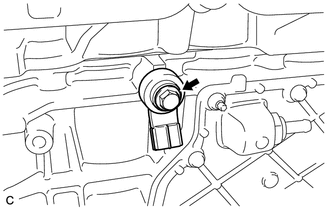

      Fig 1: Identifying Knock Sensor, Connector & Bolt
      GTY227208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
