Throttle Body: Installation: Installation

  1. INSTALL THROTTLE BODY ASSEMBLY
    1. Install a new gasket onto the intake manifold.

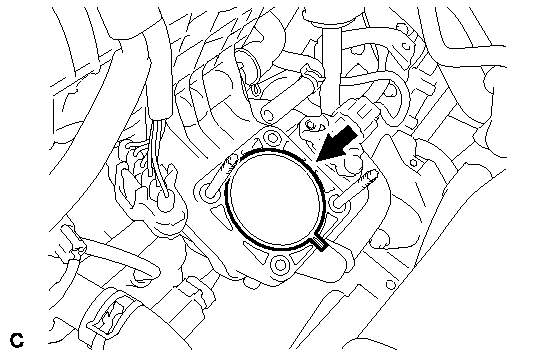

      Fig 1: Identifying Intake Manifold & Gasket
      GTY235460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the throttle body assembly with the 2 bolts and 2 nuts.

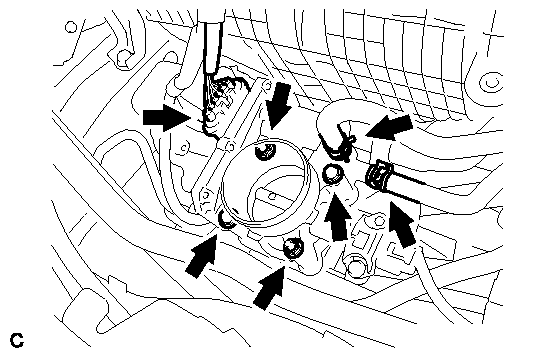

      Fig 2: Identifying Throttle Body Assembly, Connector, Bypass Hoses, Bolts & Nuts
      GTY223851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    3. Connect the 2 water by-pass hoses and throttle body connector.
  2. INSTALL AIR CLEANER HOSE ASSEMBLY
    1. Install the air cleaner hose assembly and lock the hose clamp.

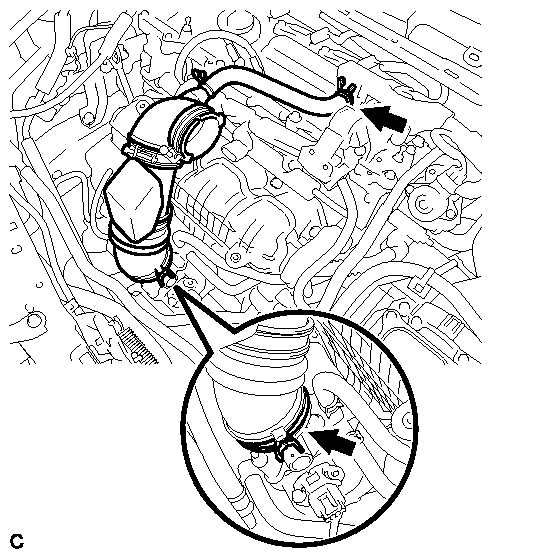

      Fig 3: Identifying Air Cleaner Hose Assembly, Hose Clamp & Ventilation Hose
      GTY223684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the ventilation hose.
  3. INSTALL AIR CLEANER CASE
    1. Install the air cleaner case with the 3 bolts.

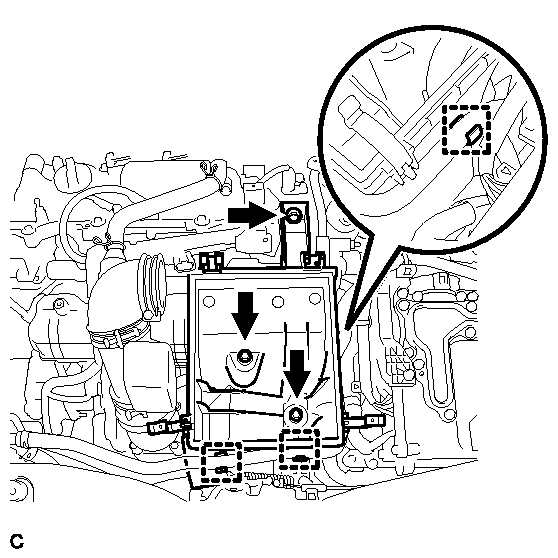

      Fig 4: Identifying Air Cleaner Filter Element, Hose, Clamps, Air Cleaner Case & Bolts
      GTY224213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

    2. Install the hose to the 3 hose clamps.
    3. Install the air cleaner filter element.
  4. INSTALL INLET AIR CLEANER ASSEMBLY
    1. Install the inlet air cleaner assembly with the 2 bolts.

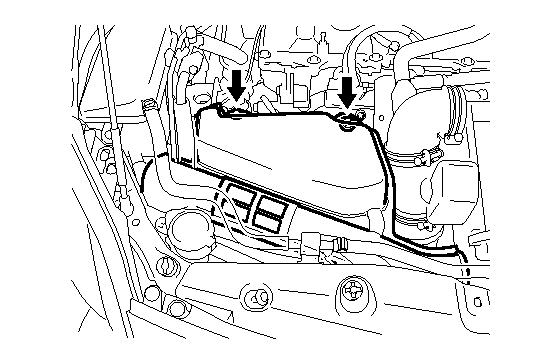

      Fig 5: Identifying Inlet Air Cleaner Assembly
      GTY327354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

  5. INSTALL AIR CLEANER CAP SUB-ASSEMBLY
    1. Install the air cleaner cap sub-assembly with the 2 clamps.

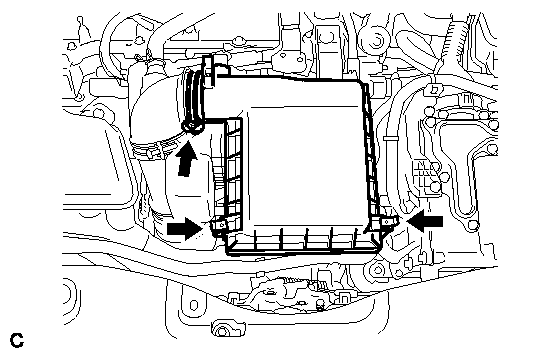

      Fig 6: Identifying Air Cleaner Cap, Clamps & Hose Clamp
      GTY222024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Tighten the hose clamp.
    3. Connect the mass air flow meter connector.

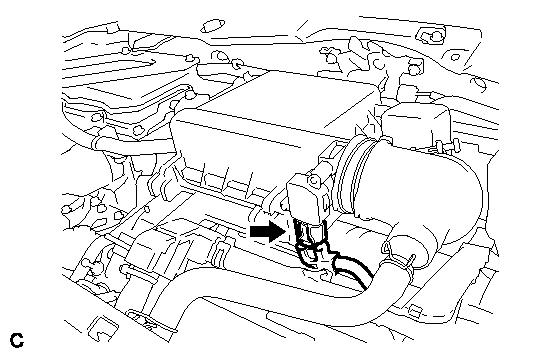

      Fig 7: Identifying Mass Air Flow Meter Connector
      GTY224333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. ADD ENGINE COOLANT (for Engine)  . Refer to REPLACEMENT - Step 3
  7. INSPECT FOR COOLANT LEAK (for Engine)  . Refer to ON-VEHICLE INSPECTION - Step 1
  8. INSTALL NO. 2 CYLINDER HEAD COVER  . Refer to INSTALLATION - Step 97
  9. INSTALL NO. 1 ENGINE UNDER COVER
  10. PERFORM INITIALIZATION
    NOTE:

    Be sure to perform this procedure after reassembling the throttle body assembly, removing and reinstalling any throttle body component or replacing the ECM.

    1. Disconnect the cable from the negative (-) battery terminal. Wait at least 60 seconds and reconnect the cable.
    2. Connect the Techstream to the DLC3 and clear the DTCs. Refer to DTC CHECK / CLEAR .
    3. Set the vehicle to the inspection mode. Refer to INSPECTION MODE PROCEDURE .
    4. Start the engine without operating the accelerator pedal and check that the MIL is not illuminated and that the idle speed is within the specified range when the air conditioning is switched off after the engine is warmed up.

      Standard

      Condition Engine Idle Speed
      A/C switched off 950 to 1050 RPM
      NOTE:
      • If the accelerator pedal is operated, perform the above steps again.
      • Be sure to perform this step with all accessories off.
      • Make sure that park (P) is selected.
    5. Perform a road test and confirm that there are no abnormalities.
