Crankshaft Position Sensor: Inspection: Inspection

  1. INSPECT CRANK POSITION SENSOR
    1. Measure the resistance according to the value(s) in the table below.

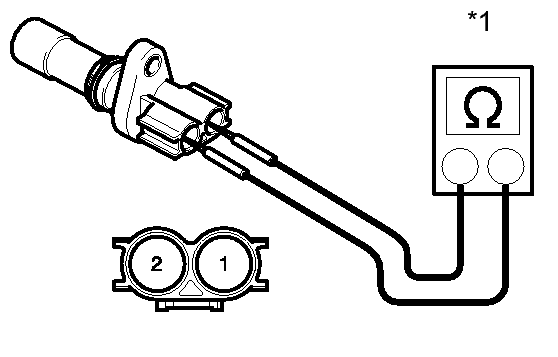

      Fig 1: Identifying Crank Position Sensor & Connector Terminals
      GTY219693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Ohmmeter

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 - 2 -10 to 50°C (14 to 122°F) 1850 to 2450 Ω
