Crankshaft Position Sensor: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL CRANK POSITION SENSOR
1. Apply a light coat of engine oil to the O-ring on the crank position sensor.

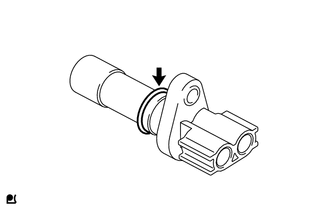

  Fig 1: Identifying O-Ring On Crankshaft Position Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the crank position sensor with the bolt.

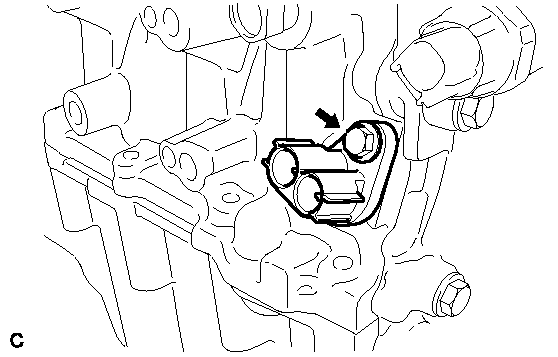

  Fig 2: Identifying Crank Position Sensor & Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  Connect the crank position sensor connector.

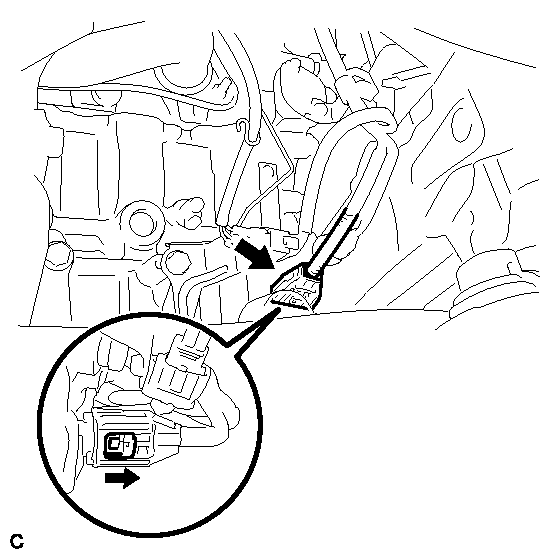

  Fig 3: Identifying Crank Position Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT FOR OIL LEAK
INSTALL NO. 1 ENGINE UNDER COVER
INSTALL REAR ENGINE UNDER COVER RH
