Parts Location: Illustrations

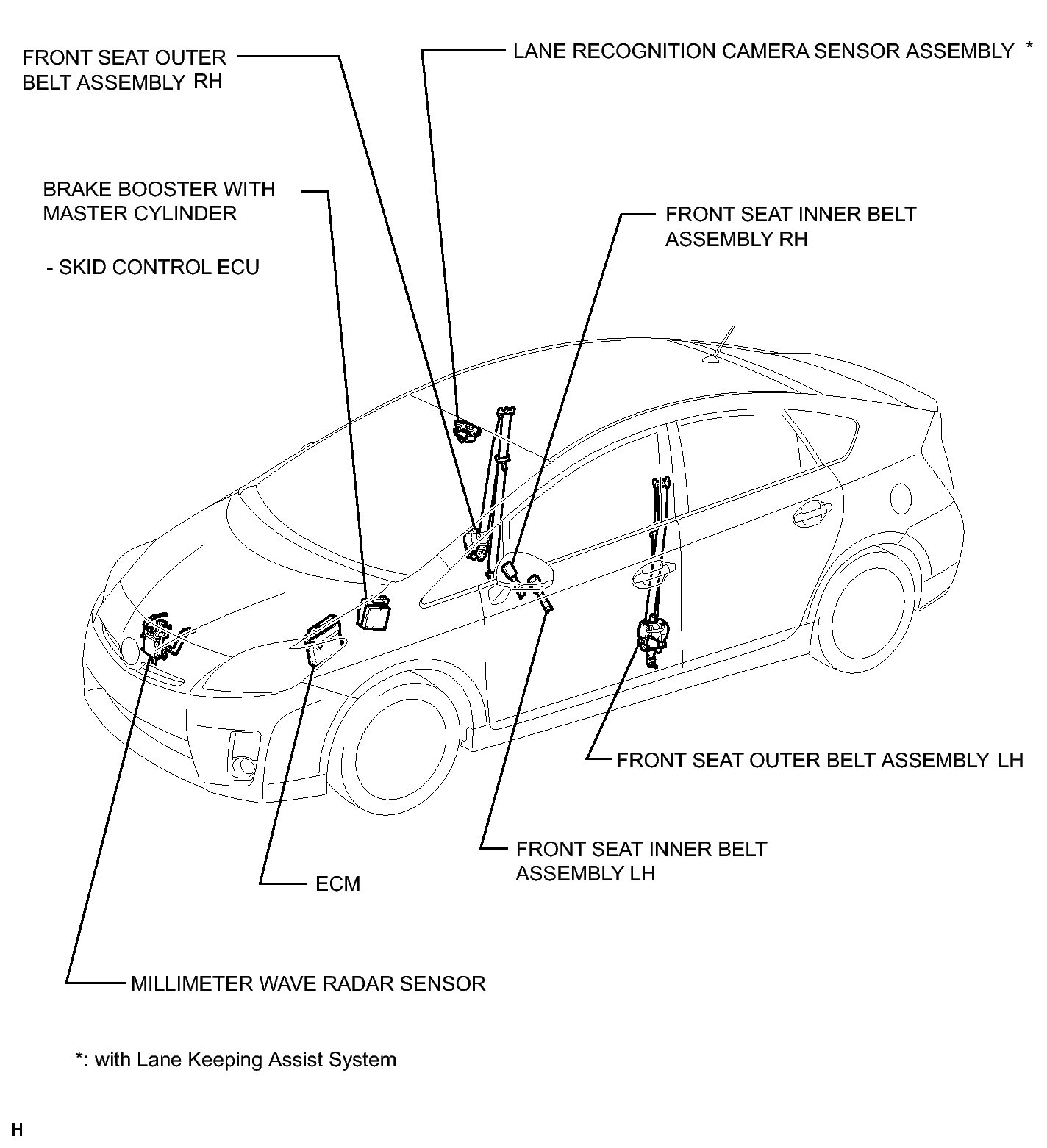

Fig 1: Identifying Pre-Collision Components Location (1 Of 2)
GTY229768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

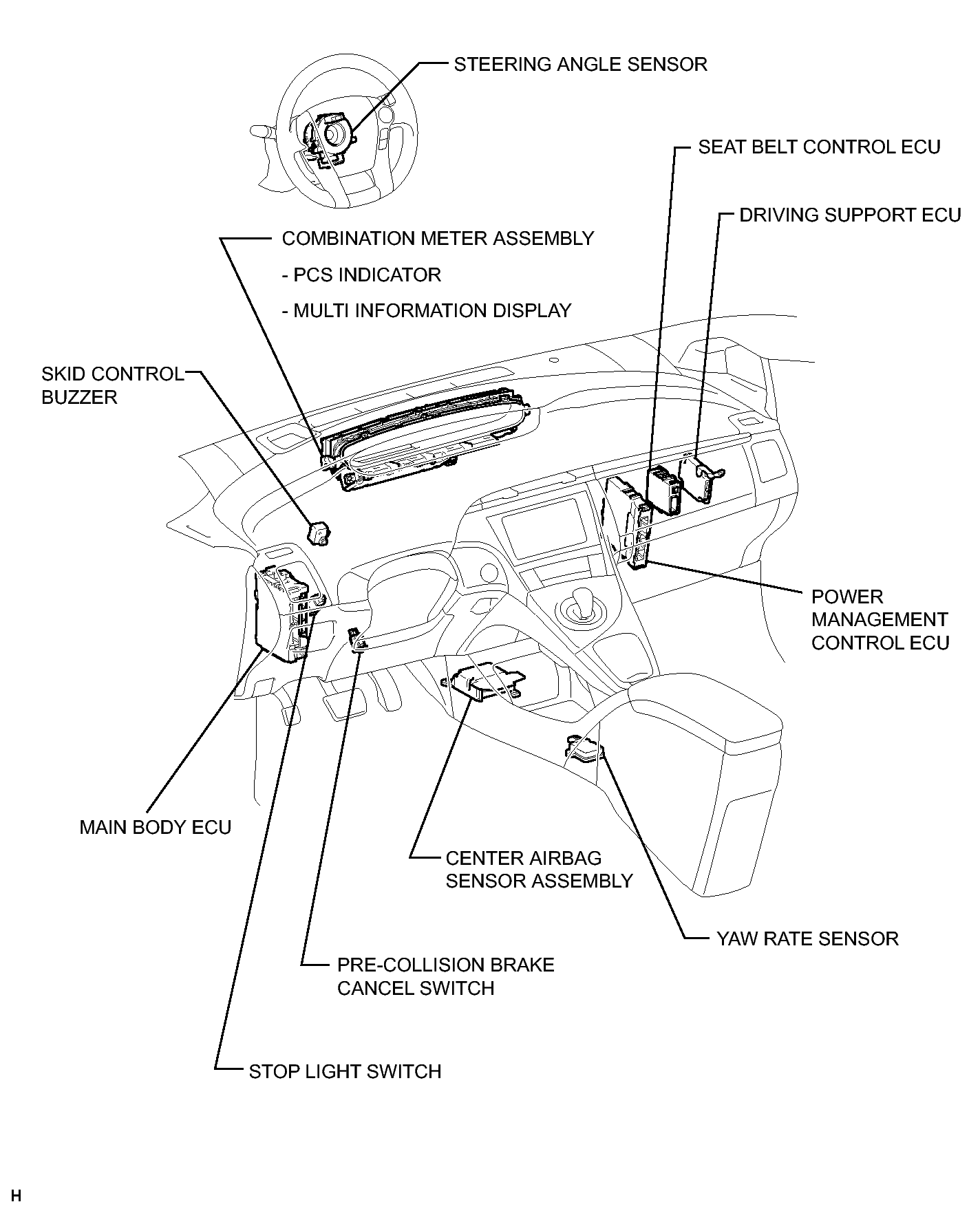

Fig 2: Identifying Pre-Collision Components Location (2 Of 2)
GTY225837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
