Pre-Collision Brake Cancel Switch: Components: Illustration

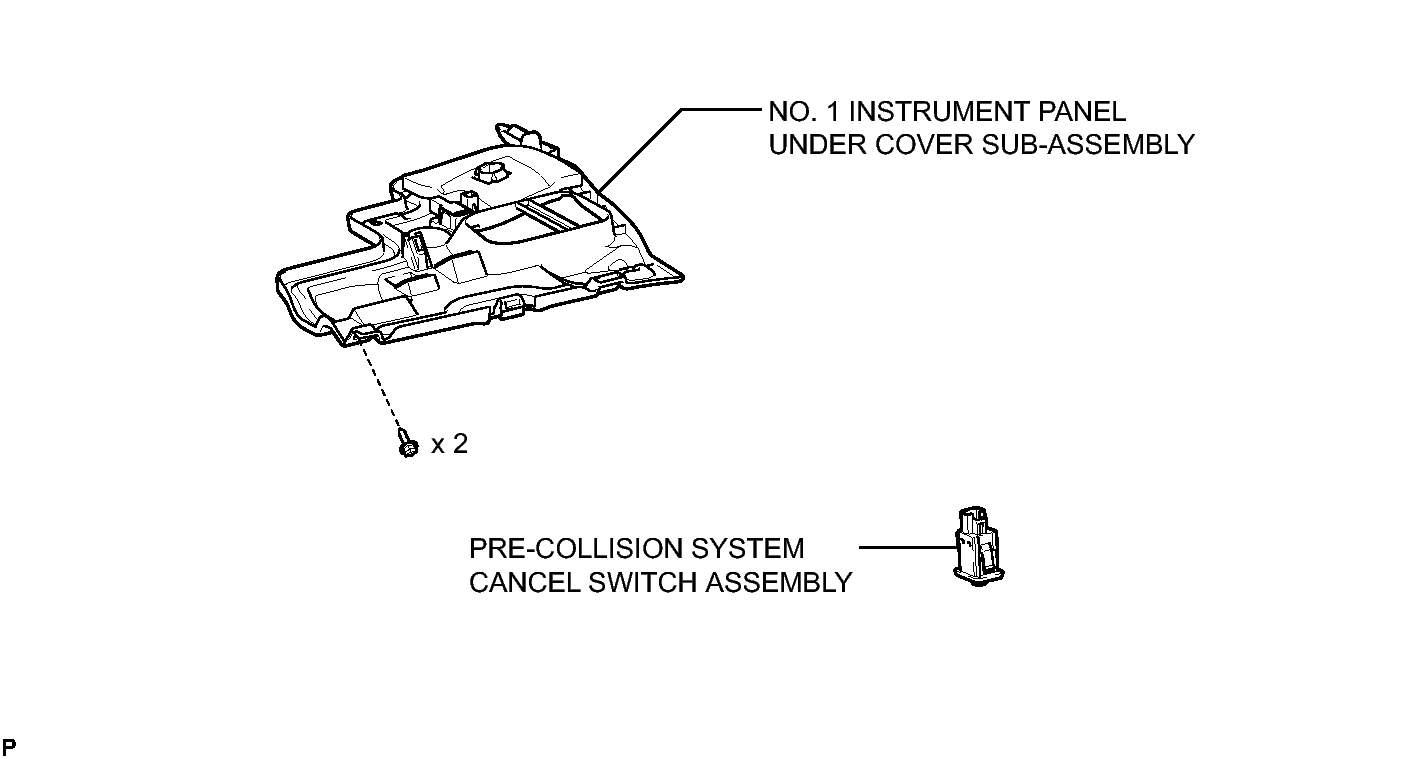

Fig 1: Identifying Pre-Collision Brake Cancel Switch Replacement Components
GTY236417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
