Knee Airbag Assembly: Components: Illustration

Fig 1: Identifying Knee Airbag Assembly Replacement Components (1 Of 5)
GTY231161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Knee Airbag Assembly Replacement Components (2 Of 5)
GTY342323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Knee Airbag Assembly Replacement Components (3 Of 5)
GTY233647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

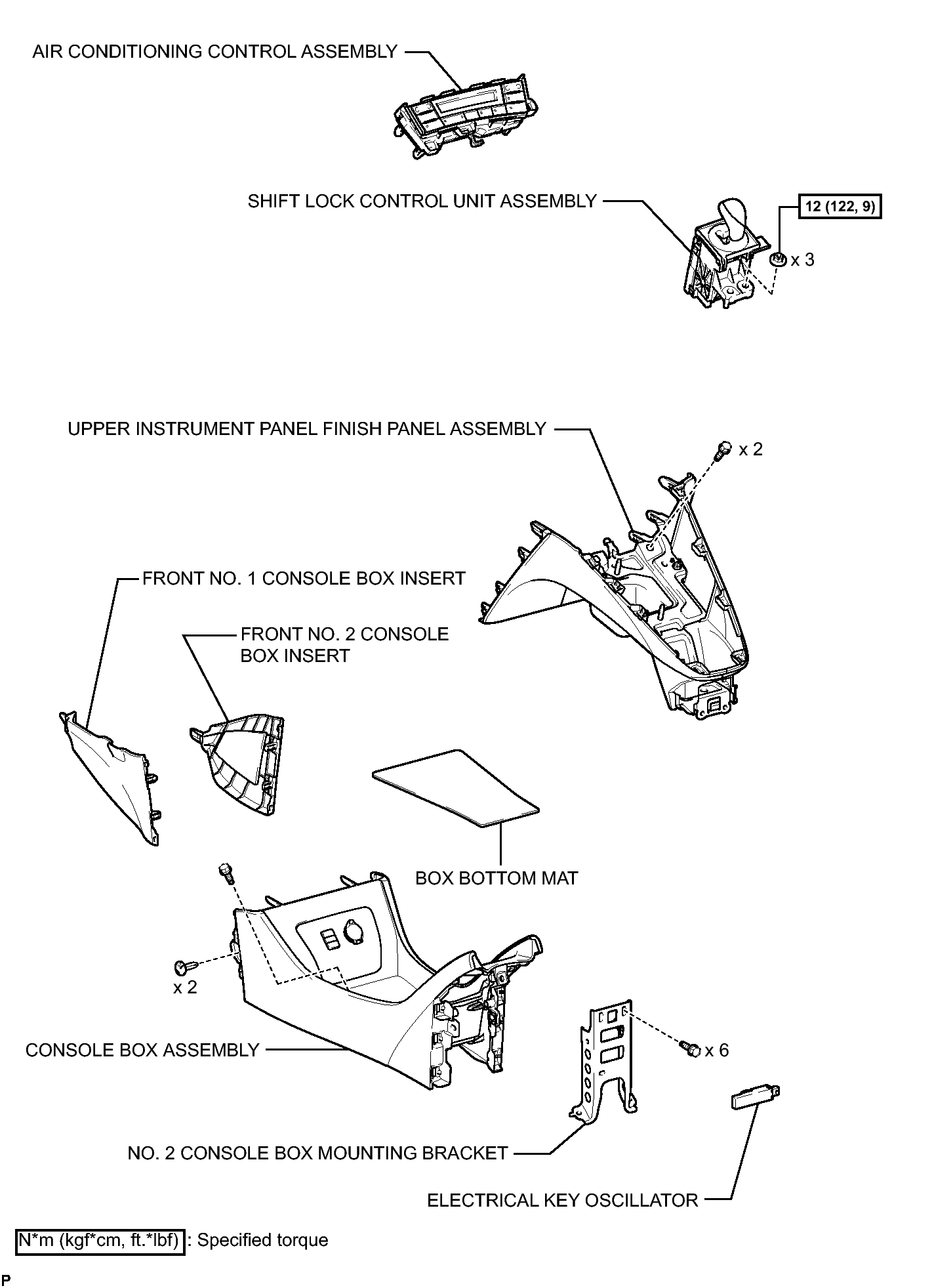

Fig 4: Identifying Knee Airbag Assembly Replacement Components With Torque Specifications (4 Of 5)
GTY230045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

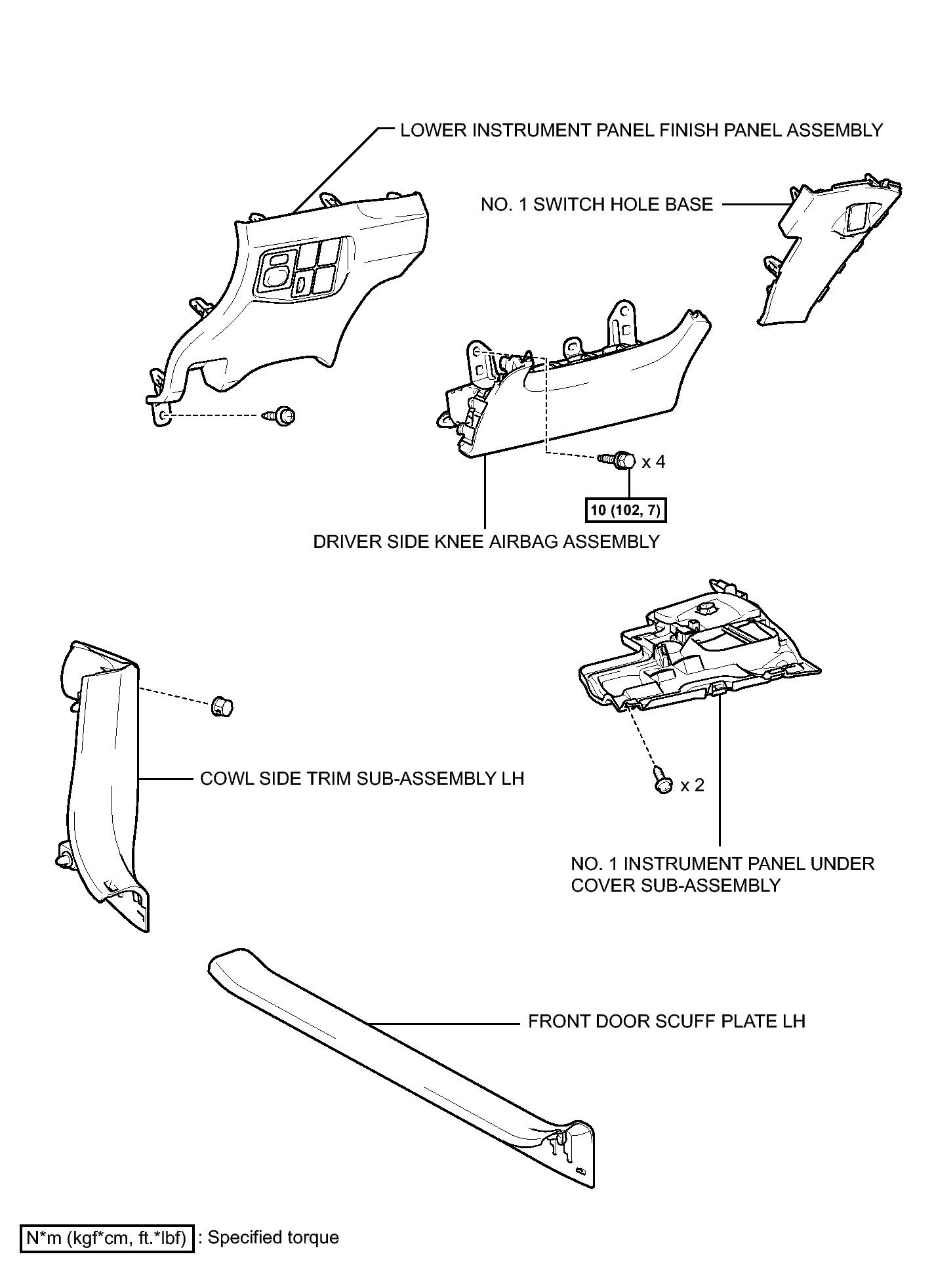

Fig 5: Identifying Knee Airbag Assembly Replacement Components With Torque Specifications (5 Of 5)
GTY218050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
