Rear Airbag Sensor: Components: Illustration

Fig 1: Identifying Rear Airbag Sensor Replacement Components (1 Of 3)
GTY231161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

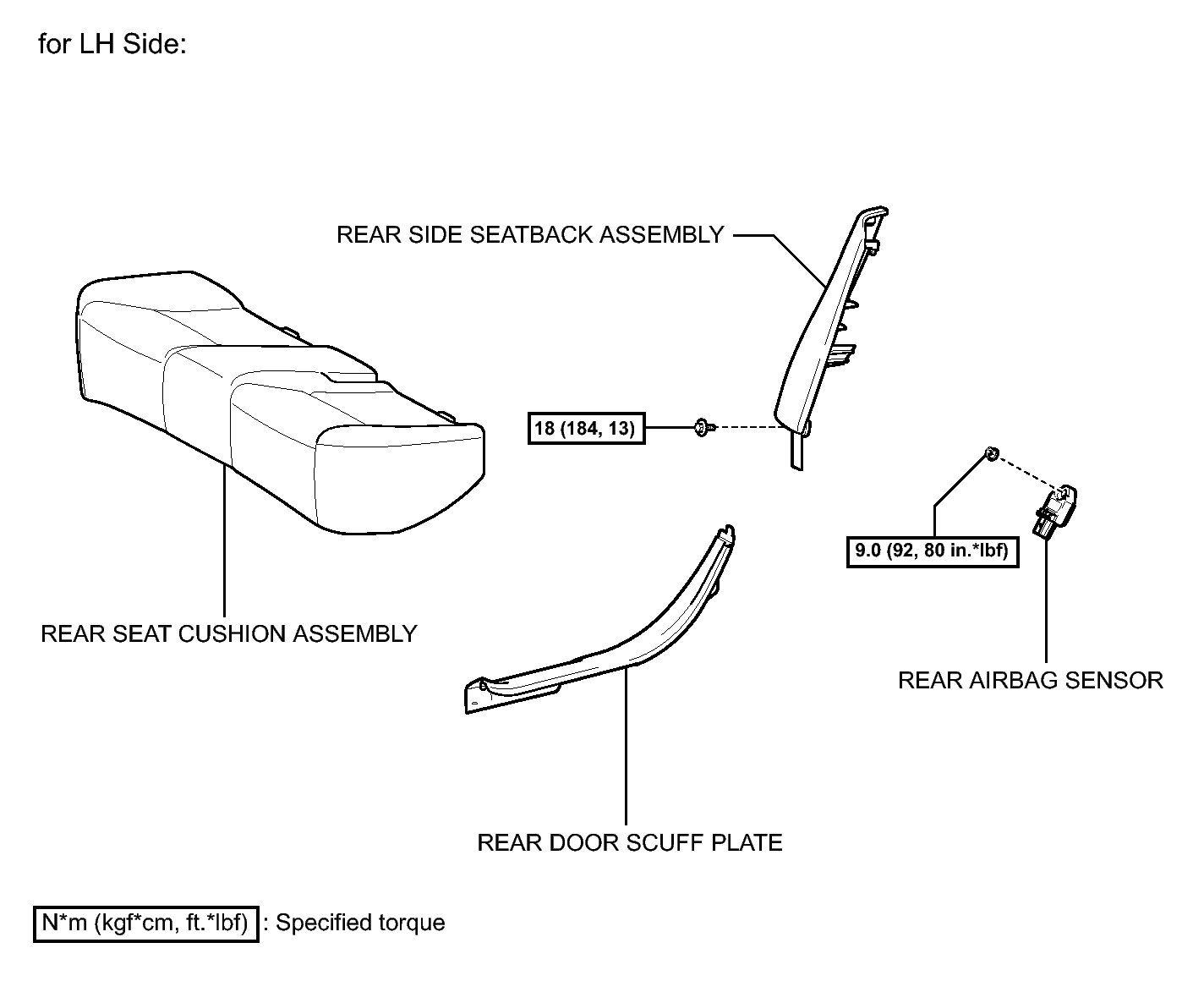

Fig 2: Identifying Rear Airbag Sensor Replacement Components With Torque Specifications (2 Of 3)
GTY228990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

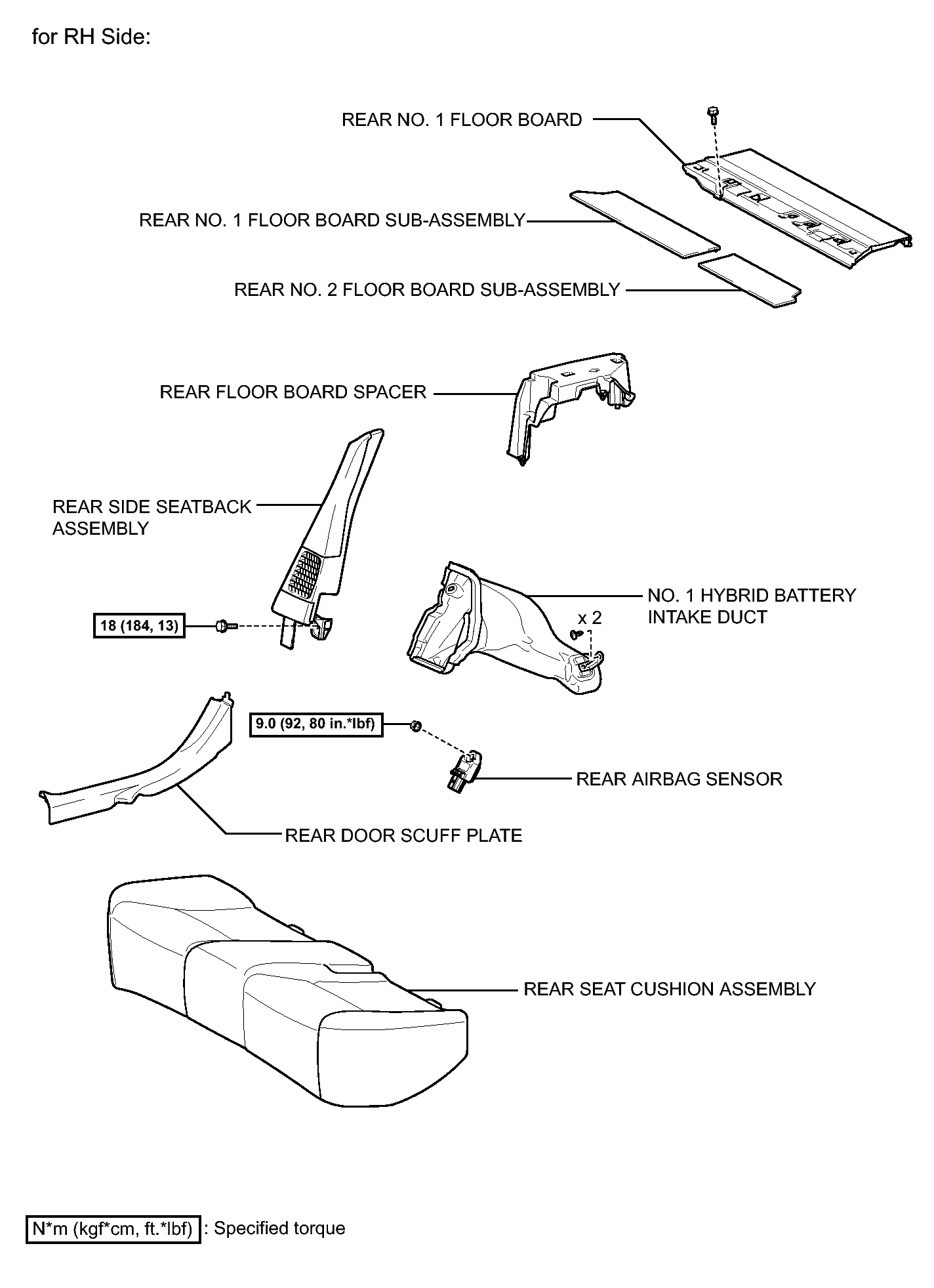

Fig 3: Identifying Rear Airbag Sensor Replacement Components With Torque Specifications (3 Of 3)
GTY340532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
