Seat Position Sensor: Components: Illustration

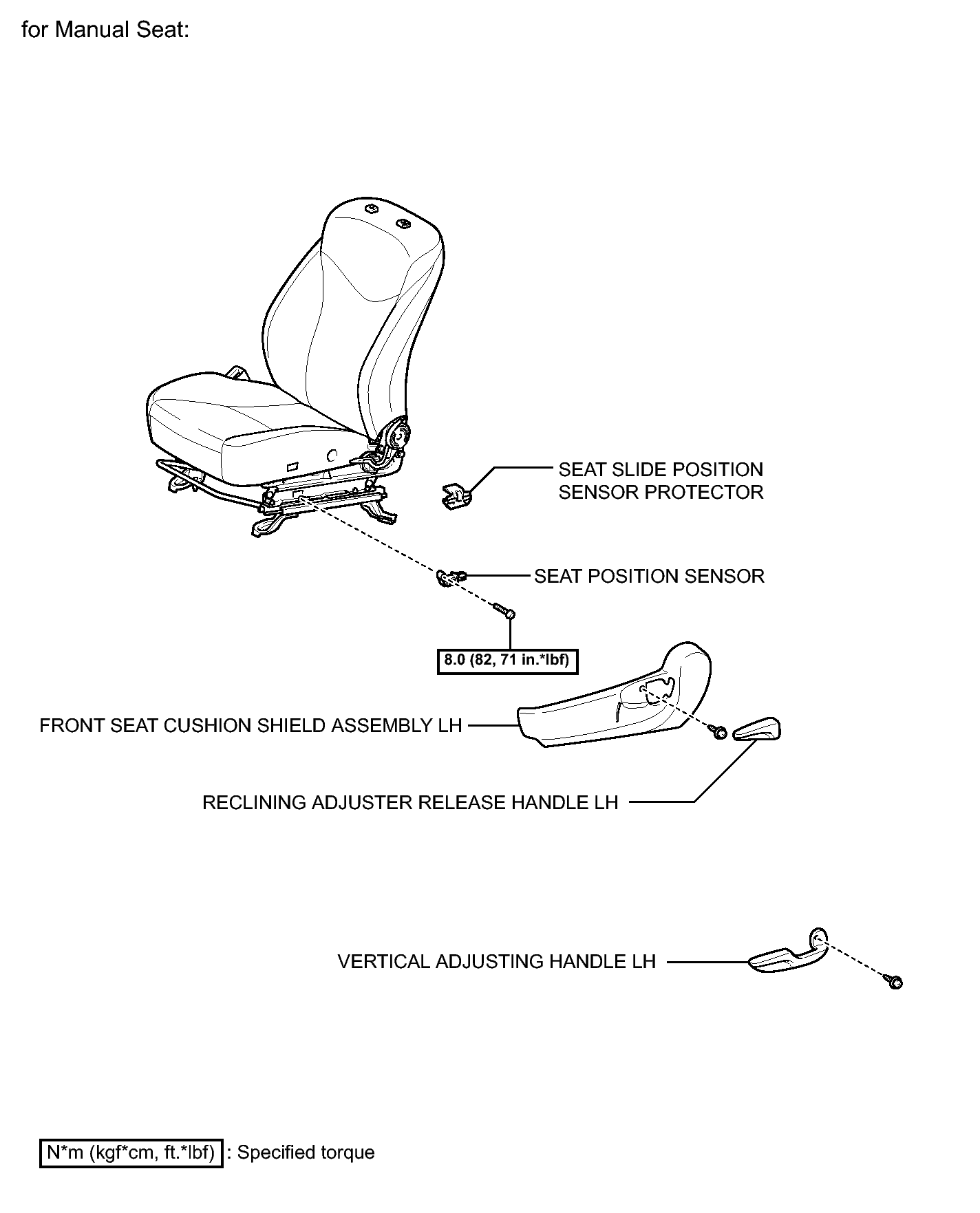

Fig 1: Identifying Seat Position Sensor Replacement Components With Torque Specifications (1Of 2)
GTY334351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

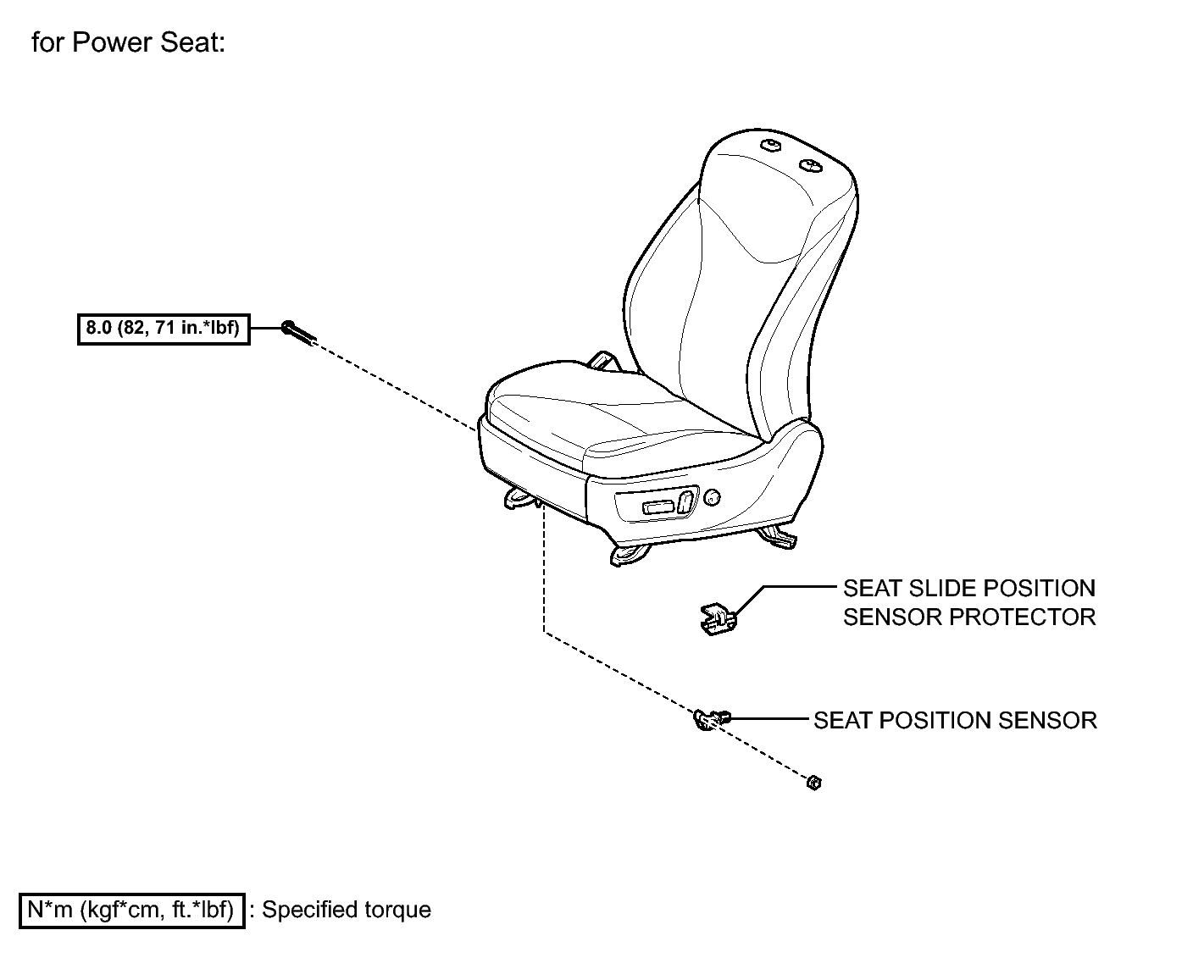

Fig 2: Identifying Seat Position Sensor Replacement Components With Torque Specifications (1Of 2)
GTY333291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
