Knock Sensor: Components: Illustration

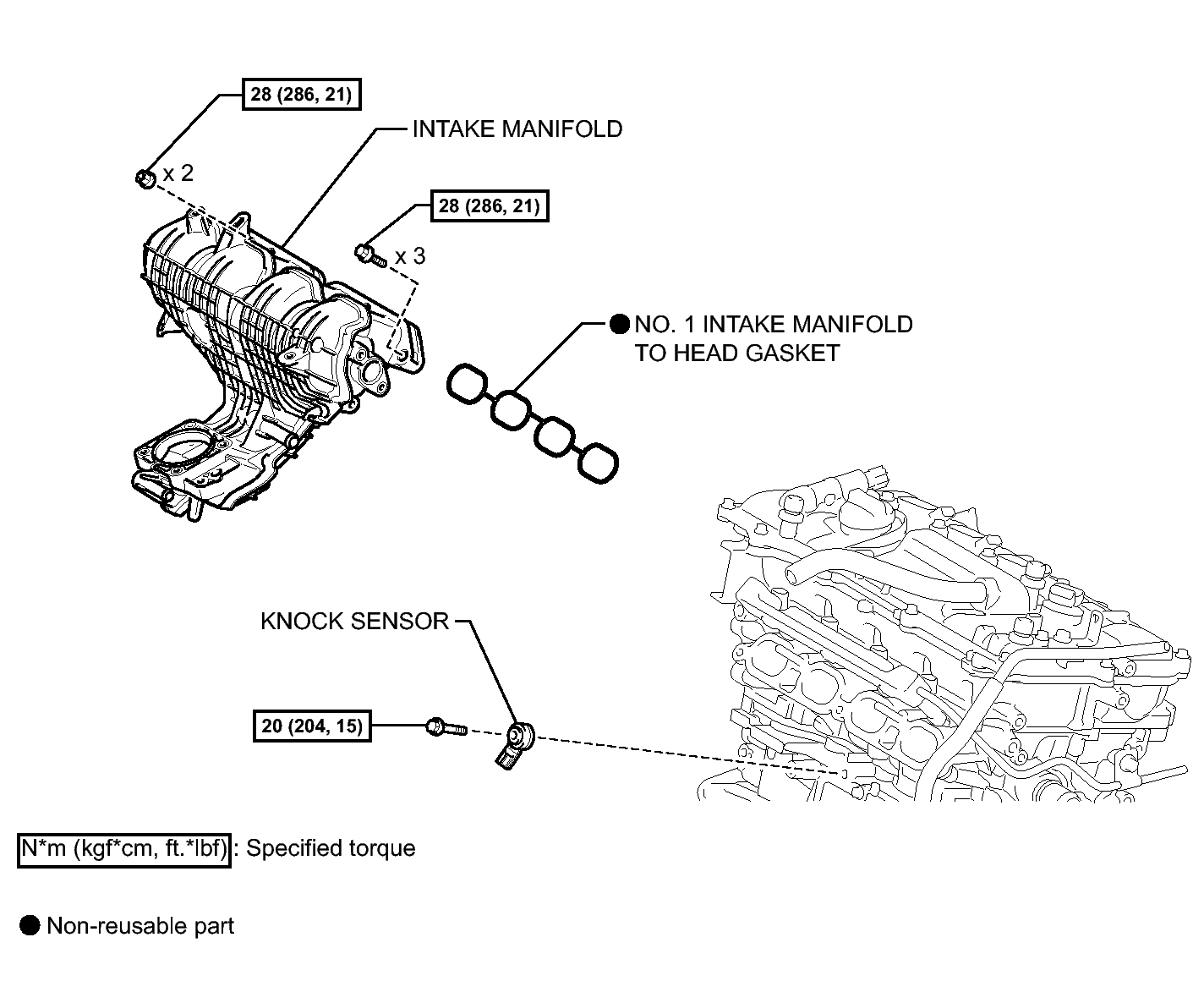

Fig 1: Knock Sensor Replacement Components With Torque Specifications
GTY323825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
