Vehicle Identification And Serial Numbers

VEHICLE IDENTIFICATION NUMBER
1. The vehicle identification number is stamped on the vehicle identification number plate and on the certification label, as shown in the illustrations.

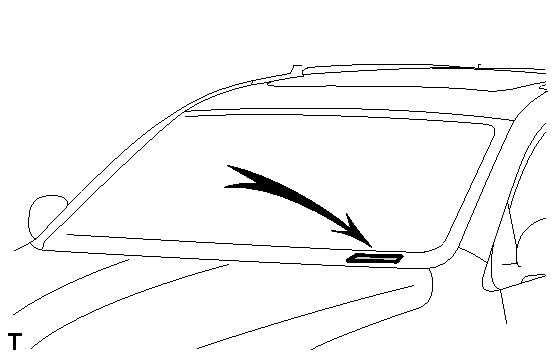

  1. Vehicle Identification Number Plate

    Fig 1: Identifying Vehicle Identification Number Plate
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

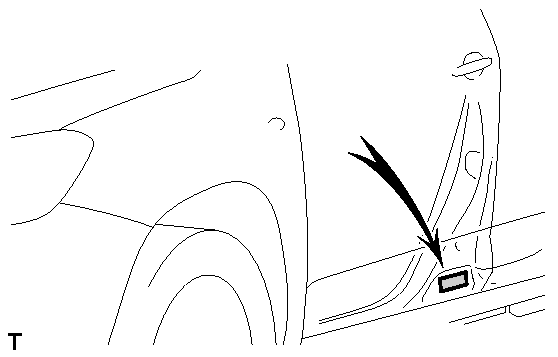

  2. Certification Label

    Fig 2: Identifying Certification Label
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER
1. The engine serial number is stamped on the cylinder block of the engine and the transaxle serial number is stamped on the housing as shown in the illustrations.

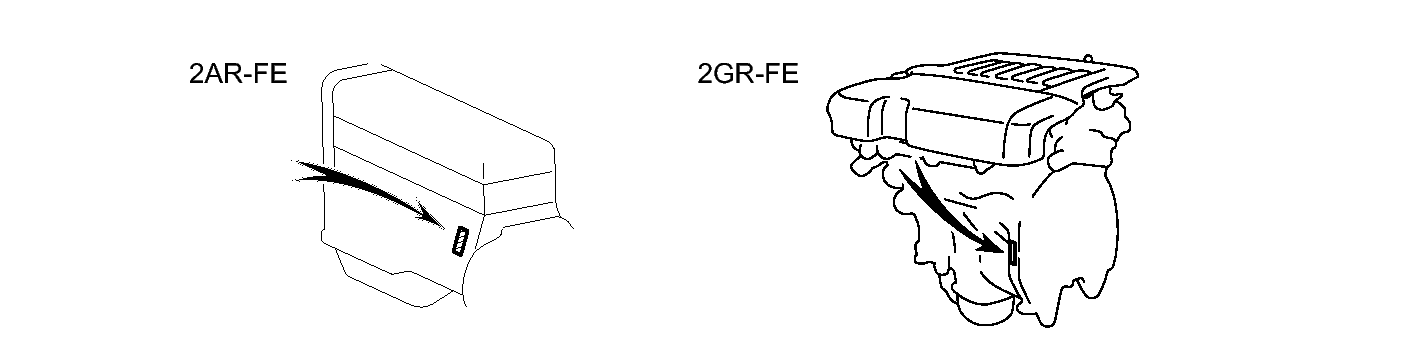

  1. Engine Serial Number

    Fig 3: Identifying Engine Serial Number
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

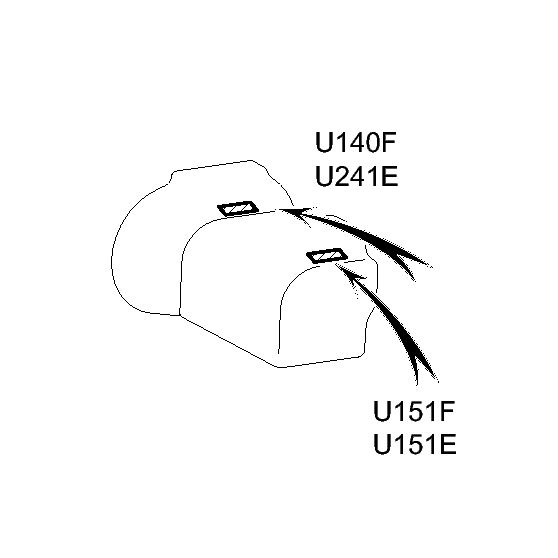

  2. Transaxle Serial Number

    Fig 4: Identifying Transaxle Serial Number
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
