CRANKSHAFT POSITION SENSOR (for Hatchback): Components: Illustration

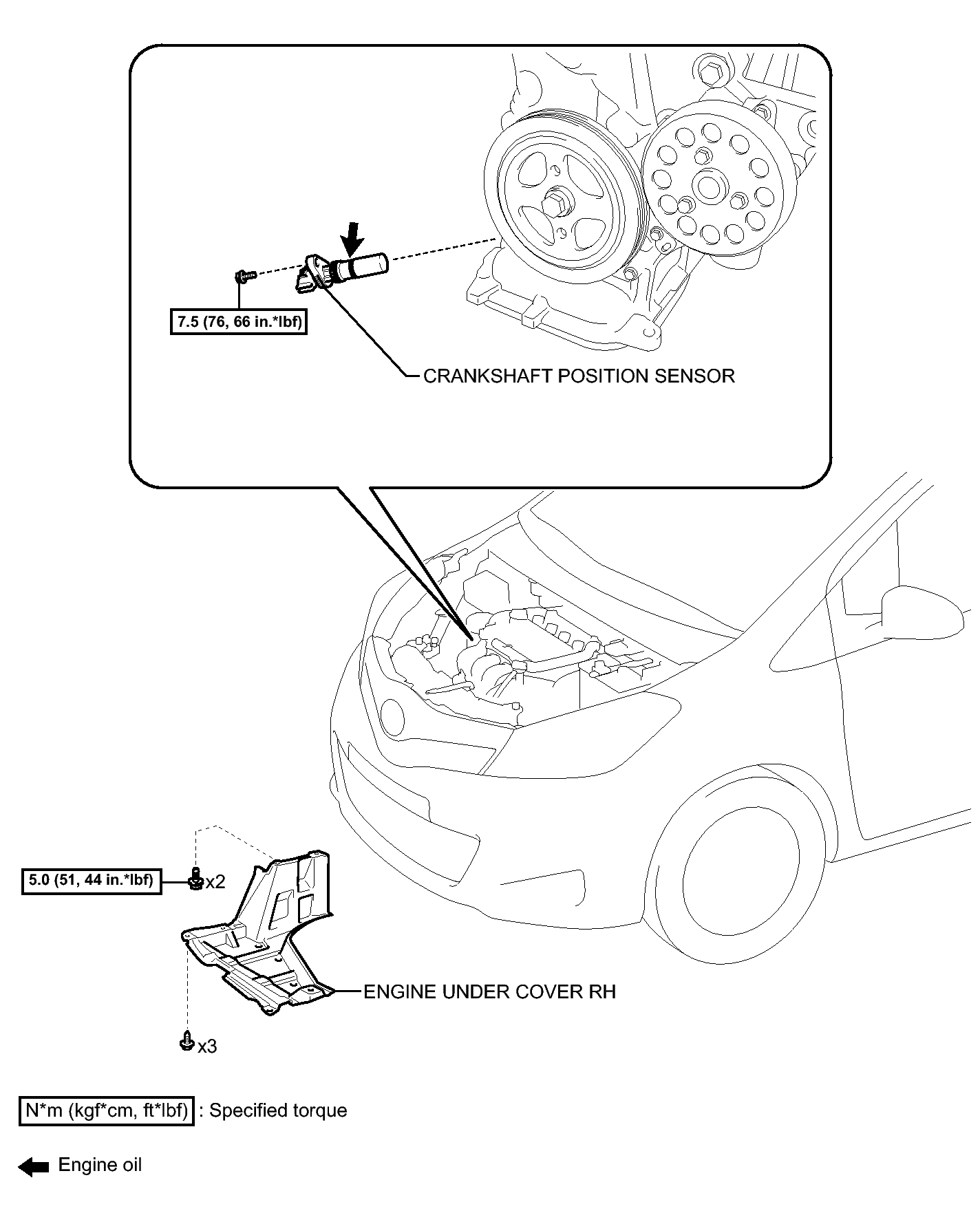

Fig 1: Identifying Crankshaft Position Sensor (For Hatchback) Replacement Components With Torque Specifications
GTY342949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
