ECM (for Hatchback): Components: Illustration

Fig 1: Identifying ECM (For Hatchback) Replacement Components With Torque Specifications (1 Of 2)
GTY342683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

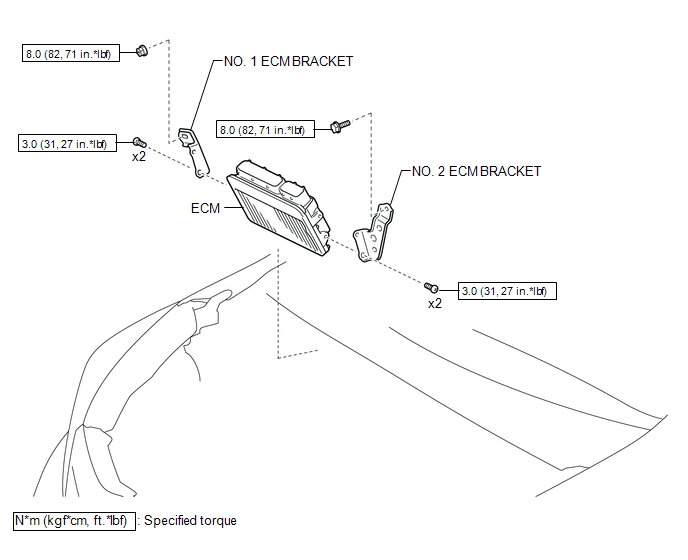

Fig 1: Identifying ECM (For Hatchback) Replacement Components With Torque Specifications (2 Of 2)
GTY328470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
