THROTTLE BODY (for Hatchback): Components: Illustration

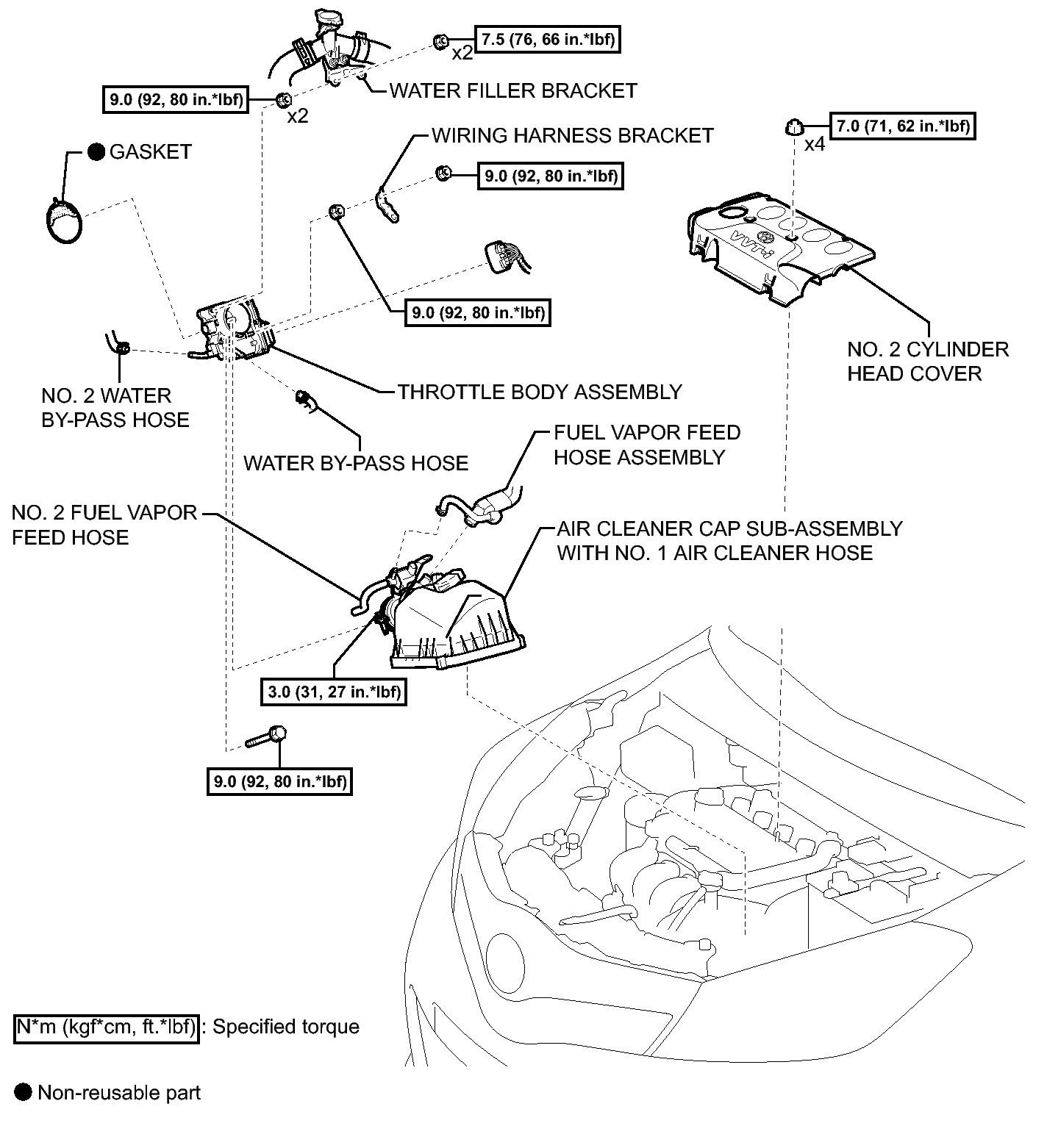

Fig 1: Identifying Throttle Body (For Hatchback) Replacement Components With Torque Specifications
GTY342767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
