AIR FUEL RATIO SENSOR (for Hatchback): Removal: Removal

REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
Refer to REMOVAL
REMOVE FRONT NO. 1 VENTILATOR SEAL . Refer to REMOVAL - Step 9
REMOVE FRONT AIR SHUTTER SEAL RH . Refer to REMOVAL - Step 10
REMOVE INNER COWL TOP TO COWL BRACE . Refer to REMOVAL - Step 11
REMOVE OUTER COWL TOP PANEL . Refer to REMOVAL - Step 12
REMOVE AIR FUEL RATIO SENSOR
1. Disconnect the air fuel ratio sensor connector.

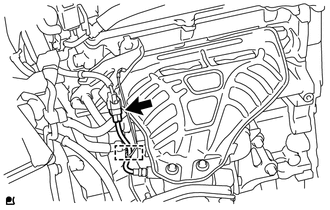

  Fig 1: Identifying Air Fuel Ratio Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the clamp and disconnect the air fuel ratio sensor wire from the wire harness clamp bracket.
3. Using SST, remove the air fuel ratio sensor.

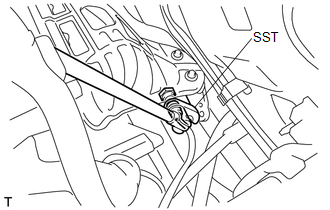

  Fig 2: Removing Air Fuel Ratio Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09224-00010
