KNOCK SENSOR (for Hatchback): Components: Illustration

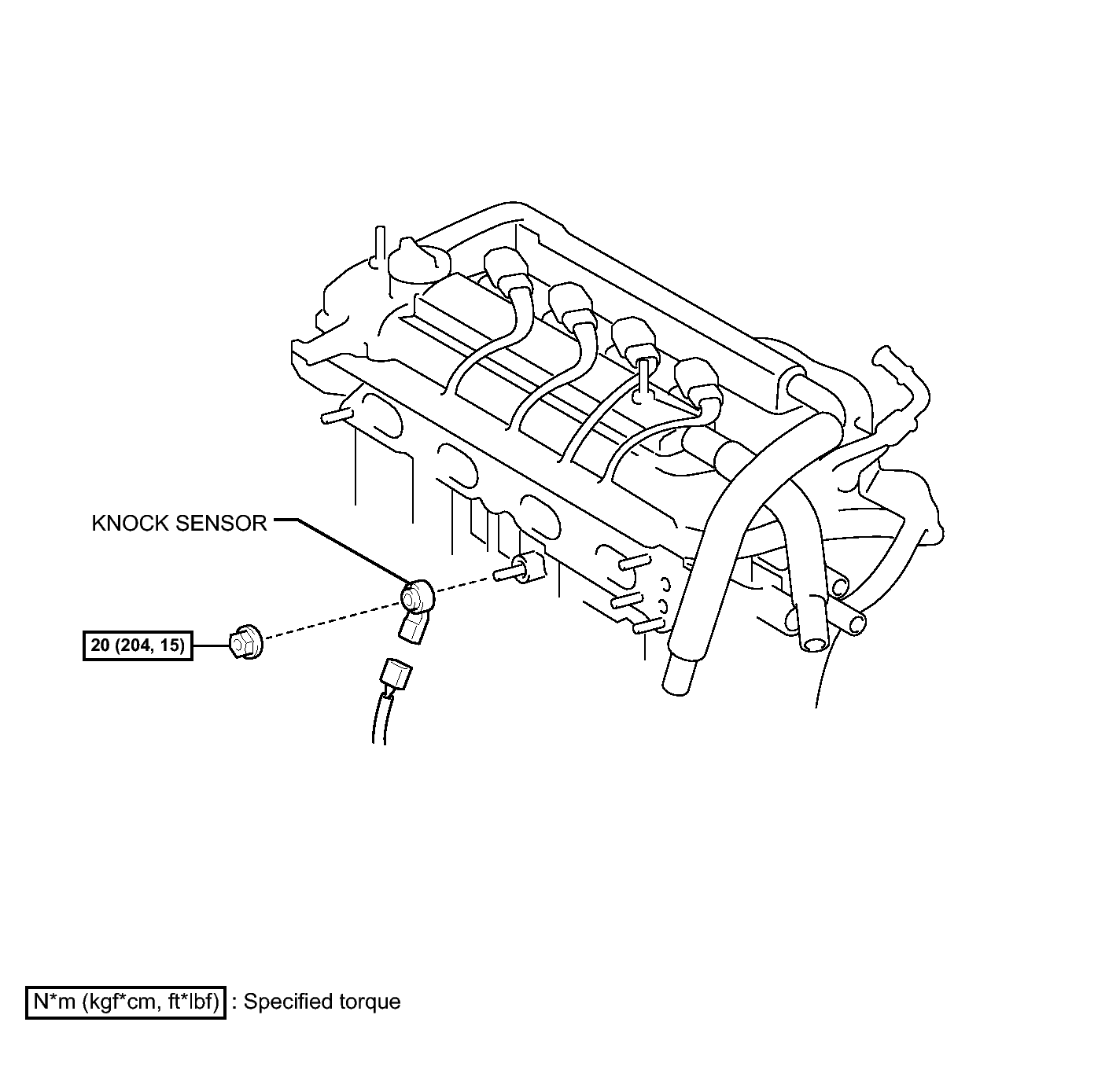

Fig 1: Identifying Knock Sensor (For Hatchback) Replacement Components With Torque Specifications
GTY340035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
