Air Fuel Ratio Sensor: Removal: Removal

REMOVE COOL AIR INTAKE DUCT SEAL . Refer to REMOVAL - Step 1
REMOVE V-BANK COVER SUB-ASSEMBLY . Refer to REMOVAL - Step 17
REMOVE AIR FUEL RATIO SENSOR (for Bank 2 Sensor 1)
1. Disconnect the air fuel ratio sensor connector.

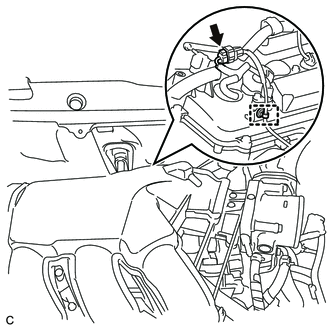

  Fig 1: Identifying Air Fuel Ratio Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the hose clamp.

  Fig 2: Identifying Harness Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST, remove the air fuel ratio sensor from the exhaust manifold LH.

  Fig 3: Removing Air Fuel Ratio Sensor Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09224-00010
REMOVE FRONT EXHAUST PIPE ASSEMBLY
Refer to REMOVAL .
REMOVE AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)
1. Disconnect the air fuel ratio sensor connector.

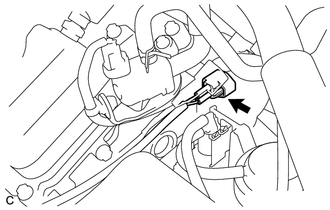

  Fig 4: Identifying Air Fuel Ratio Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

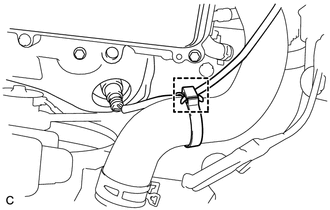

2. Disconnect the harness clamp.
3. Using SST, remove the air fuel ratio sensor from the exhaust manifold RH.

  Fig 5: Removing Air Fuel Ratio Sensor Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09224-00010
