Camshaft Oil Control Valve: Components: Illustration

Fig 1: Identifying Camshaft Oil Control Valve Replacement Components With Torque Specifications (1 Of 2)
GTY318886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

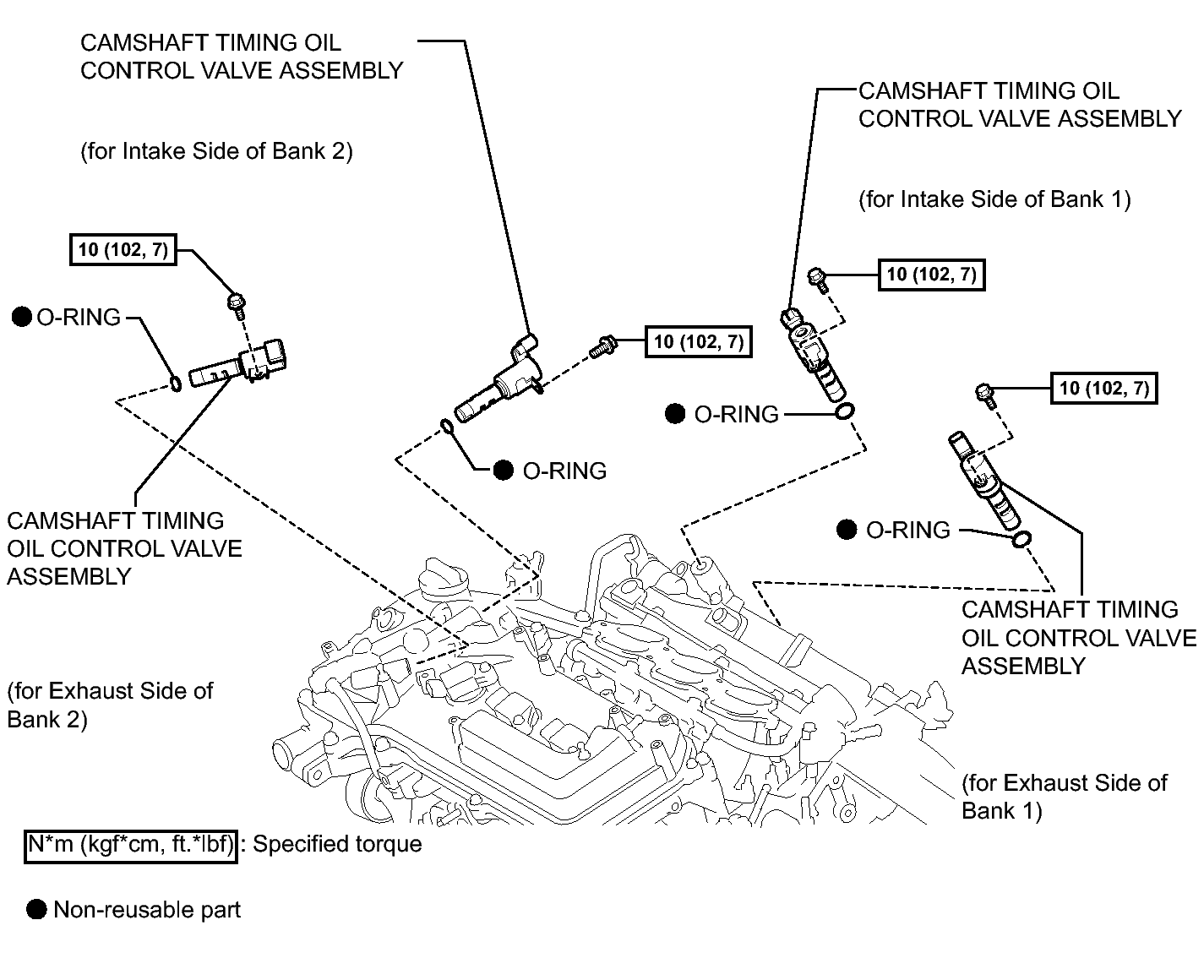

Fig 1: Identifying Camshaft Oil Control Valve Replacement Components With Torque Specifications (2 Of 2)
GTY378304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
