Parts Location: Illustration

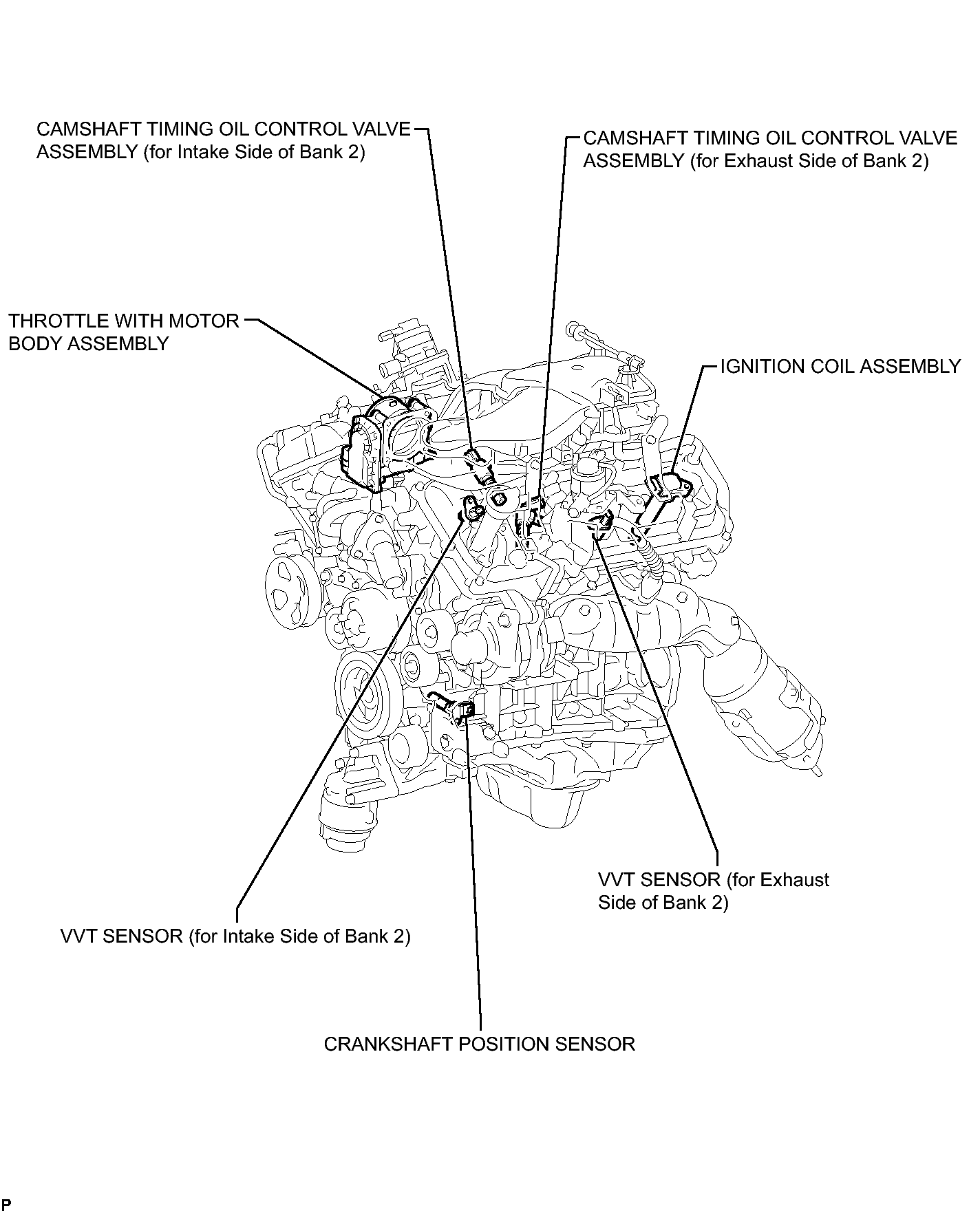

Fig 1: Identifying SFI System Replacement Components (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

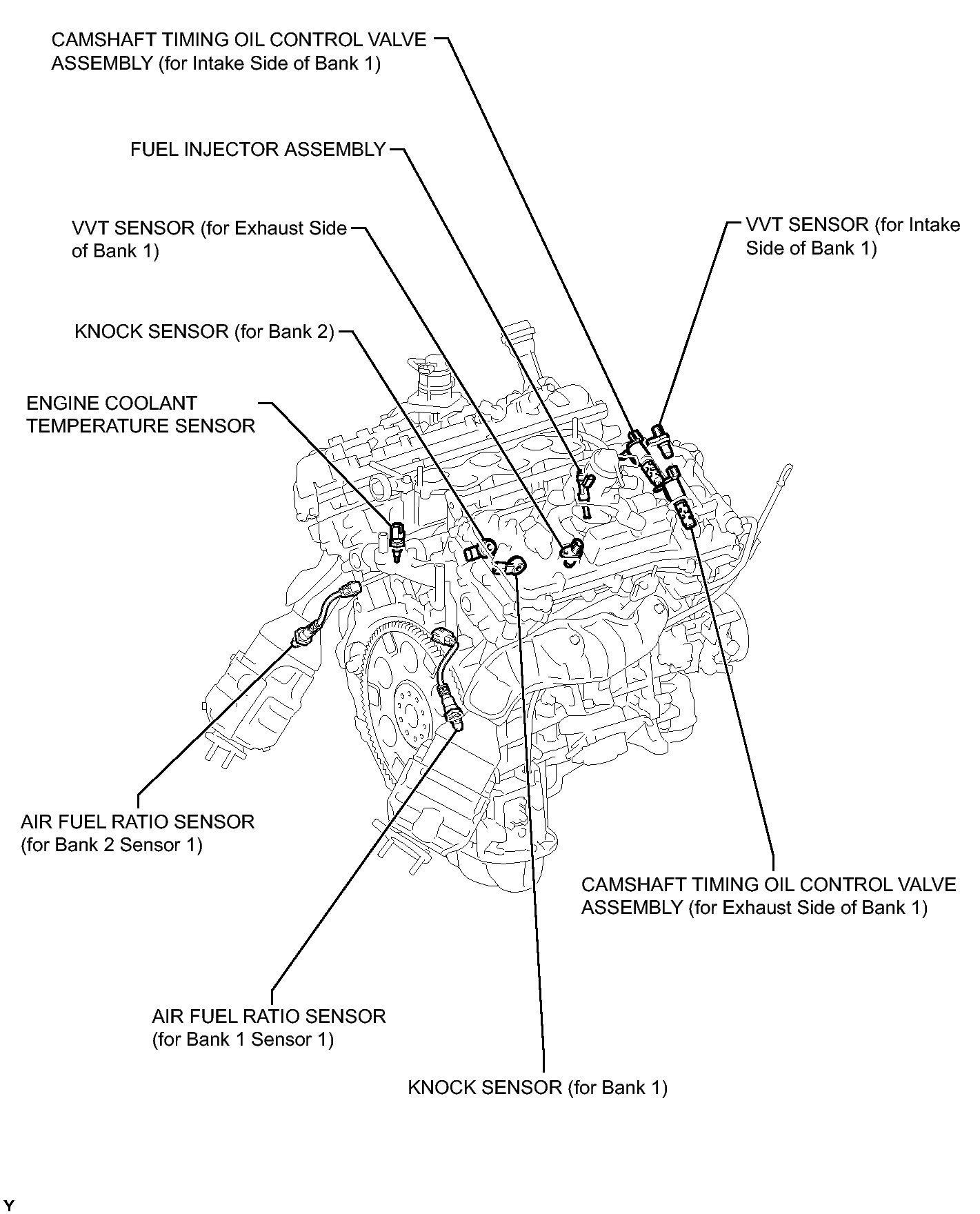

Fig 1: Identifying SFI System Replacement Components (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

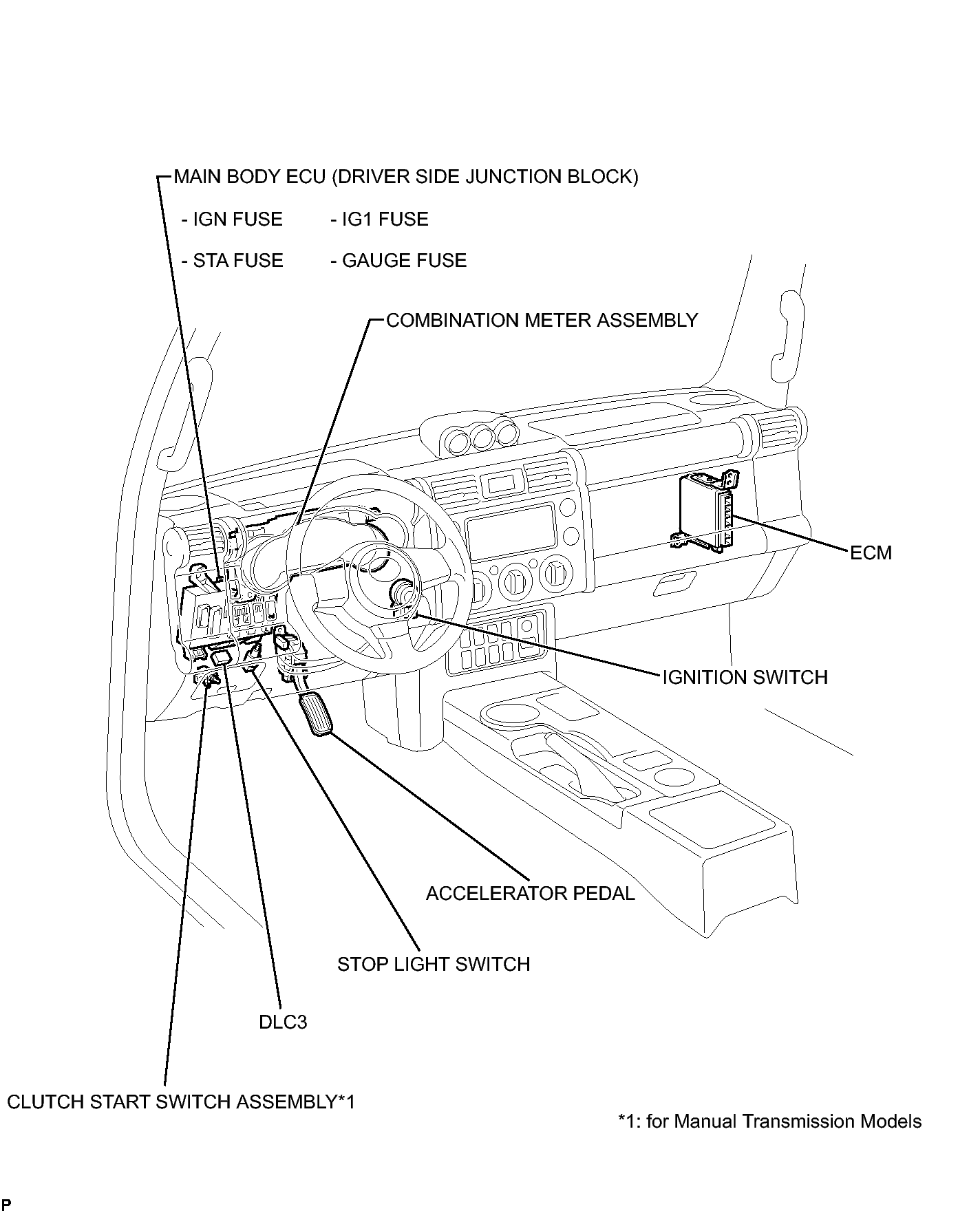

Fig 1: Identifying SFI System Replacement Components (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

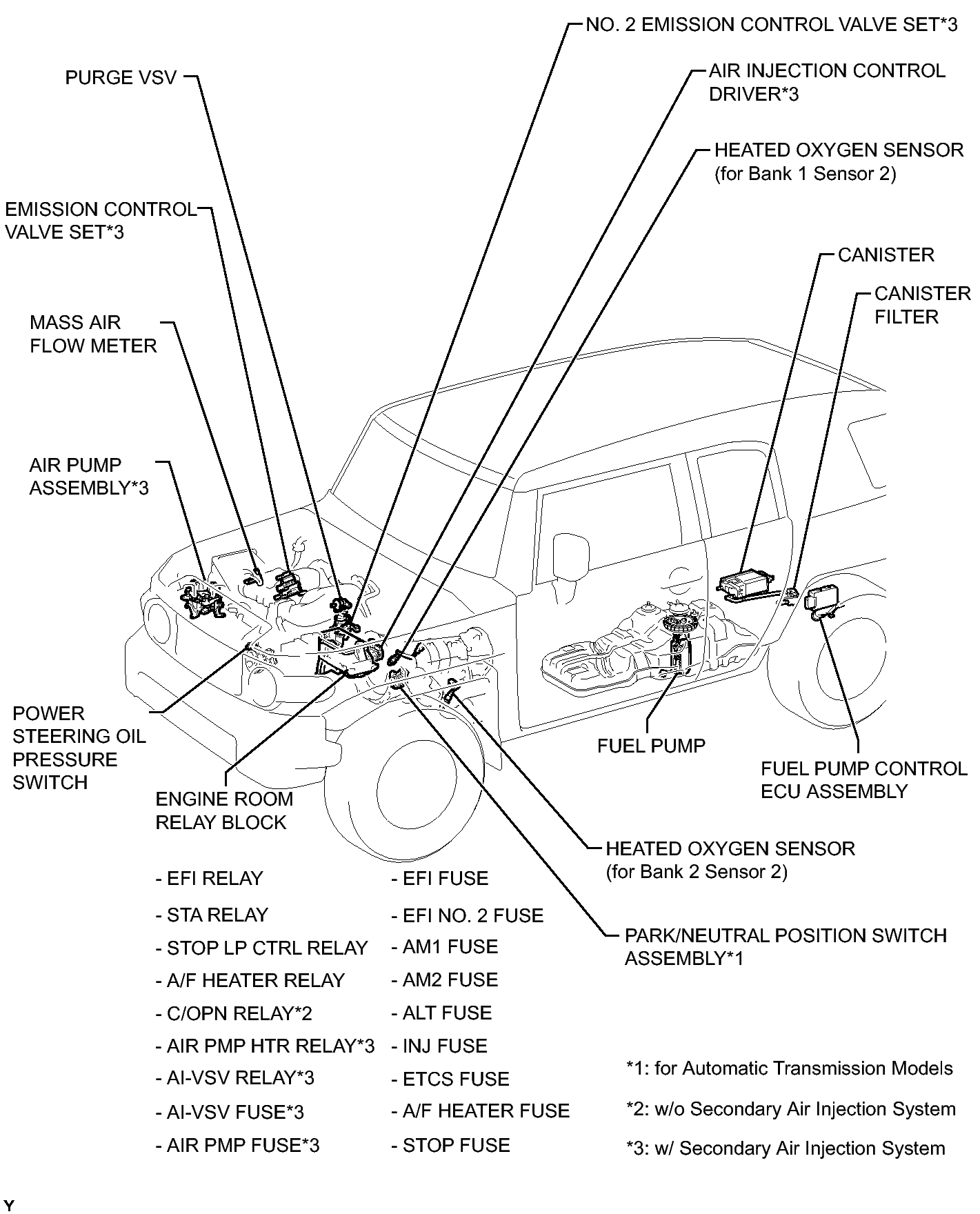

Fig 1: Identifying SFI System Replacement Components (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
