Knock Sensor: Removal: Removal

  1. REMOVE CYLINDER HEAD SUB-ASSEMBLY (for Bank 1)
    1. Remove the cylinder head. Refer to REMOVAL .
  2. REMOVE NO. 1 WATER OUTLET PIPE
    1. Disconnect the 4 wire harness clamps.

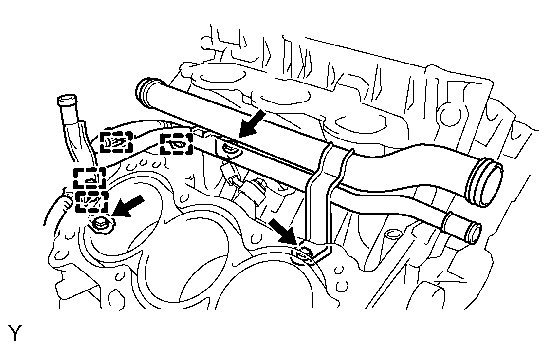

      Fig 1: Identifying No. 1 Water Outlet Pipe, Wire Harness Clamps, Nuts & Bolts
      GTY167420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts, bolt and No. 1 water outlet pipe.
  3. REMOVE KNOCK SENSOR
    1. Disconnect the 2 sensor connectors.
      Fig 2: Identifying Knock Sensor Connectors & Knock Sensors With Bolts
      GTY191273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and 2 sensors.
