Brake Actuator: Components: Illustration

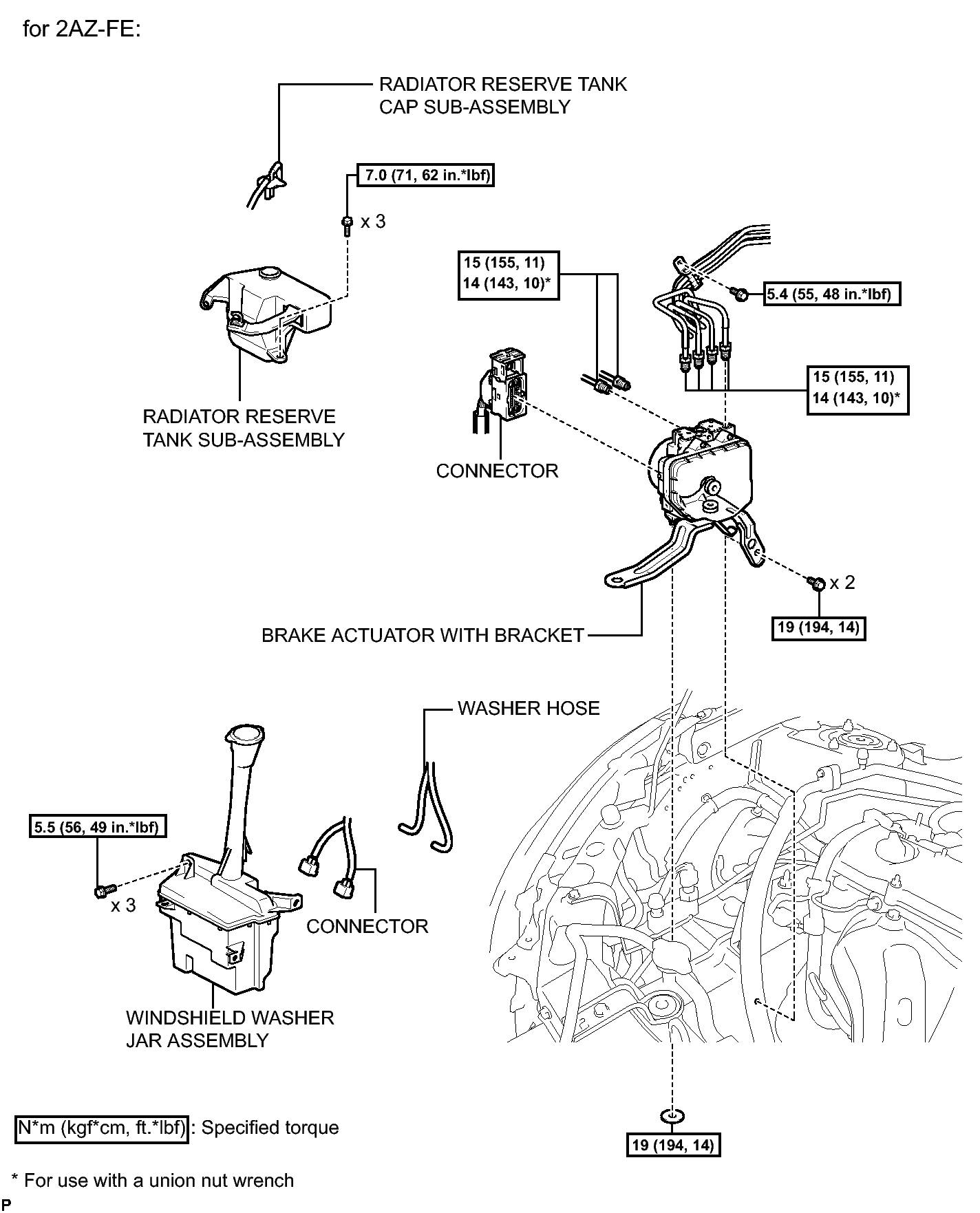

Fig 1: Identifying Brake Actuator Replacement Components With Torque Specifications (2AZ-FE) (w/ VSC) (1 Of 4)
GTY229173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

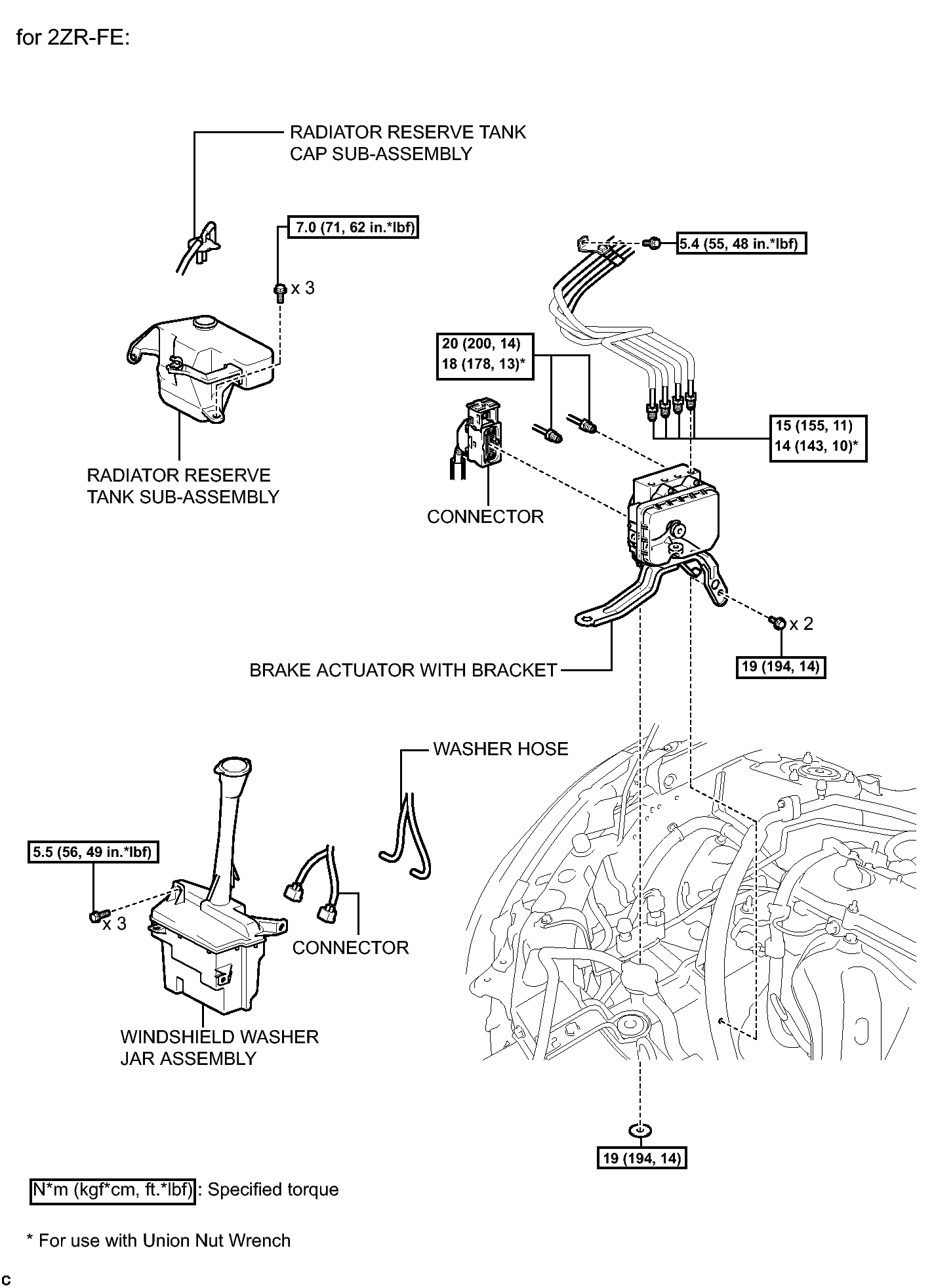

Fig 1: Identifying Brake Actuator Replacement Components With Torque Specifications (2ZR-FE) (w/ VSC) (2 Of 4)
GTY235428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

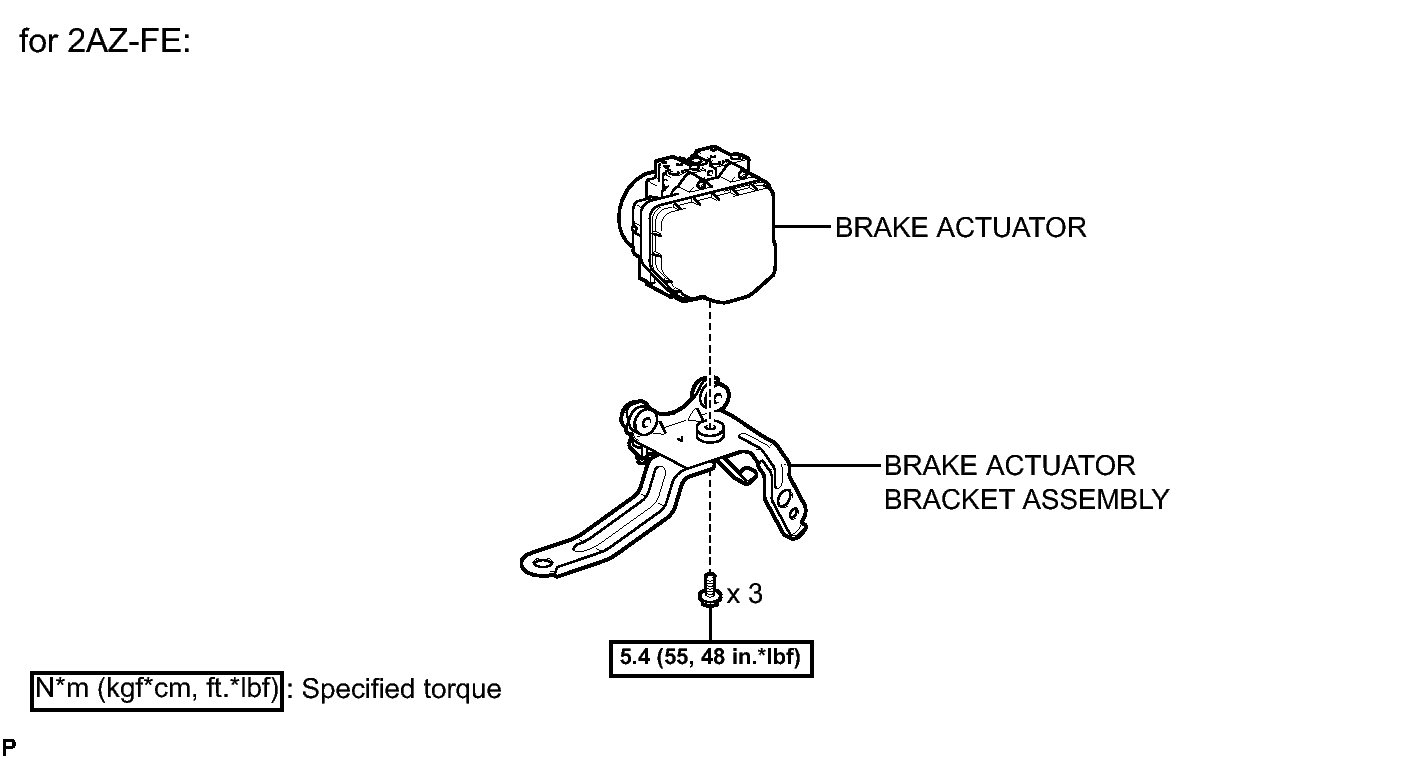

Fig 1: Identifying Brake Actuator Replacement Components With Torque Specifications (2AZ-FE) (w/ VSC) (3 Of 4)
GTY292972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

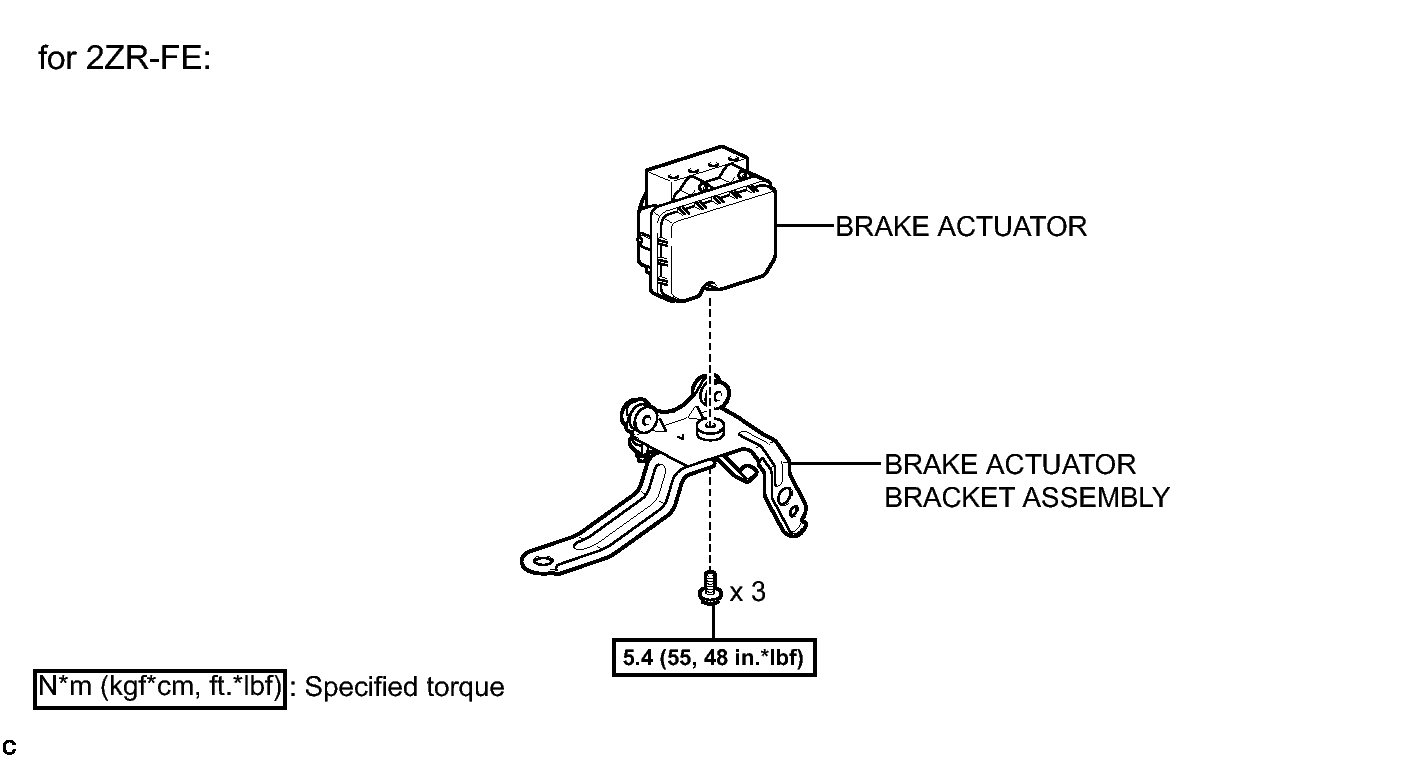

Fig 1: Identifying Brake Actuator Replacement Components With Torque Specifications (2ZR-FE) (w/ VSC) (4 Of 4)
GTY290086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
