OEM System Circuits: 4WD: Notes

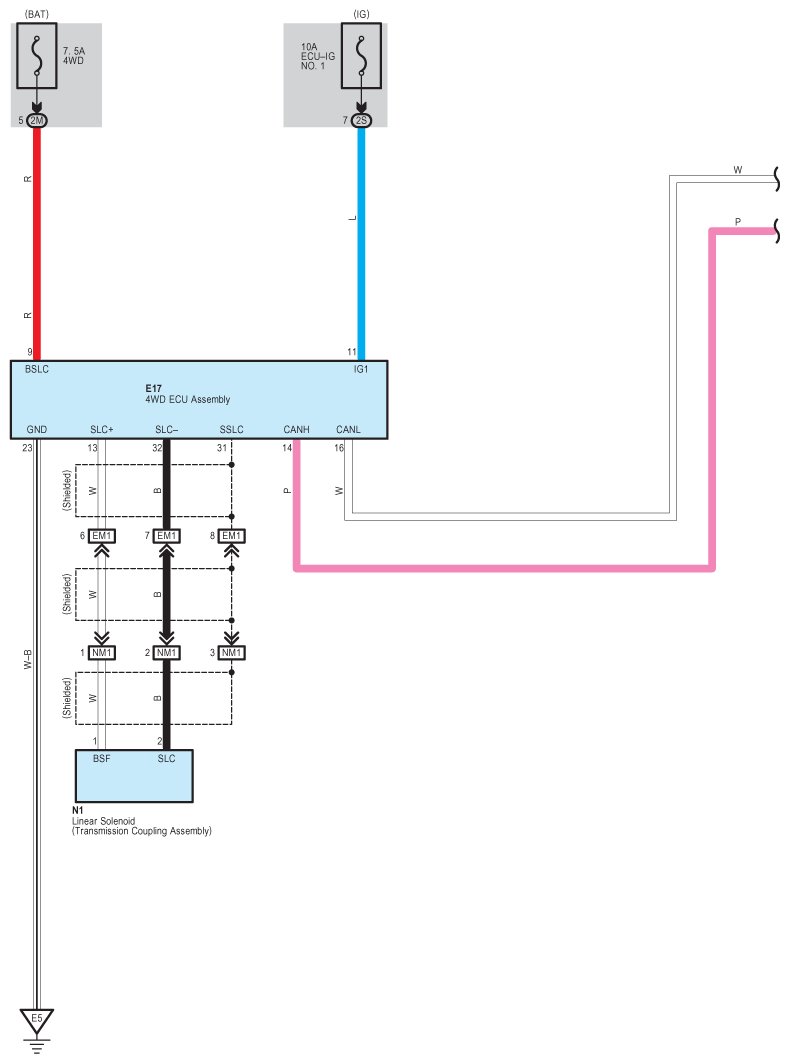

Fig 1: 4WD Wiring Diagram (1 Of 5)
G09105934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

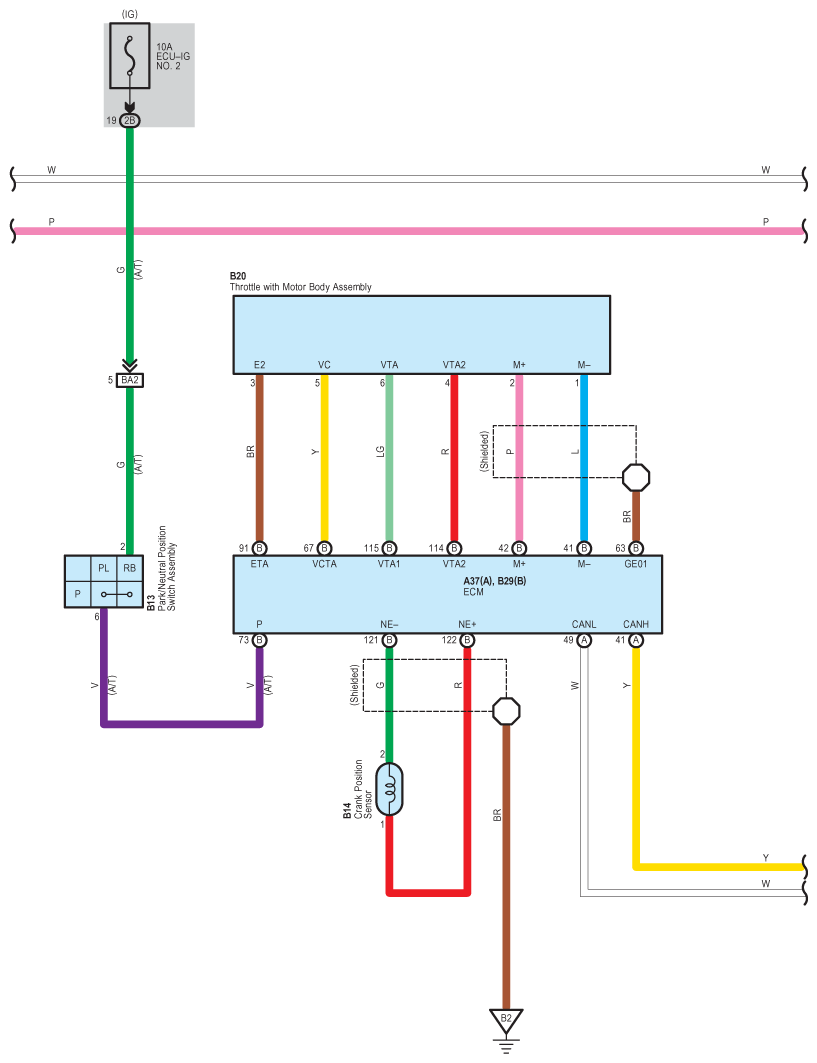

Fig 2: 4WD Wiring Diagram (1 Of 5)
G09105935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

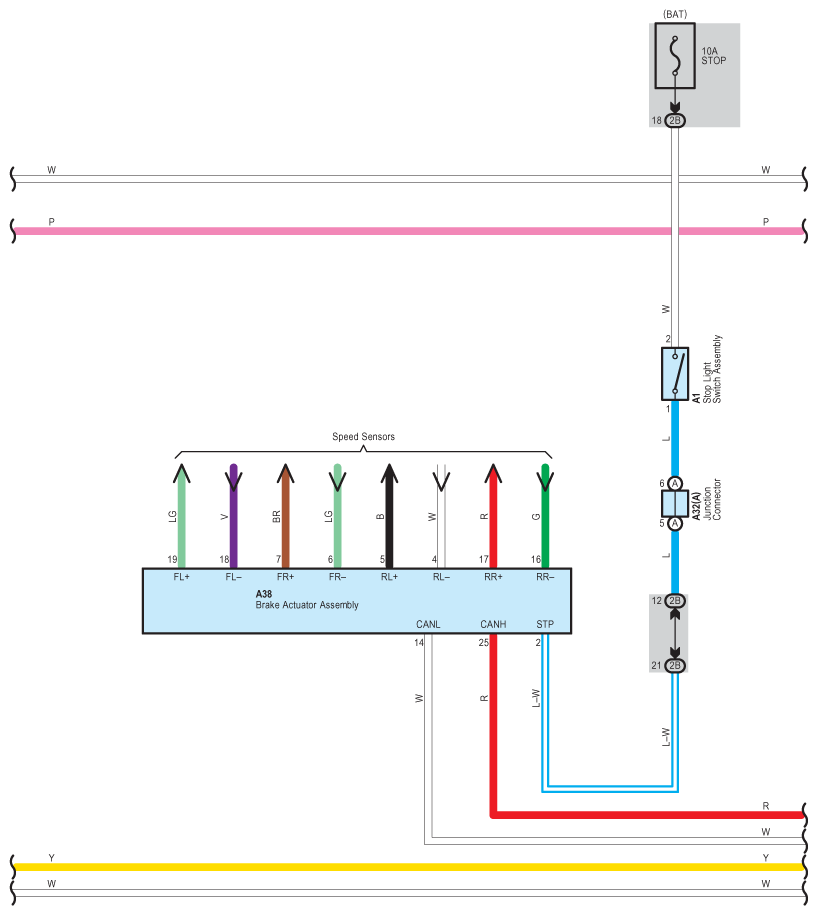

Fig 3: 4WD Wiring Diagram (1 Of 5)
G09105936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

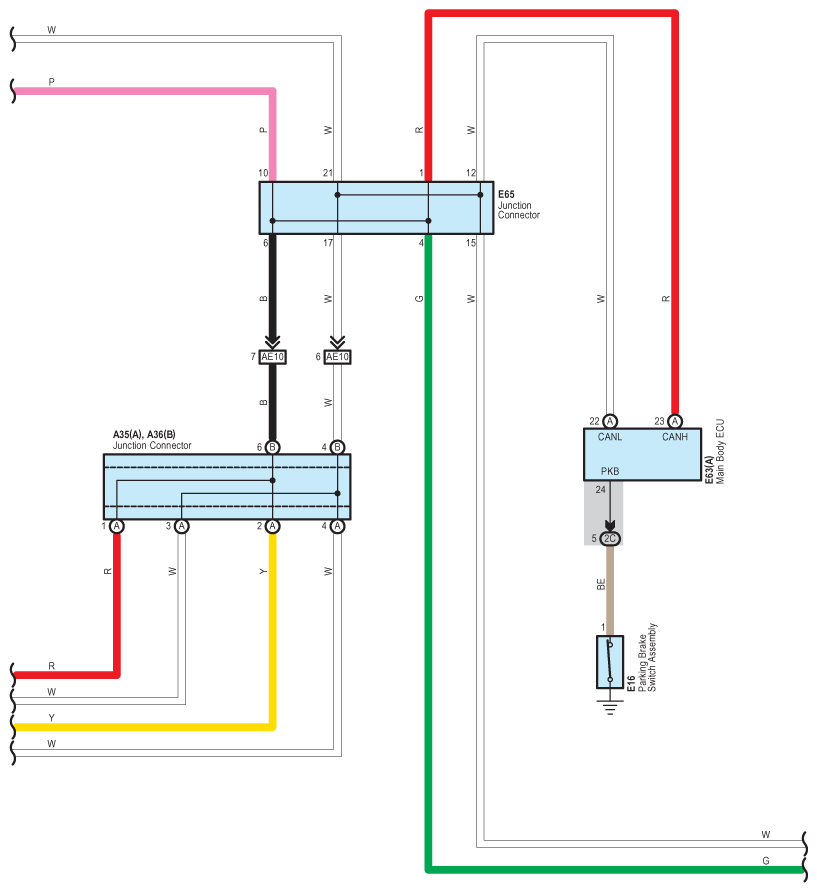

Fig 4: 4WD Wiring Diagram (1 Of 5)
G09105937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

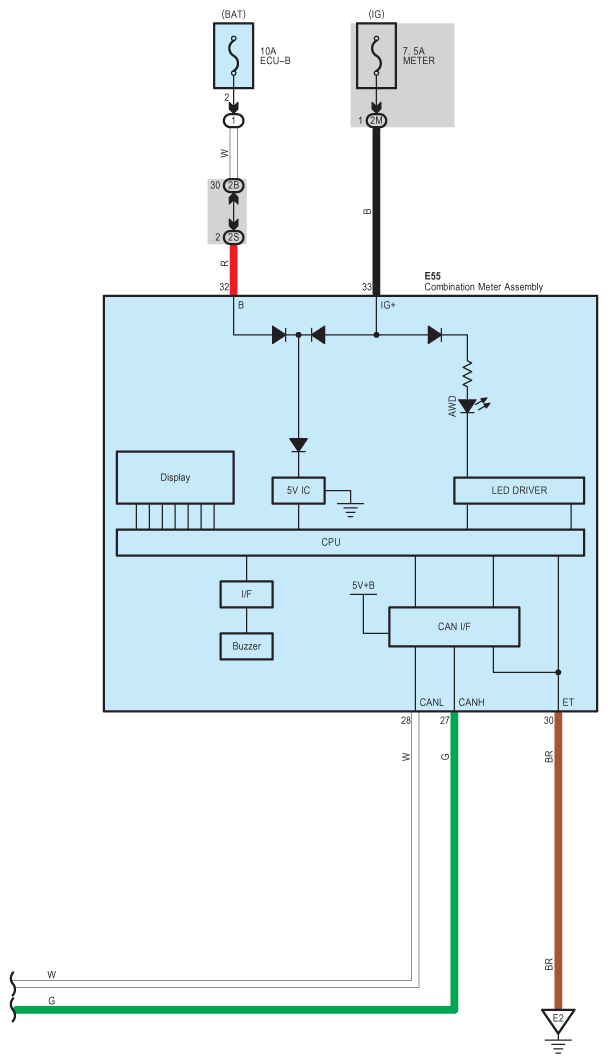

Fig 5: 4WD Wiring Diagram (1 Of 5)
G09105938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
