ABS, TRAC and VSC: Notes

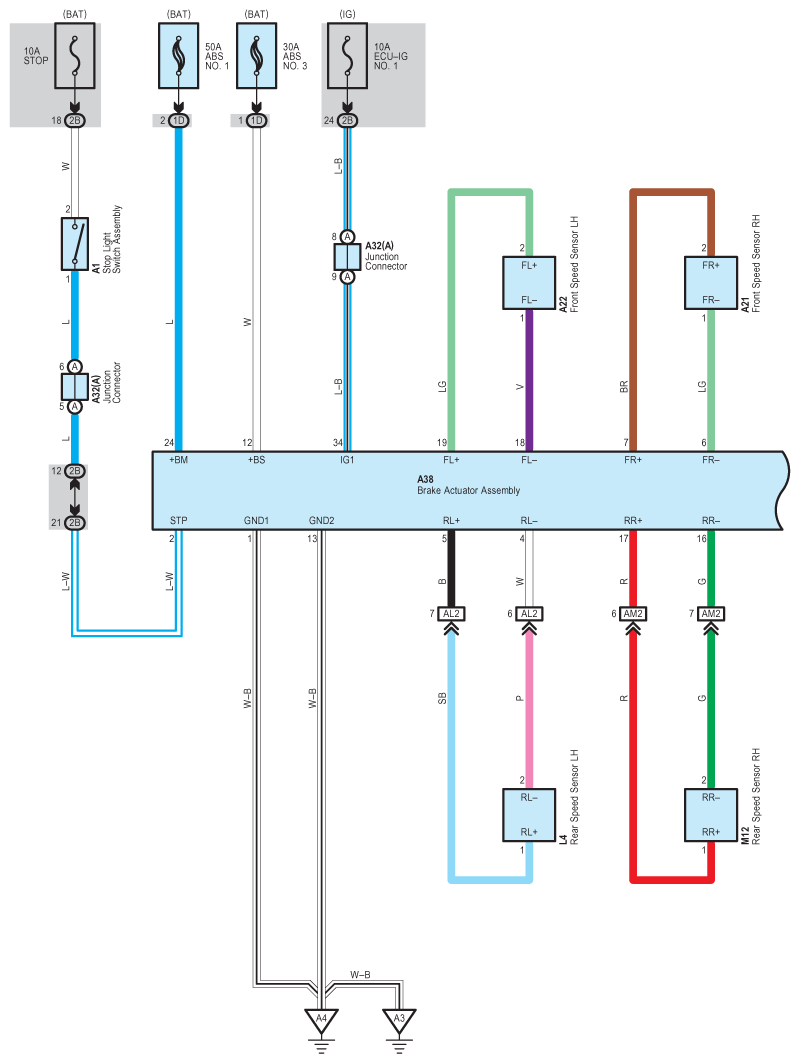

Fig 1: ABS, TRAC And VSC Wiring Diagram (1 Of 6)

G09105922

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

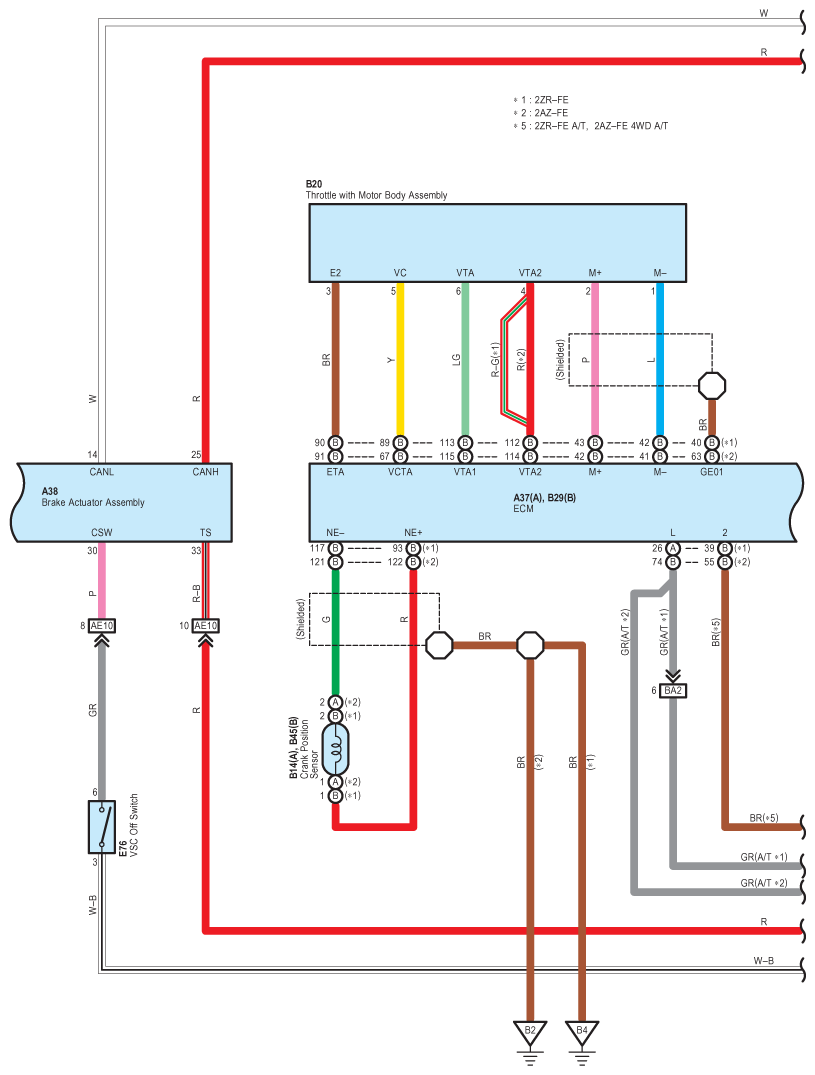

Fig 2: ABS, TRAC And VSC Wiring Diagram (2 Of 6)

G09105923

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: ABS, TRAC And VSC Wiring Diagram (3 Of 6)

G09105924

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

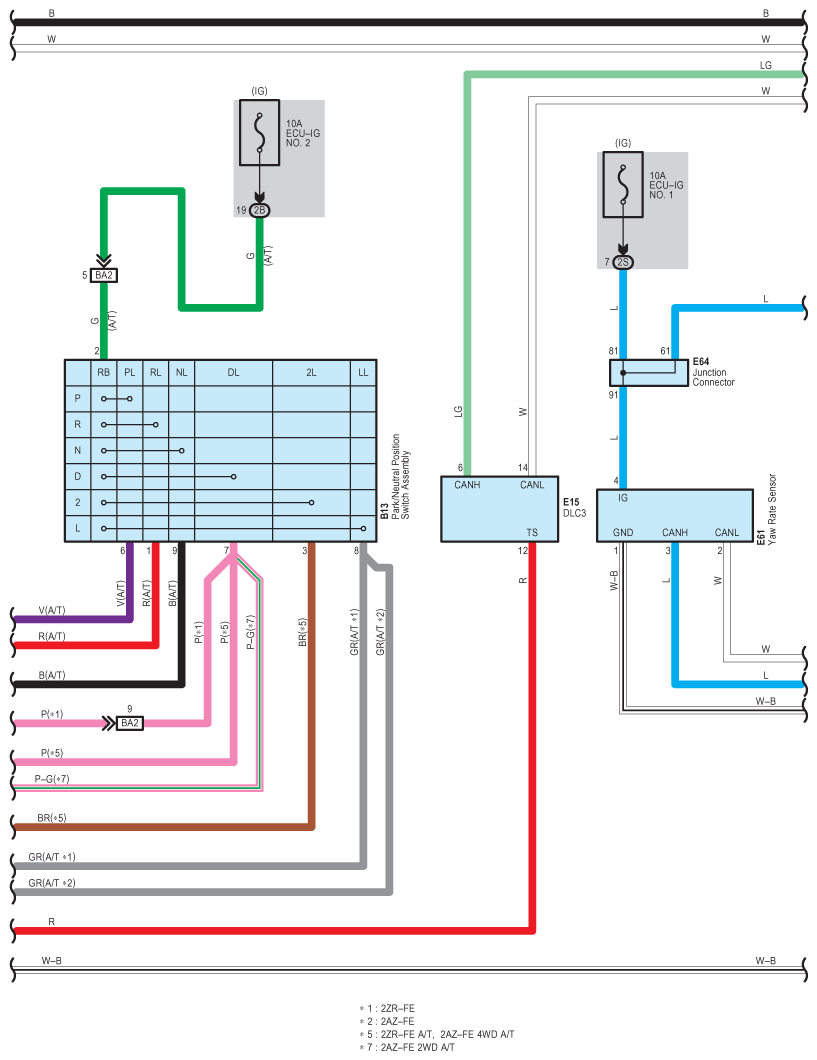

Fig 4: ABS, TRAC And VSC Wiring Diagram (4 Of 6)

G09105925

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

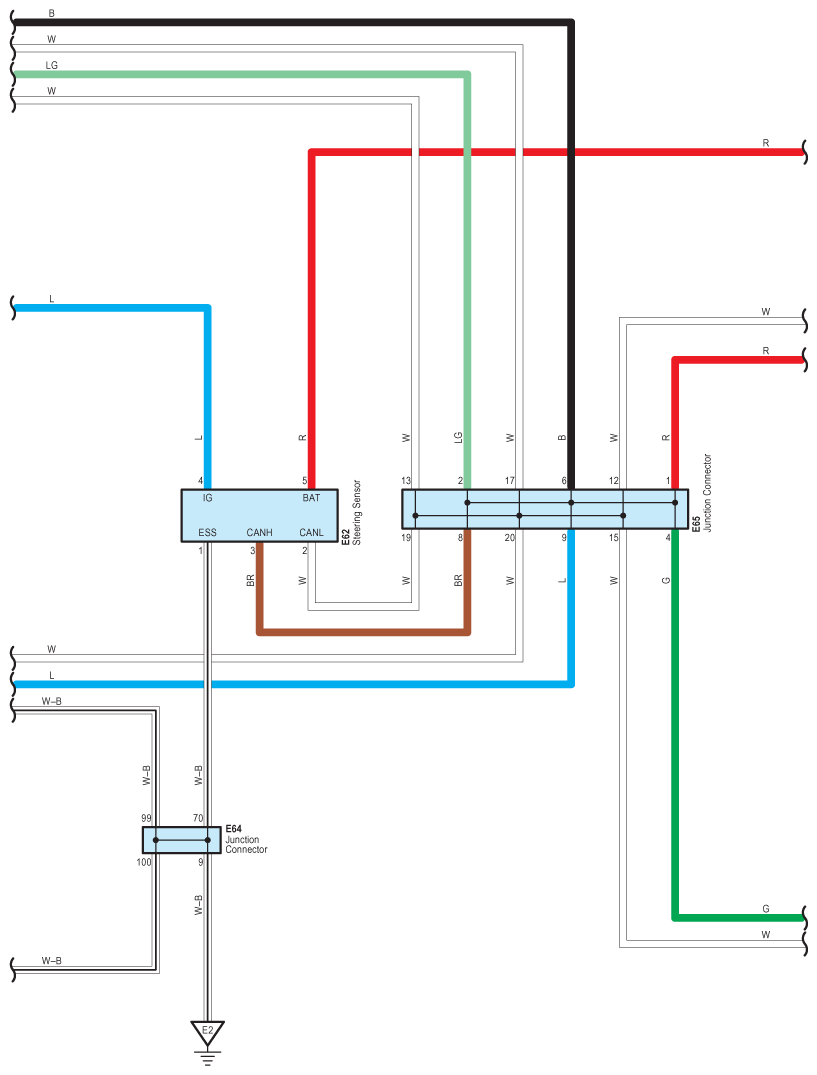

Fig 5: ABS, TRAC And VSC Wiring Diagram (5 Of 6)

G09105926

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

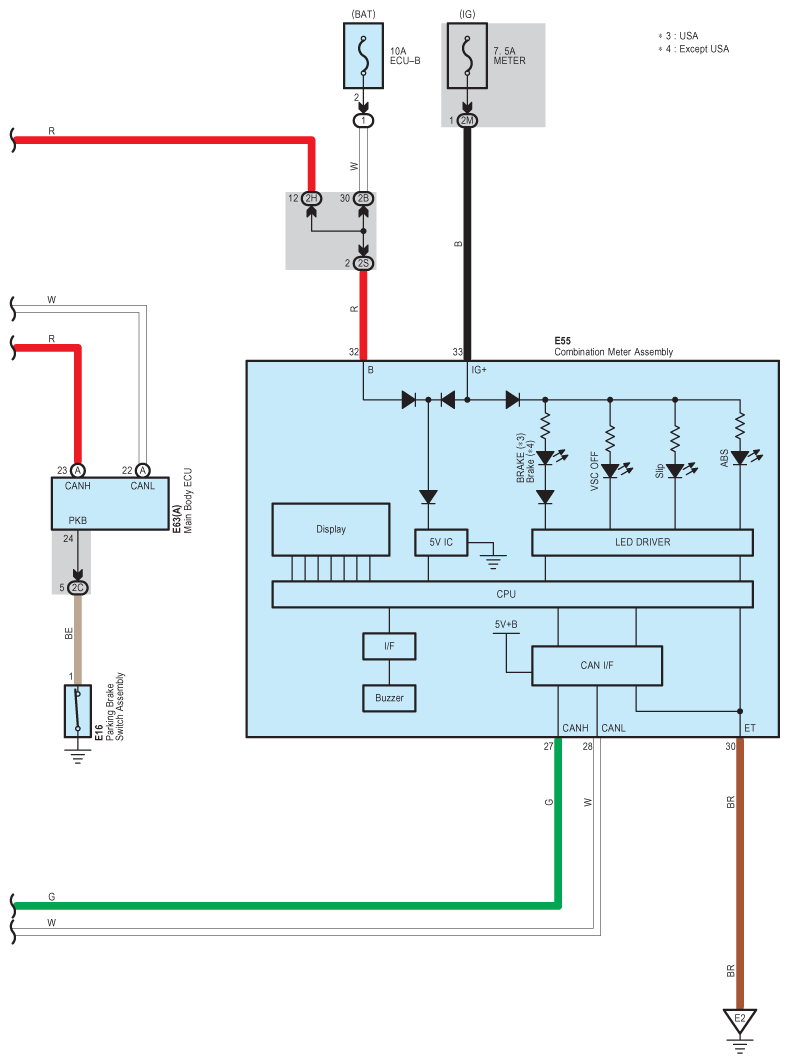

Fig 6: ABS, TRAC And VSC Wiring Diagram (6 Of 6)

G09105927

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
