Audio System: Notes

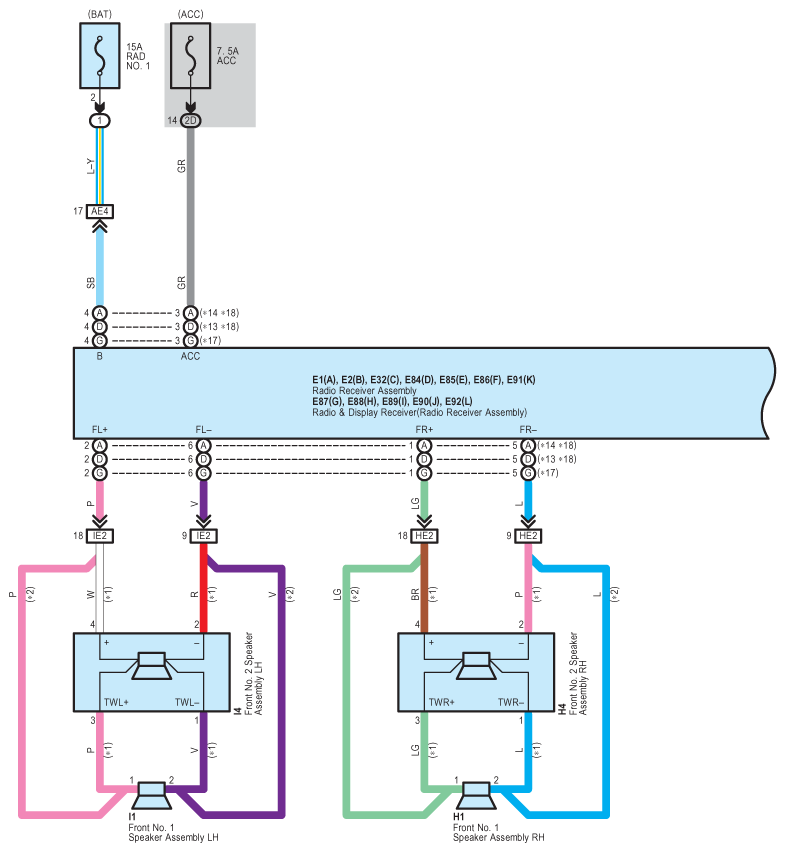

Fig 1: Audio System Wiring Diagram (1 Of 5)
G09105963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

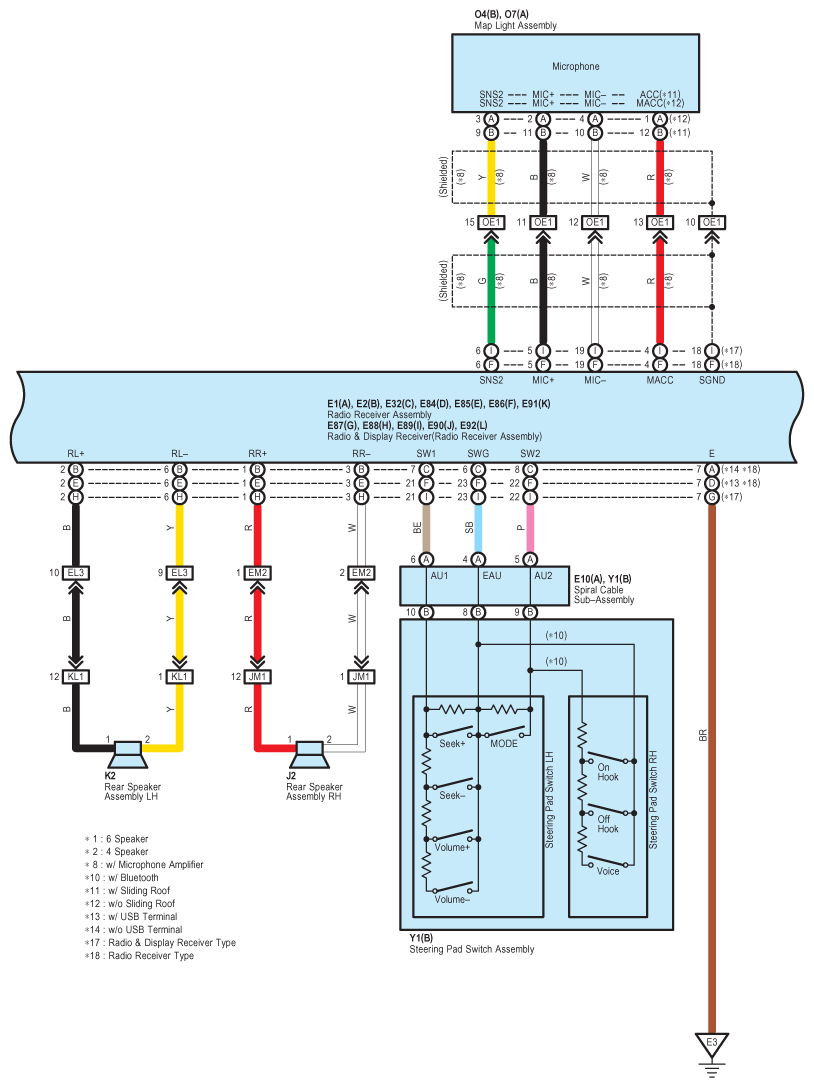

Fig 2: Audio System Wiring Diagram (2 Of 5)
G09105964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

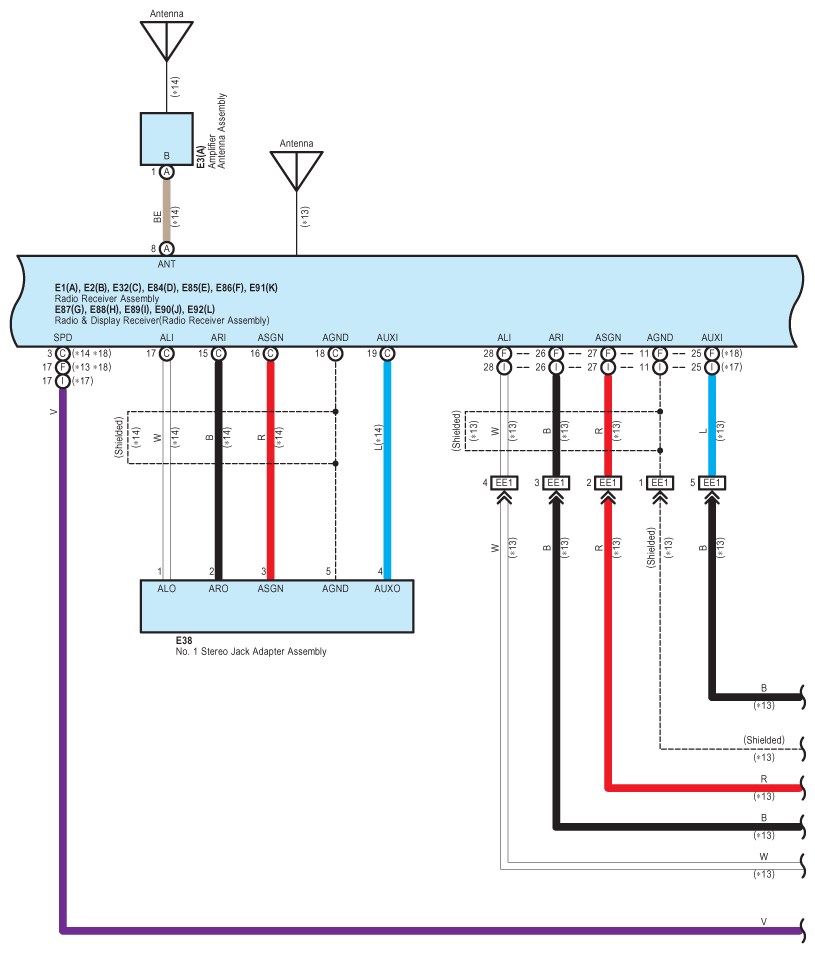

Fig 3: Audio System Wiring Diagram (3 Of 5)
G09105965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

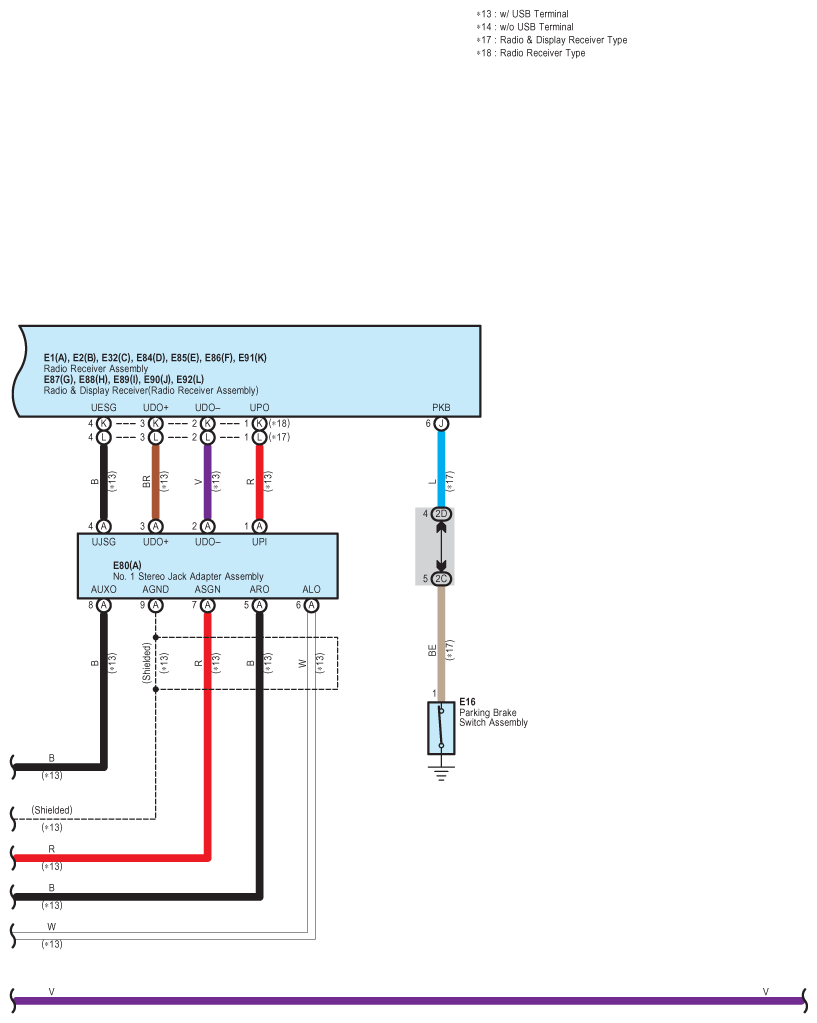

Fig 4: Audio System Wiring Diagram (4 Of 5)
G09105966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Audio System Wiring Diagram (5 Of 5)
G09105967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
