Cruise Control (2AZ-FE): Notes

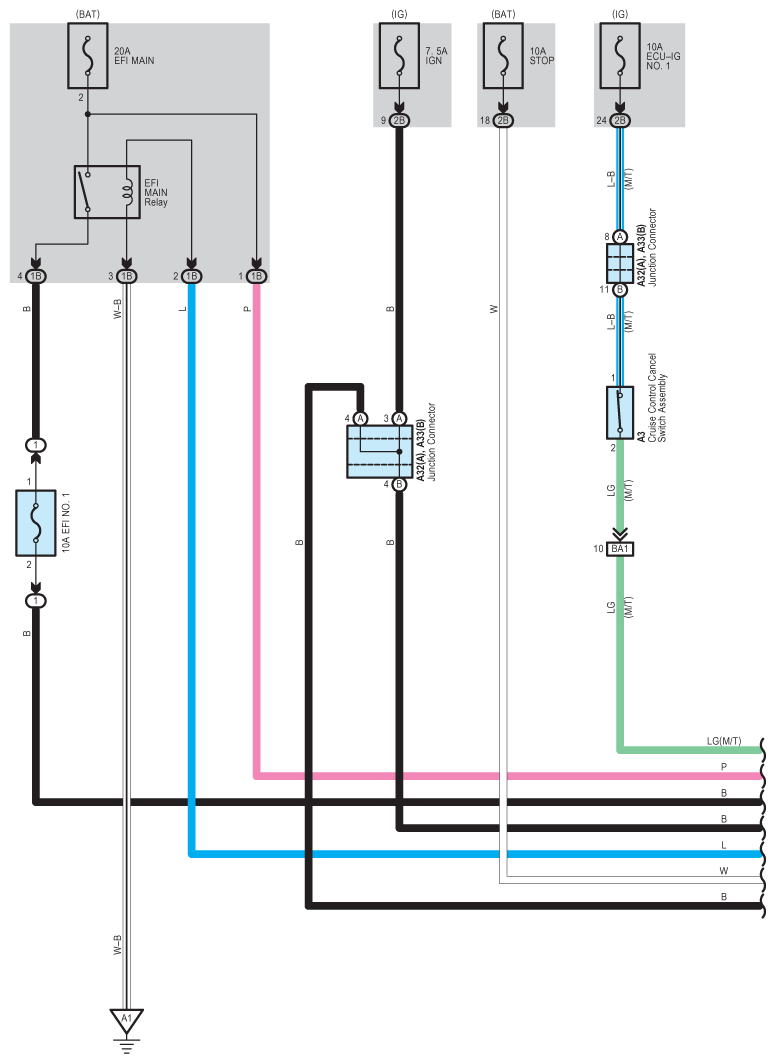

Fig 1: Cruise Control Wiring Diagram (2AZ-FE) (1 Of 7)
G09105909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

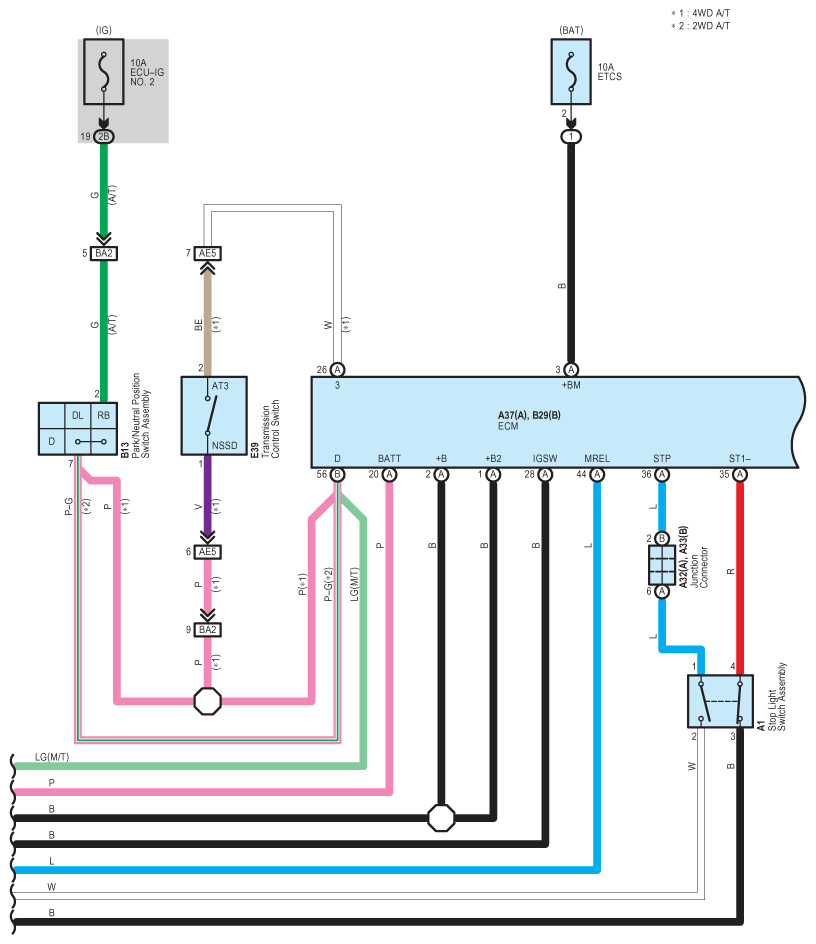

Fig 2: Cruise Control Wiring Diagram (2AZ-FE) (2 Of 7)
G09105910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

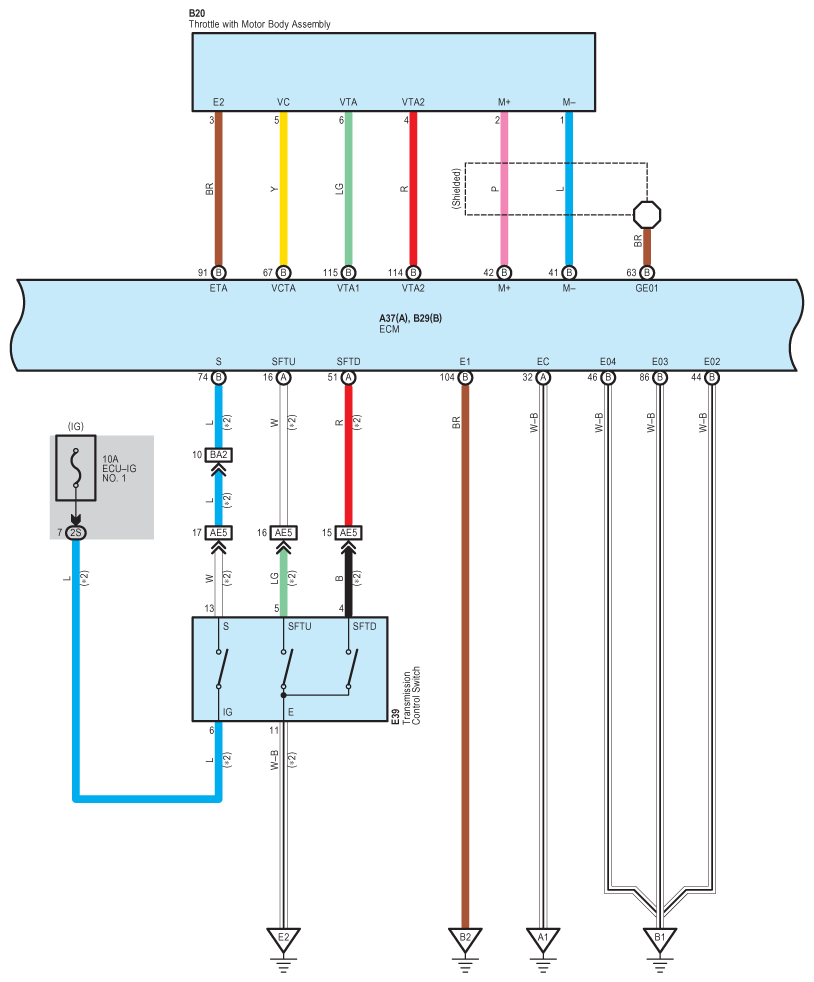

Fig 3: Cruise Control Wiring Diagram (2AZ-FE) (3 Of 7)
G09105911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

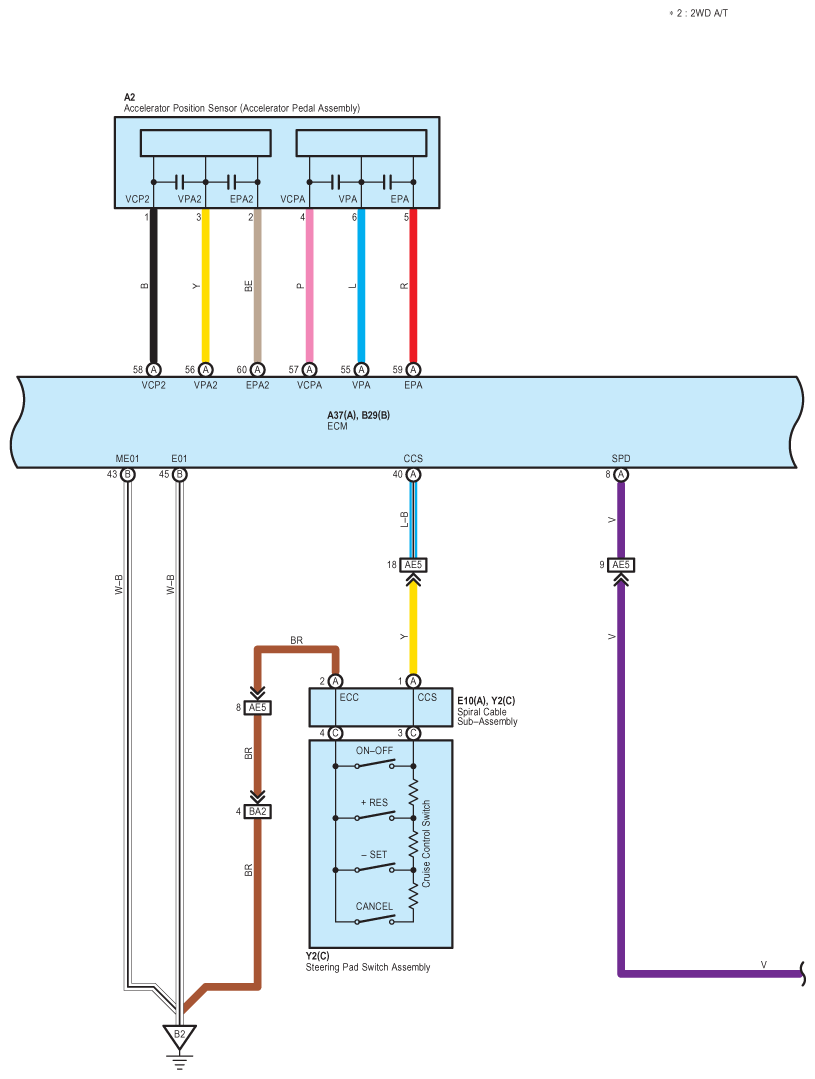

Fig 4: Cruise Control Wiring Diagram (2AZ-FE) (4 Of 7)
G09105912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

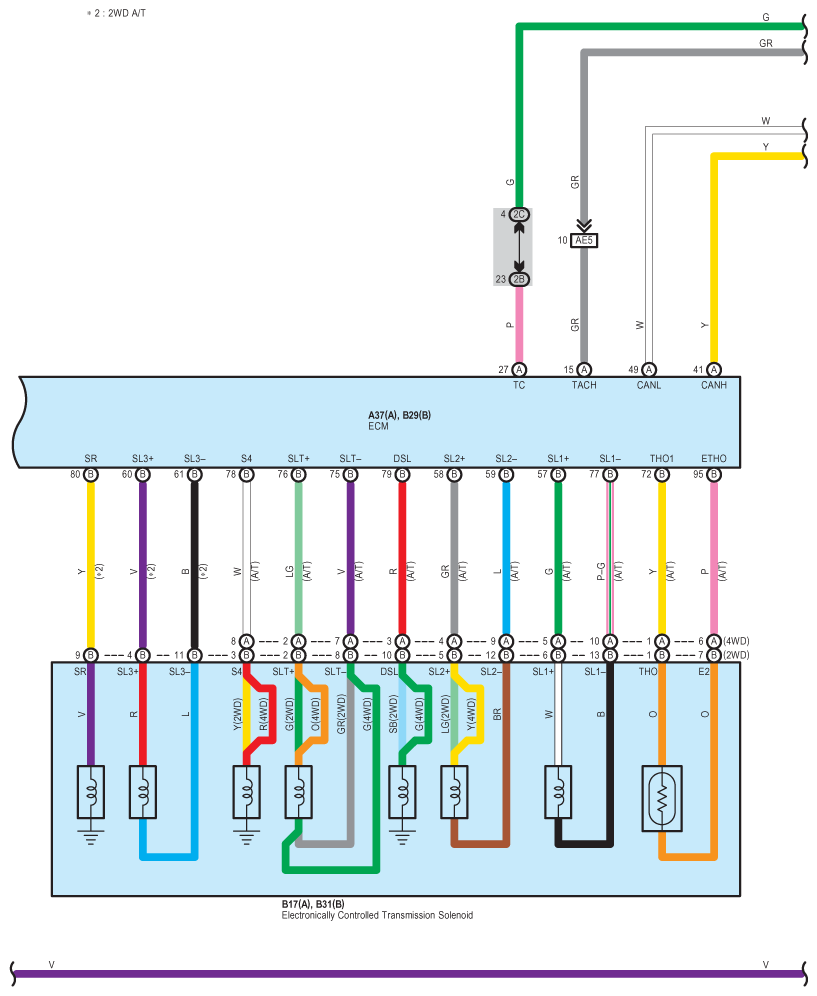

Fig 5: Cruise Control Wiring Diagram (2AZ-FE) (5 Of 7)
G09105913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

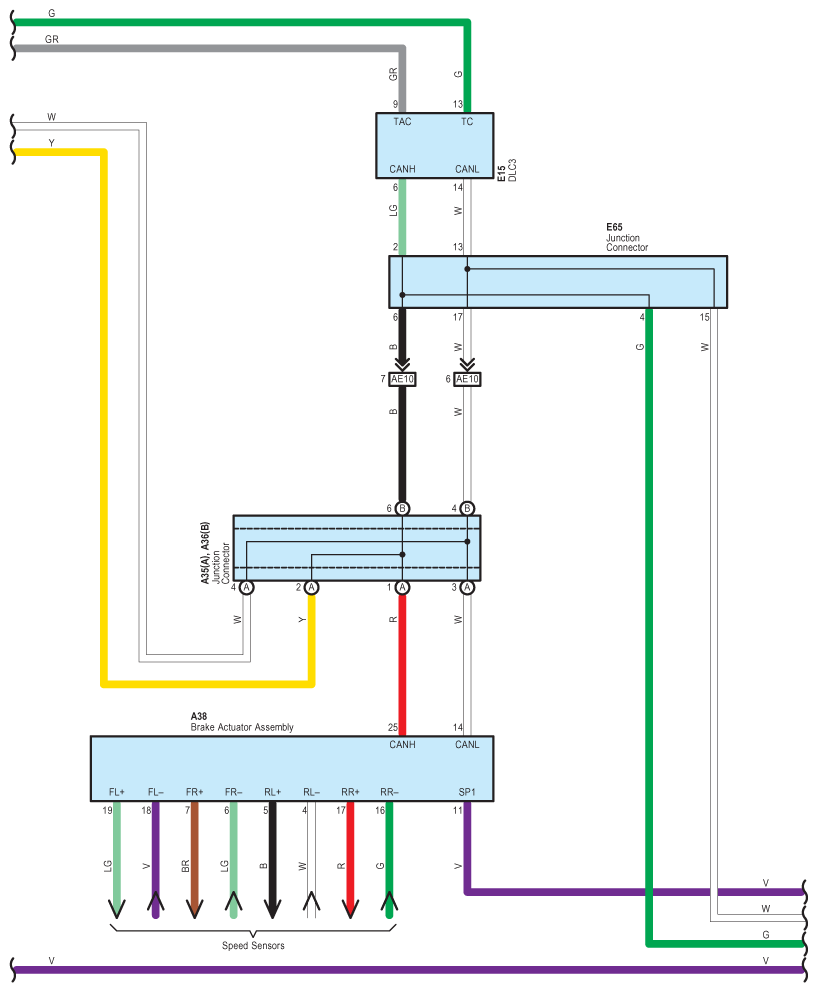

Fig 6: Cruise Control Wiring Diagram (2AZ-FE) (6 Of 7)
G09105914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

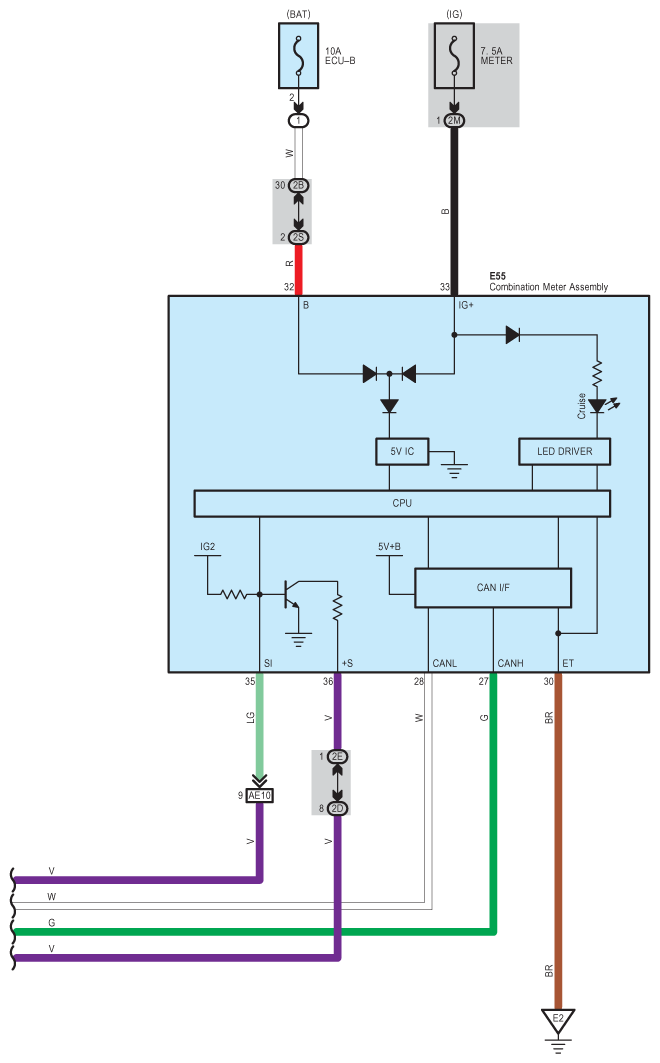

Fig 7: Cruise Control Wiring Diagram (2AZ-FE) (7 Of 7)
G09105915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
