Door Lock Control: Notes

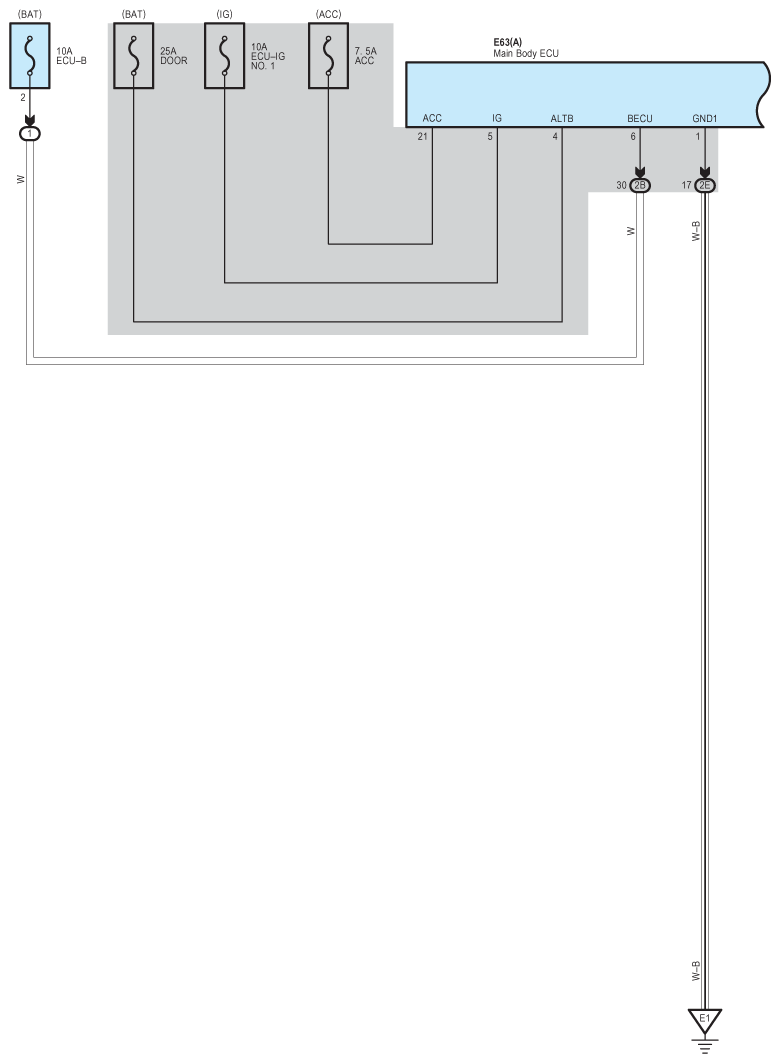

Fig 1: Door Lock Control Wiring Diagram (1 Of 5)
G09105887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

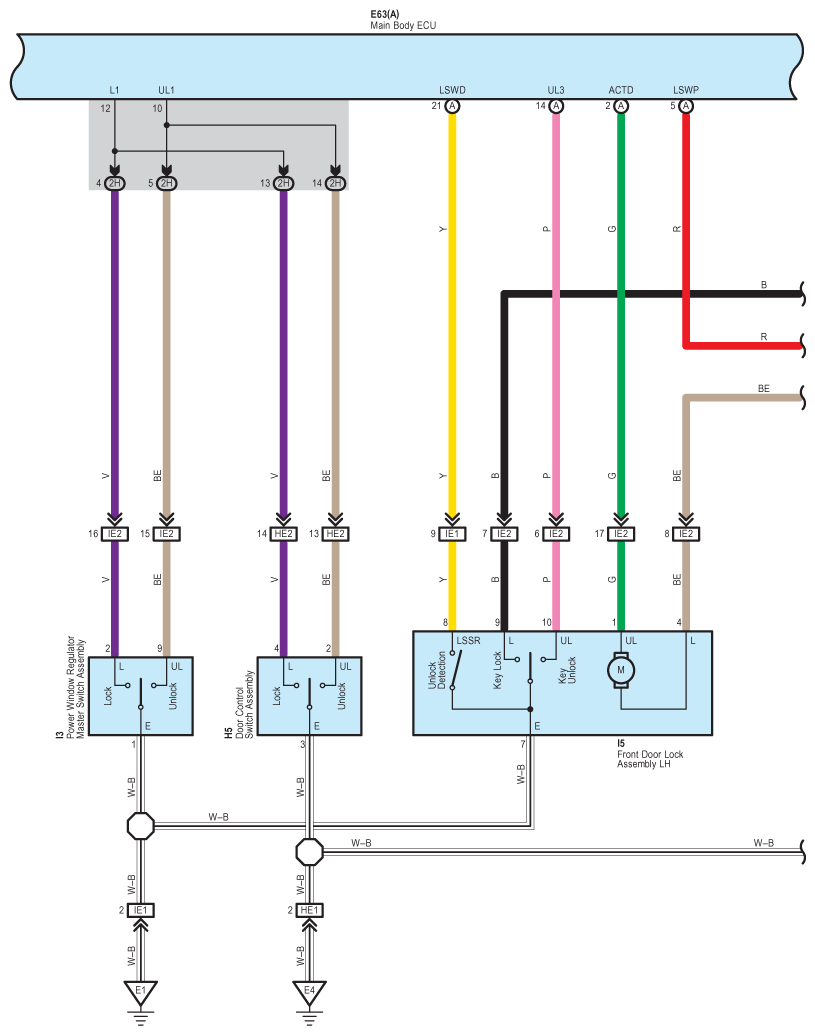

Fig 2: Door Lock Control Wiring Diagram (2 Of 5)
G09105888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

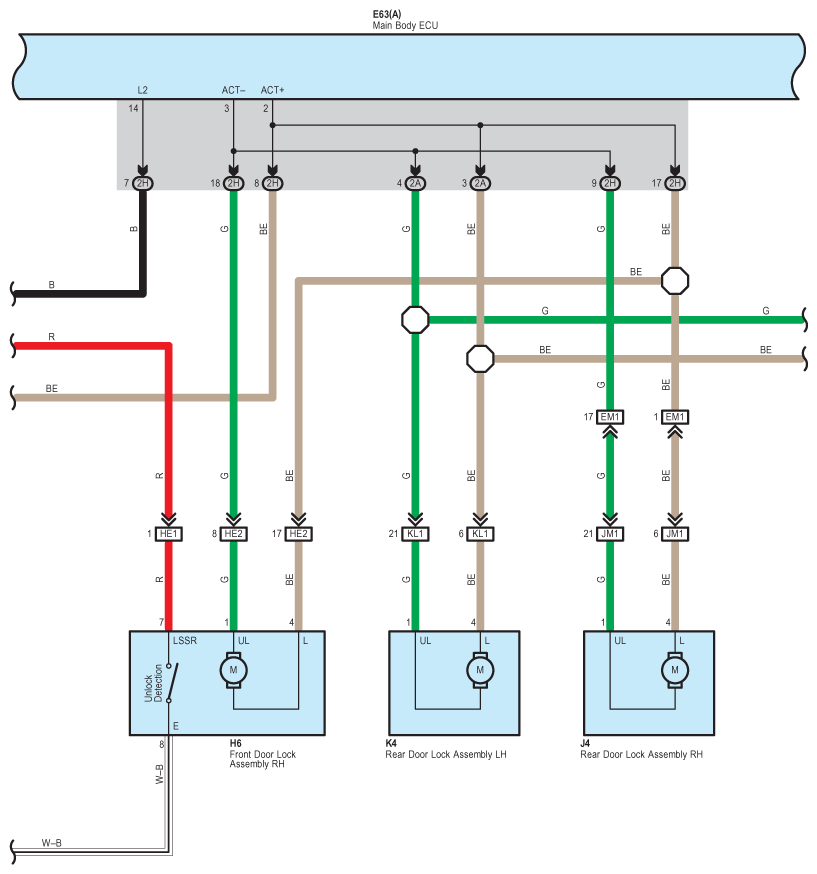

Fig 3: Door Lock Control Wiring Diagram (3 Of 5)
G09105889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

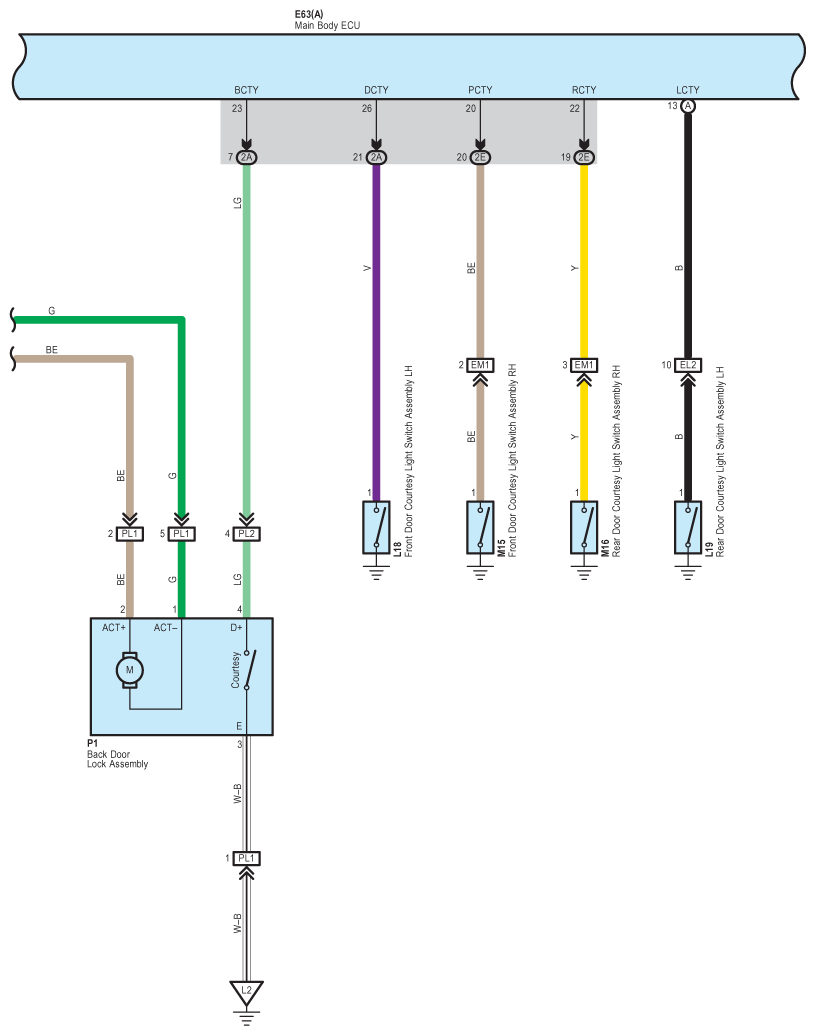

Fig 4: Door Lock Control Wiring Diagram (4 Of 5)
G09105890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

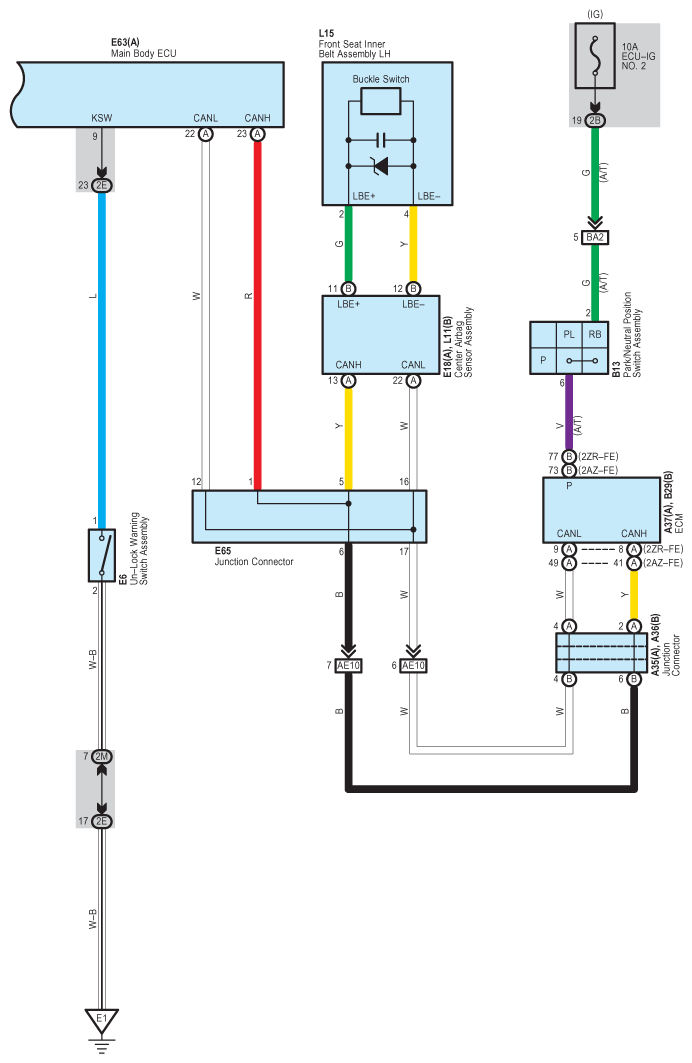

Fig 5: Door Lock Control Wiring Diagram (5 Of 5)
G09105891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
