Engine Control (2AZ-FE): Notes

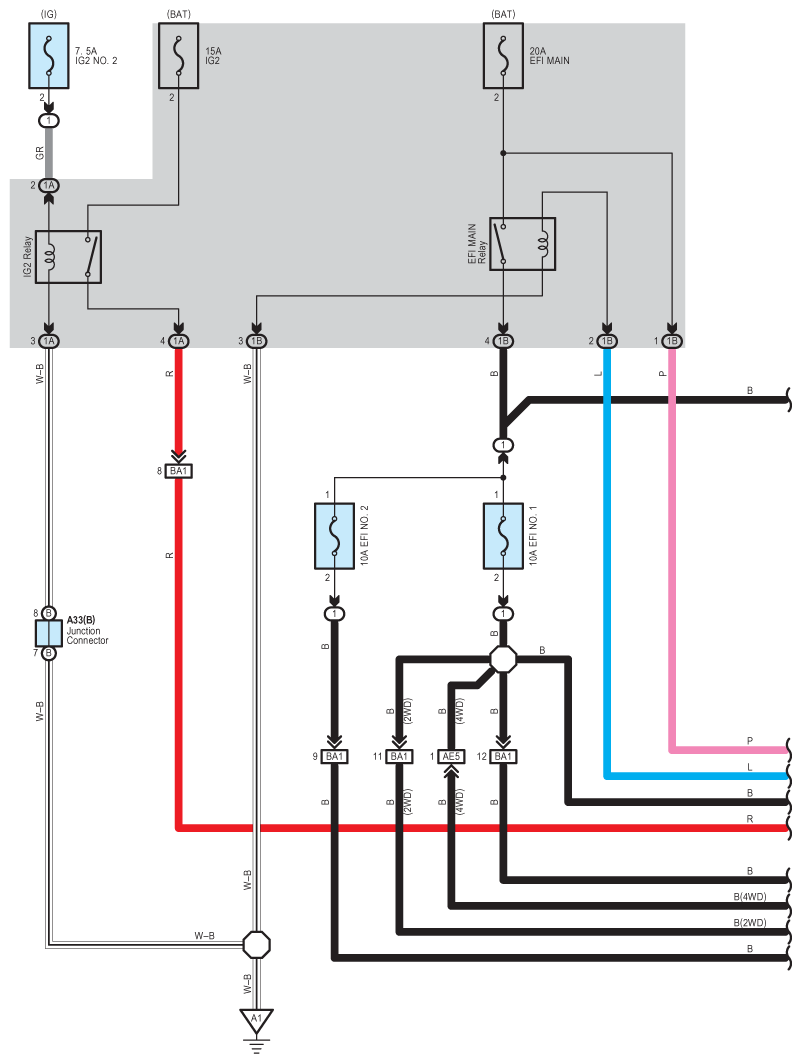

Fig 1: Engine Control Wiring Diagram (2AZ-FE) (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

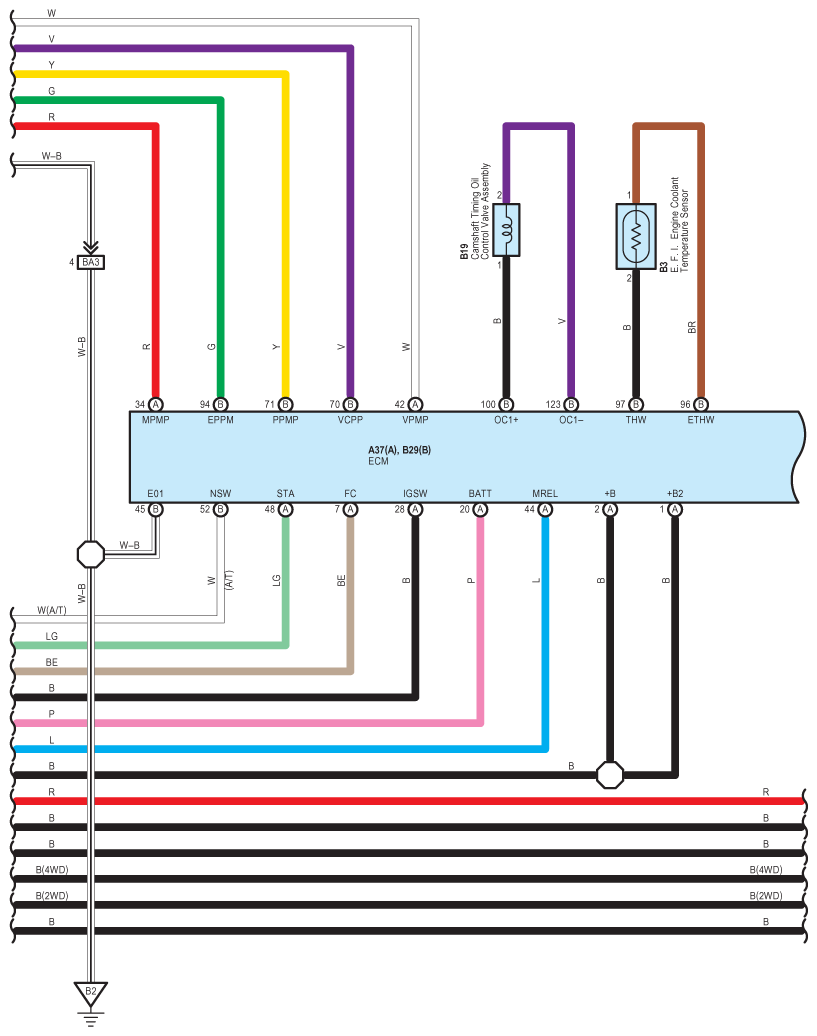

Fig 2: Engine Control Wiring Diagram (2AZ-FE) (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

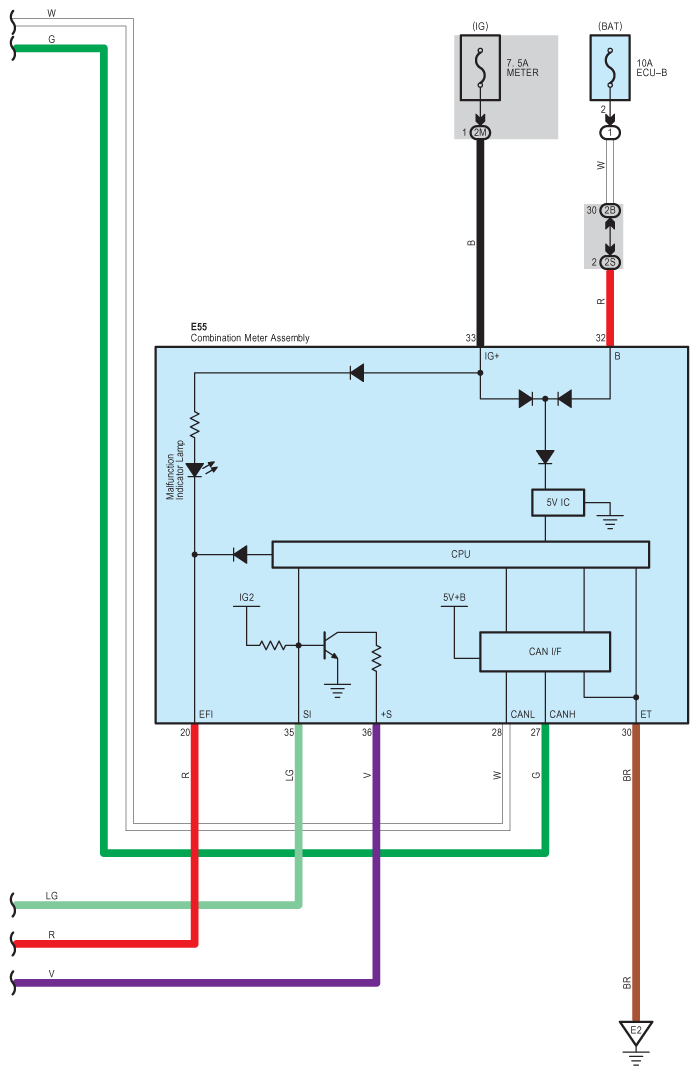

Fig 3: Engine Control Wiring Diagram (2AZ-FE) (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

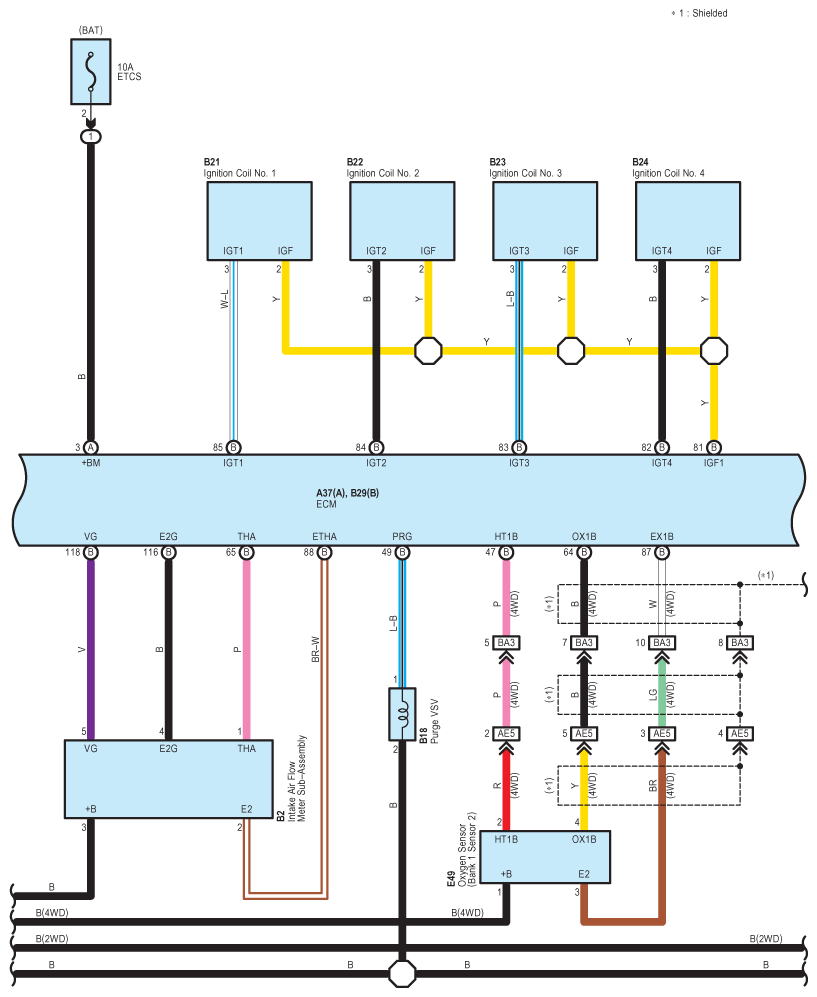

Fig 4: Engine Control Wiring Diagram (2AZ-FE) (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

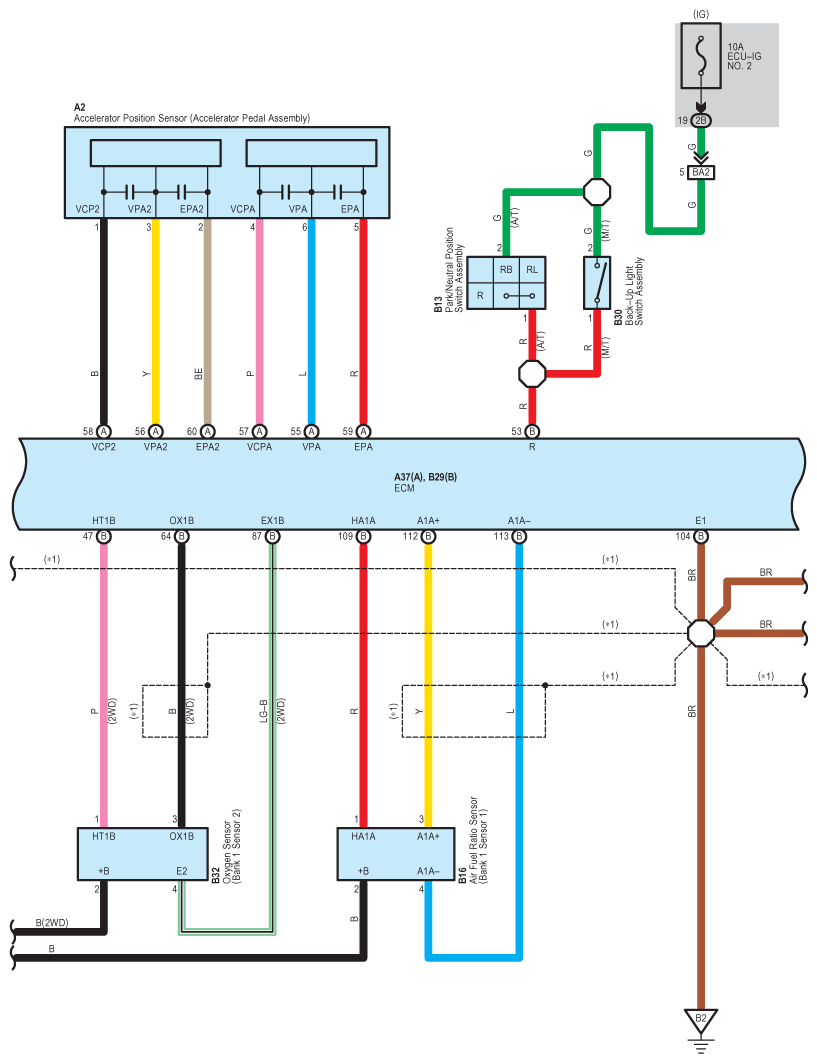

Fig 5: Engine Control Wiring Diagram (2AZ-FE) (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

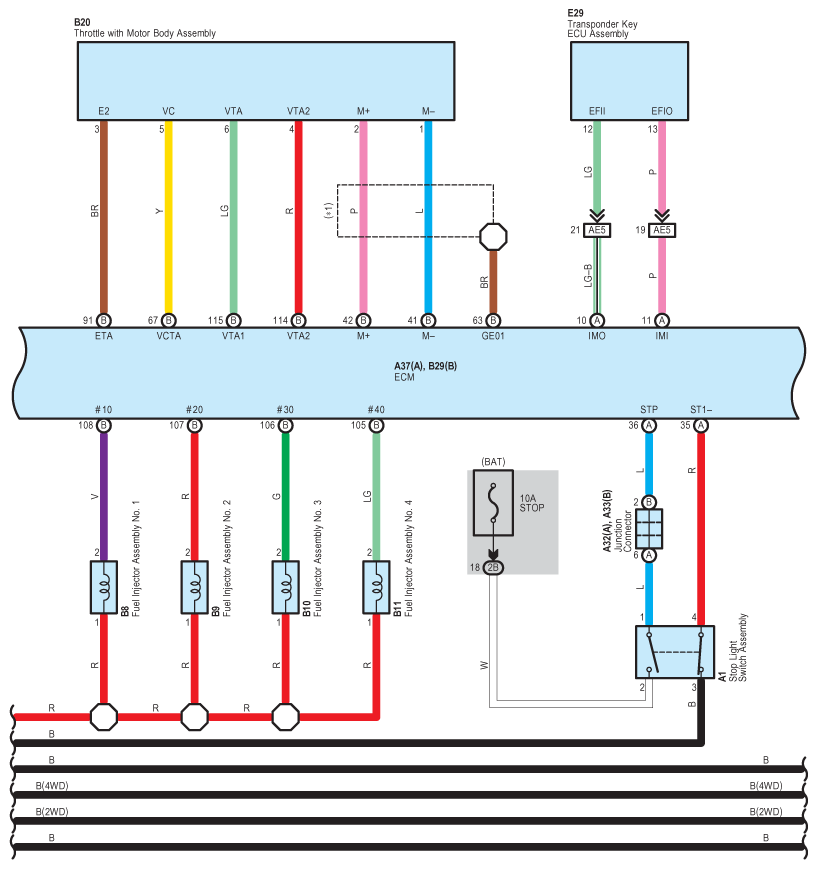

Fig 6: Engine Control Wiring Diagram (2AZ-FE) (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

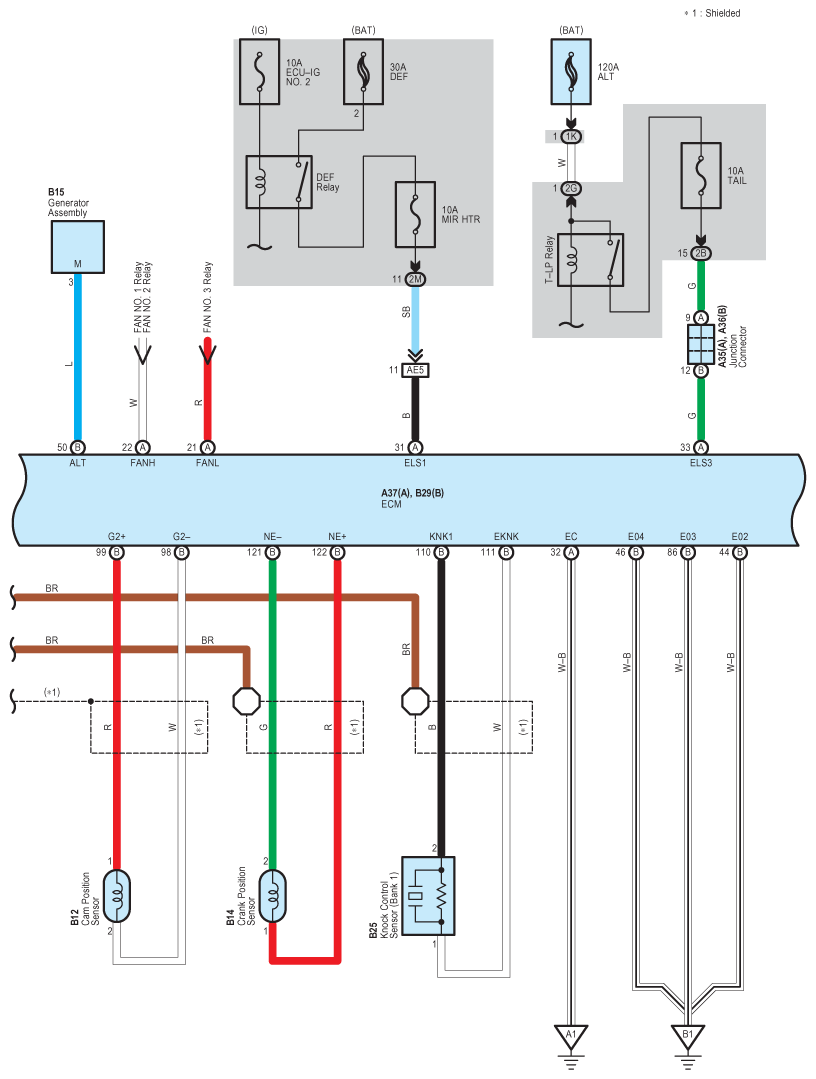

Fig 7: Engine Control Wiring Diagram (2AZ-FE) (7 Of 10)

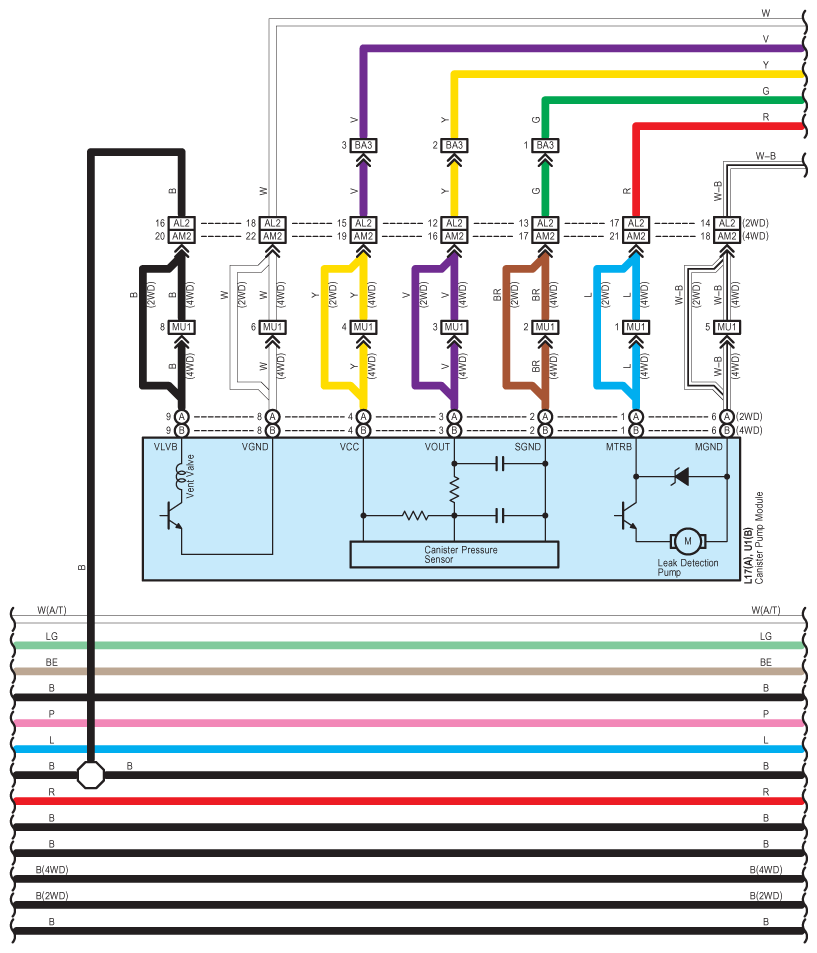

Fig 8: Engine Control Wiring Diagram (2AZ-FE) (8 Of 10)

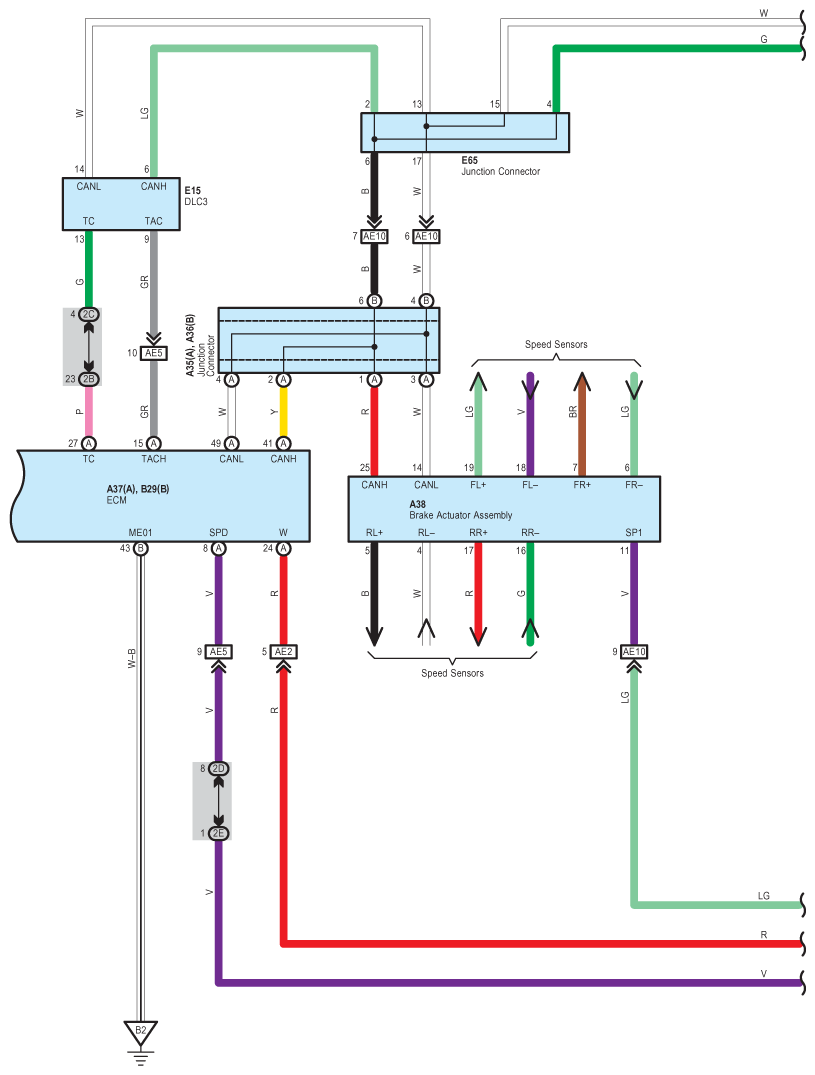

Fig 9: Engine Control Wiring Diagram (2AZ-FE) (9 Of 10)

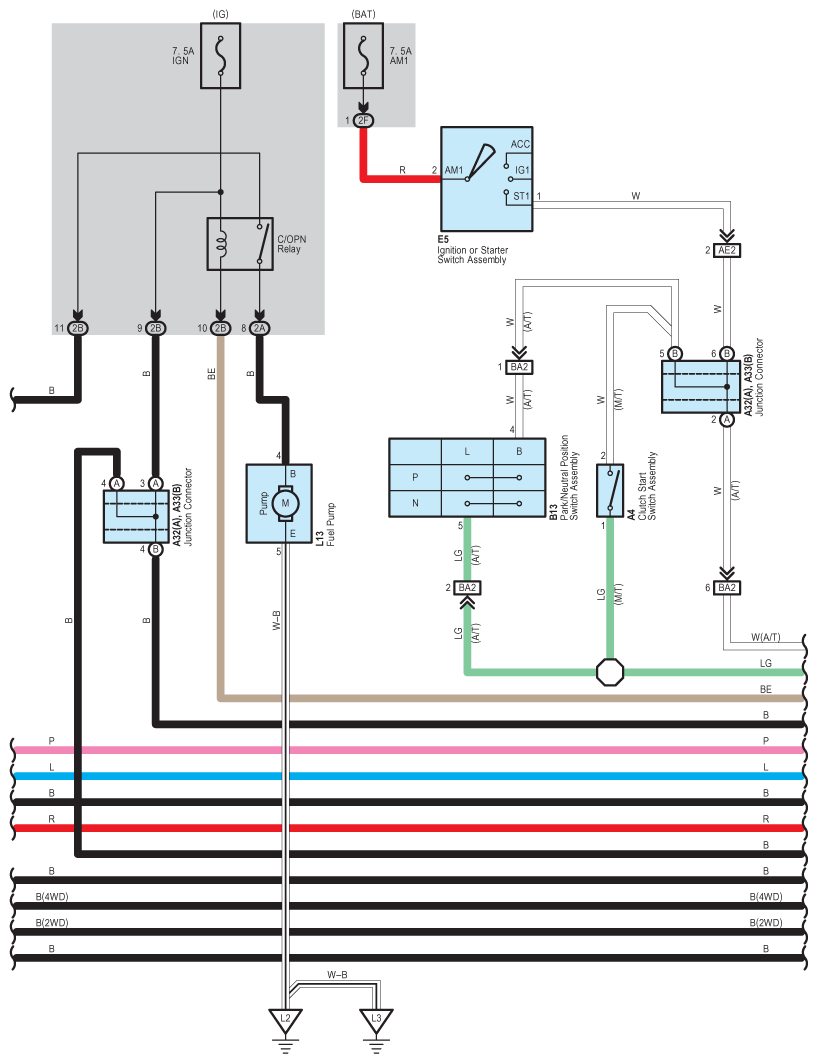

Fig 10: Engine Control Wiring Diagram (2AZ-FE) (10 Of 10)
